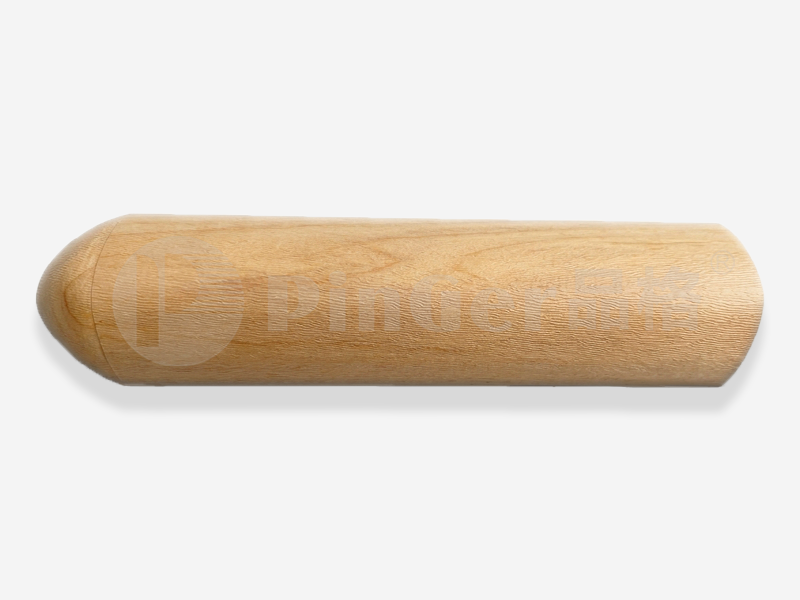

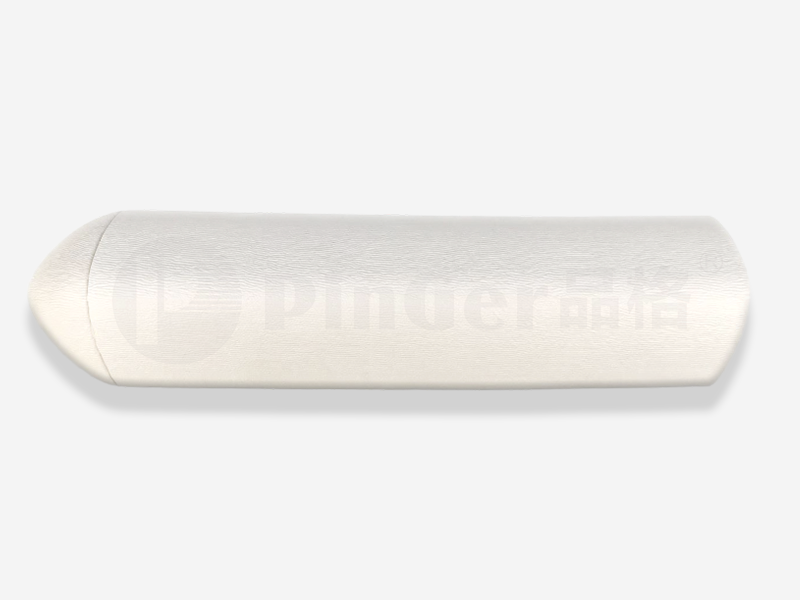

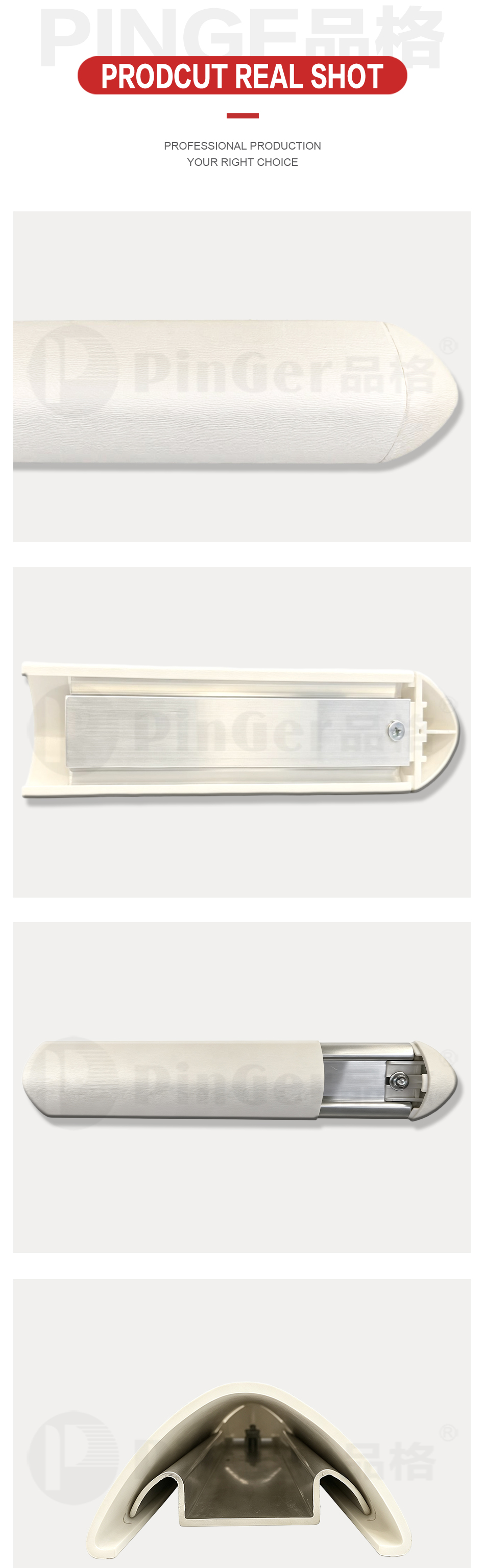

High Impact Triangular Wall Guard for Hospital Corridor

Description: Our High Impact Triangular Wall Guard is designed to provide maximum protection for hospital corridors, healthcare facilities, and heavy-traffic commercial environments. Engineered with a durable, shock-absorbing triangular profile (bullnose style), it effectively cushions impacts from gurneys, wheelchairs, and carts, preventing costly wall damage and maintaining a clean, professional look.

1 Key Features

High Impact Resistance: Engineered to withstand heavy daily collisions from medical equipment and transport carts.
Triangular / Bullnose Design: Ergonomic and functional shape that deflects force away from the wall surface.
Hygienic & Easy to Clean: Non-porous surface that complies with strict hospital cleanliness and sanitation standards.
Easy Installation: Comes with standard mounting components for secure, long-lasting installation on corridor walls.

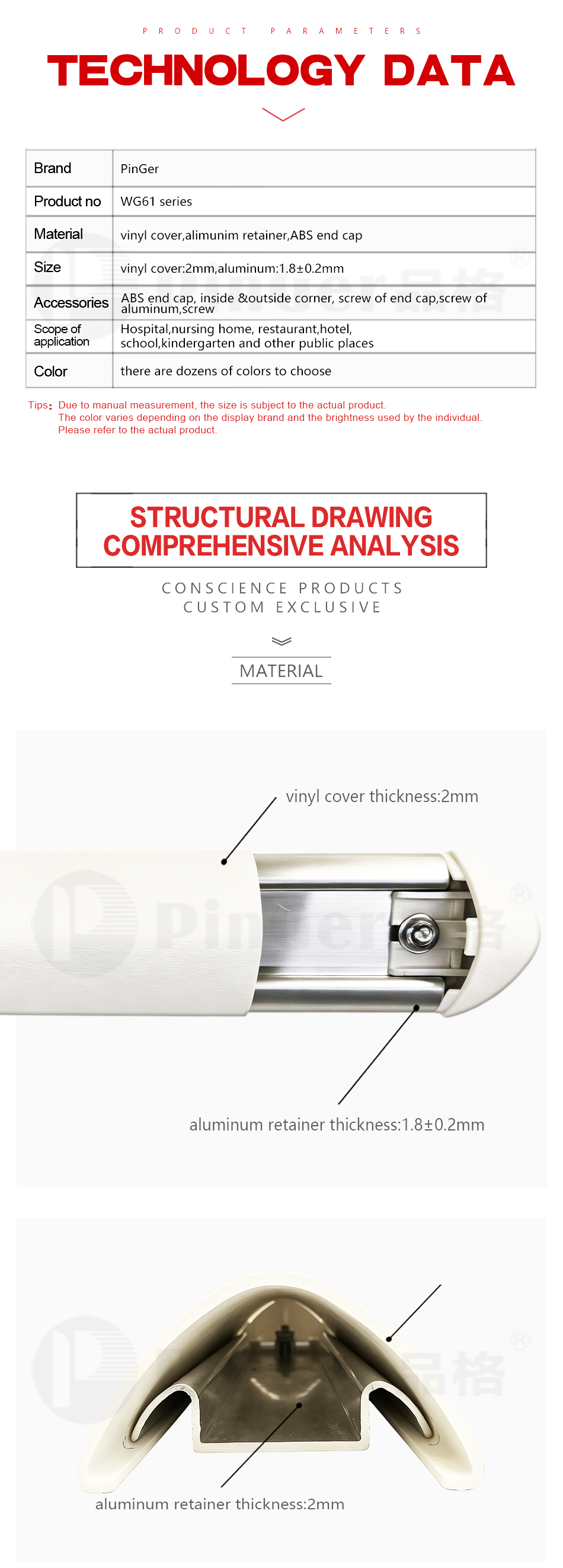

2 Specifications

Model No.: WG61
Product Name: High Impact Triangular Wall Guard / Bumper Guard

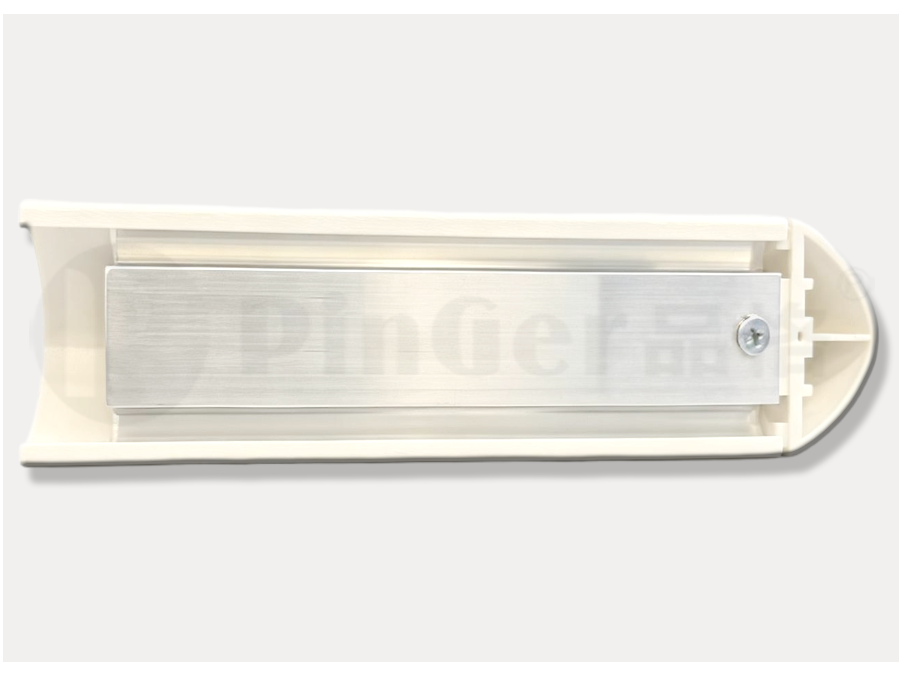

Structure & Materials: Rigid Vinyl (PVC) Outer Cover + Heavy-Duty Continuous Aluminum Retainer
Standard Length: 4.0 meters per piece (custom cutting available)
Standard Width: 61mm
Vinyl Cover Thickness: 2.0mm
Aluminum Retainer Thickness: 1.8mm ± 0.2mm

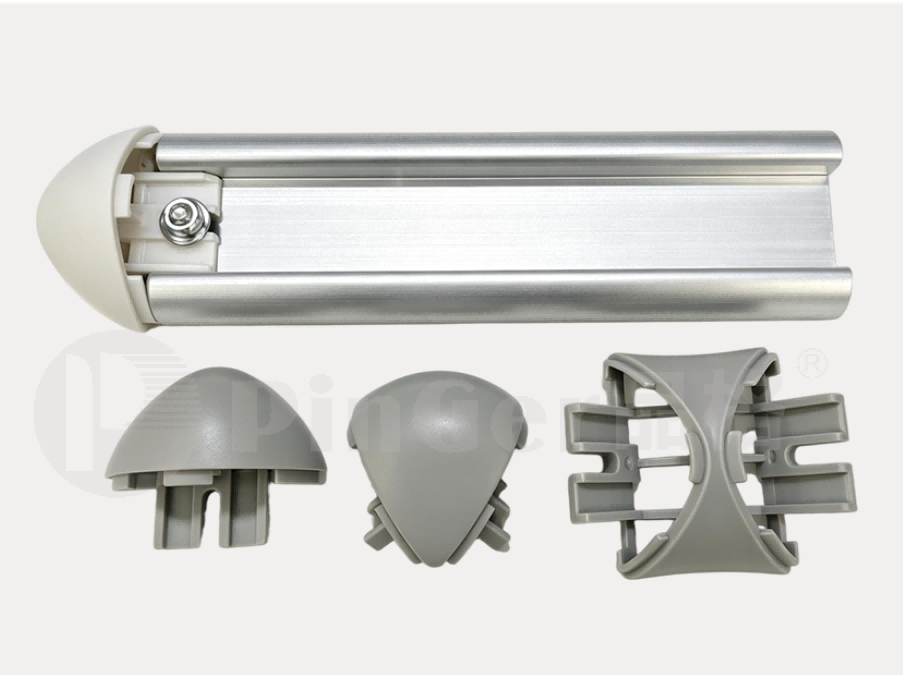

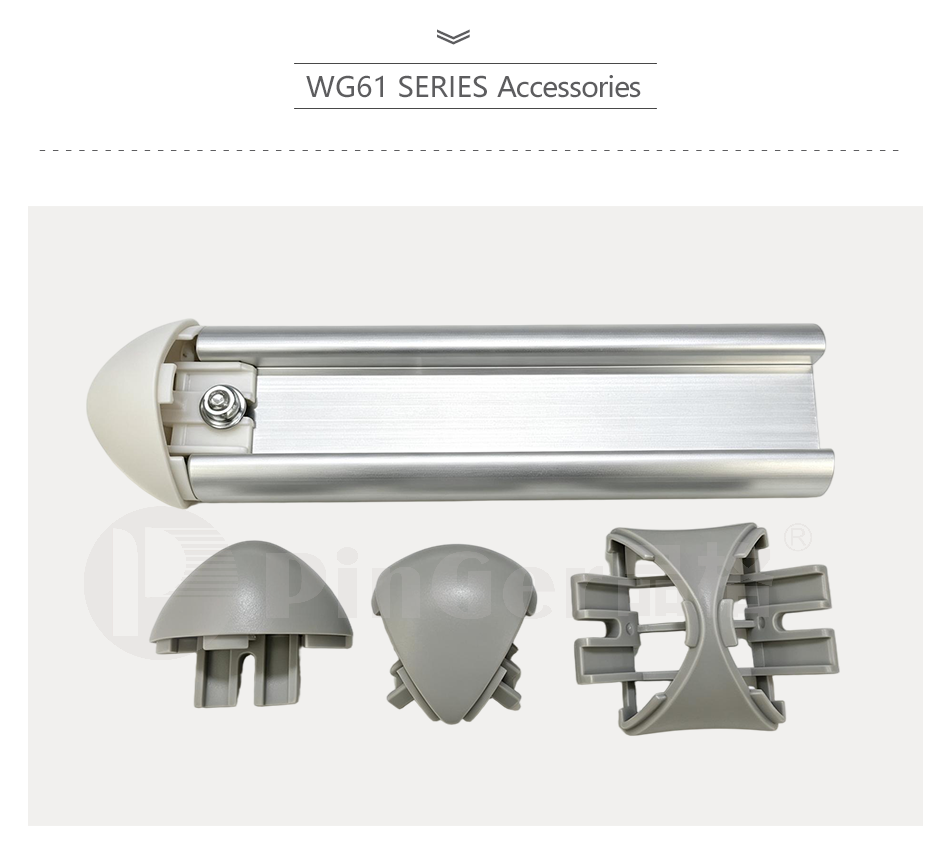

Components: Includes matching ABS end caps and internal/external corner pieces for seamless finishing.

4 Technical Data

Impact Resistance: Heavy-duty collision protection engineered with a 1.8mm thick structural aluminum base to absorb and deflect high impacts from hospital gurneys, wheelchairs, and service carts.
Surface Durability: 2.0mm thick high-impact vinyl cover resists scratching, denting, staining, and daily wear in intense commercial environments.
Fire Performance: Class A / Class B1 flame-retardant rating (ASTM E84 / EN 13501-1 compliant for low smoke and self-extinguishing properties).
Hygienic & Anti-Bacterial: Formulated with anti-microbial additives, non-porous, and resistant to hospital-grade disinfectants, alcohol, and mild acids.

5 Wall Solution

Mid-Wall & Bumper Protection: Ideal for mid-height installation along busy hospital corridors, nursing home hallways, laboratory passage, and cleanroom walls.
Integrated Safety: Works seamlessly with hospital handrails, corner guards, and wall protection sheets to form a complete 360° healthcare facility protection system.
Cost-Effective Maintenance: Extends building lifecycle by preventing structural drywall and plaster damage, significantly cutting down repainting and facility repair costs.

6. Installation/Cleaning

Installation Method:
1. Secure the continuous 1.8mm thick aluminum retainer directly to the wall using structural fasteners/screws at specified intervals.

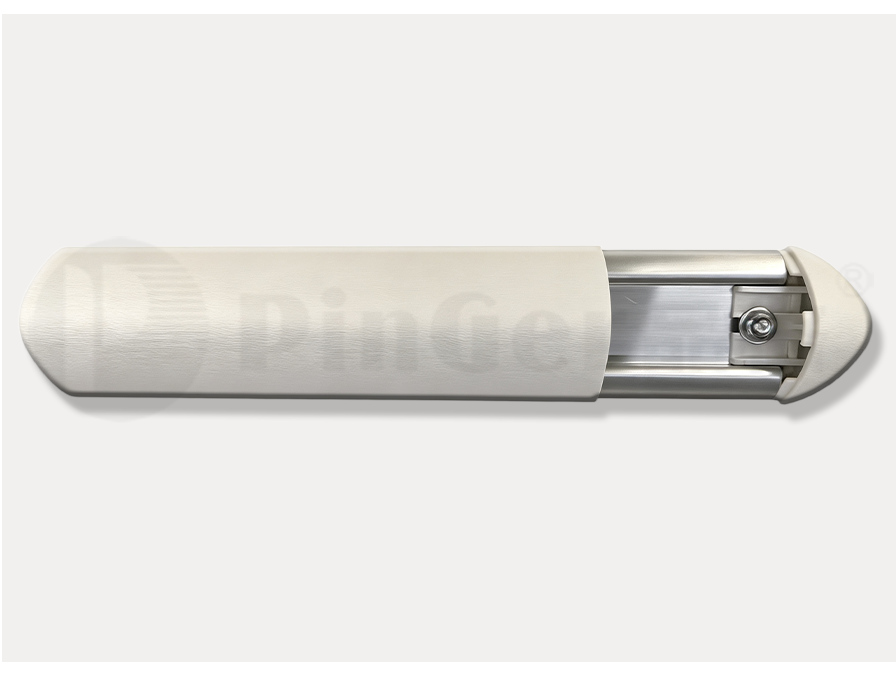

2. Snap the 2.0mm rigid vinyl cover firmly onto the aluminum bracket.
3. Attach the matching ABS end caps and corner pieces to complete the installation.
Cleaning & Maintenance: Easily wiped clean using warm water with neutral detergent or standard medical-grade chemical disinfectants. Non-porous surface prevents stain penetration.

7. Sustainability

Eco-Friendly Construction: Phthalate-free and heavy-metal-free materials, 100% recyclable vinyl and aluminum components.
Indoor Air Quality: Low-VOC emissions certified, safe for sensitive healthcare and nursery interiors.
LEED Contribution: Helps projects achieve credits for sustainable materials, lifecycle extension, and indoor environmental quality.

PinGer® High Impact Triangular Wall Guard WG61

Technical Specifications & Downloads

Download Pinger official technical documentation and specifications catalog below for Wall Guard Model WG61.

Pinger Wall Guard WG61 Technical Specifications Download PDF

Technical Data & Specifications

PinGer High Impact Triangular Wall Guard WG61 is engineered with a continuous 1.8mm aluminum retainer and a 2.0mm antibacterial rigid vinyl cover. Specially designed for hospital corridors and high-traffic commercial spaces, WG61 offers exceptional heavy-duty collision protection, fire-retardant performance, and non-phthalate environmental safety.

HYGIENE

PinGer Wall Guard Antibacterial and Mould Proof Technical Data

Bacterial & Fungal Resistant

ANTIBACTERIAL PERFORMANCE

JIS Z 2801:2010 (>99.9% inhibits growth of E. coli & S. aureus)

FUNGAL & MOULD PROOF

ASTM G21-15 (>99.9% inhibits, Class 0 zero-growth rating against Aspergillus & Penicillium)

SAFETY

PinGer Fire Retardant and Flame Spread Rating Technical Data

Fire Performance

FIRE & SMOKE RATING
ASTM E84-17 (Class A) / Euro EN13501-1 (Class B)

HORIZONTAL BURNING
ASTM D635-22 (Self-extinguishing, stable under fire)

SMOKE TOXICITY
Non-toxic, low smoke density growth

DURABILITY PinGer Heavy Duty Impact & Chemical Resistance Technical Data

Impact & Chemical

HIGH IMPACT PROTECTION
ASTM D256-10el & GB/T 14153-1993 Heavy-duty crash test pass

CHEMICAL RESISTANCE
ASTM D543-14 (Resists hospital disinfectants, acids & alkalis)

STAIN RESISTANCE
EN 423:2001 (Level 0 stain resistant, easy to clean)

SUSTAINABILITY PinGer LEED, FSC and LCA Environmental Certifications

Green & LEED Certifications

TVOC & FORMALDEHYDE
CDPH01350 & GB/T 18580-2017 (Low VOC, Formaldehyde-free)

HEAVY METAL SAFETY
CA65 & SGS Certified (Phthalate-free, Lead & Benzene-free)

SUSTAINABLE & RECYCLABLE
LEED Compliant, FSC Certified & 100% Recyclable materials

WG61 Core Performance Highlights

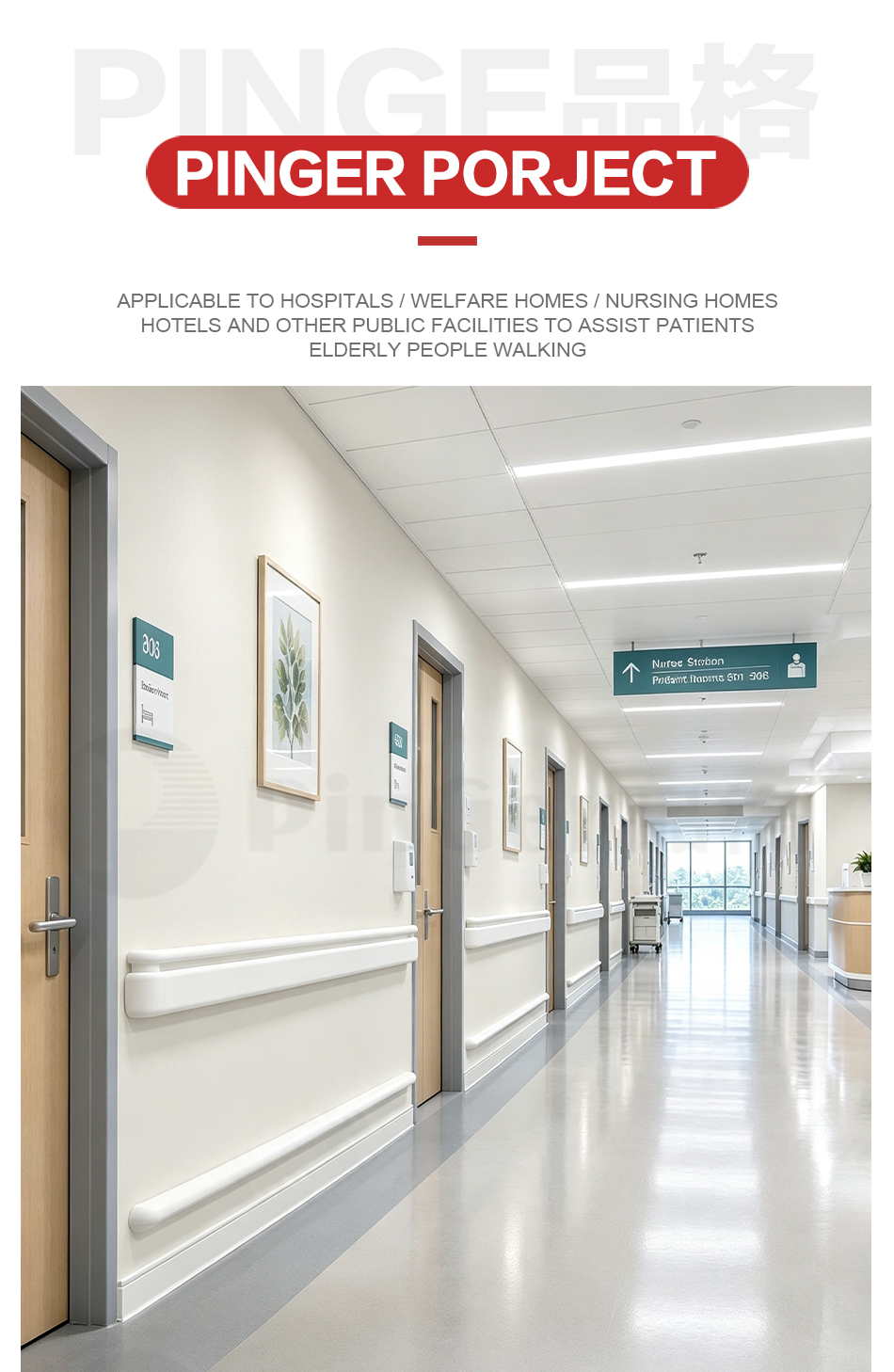

Designed for hospital corridors, clinical nursing stations, cleanrooms, laboratories, senior care facilities, educational institutions, and high-traffic commercial spaces requiring continuous wall protection.

Anti-Bacterial and Mildew Wall Guard WG61

ANTI-BACTERIAL & MILDEW PROOF

PinGer WG61 vinyl wall guard incorporates advanced antibacterial agents that active inhibit bacterial growth (>99.9%) and mould formation. The non-porous surface withstands frequent cleaning with medical-grade disinfectants, helping hospitals achieve strict hygienic standards.

FIRE SAFETY & FLAME RETARDANT

Engineered to comply with ASTM E84 Class A and Euro EN13501-1 Class B fire standards, the WG61 wall guard offers excellent self-extinguishing properties and low smoke density, ensuring enhanced building interior safety during fire emergencies.

Heavy Duty Anti-Collision Wall Guard WG61

HEAVY-DUTY IMPACT PROTECTION

Featuring a 1.8mm heavy-duty internal aluminum retainer and a 2.0mm high-impact triangular vinyl cover (61mm width), WG61 effectively absorbs and deflects severe collisions from hospital beds, wheelchairs, and service carts, dramatically cutting drywall repair costs.

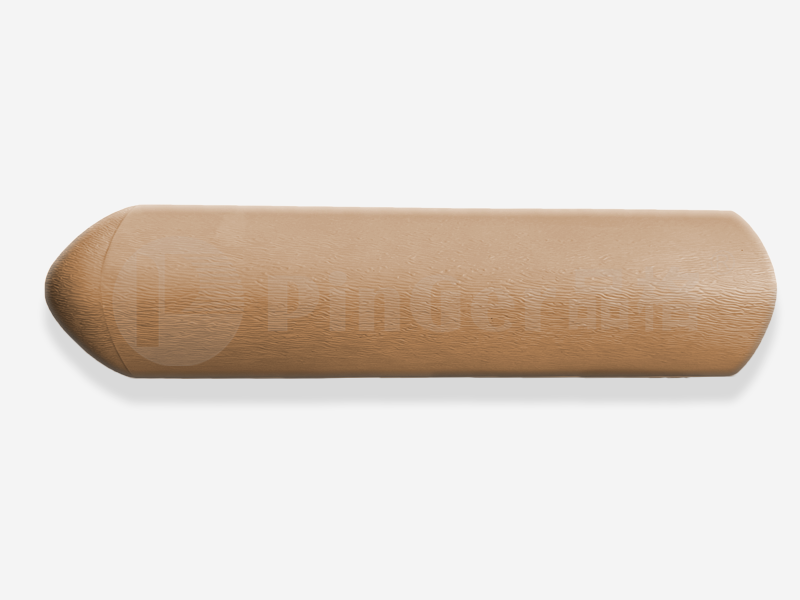

AVAILABLE IN VARIOUS COLORS & STYLES

LEED, LCA & GREEN SUSTAINABLE

PinGer WG61 wall guard products are LCA life-cycle assessed and LEED green building compliant. Free of phthalates, heavy metals, and formaldehyde, WG61 maintains superior indoor air quality with ultra-low VOC emissions and is 100% recyclable.

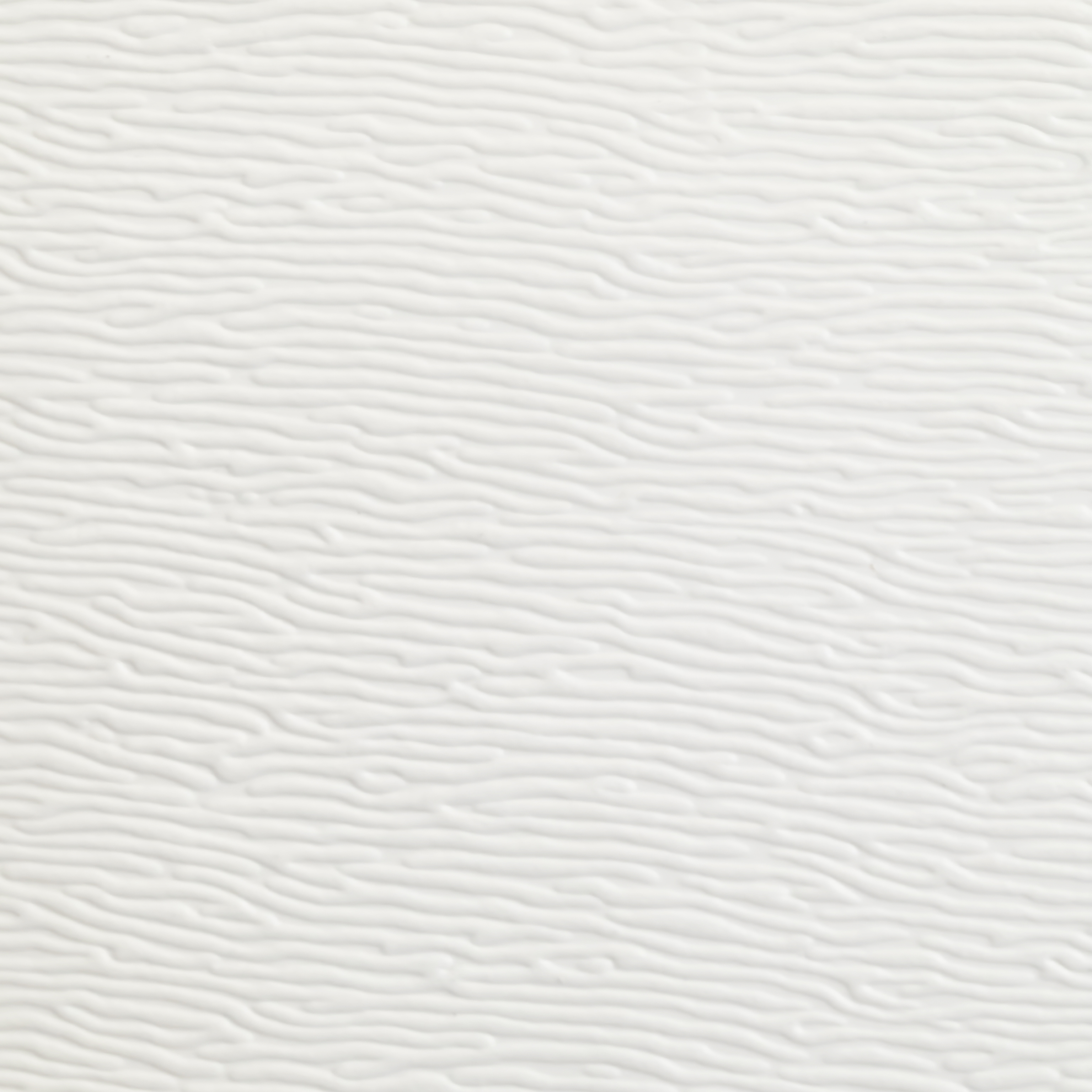

Standard Surface Textures & Finishes

Explore our complete range of professional surface finishes designed for medical wall protection systems. (Click any image to zoom)From hospitals to care homes and nurseries.

Surface Textures Overview

11 Standard Finishes

Lightly (HD)

5 Series Color Card Systems

Browse our complete palette divided into 5 specialized series.

Download Pinger official color card catalog below.

Pinger Color Card Catalog System (5 Series)Download PDF

From hospitals to care homes and nurseries. From rooms to corridors,PinGer offers unrivalled hygiene and impact resistance, exceptionalease of maintenance and outstanding design

Pinger wall panel solutions for hospital nurse stations and corridors under the "Vitality Hue" concept.

It highlights core advantages: color motivation (soft tones for comfort), protection adaptation (2mm - thick, impact/scratch - resistant panels), and detail safety (99.9% antibacterial, seamless welding).

Design suggestions include series like Legend, Lotus, Wood, MO, and Artist,

with various color options for weave - effect panels.

01 SAGA

43 Standard Options

1024D

1866D

1035D

1027D

1602D

1609D

1702D

1704D

1880D

1886D

1039D

3011B

3012B

3412B

3413B

1051P

1053P

1054P

+28 More

02 Nelumbo Nucifera

43 Standard Options

9139A

7443A

9677A

9274A

9378A

9353A

9621A

9240A

9273A

126G

169G

190G

180G

168G

164G

162G

112G

129G

+28 More

03 WOOD

43 Standard Options

1032S

1016S

1002C

1003C

1021C

1050C

1014S

1020C

5016S

5017C

5013S

8071S

8079S

5017C

8086C

8103C

8080C

8084S

+28 More

04 MO

43 Standard Options

1048G

1049M

1052M

1053M

1051M

1707M

1712M

1862M

3012M

9021G

8176MO

8205M

8188M

8198MO

8192MO

8187M

8179M

8314M

+28 More

05 ARTIST

43 Standard Options

8212H

8214H

8215HO

8211HO

8217H

8218HO

8219H

8244H

8239H

8240O

8238H

8241O

8242O

8243O

8245O

8246O

8231H

8233H

+28 More

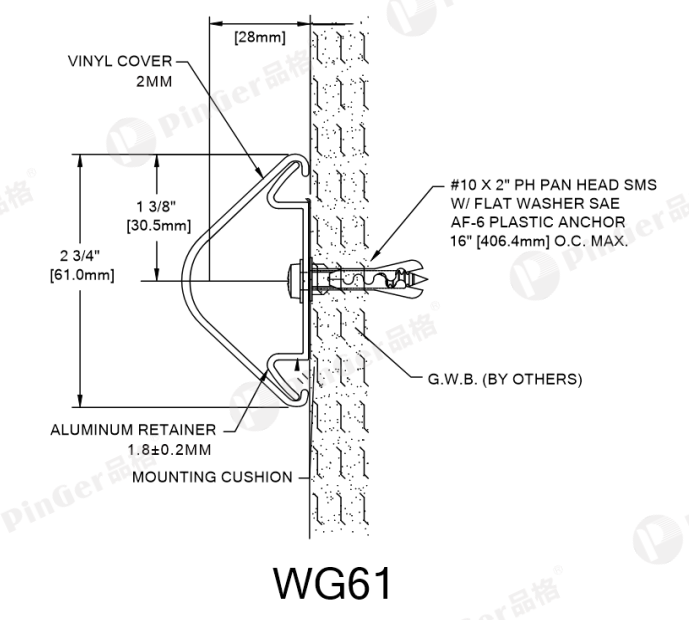

CAD Drawings

Download professional architectural CAD drawings for Pinger Wall Guard WG61 to incorporate into your healthcare building designs.

Pinger Wall Guard WG61 CAD Drawing Download PDF

Wall Guard WG61 Installation Guidelines

Comprehensive installation instructions, substrate requirements, and step-by-step assembly guidelines for Pinger Wall Guard WG61 systems.

A. Wall Surface & Substrate Requirements

Approved Substrates (Correct): Solid masonry walls, concrete studs, gypsum board with metal/wood studs, and solid block backing.

Unsuitable Substrates (Requires Rectification):
• Hollow or Damaged Drywall: Lacks holding strength for anchors; requires internal wood/metal blocking.
• Uneven Walls: Surface irregularities cause retainer bending; must be leveled before drilling.
• Damp / Moldy Walls: Moisture degrades structural integrity; resolve leaks and seal before installation.

[ Click to zoom: Substrate Requirements ]

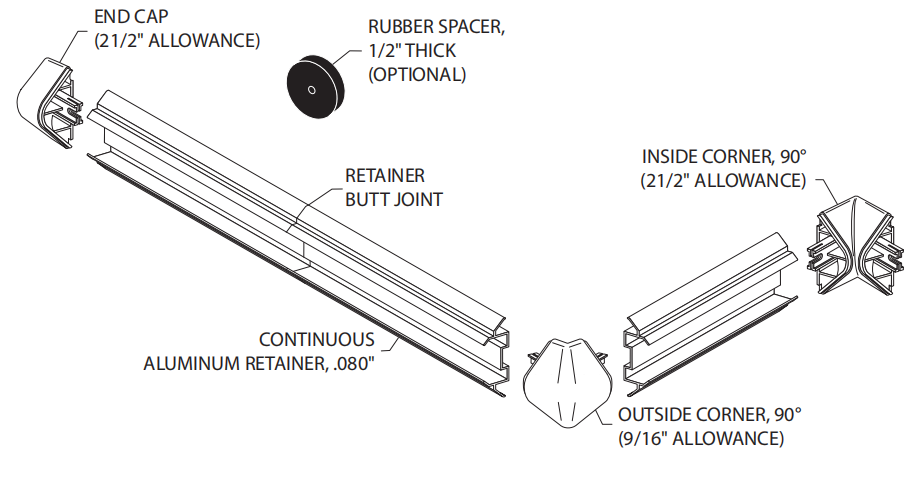

B. Retainer Cutting & Accessory Allowance

Cut the continuous 1.8mm aluminum retainer to the calculated length, making proper deductions for end caps and corner accessories:

End Cap Allowance: Deduct 2-1/2" (63.5mm) for each end cap return.
Inside Corner (90°): Deduct 2-1/2" (63.5mm) allowance per inside corner.
Outside Corner (90°): Deduct 9/16" (14.3mm) allowance per outside corner.

Note: Trim factory edges clean and square before finalizing retainer length.

[ Click to zoom: Component Allowances ]

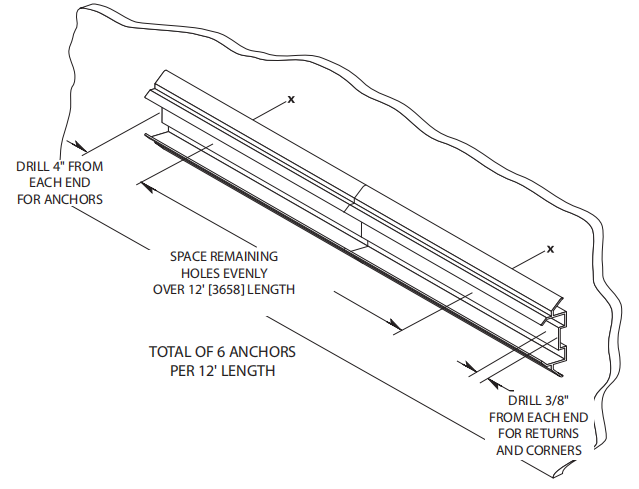

C. Drilling & Anchor Hole Layout

Prepare mounting holes along the centerline of the aluminum retainer:

End Hole Spacing: Drill 1/4" (6mm) holes 4" from each end of the retainer.
Accessory Fastening: Drill 3/8" from each end for returns/corners attachment.
Even Distribution: Space remaining holes evenly over length (total 6 anchors per 12' length).

[ Click to zoom: Drilling Spacing Layout ]

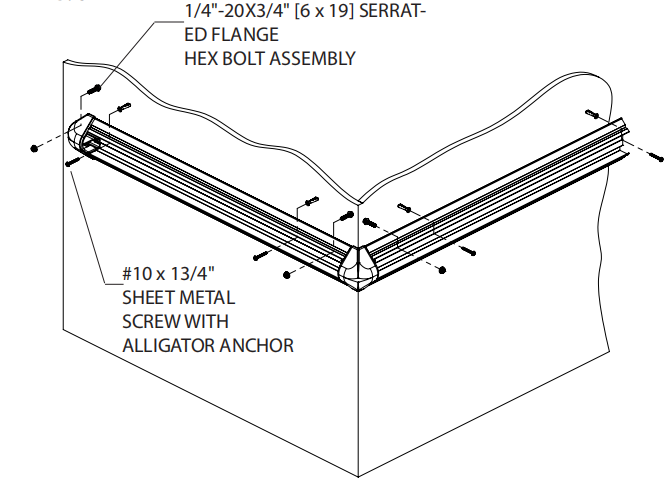

D. Mounting Retainer & Corner Accessories

Secure the heavy-duty aluminum channel precisely to the wall:

Wall Drilling: Drill marked wall locations with a 1/4" (6mm) drill bit and insert Alligator anchors.
Accessory Fit: Slide end caps or corners onto retainer, leaving a 1/16" (1.5mm) gap for alignment.
Fastening: Mount assembled retainer using #10 x 1-3/4" sheet metal screws (or optional 1/2" rubber spacers behind retainer).

[ Click to zoom: Assembly Details ]

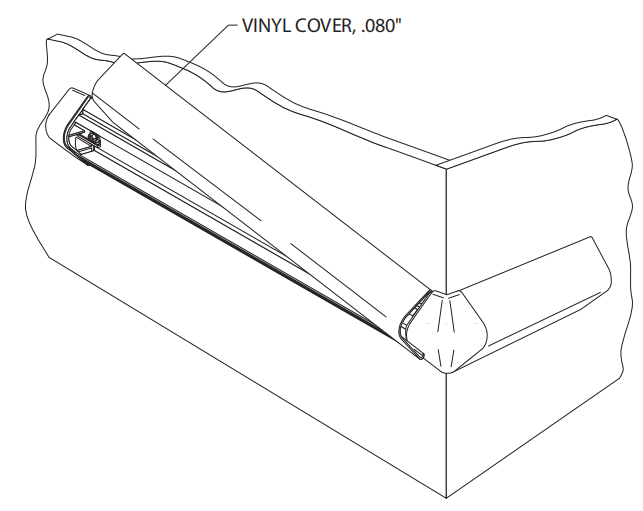

E. Snap-on Vinyl Cover Installation

Finalize the installation with the 2.0mm high-impact rigid vinyl cover:

Precision Cutting: Cut vinyl cover to length between returns/corners; ensure square factory edges.
Positioning: Align the cover on the mounted retainer and adjust accessories for a tight seamless fit.
Snap Engagement: Starting at one end, push cover firmly onto retainer channel until it snaps securely into place.

[ Click to zoom: Snap Cover Attachment ]

Pinger Wall Panel Installation & Cleaning

Professional guidelines for maintaining medical-grade wall protection systems.

Installation Demonstration

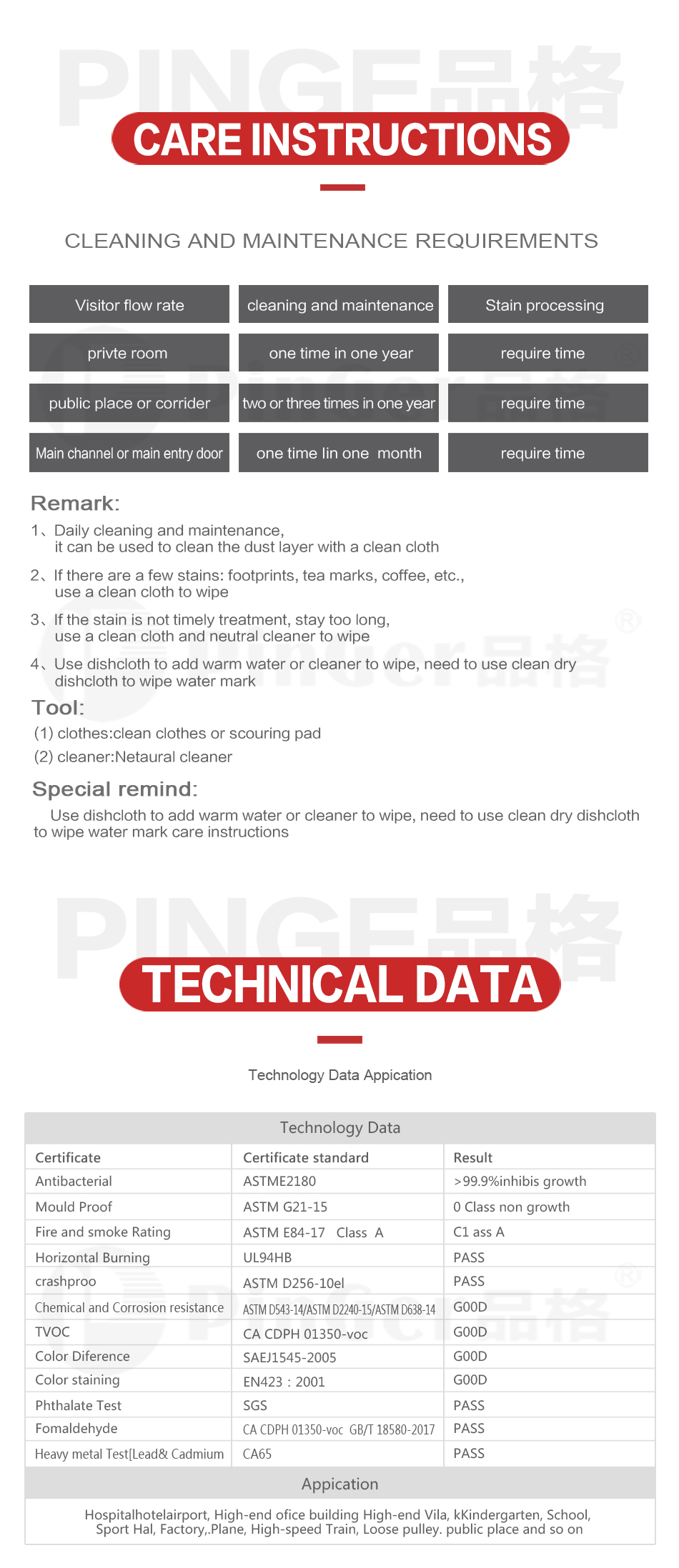

Pinger [品格®] Cleaning and Maintenance

Recommended Cleaning Frequencies for Different Traffic Levels

Traffic Volume	Routine Cleaning and Maintenance	Stain Removal
Low: Private offices, changing rooms	Once a month	As needed
Moderate: Internal corridors of public offices, conference rooms	Two to three times a month	As needed
High: Main entrances, corridors, studios	Once a week	As needed

Instructions

For routine cleaning and maintenance, simply use a clean cloth to remove dust.
In case of minor stains such as footprints, tea stains, or coffee stains, wipe with a clean cloth and warm water.
If stains are not dealt with in a timely manner and have been left for too long, use a clean cloth with a neutral cleaner to wipe.
After wiping with warm water or a cleaner, use a dry clean cloth to dry the water marks.

Cleaning Tool Selection

Cloths: Use clean and uncontaminated cloths, preferably microfiber cloths.
Cleaners: Neutral cleaners or alcohol can be used.

Special Notes

Oil-based (paint-like) stains are difficult to remove. For decorative wall surfaces, spraying can be done. If oil-based (paint-like) spray needs to be removed, the block panel can be replaced. (For removal of oil-based pen marks, pure alcohol or a mixture of alcohol and water can be used for scrubbing and wiping.)

Sustainable & Eco-Friendly Details

Designed with environmental responsibility and medical-grade safety at the core for modern healthcare facilities.

1. Green & 100% Recyclable Materials

Manufactured with eco-friendly formulations, both the aluminum retainer and rigid vinyl cover of Wall Guard WG61 are 100% recyclable. Completely free from formaldehyde, benzene, heavy metals, and phthalates/DEHP, ensuring zero toxic emissions and a safe healing environment.

2. Low VOC Emissions & Indoor Air Quality

Tested under rigorous international standards (such as CA CDPH 01350 and ISO 16000), WG61 wall guards exhibit non-detectable TVOC and formaldehyde levels, making them ideal for sensitive areas like ICUs, operating rooms, and clinical wards.

3. Long Durability That Reduces Lifecycle Waste

Serving as heavy-duty armor against medical equipment impacts, WG61 protects corridor walls from scuffs and denting. Exceptional durability reduces the need for frequent wall repairs and repainting, minimizing construction waste over the building's lifecycle.

Frequently Asked Questions (FAQ)

Find answers to common technical and installation queries regarding Pinger Triangular Wall Guard WG61.

Q1: Why are triangular wall guards (WG61) recommended specifically for hospital corridors?

Hospital corridors experience constant traffic from stretchers, wheelchairs, and service carts. WG61 features a 61mm geometric triangular profile backed by a heavy-duty 1.8mm aluminum frame, effectively deflecting collisions away from the wall and preventing costly structural drywall damage.

Q2: Are WG61 wall guards compliant with international fire safety standards?

Yes. Pinger WG61 wall guards are Class A Fire Rated under ASTM E84 / Euro EN13501-1 (Class B) standards, delivering reliable self-extinguishing performance, flame retardancy, and minimal smoke development in compliance with healthcare building codes.

Q3: How do WG61 wall guards perform in terms of infection control and chemical cleaning?

WG61 vinyl covers contain anti-bacterial additives (>99.9% antibacterial rate under JIS Z 2801) and offer high chemical resistance (EN423 Grade A). Cleaning staff can frequently sanitize the non-porous surface with medical-grade disinfectants, alcohol, or bleach without fading or degrading the surface.

Q4: How is the WG61 triangular wall guard installed on the wall?

Installation is straightforward: First, fasten the 1.8mm continuous aluminum retainer directly to the wall using structural screws. Then, snap the 2.0mm rigid vinyl cover securely over the aluminum channel, and finish the ends with matching ABS end caps or corner accessories.

Q5: What are the standard specifications and dimensions for Model WG61?

WG61 comes in a standard profile width of 61mm and a length of 4.0 meters per piece. It features a 2.0mm thick rigid vinyl cover and a 1.8mm (±0.2mm) aluminum retainer. Custom lengths and various solid color options are available upon project request.
