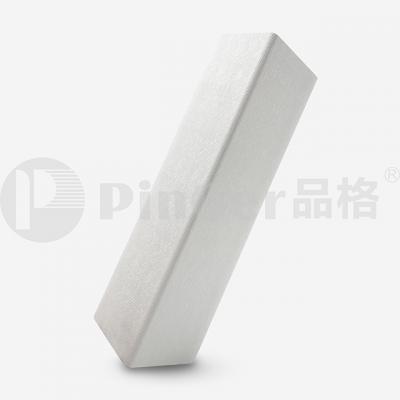

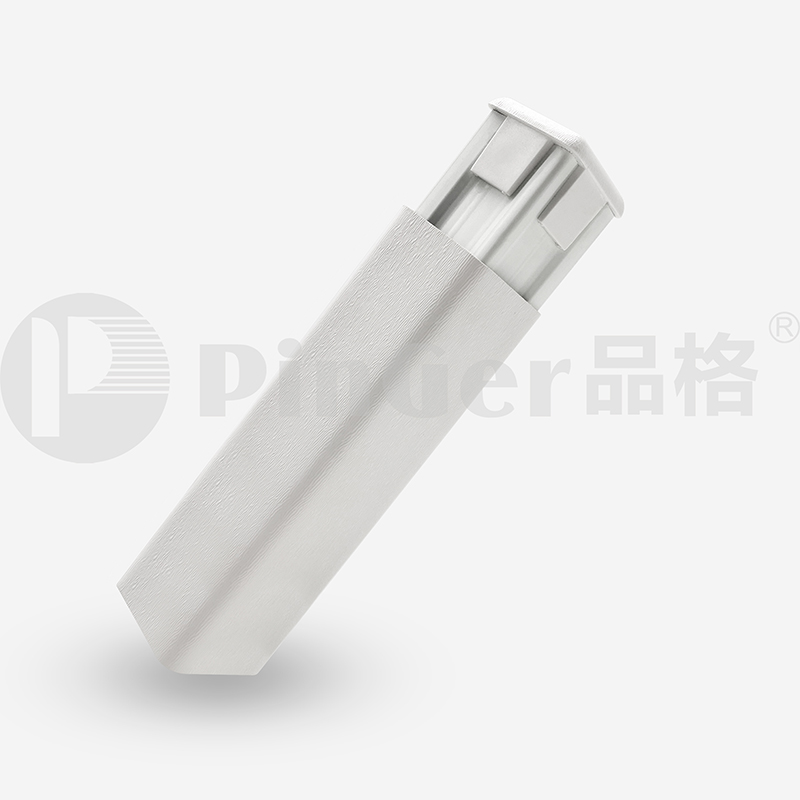

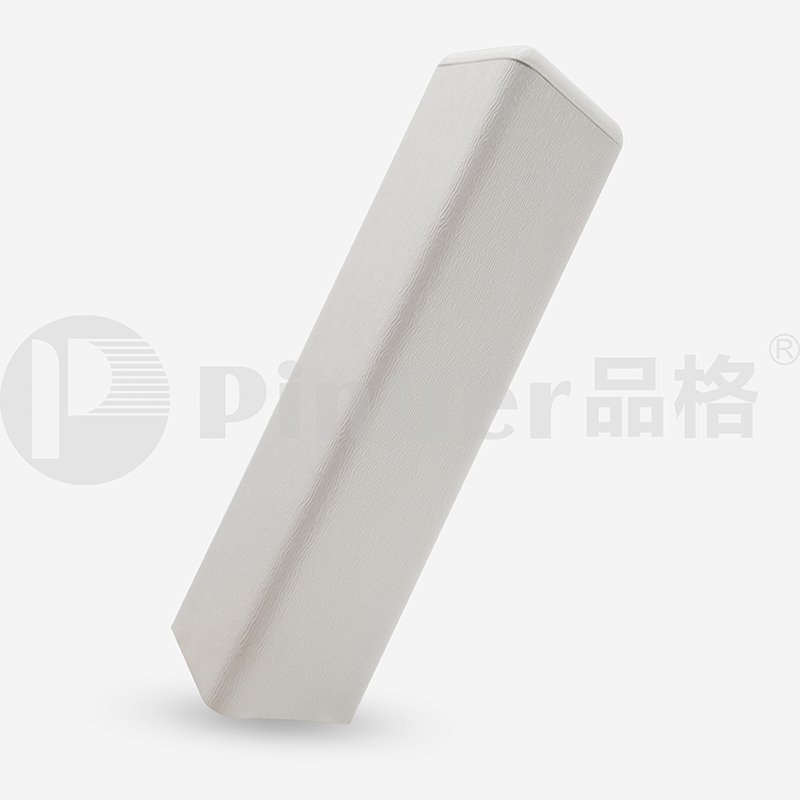

● Model No.：CG511
● Materials：2mm vinyl + 1.8mm aluminum in solid color
● Wing Width：51mm*51mm(2'' * 2'')
● Angle: 90°
● Length：1m/PC、1.5m/PC、2m/PC（customize）
Item NO.:
CG511Product Name：Customize Vinyl Hospital Corner Guards For Walls
Specification
●Flush-mounted wall protect corners from damage with minimum design interruption using Corner Guards.
●Available in 90°, this corner guard can be installed on vinyl wall covering using heavy-duty adhesive.
●Complement interiors with a wide variety of colors available.
●Aluminum insert for cove base installtions.

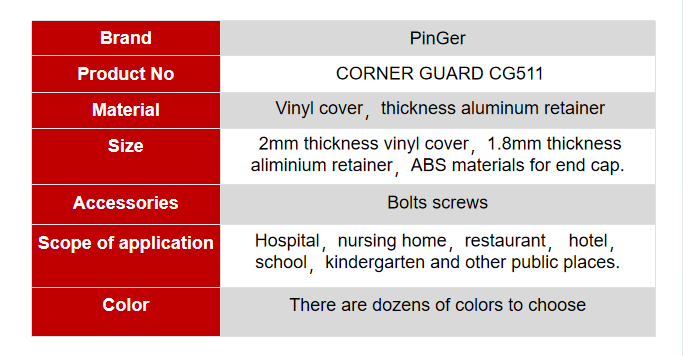

| TECHNOLOGY DATA | |
| Brand | PinGer |
| Product No | CORNER GUARD CG51 |

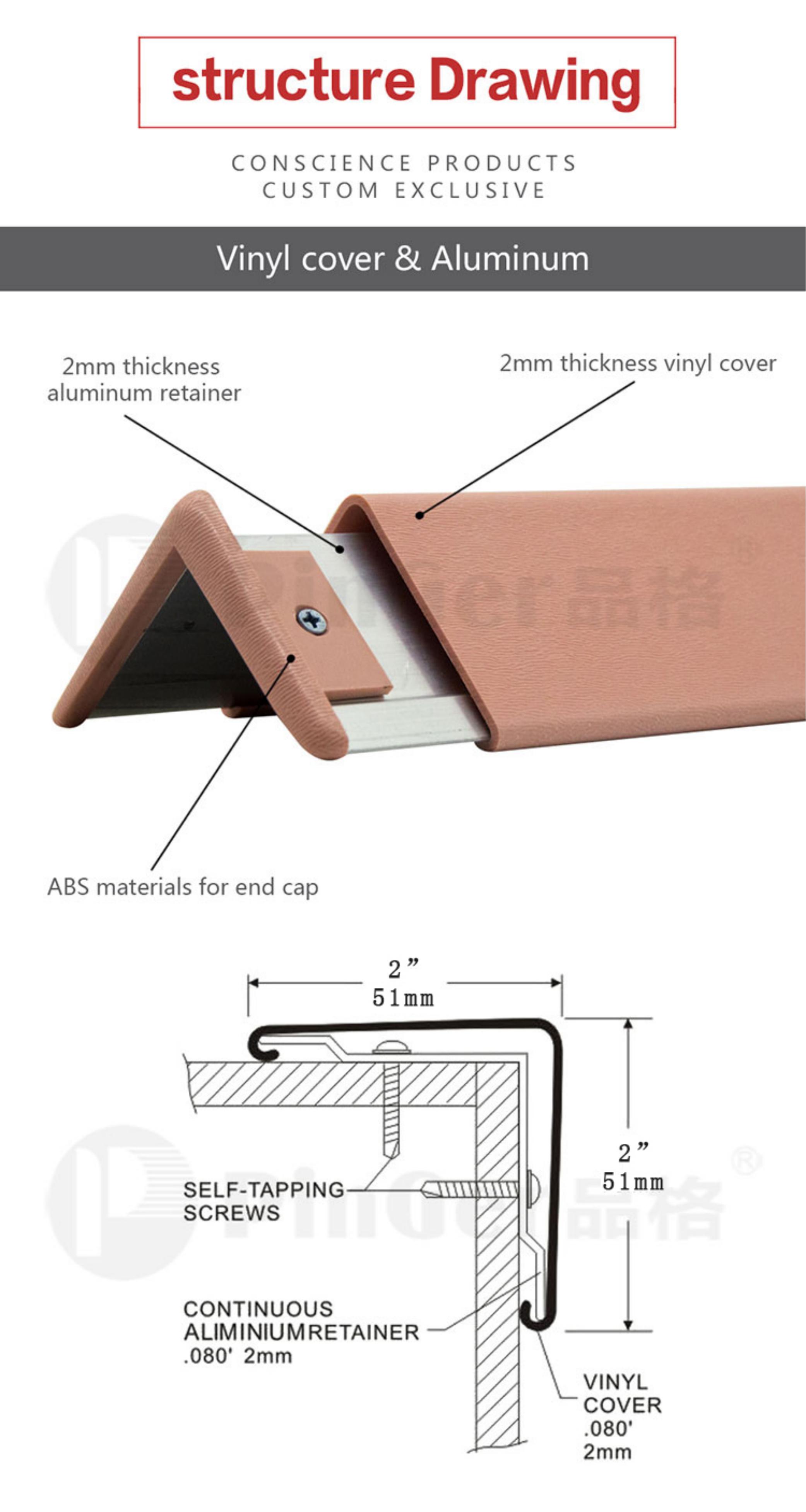

| Material | Vinyl cover，thickness aluminum retainer |
| Size | 2mm thickness vinyl cover，1.8mm thickness aliminium retainer，ABS materials for end cap. |
| Accessories | Bolts screws |
| Scope of application | Hospital，nursing home，restaurant， hotel，school，kindergarten and other public places. |
| Color | There are dozens of colors to choose. |
PRODUCT CHARACTERISTICS
1、Atibacterial Vinyl Material
Vinyl surface cover plate has fine particles and compact density. It has ant-collision,fireproof,anti-scratch and abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.
The surface layer has anti slip fine lines and anti-fouling treatment,which is easy to clean.
2、Comfortable and convenient
Pinger corner guard installed on the turning of wall to protect it from impact. Recommended height are
1.2m， 1.5m， 2m， 3m.
3 Comfortable and convenient
Pinger comer guard installed on the tuming of wall to protect it from lmpact
Recommended heiaht are 1.2m.1.5m.2m.3m

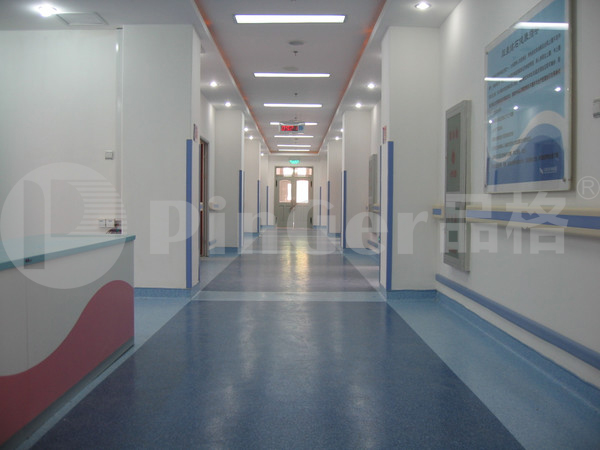

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS
●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung
Semiconductor Precision Workshop.
●Also suitable for interior decoration of hospital， schools laboratories， pharmaceutical plants airplanes， ships，
high-speed rails.
Technical Data Sheet
●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .
●Class A fire and smoke rating. (per ASTM E84-17)
●Class B fire and smoke rating (per GB8624-2012)
●Horizontal Burning (per UL94HB)
●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .
●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .
●TVOC (per CA CDPH 01350-voc )
●Color Difference (per SAEJ1545-2005)
●Color Stainning (per EN423:2001)
●Phthalate Test (per SGS)
●Formaldehyde (per CA CDPH 01350-voc And GB/T 18580-2017)
●Heavy Metal Test (per CA65)
Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height

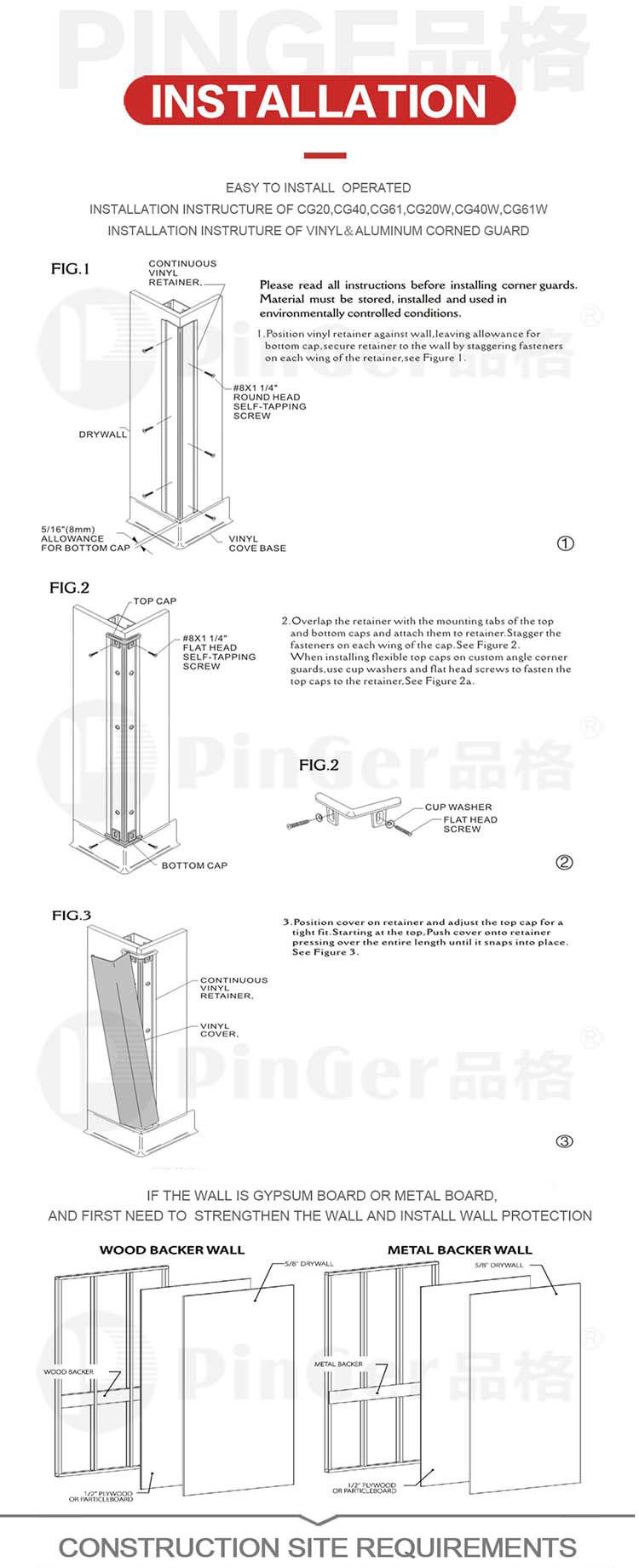

Installation Instruction–Wall Protection Corner Guards
●Aluminum insert for cover base installation with screws fixed.
Applications :
●High-traffic and high-impact areas . cleaning room,Corridors . Classrooms . Patient/resident rooms . Conference rooms .
Back of house . Columns Benefits . Endless design options allows for coordination within any interior design scheme . Durable.
Pinger keeps interior protected and looking good .
●Pinger color is integral throughout, helping reduce discoloration caused by scratching Building Segments . Aviation &
Transportation . Education . Healthcare . Hospitality . Office & Mixed Use . Retail . Senior Living . Sports & Entertainment
Pinger Project History
●Pinger now owns dozens of national inventions and new practical patents. It has passed third-party certifications from ISO9001
quality system certification, ISO14001 environmental monitoring system certification, EU CE certification, and Europe and the United
States SGS international testing certification.
● Pinger wall panel and wall protection system products are in the leading position among similar products. We not only have a stable
market share in China, but also sell products in more than 100 countries and regions in the world, and occupy a certain market share in the international market.
|
TECHNICAL DATA |
||
|
Certificate |
Certificate standard |
Result |
|
Antibacterial |
ASTME2180 |
>99.9% inhibis growth |
|
Mould Proof |
ASTM G21-15 |
0 Class non growth |
|
Fire and smoke Rating |
ASTM E84-17 Class A |
Class A |
|
Horizontal Burning |
UL94HB |
PASS |
|
Crashproo |
ASTM D256-10el |
PASS |
|
Chemical and Corrosion resistance |
ASTM D543-14/ASTM D2240-15/ASTM D638-14 |
G00D |
|
TVOC |
CA CDPH 01350-voc |
G00D |
|
Color Diference |
SAEJ1545-2005 |
G00D |
|
Color staining |
EN423：2001 |
G00D |
|
Phthalate Test |
SGS |
PASS |
|
Fomaldehyde |
CA CDPH 01350-voc GB/T 18580-2017 |
PASS |
|
Heavy metal Test[Lead& Cadmium |
CA65 |
PASS |
| Appication | ||
| Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on. | ||
Download Pinger official technical documentation and specifications catalog below for Corner Guard Model CG511.
Pinger Customize Vinyl Hospital Corner Guards For Walls CG511 is engineered with 2mm vinyl + 1.8mm aluminum in solid color ● Wing Width：51mm*51mm(2'' * 2'') ● Angle: 90° ● Length：1m/PC、1.5m/PC、2m/PC（customize）. Specially designed for hospital corridors and high-traffic commercial spaces, CG511 offers exceptional heavy-duty collision protection, fire-retardant performance, and non-phthalate environmental safety.
Designed for hospital corridors, clinical nursing stations, cleanrooms, laboratories, senior care facilities, educational institutions, and high-traffic commercial spaces requiring continuous corner protection.
TECHNOLOGY DATA
QUALITY ASSURANCE
Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.
2. Fungal and Bacterial Resistance
The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial proof:JISZ2801:2010.
3. Mould Proof
ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.
4. Horizontal burning
As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.
5. Impact Strength
Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.
6. Environmental friendly
No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO 16000-3-6-9 AND SGS:CA CDPH 01350 -VOC
7. Does not stain
Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye，Staining test:EN423:2001.
8. ISO Certified
Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.
9. Chemical and CORROSION Resistance
Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.
10. No heavy metals
Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65
11. Durable and easy to install
Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.
Explore our complete range of professional surface finishes designed for medical wall protection systems. (Click any image to zoom)From hospitals to care homes and nurseries.
Lightly (HD)Browse our complete palette divided into 5 specialized series.
Download Pinger official color card catalog below.
From hospitals to care homes and nurseries. From rooms to corridors,PinGer offers unrivalled hygiene and impact resistance, exceptionalease of maintenance and outstanding design
Pinger wall panel solutions for hospital nurse stations and corridors under the "Vitality Hue" concept.
It highlights core advantages: color motivation (soft tones for comfort), protection adaptation (2mm - thick, impact/scratch - resistant panels), and detail safety (99.9% antibacterial, seamless welding).
Design suggestions include series like Legend, Lotus, Wood, MO, and Artist,
with various color options for weave - effect panels.
01 SAGA
1024D
1866D
1035D
1027D
1602D
1609D
1702D
1704D
1880D
1886D
1039D
3011B
3012B
3412B
3413B
1051P
1053P
1054P
02 Nelumbo Nucifera
9139A
7443A
9677A
9274A
9378A
9353A
9621A
9240A
9273A
126G
169G
190G
180G
168G
164G
162G
112G
129G
03 WOOD
1032S
1016S
1002C
1003C
1021C
1050C
1014S
1020C
5016S
5017C
5013S
8071S
8079S5017C
8086C
8103C
8080C
8084S
04 MO
1048G
1049M
1052M
1053M
1051M
1707M
1712M
1862M
3012M
9021G
8176MO
8205M
8188M
8198MO
8192MO
8187M
8179M
8314M
05 ARTIST
8212H
8214H
8215HO
8211HO
8217H
8218HO
8219H
8244H
8239H
8240O
8238H
8241O
8242O
8243O
8245O
8246O
8231H
8233H

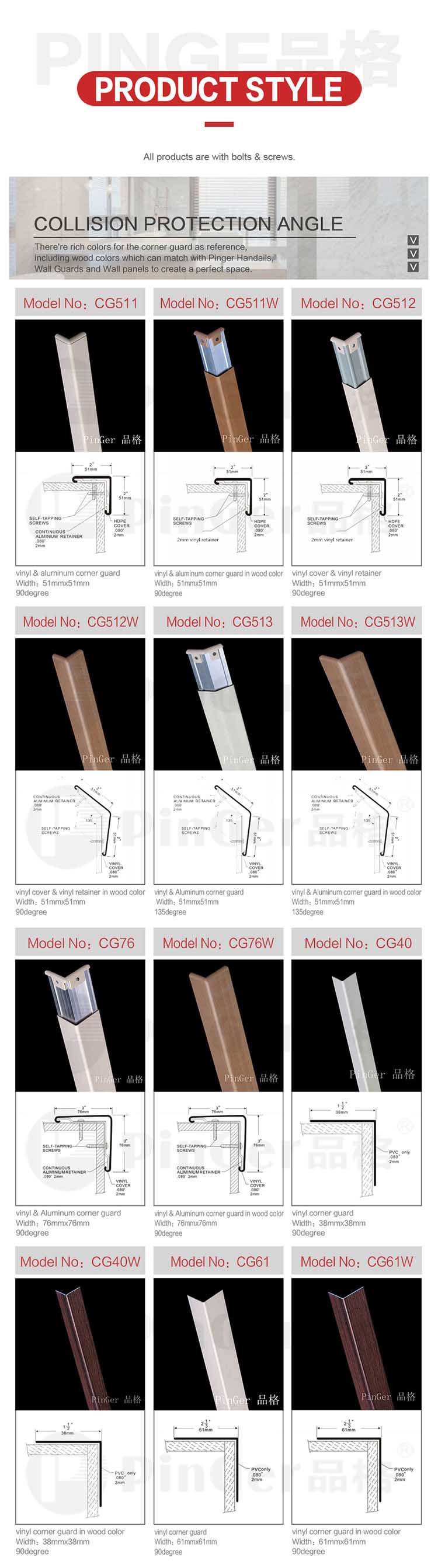

CORNER GUARD CG511
●There're many colors for the Corner Guards as reference, including woodcolors which can match with PinGer Handrails.Wall Guards & Wall Panels to create aperfectsapce.
●Above products are with bolts & screws.
CG511
Vinyl&Aluminum Corner Guards
51mmx 51mm Width
90degree

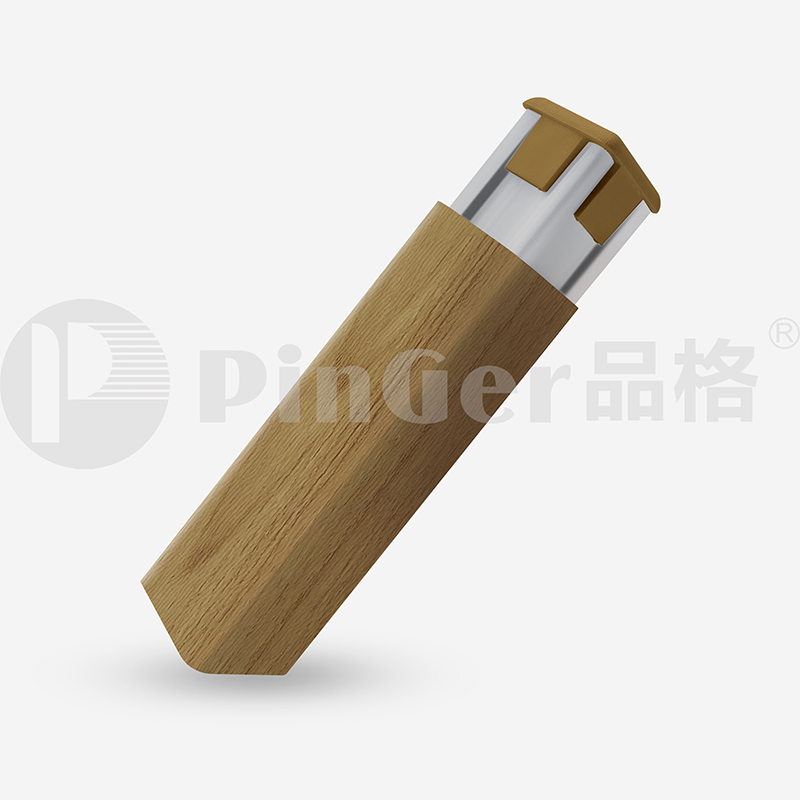

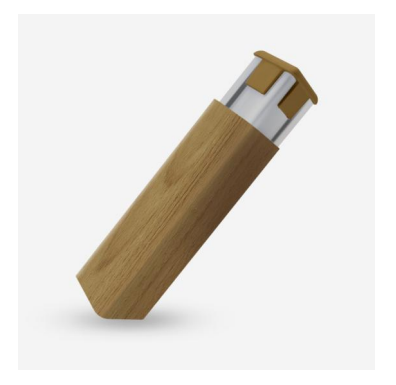

CG511W
Vinyl&Aluminum Corner Guards in Wood Color
51mmx 51mm Width
90degree
Download professional architectural CAD drawings for Pinger Corner Guard CG511 to incorporate into your healthcare building designs.
|
Cleaning And Maintenance Requirements |
||
|
Visitor folw rate |
cleaning and maintenance |
Stain processing |
|
Privte room |
one time in one year |
Require time |
|
Public place or corrider |
two or three times in one year |
Require time |
|
Main channel or main entry door |
one time lin one month |
Require time |
Remark：
1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth
2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe
3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.
4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.
Cleaning tool selection:
(1)clothes: clean clothes or scouring pad
(2)cleaner: nataural cleaner
Special remind：
●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.
Designed with environmental responsibility and medical-grade safety at the core, the Pinger CG511 corner guard helps healthcare, aged-care and commercial projects meet green building and indoor air quality requirements.
Manufactured with eco-friendly formulations, the Pinger CG511 corner guard (2mm vinyl + 1.8mm aluminum in solid color) is 100% recyclable at end of life. It is completely free from formaldehyde, benzene, heavy metals and phthalates/DEHP (California Prop 65 and SGS phthalate tested), so there are no toxic emissions during installation or daily use.
Emissions are tested to CA CDPH 01350 and ISO 16000, with non-detectable TVOC and formaldehyde results. The low-emitting, non-porous surface supports LEED v4 and WELL indoor air quality documentation, making CG511 suitable for ICUs, operating theatres, neonatal units and occupied healthcare corridors.
Built for a long service life, CG511 acts as heavy-duty armour against daily equipment impact, preventing repeated wall or corner repairs, repainting and plasterboard replacement. Fewer repairs mean less construction waste and a lower total cost of ownership over the building lifecycle.
Answers to the questions architects, contractors and hospital procurement teams ask most often about the Pinger CG511 corner guard.
CG511 is a corner guard used to protect exposed 90° wall corners from trolleys, wheelchairs, beds and service carts in hospitals, clinics, schools, hotels, airports and commercial corridors. It absorbs impact that would otherwise crack plasterboard and damage paint, cutting maintenance costs in high-traffic areas.
Yes. Pinger CG511 corner guard is fire retardant to ASTM E84 Class A (flame spread and smoke developed) and EN 13501-1 Class B, with UL94HB horizontal burning compliance. It self-extinguishes and produces low smoke density, which is what healthcare and public-building codes require.
The vinyl surface carries antibacterial additives tested above 99.9% bacterial reduction (JIS Z 2801 / ASTM E2180) and is mould-proof to ASTM G21-15. Because it is non-porous and chemically resistant (EN 423 grade A, ASTM D543), cleaning teams can sanitise it repeatedly with medical-grade disinfectants, alcohol or diluted bleach without fading or surface damage.
Yes. CG511 is a two-part system: first fix the aluminium retainer to the wall corner with screws or structural adhesive, then cut the vinyl cover to length and snap it over the retainer, finishing with matching end caps at the top and bottom. Most contractors install it in minutes per corner with standard tools.
Model CG511 is supplied with a wing width of 51mm*51mm(2'' * 2''), formed at a 90° angle. Custom lengths, solid colours and wood-grain finishes are available on request. It is built with 2mm vinyl + 1.8mm aluminum in solid color, and Pinger supplies matching end caps, corner accessories and fixings so a complete run can be installed from one order.
Yes. CG511 is a 100% recyclable, low-VOC product, so it can be documented under LEED v4 Low-Emitting Materials and supports Material & Resources credits for recyclable content and long service life. Pinger provides the supporting test reports (SGS / Intertek, ASTM and EN standards) for project submittals.

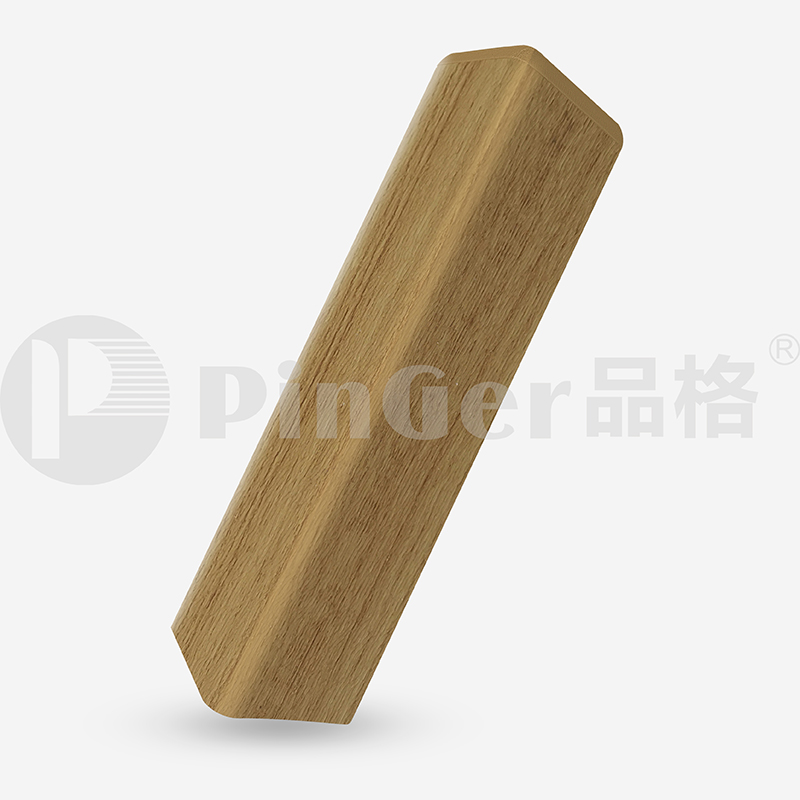

● Model No.：CG511W ● Materials：2mm vinyl + 1.8mm aluminum in wooden color ● Wing Width：51mm*51mm(2''...
● Model No.：CG512 ● Materials：2mm vinyl +2mm vinyl retainer in solid color ● Wing Width：51mm*51mm(2'...
● Model No.：CG512W ● Materials：2mm vinyl + 2mm vinyl retainer in wood color ● Wing Width：51mm*51mm(2...
● Model No.：CG513 ● Materials：2mm vinyl + 1.8mm aluminum in solid color ● Wing Width：51mm*51mm(2'' *...
● Model No.：CG513W ● Materials：2mm vinyl + 1.8mm aluminum in wood color ● Wing Width：51mm*51mm(2'' *...
● Model No.：CG515 ● Materials：2mm vinyl in solid color ● Wing Width：51mm*51mm ● Angle: 135° ● Length...
● Model No.：CG515W ● Materials：2mm vinyl in wood color ● Wing Width：51mm*51mm ● Angle: 135° ● Length...
● Model No.：CG514 ● Materials：2mm vinyl in solid color ● Wing Width：51mm*51mm ● Angle: 90° ● Lengt...
