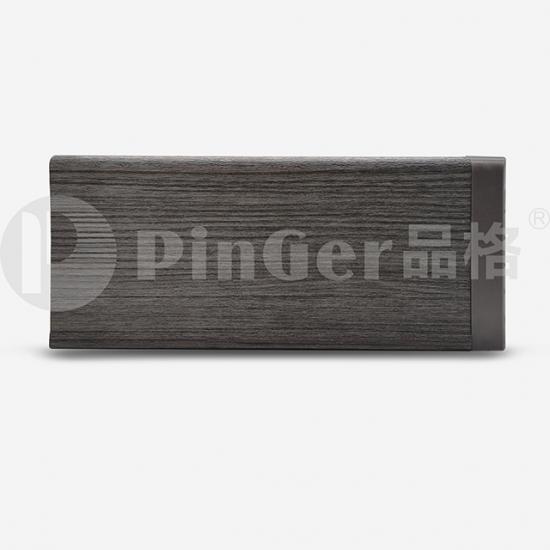

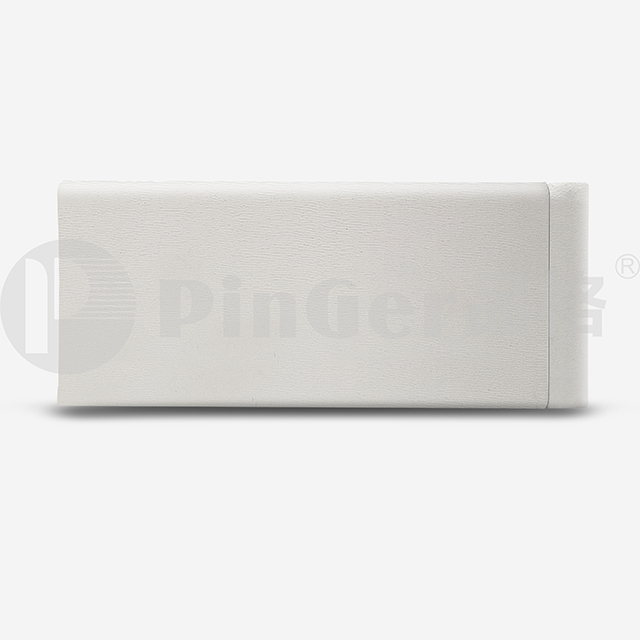

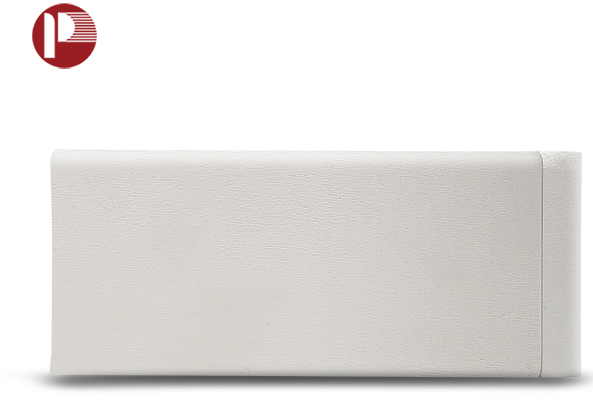

Home Wall Base System 100mm Height vinyl wall base

Non PVC High Impact Wall Base system for wall protection

Non PVC High Impact Wall Base system for wall protection

Model No.:WB100
vinyl + aluminum
Thickness of vinyl cover: 0.8"(2mm)
Thickness of aluminum:0.06"(1.5mm)
Total Thickness:3/8" (9.5mm)
Total Height:4"(100mm)

  • Item NO.:

    WB100

Model No:WB100

  • Vinyl & Aliminium
  • Thickness of vinyl cover: 0.08" (2mm),
  • Thickness of aluminum: 0.06" (1.5mm)
  • Total thichness: 3/8" (9.5mm)
  • Total height: 4” (100mm)

Description

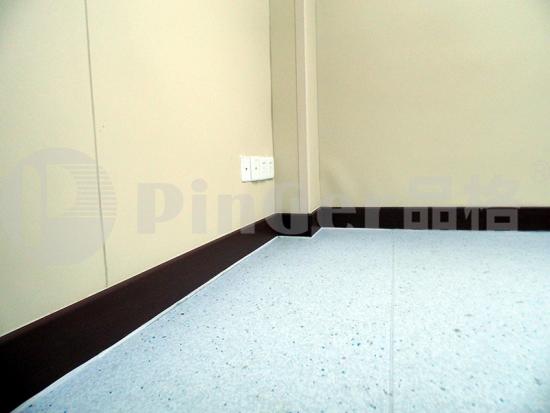

  • Pinger wall base installs at bottom of the wall for skirting and decoration.
  • All the orders include screws for installing.
  • it's  convenient to install and clean the chair rail.
  • 13 color optons and 4 wood color options for choice. we can produe the color as your request also.

Installation instructions

  • Please read all instructions before installing the wall base.
  • Material must be stored, installed and used and used in envionmetally controlled conditions.

Non PVC High Impact Wall Base system for wall protection

TECHNOLOGY DATA
Brand  PinGer
Product No  WALL BASE WB100
Material  Vinyl cover,thickness aluminum retainer
Size  2mm thickness vinyl cover,2mm thickness aluminum retainer,ABS materials for end cap.
Accessories  Bolts screws
Scope of application  Hospital,nursing home,restaurant, hotel,school,kindergarten and other public places.
Color  There are dozens of colors to choose.

Non PVC High Impact Wall Base system for wall protection

MORE DETAILS

Pinger wall guads is assembled by the following parts:2mm thickness vinyl cover,2mm thickness aluminum retainer,

ABS materials for elbow and bracket.

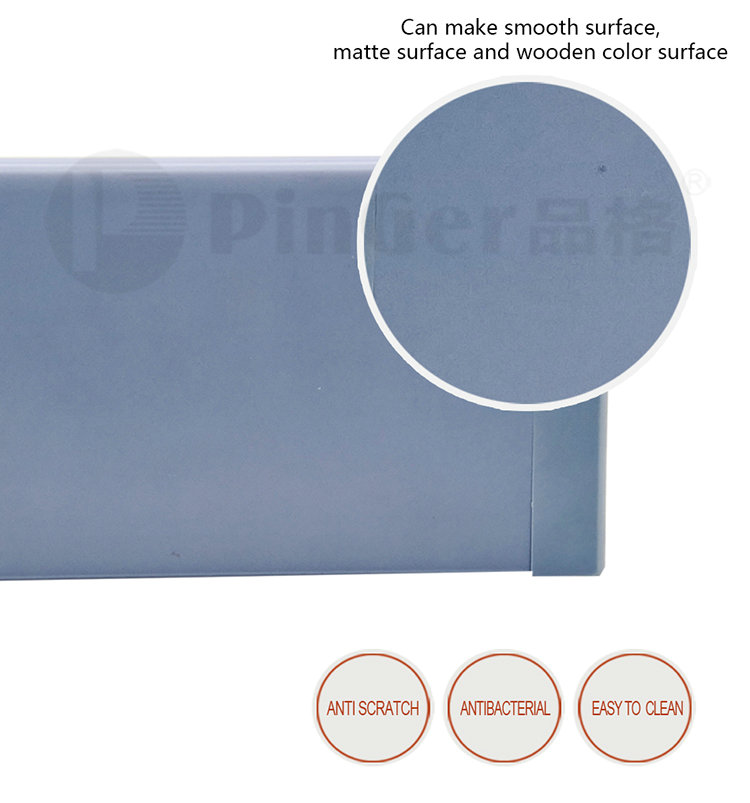

PRODUCT CHARACTERISTICS

1、Atibacterial Vinyl Materia

Vinyl surface cover plate has fine particles and compact density.It has anti-collision,fireproof,anti-scratch and abrasion

resistance,antibacterial and environmental protection functions through special treatment on the surface.The surface layer has

anti-slip fine lines and anti-fouling treatment,which is easy to clean.

Non PVC High Impact Wall Base system for wall protection

2、High impact & Durable

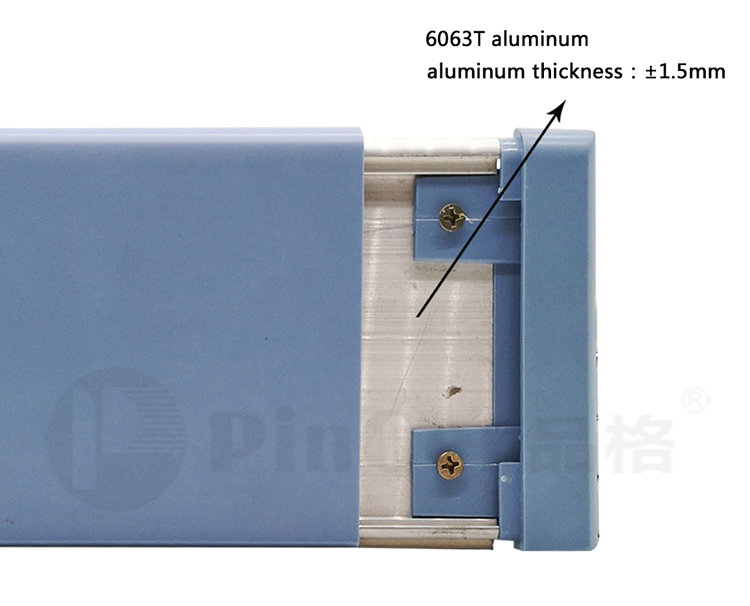

The 6063-T 5 aluminum is oxidized to ensure no rust and can be used effectively for along time.

Non PVC High Impact Wall Base system for wall protection

3、Comfortable And Convenient

Pinger wall guard installed on the turning of wall to protect it from impact.

Non PVC High Impact Wall Base system for wall protection

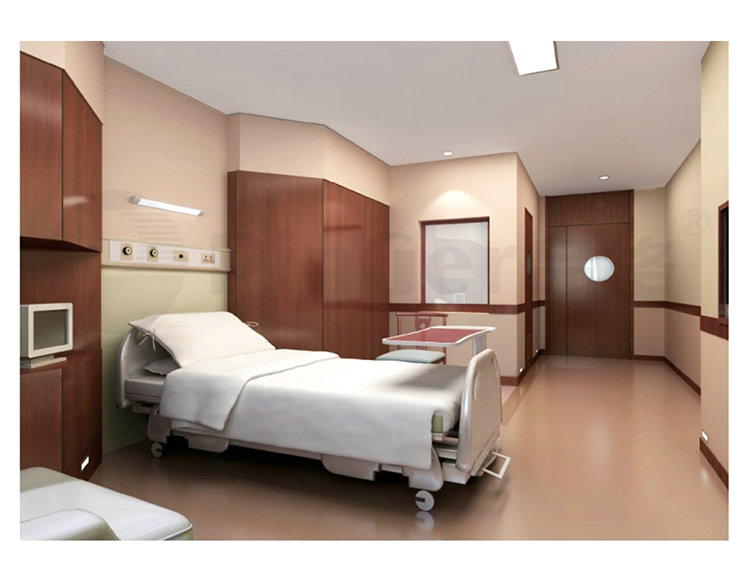

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital, schools laboratories, pharmaceutical plants airplanes, ships,

high-speed rails.

Non PVC High Impact Wall Base system for wall protection

FeatureSpecification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation



Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height.

Non PVC High Impact Wall Base system for wall protection



FeatureSpecification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation



Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height.



Non PVC High Impact Wall Base system for wall protection

Installation Instruction

●Clean-upand Maintenance Instructions

●Daily cleaning and maintenance ,it can be used to clean the dust  layer with a clean cloth

●If there are a few stains: footprints,tea marks,etc,use a clean cloth  to wipe

●If the stain is not timely treatment,stay too long,use a clean cloth  and neutral cleaner to wipe

●Use dishcloth to add warm warm water or cleaner to wipe, need to  use clean dry dishcloth to wipe Water mark.



Cleaning Tool Selection

●clothes: clean clothes or scouring pad

●Detergent: Use a neutral detergent or alcohol. Special reminder: oily  (paint) stains trace is more difficult to remove, so the product can be  made. spray painting to decorate the wall, such as oil (paint class) after  the spray painting to remove and replace as a block wallboard. (Oily pen  wants to wipe, usable pure alcohol or alcohol adds water to scrub and  wipe).

TECHNICAL DATA

 Certificate

 Certificate standard

 Result

 Antibacterial

 ASTME2180

 >99.9% inhibis growth

 Mould Proof

 ASTM G21-15

 0 Class non growth

 Fire and smoke Rating

 ASTM E84-17 Class A

 Class A

 Horizontal Burning

 UL94HB

 PASS

 Crashproo

 ASTM D256-10el

 PASS

 Chemical and Corrosion resistance

 ASTM D543-14/ASTM D2240-15/ASTM D638-14

 G00D

 TVOC

 CA CDPH 01350-voc

 G00D

 Color Diference

 SAEJ1545-2005

 G00D

 Color staining

 EN423:2001

 G00D

 Phthalate Test

 SGS

 PASS

 Fomaldehyde

 CA CDPH 01350-voc GB/T 18580-2017

 PASS

 Heavy metal Test[Lead& Cadmium

 CA65

 PASS

Appication
Hospital hotel airport,High-end ofice building High-end Vila,kKindergarten,School,Sport Hal,Factory,.Plane,High-speed Train,Loose pulley.public place and so on.

CARE INSTRUCTIONS

Cleaning And Maintenance Requirements

Visitor folw rate

cleaning and maintenance

Stain processing

Privte room

one time in one year

Require time

Public place or corrider

two or three times in one year

Require time

Main channel or main entry door

one time lin one month

Require time

Renark:

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind:

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

Non PVC High Impact Wall Base system for wall protection

Non PVC High Impact Wall Base system for wall protection





















TECHNOLOGY DATA

QUALITY ASSURANCE

  • 1. Fire Performance Characteristics

Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM  E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.

2. Fungal and Bacterial Resistance

The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial  proof:JISZ2801:2010.

3. Mould Proof

ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.

4. Horizontal burning

As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.

5. Impact Strength

Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM  D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.

6. Environmental friendly

No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO  16000-3-6-9 AND SGS:CA CDPH 01350 -VOC

7. Does not stain

Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye,Staining test:EN423:2001.

8. ISO Certified

Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.

9. Chemical and CORROSION Resistance

Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.

10. No heavy metals

Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65

11. Durable and easy to install

Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.

versatile vinyl wall covering

 WALL BASE WB100

  • Vinyl & Aliminium
  • Thickness of vinyl cover: 0.08" (2mm),
  • Thickness of aluminum: 0.06" (1.5mm)
  • Total thichness: 3/8" (9.5mm)
  • Total height: 4” (100mm)

Non PVC High Impact Wall Base system for wall protection

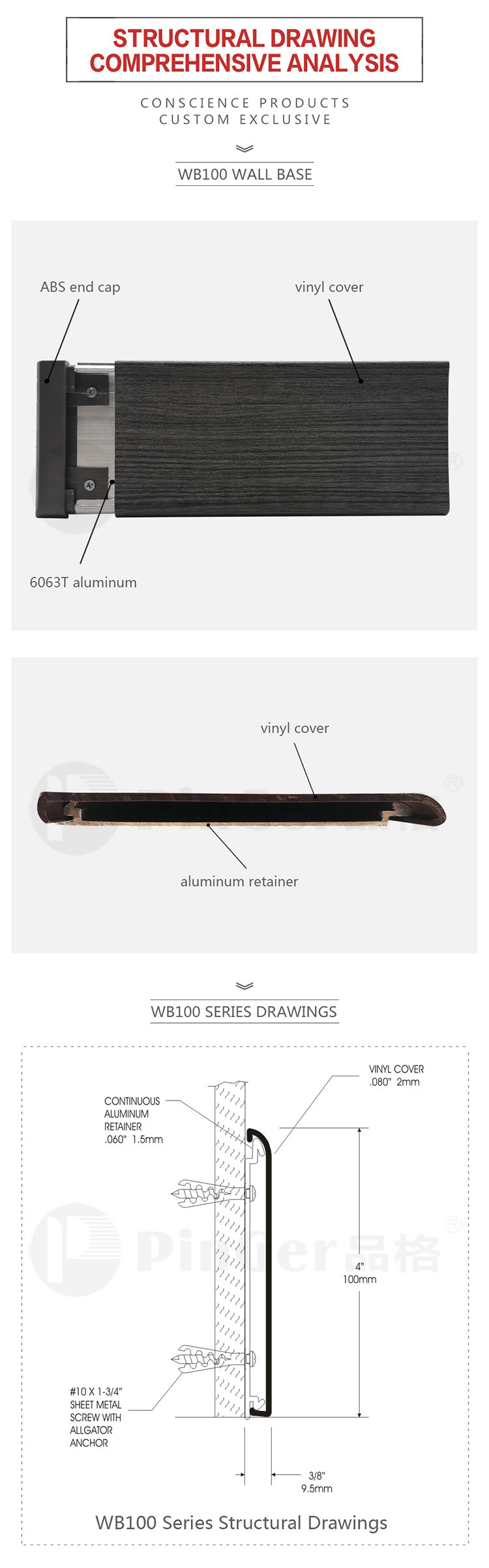

Structural Drawings

Non PVC High Impact Wall Base system for wall protection

PRODUCT CHARACTERISTICS

1、Atibacterial Vinyl Materia

Vinyl surface cover plate has fine particles and compact density.It has anti-collision,fireproof,anti-scratch and abrasion

resistance,antibacterial and environmental protection functions through special treatment on the surface.The surface layer has

anti-slip fine lines and anti-fouling treatment,which is easy to clean.

Non PVC High Impact Wall Base system for wall protection

2、High impact & Durable

The 6063-T 5 aluminum is oxidized to ensure no rust and can be used effectively for along time.

Non PVC High Impact Wall Base system for wall protection

3、Comfortable And Convenient

Pinger wall guard installed on the turning of wall to protect it from impact.

Non PVC High Impact Wall Base system for wall protection

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital, schools laboratories, pharmaceutical plants airplanes, ships,

high-speed rails.

Non PVC High Impact Wall Base system for wall protection

Chair rail system for wall protection and decoration

[Pinger 品格 ® Cleaning and Maintenance]



Cleaning And Maintenance Requirements

Visitor folw rate

cleaning and maintenance

Stain processing

Privte room

one time in one year

Require time

Public place or corrider

two or three times in one year

Require time

Main channel or main entry door

one time lin one month

Require time

Remark:

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind:

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

A: Recently, we have heard that you have made many achievements in environmental protection. Could you please introduce company and your environmental protection measures?

B: We are a company committed to environmental protection, focusing on the production of green, pollution-free building materials products. Our products green formulations that are harmless to the human body, and we strive to minimize the negative impact on the environment in all stages of production, use, and recycling. We have advanced process technology, adhering to environmental protection principles from formulation to manufacturing application, achieving 0 wastewater and 0 waste gas emissions.

A: What efforts your company made to extend the life cycle of products and promote the sustainable use of resources?

B: We have EPD certification, committed to extending the life of products promoting the sustainable use of resources. Our products can not only be recycled but also be effectively recycled, reused, or converted into other useful materials at the end of their, truly achieving "from cradle to cradle". In this way, it can effectively reduce resource consumption and waste production, and reduce the burden on the natural environment

A: How do your company's handrail products address the needs of both handrail protection and decoration simultaneously?

B: Our handrail products feature functional properties such as being antibacterial, anti-mildew, fire-resistant, impact-resistant, stain-resistant, corrosion-resistant, lightweight, anti-ultraviolet, dimensionally stable, and easy to clean. These properties effectively protect the handrails, extending their service life and solving the handrail protection problem. Moreover, with a wide range of rich colors and wall 3D printing technology, they provide designers with extensive creative room, perfectly tackling the decoration needs. Additionally, our handrails are easy to install—construction generates no dust, contains no heavy metals, and releases no toxic or harmful gases like formaldehyde or toluene. Therefore, they can be installed one day and put into use the next, effectively ensuring people’s health.

A: You mentioned that you have obtained EPD certification, is this certification? What does it mean to you?

B: EPD certification is an assessment of the entire life cycle of a product, proving that it meets certain in environmental performance and complies with the principles of sustainable development. We have obtained this certification, which not only affirms the green, pollution-free, and recyclable of our products but also recognizes and proves our commitment and efforts to sustainable development. We will continue to develop innovative products, contribute to the concept of sustainable design, and together to build a healthy environment. Our long-term vision is to achieve sustainable development and become a leading environmental manager in the industry

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related products

elderly Safety Non-slip nylon Shower Seat
Elderly Safety Non-slip Nylon Shower Seat For Bathtub

Multifunction Shower SeatDiameter of nylon is 35mm. Length is 380mm, width is 400mm, height is 800mm...

Flat vinyl covers and aluminum retainer handrails
Anti scratch protective handrails with 4 lines color strip

Model No.:HR1405Materials:vinyl & aluminum with 4 lines color strip Standard Length:5mStandard W...

Profile Medical Anti-collision Handrail
Hospital Corridor Arc Wall High Resistance Handrail

Model No.:LHR1598Materials:vinyl & aluminum(blue color)Standard Length:5mStandard Width:159mmdia...

PVC Crash Rail Handrails
Vinyl Aluminum Arc Wall Anti Collision Handrail

Model No.:LHR1594Materials:vinyl & aluminum(blue color)Standard Length:5mStandard Width:159mmdia...

Barrier free safety handrail
Nylon Barrier Free Access Handrail

Model No.: Garb barStandard thickness: Nylon: 4mm    Aluminum: 2mmStandard size: as y...

aluminium and vinyl wall guard
Anti collision Vinyl Wall Protection

Model No.:WG1271W Materials:vinyl cover+aluminum with wood color Standard Length:5m Standard Width:1...

Service corridor wall protection
corridor wall protection Acrovyn Handrail

Model No.:HR2002Materials:vinyl cover & insert aluminumStandard Length:5mStandard Width:200mmdia...

Factory price vinyl corner guards
High Quality 90° commercial vinyl wall corner guards

● Model No.:CG512 ● Materials:2mm vinyl +2mm vinyl retainer in solid color ●&nbs...

Leave A Message

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Home

Products

whatsApp

contact
