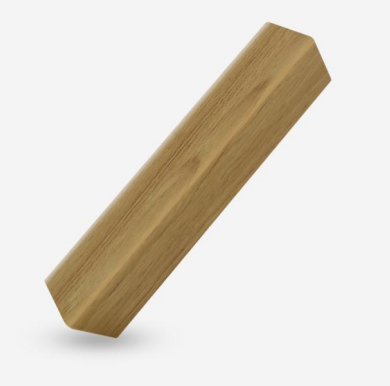

Home Corner Guards System 20mm Wing Corner Guard

2mm Plastic Wall Corner Protectors

2mm Plastic Wall Corner Protectors

● Model No.:CG20W

● Materials:2mm vinyl in wood color

● Wing Width:20mm*20mm

● Angle: 90°

● Length:1m/PC、1.5m/PC、2m/PC(customize)

● Class A fire rating corner guards ASTM,E84.

  • Item NO.:

    CG20W

Product Name:2mm Plastic Wall Corner Protectors



Specification

●Flush-mounted wall protect corners from damage with minimum design interruption using Corner Guards.

Pinger solid Color and wooden color :

●Available in all of our Standard Solid Colors and Wood Patterns, choose from NELUMBO NUCIFERA ,

SAGA AND PRISTON.and can be used with Rigid Sheet, Wall Panels, Door Protection, Corner Guards,

Handrails and Wall Guards.

2mm Vinyl Plastic Decorative Wall Corner Protectors

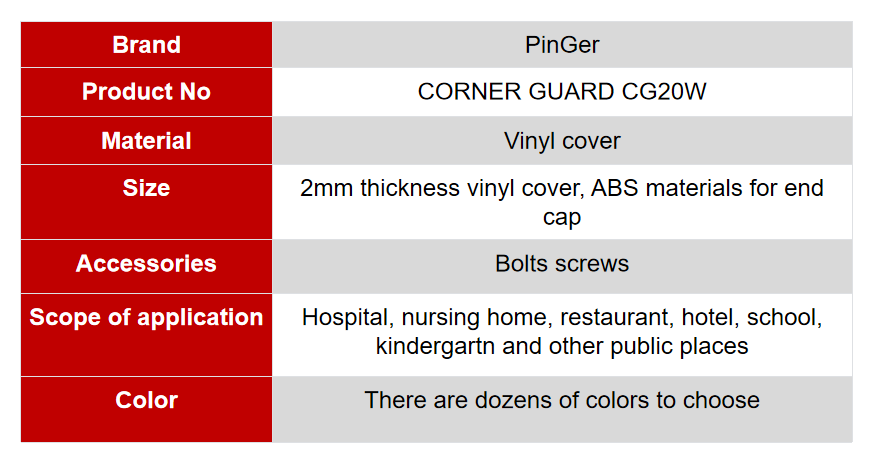

TECHNOLOGY DATA
Brand  PinGer
Product No  CORNER GUARD CG20
Material  Vinyl cover

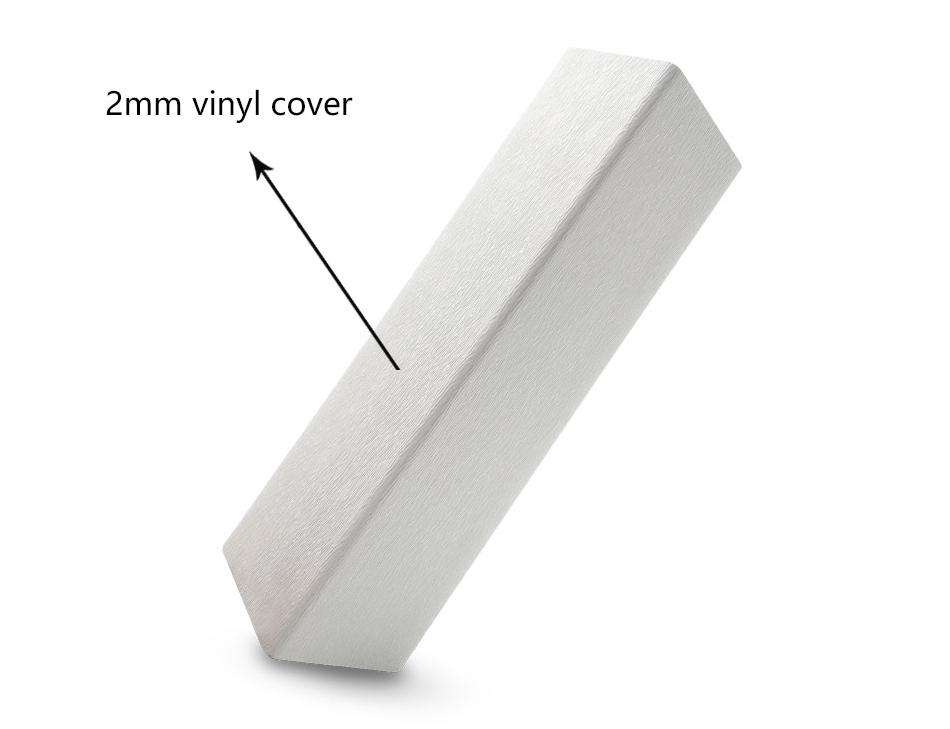

Size  2mm thickness vinyl cover,ABS materials for end cap.
Accessories  Bolts screws
Scope of application  Hospital,nursing home,restaurant, hotel,school,kindergarten and other public places.
Color  There are dozens of colors to choose.

2mm Vinyl Plastic Decorative Wall Corner Protectors

PRODUCT CHARACTERISTICS

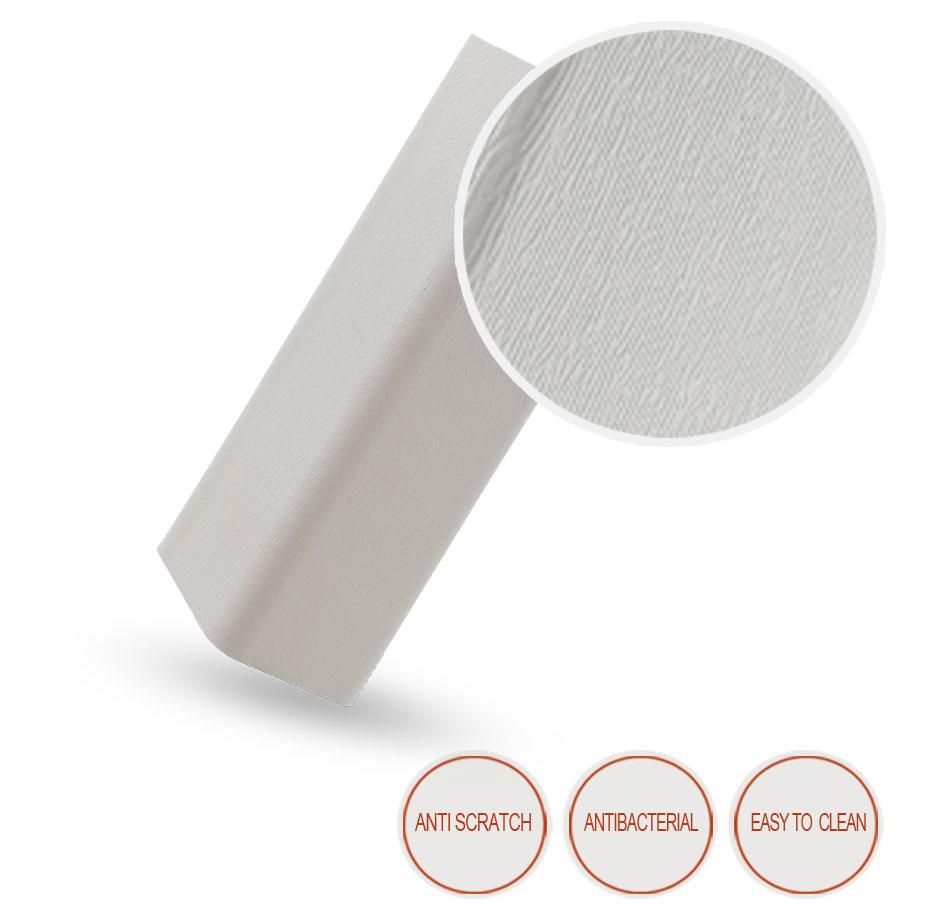

1、Atibacterial Vinyl Material

Vinyl surface cover plate has fine particles and compact density. It has ant-collision,fireproof,anti-scratch and abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.

The surface layer has anti slip fine lines and anti-fouling treatment,which is easy to clean.

2mm Vinyl Plastic Decorative Wall Corner Protectors

2、Comfortable and convenient

Pinger corner guard installed on the turning of wall to protect it from impact. Recommended height are

1.2m, 1.5m, 2m, 3m.

2mm Vinyl Plastic Decorative Wall Corner Protectors

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

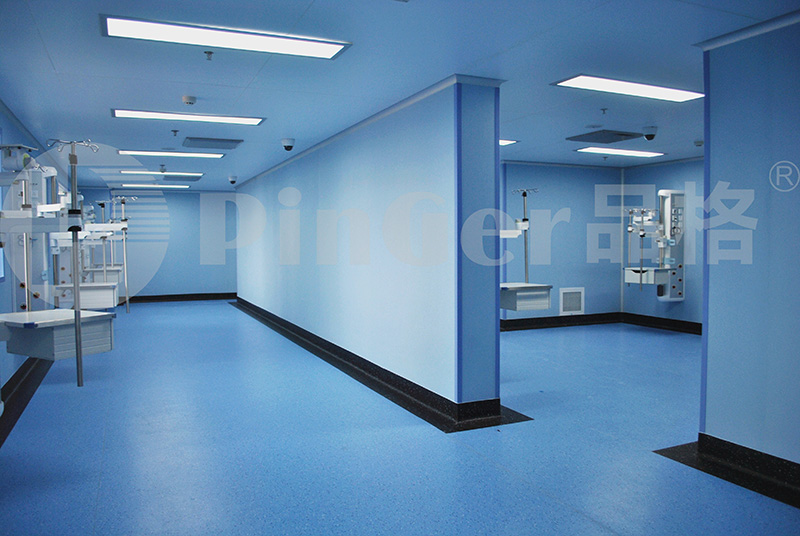

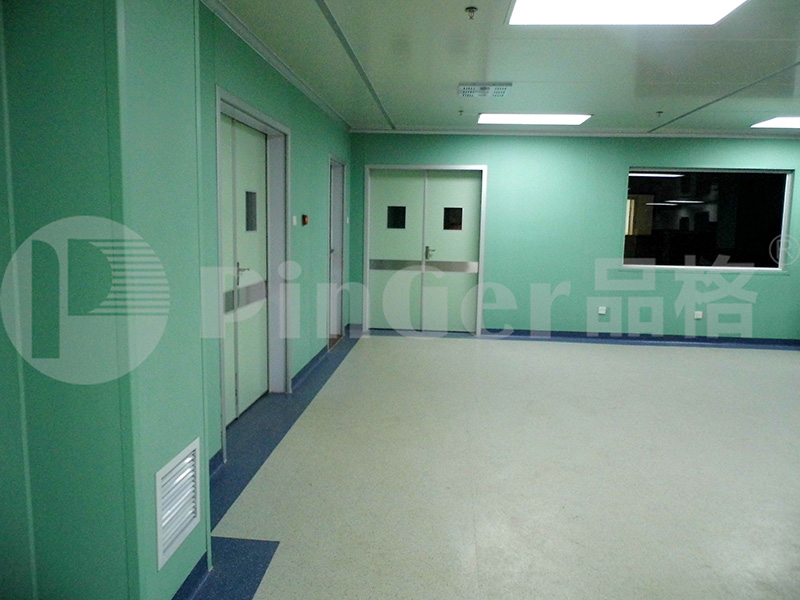

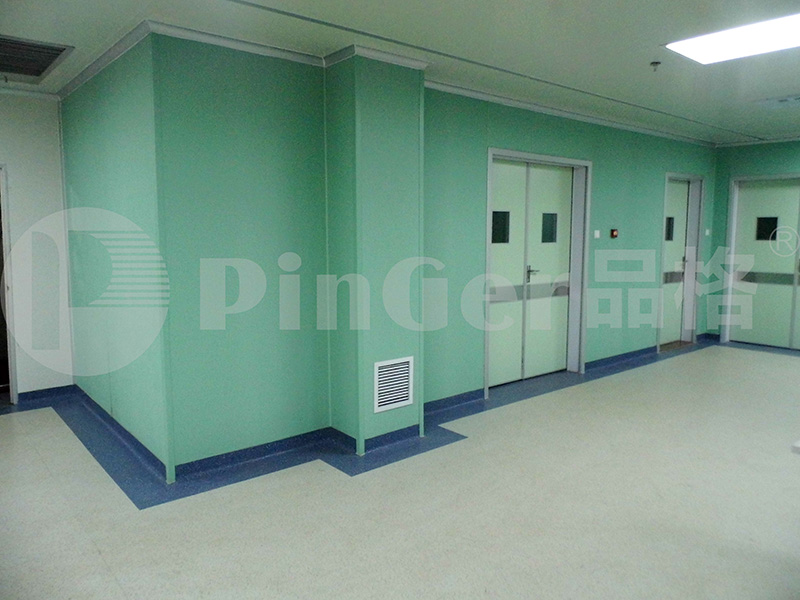

●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.

2mm Vinyl Plastic Decorative Wall Corner Protectors

2mm Vinyl Plastic Decorative Wall Corner Protectors

2mm Vinyl Plastic Decorative Wall Corner Protectors

Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height



Installation Instruction–Wall Protection Corner Guards

●Aluminum insert for cover base installation with screws fixed.

2mm Vinyl Plastic Decorative Wall Corner Protectors

Applications :

●High-traffic and high-impact areas . cleaning room,Corridors . Classrooms . Patient/resident rooms . Conference rooms .

Back of house . Columns Benefits . Endless design options allows for coordination within any interior design scheme . Durable.

Pinger keeps interior protected and looking good .

●Pinger color is integral throughout, helping reduce discoloration caused by scratching Building Segments . Aviation &

Transportation . Education . Healthcare . Hospitality . Office & Mixed Use . Retail . Senior Living . Sports & Entertainment



Pinger Project History

●Pinger now owns dozens of national inventions and new practical patents. It has passed third-party certifications from ISO9001 quality system certification, ISO14001 environmental monitoring system certification, EU CE certification, and Europe and the United States SGS international testing certification.

● Pinger wall panel and wall protection system products are in the leading position among similar products. We not only have a stable market share in China, but also sell products in more than 100 countries and regions in the world, and occupy a certain market share in the international market.

TECHNICAL DATA

 Certificate

 Certificate standard

 Result

 Antibacterial

 ASTME2180

 >99.9% inhibis growth

 Mould Proof

 ASTM G21-15

 0 Class non growth

 Fire and smoke Rating

 ASTM E84-17 Class A

 Class A

 Horizontal Burning

 UL94HB

 PASS

 Crashproo

 ASTM D256-10el

 PASS

 Chemical and Corrosion resistance

 ASTM D543-14/ASTM D2240-15/ASTM D638-14

 G00D

 TVOC

 CA CDPH 01350-voc

 G00D

 Color Diference

 SAEJ1545-2005

 G00D

 Color staining

 EN423:2001

 G00D

 Phthalate Test

 SGS

 PASS

 Fomaldehyde

 CA CDPH 01350-voc GB/T 18580-2017

 PASS

 Heavy metal Test[Lead& Cadmium

 CA65

 PASS

Appication
Hospital hotel airport,High-end ofice building High-end Vila,kKindergarten,School,Sport Hal,Factory,.Plane,High-speed Train,Loose pulley.public place and so on.



2mm Vinyl Plastic Decorative Wall Corner Protectors





wall protection vinyl sheet

Mini handrail aluminum wall raillings

TECHNOLOGY DATA




QUALITY ASSURANCE

  • 1. Fire Performance Characteristics

Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM  E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.

2. Fungal and Bacterial Resistance

The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial  proof:JISZ2801:2010.

3. Mould Proof

ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.

4. Horizontal burning

As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.

5. Impact Strength

Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM  D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.

6. Environmental friendly

No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO  16000-3-6-9 AND SGS:CA CDPH 01350 -VOC

7. Does not stain

Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye,Staining test:EN423:2001.

8. ISO Certified

Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.

9. Chemical and CORROSION Resistance

Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.

10. No heavy metals

Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65

11. Durable and easy to install

Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.

versatile vinyl wall covering

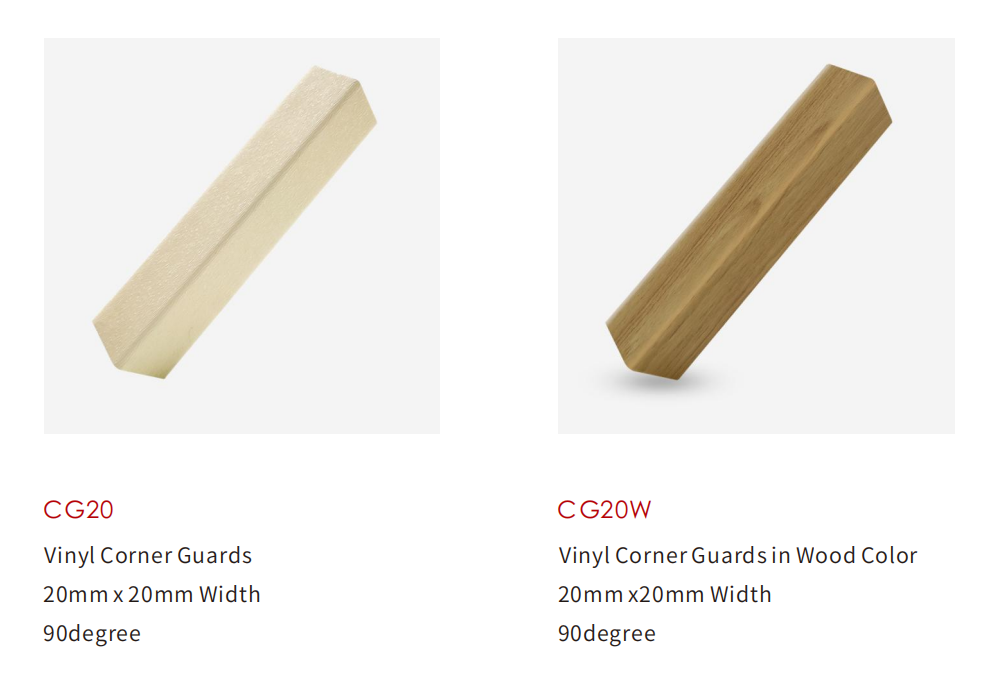

CORNER GUARD CG20W

●There're many colors for the Corner Guards as reference, including woodcolors which can match with PinGer Handrails.Wall Guards & Wall Panels to create aperfectsapce.

Above products are with bolts & screws.

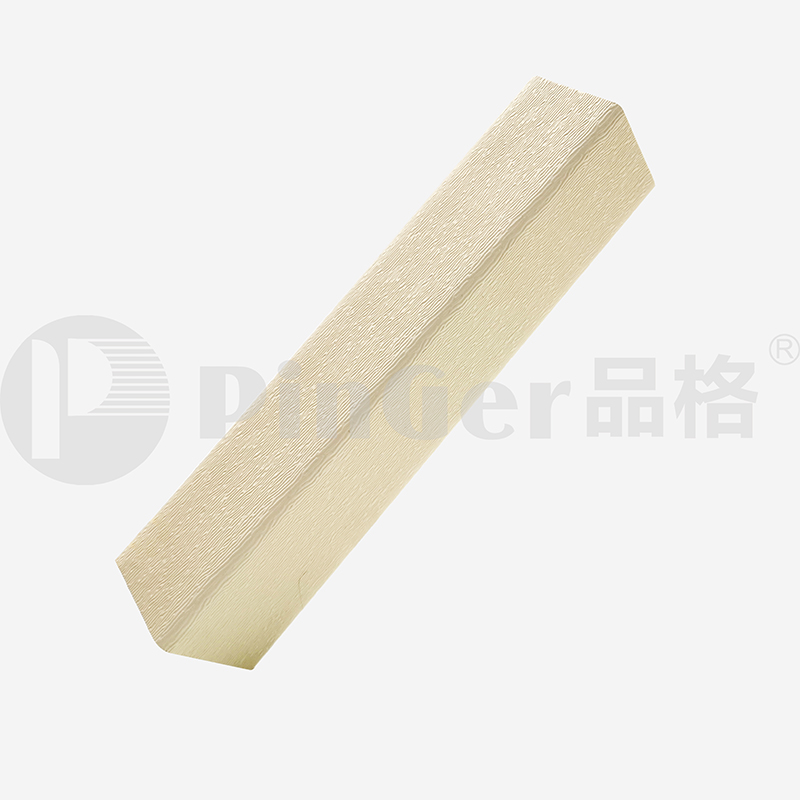

CG20

Vinyl Corner Guards

20mmx20mm Width

90 degree

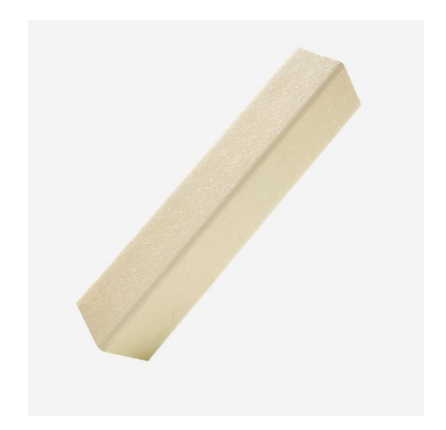

CG20W

Vinyl Corner Guardsi n Wood Color

20mm x20mm Width

90 degree

2mm Vinyl Plastic Decorative Wall Corner Protectors

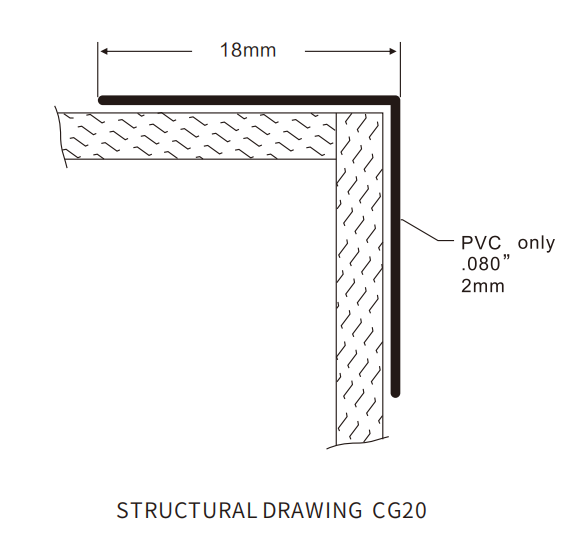

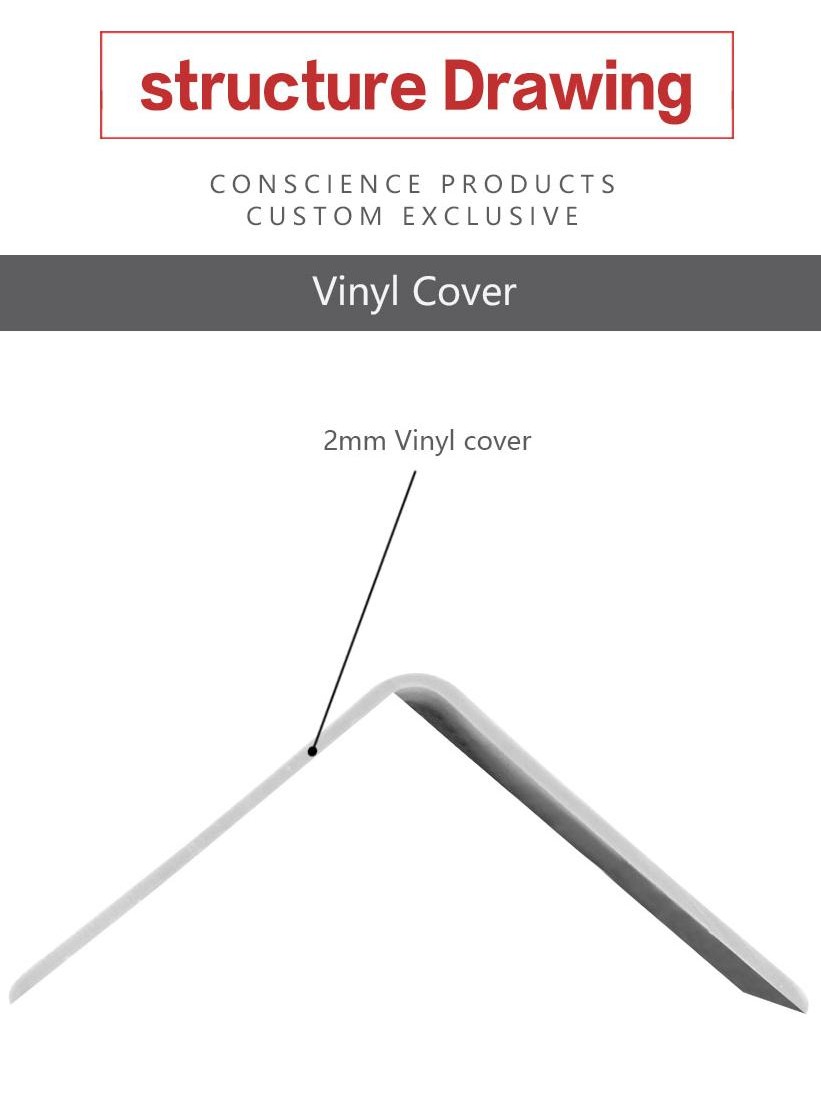

Structural Drawings

Pinger Corner Guard installed on the turning of wall to protect it fromimpact.

Recommended Height are 1.2m,1.5m,2m.3m.

Corner guards assembled by 2mm Vinyl Cover,2.0mm Aluminum Retainer or 2.0mmVinyl Retainer.ABS end cap.

PRODUCT CHARACTERISTICS

1、Atibacterial Vinyl Material

Vinyl surface cover plate has fine particles and compact density. It has ant-collision,fireproof,anti-scratch and abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.

The surface layer has anti slip fine lines and anti-fouling treatment,which is easy to clean.

2mm Vinyl Plastic Decorative Wall Corner Protectors

2、Comfortable and convenient

Pinger corner guard installed on the turning of wall to protect it from impact. Recommended height are

1.2m, 1.5m, 2m, 3m.

2mm Vinyl Plastic Decorative Wall Corner Protectors

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.

2mm Vinyl Plastic Decorative Wall Corner Protectors

2mm Vinyl Plastic Decorative Wall Corner Protectors



[Pinger 品格 ® Cleaning and Maintenance]



Cleaning And Maintenance Requirements

Visitor folw rate

cleaning and maintenance

Stain processing

Privte room

one time in one year

Require time

Public place or corrider

two or three times in one year

Require time

Main channel or main entry door

one time lin one month

Require time

Remark:

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind:

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

A: Recently, we've heard that your company has achieved a lot in environmental protection. Could you introduce your company and the environmental - protection measures for your corner guard products?

B: We're a company dedicated to environmental protection. Our corner guard products are made with a focus on being green and pollution - free. They are mainly made of vinyl cover with a 2mm thickness, and the end caps are made of ABS materials. These materials are selected to be harmless to the human body. In the production process, we strive to minimize the negative environmental impact. We adopt advanced production techniques to ensure that there is minimal waste generation and we're committed to reducing energy consumption.

A: What efforts has your company made to extend the life cycle of corner guard products and promote the sustainable use of resources?

B: Our corner guard products, like the CORNER GUARD CG20, have characteristics that contribute to resource sustainability. The vinyl cover material is durable, which helps extend the product's life. Additionally, we offer a wide range of colors, so they can be used in various settings for a long time without going out of style. When it comes to the end - of - life stage, although the product is sturdy, we are exploring recycling options to ensure that the materials can be reused or repurposed, reducing waste sent to landfills.

A: How do your corner guard products meet the needs of both protection and decoration?

B: Our corner guard products have multiple functional properties. They are impact - resistant, which effectively protects corners from damage caused by collisions. They also have good stain - resistance and are easy to clean, maintaining their appearance over time. In terms of decoration, we have dozens of colors to choose from. This allows them to blend well with different interior design styles, whether it's in a hospital, nursing home, restaurant, hotel, school, or kindergarten. So, they not only protect corners but also enhance the aesthetic of the space.

A: Are there any other certifications or features that highlight the quality and environmental - friendliness of your corner guard products?



B: Although we may not have EPD certification specifically for now, our products are designed in line with environmental - friendly principles. We are constantly researching and developing to meet higher environmental standards. For example, our choice of materials ensures that there are no harmful substances released during use. And we are in the process of exploring more comprehensive certifications to further prove our commitment to quality and environmental protection. We aim to continuously improve our products to contribute to a more sustainable built environment.

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related products

Plastic Corner Cuard
2mm Vinyl Plastic Decorative Wall Corner Protectors

● Model No.:CG20 ● Materials:2mm vinyl in solid color ● Wing Width:20mm*20mm ● Angle: 90° ● Leng...

pvc corner guards for shool
PVC Fire Retardant Corner Protector for walls

● Model No.:CG61W ● Materials:2mm vinyl in wood color ● Wing Width:61mm*61mm ● Angle: 90° ● Leng...

China Modern Indoor Court  Sports Flooring manufacturer

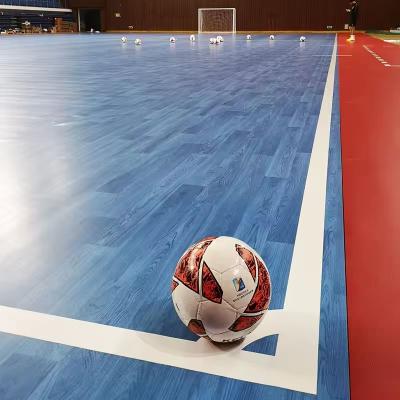

Modern Indoor Court Sports Flooring
