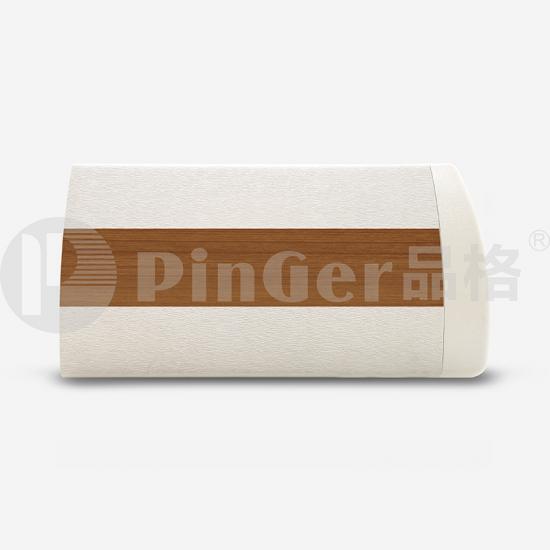

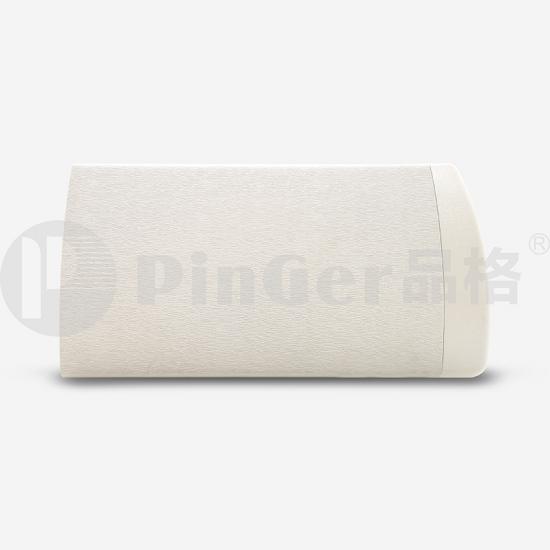

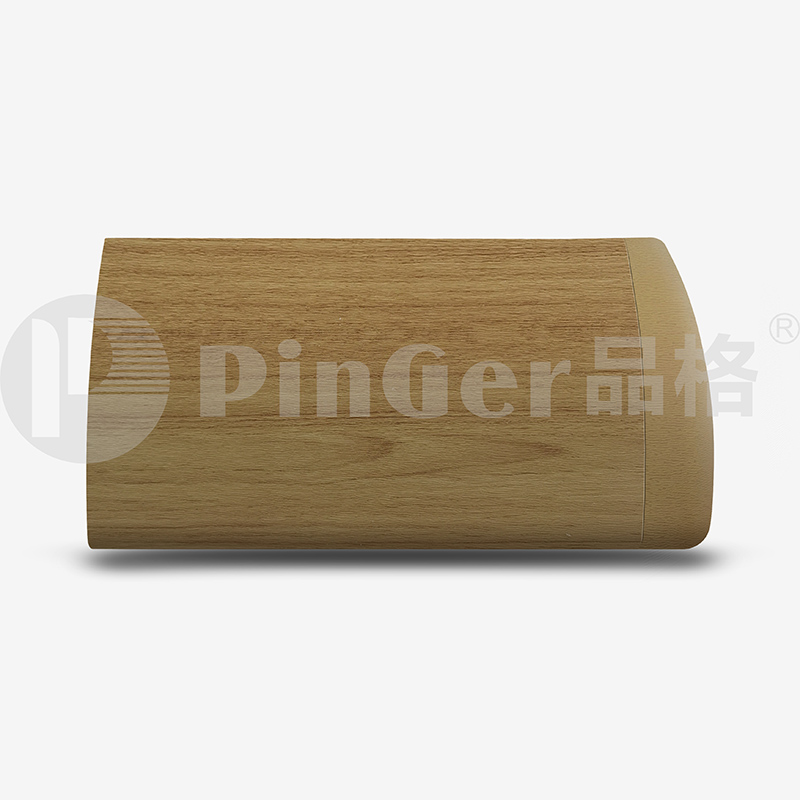

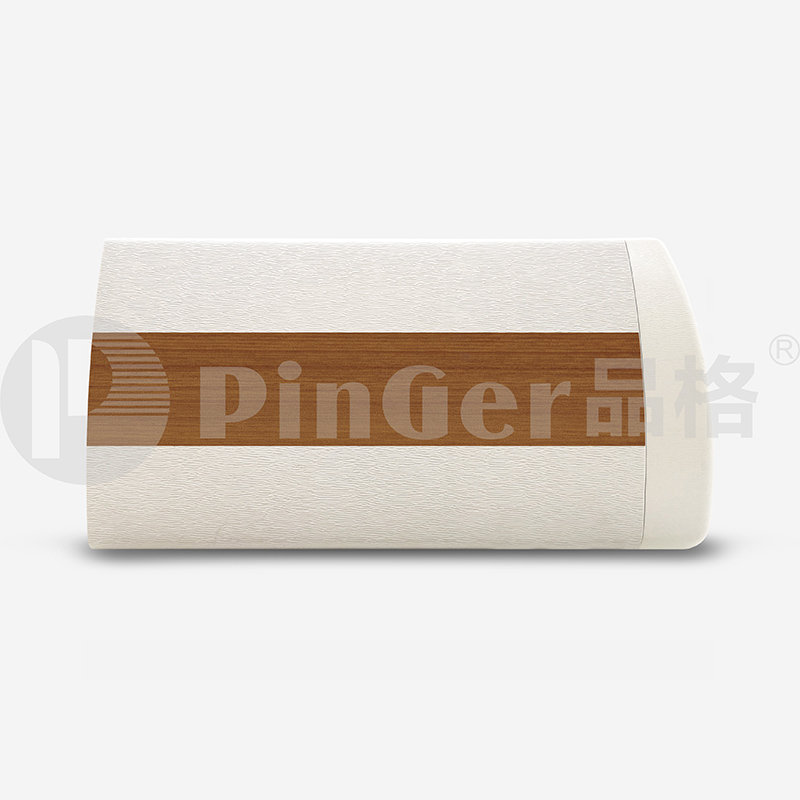

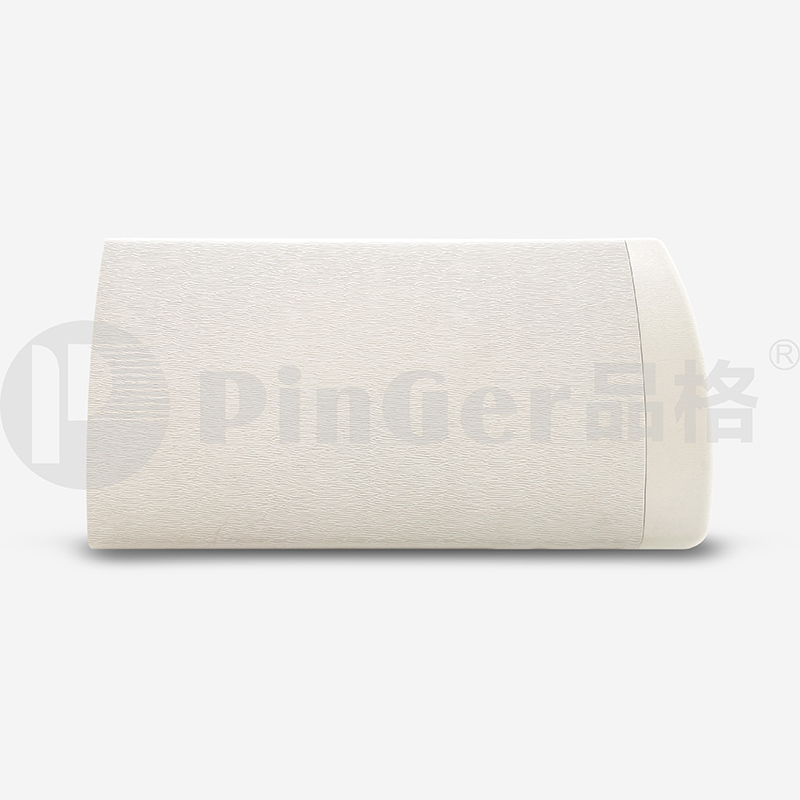

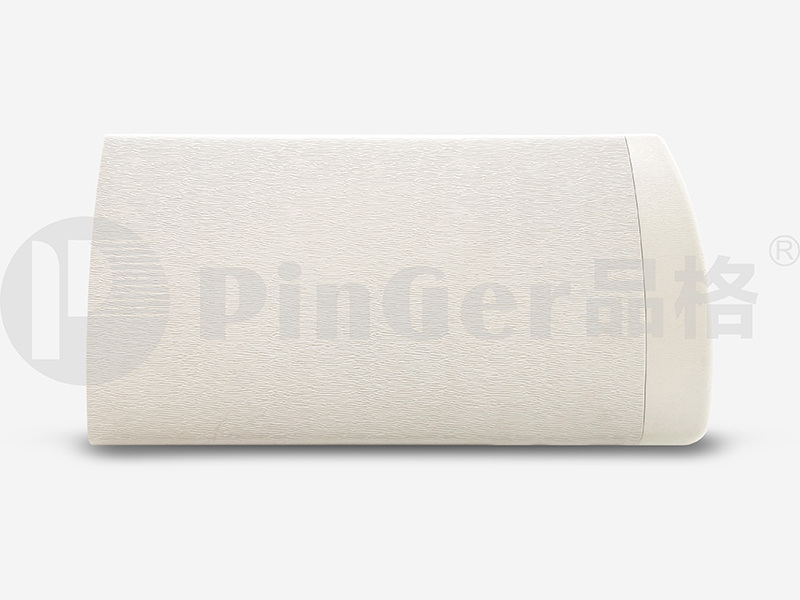

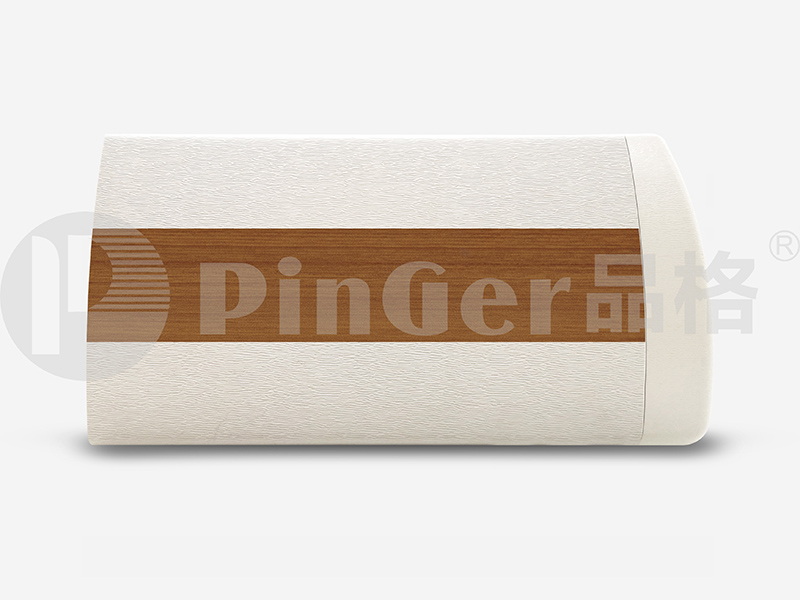

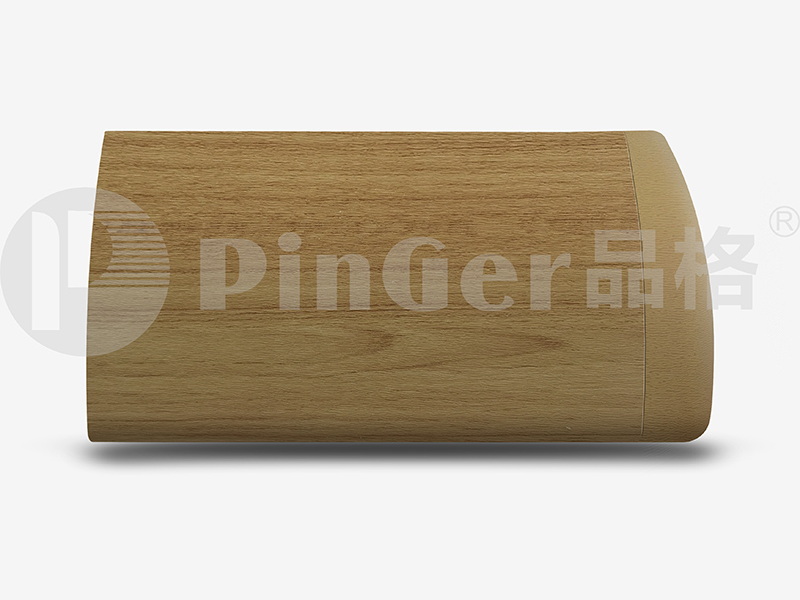

Product Name：Hospital Vinyl High Impact Wall Guard
Specification
●Pinger corner guard installed on the turning of wall to protect it from impact.
●Gently curved upper edge helps prevent injury from accident falls,discourages use as a footrest and eliminates litter and dust buildup

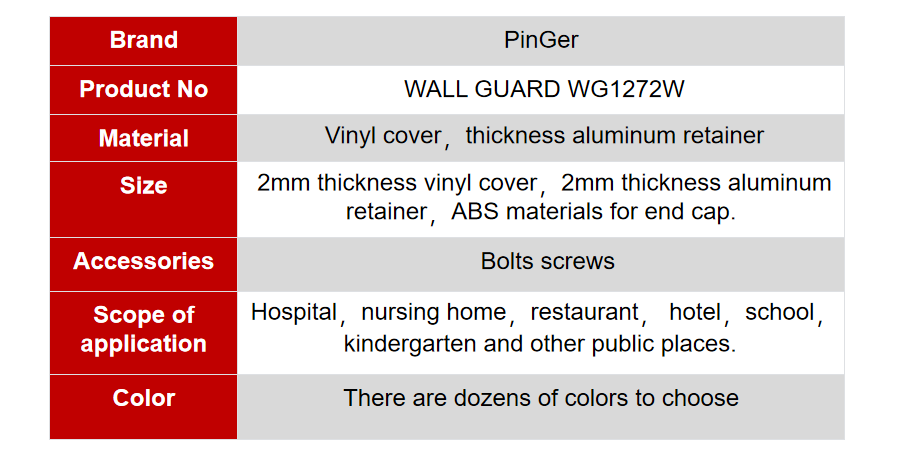

| TECHNOLOGY DATA | |
| Brand | PinGer |

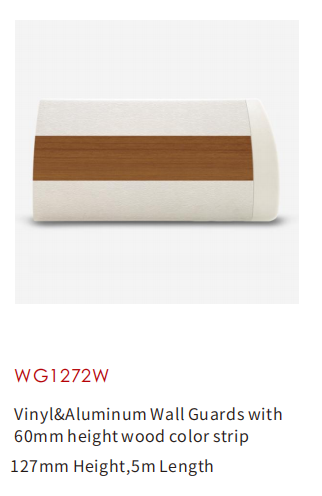

| Product No | WALL GUARD WG1272W |
| Material | Vinyl cover，thickness aluminum retainer |
| Size | 2mm thickness vinyl cover，2mm thickness aluminum retainer，ABS materials for end cap. |
| Accessories | Bolts screws |
| Scope of application | Hospital，nursing home，restaurant， hotel，school，kindergarten and other public places. |
| Color | There are dozens of colors to choose. |
MORE DETAILS

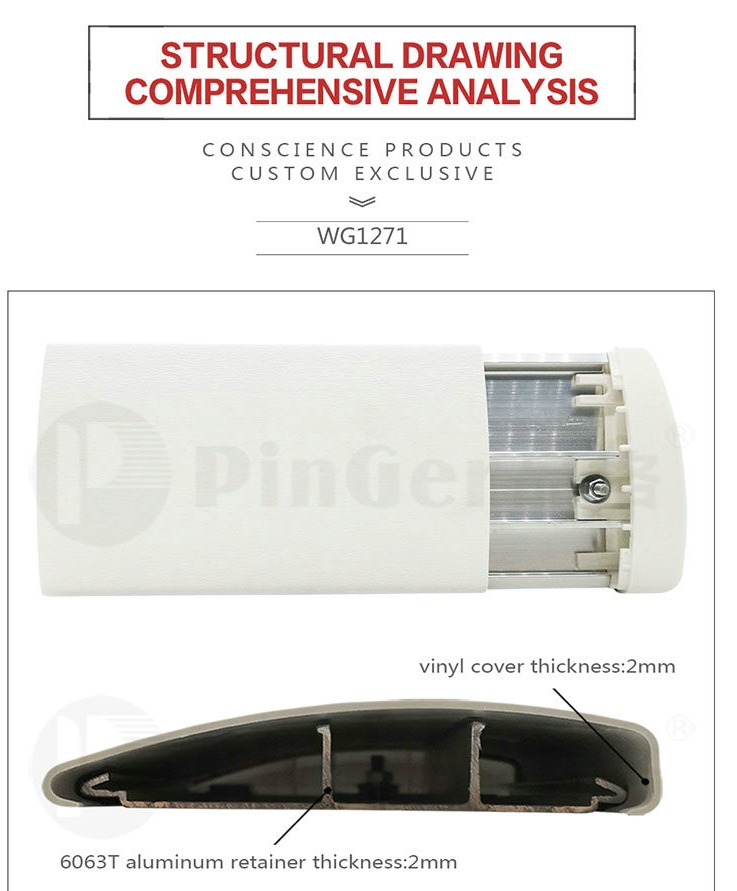

Pinger wall guads is assembled by the following parts：2mm thickness vinyl cover，2mm thickness aluminum retainer，
ABS materials for elbow and bracket.
PRODUCT CHARACTERISTICS
1、Atibacterial Vinyl Materia
Vinyl surface cover plate has fine particles and compact density.It has anti-collision，fireproof，anti-scratch and abrasion
resistance，antibacterial and environmental protection functions through special treatment on the surface.The surface layer has
anti-slip fine lines and anti-fouling treatment，which is easy to clean.
2、High impact & Durable
The 6063-T 5 aluminum is oxidized to ensure no rust and can be used effectively for along time.
3、Comfortable And Convenient

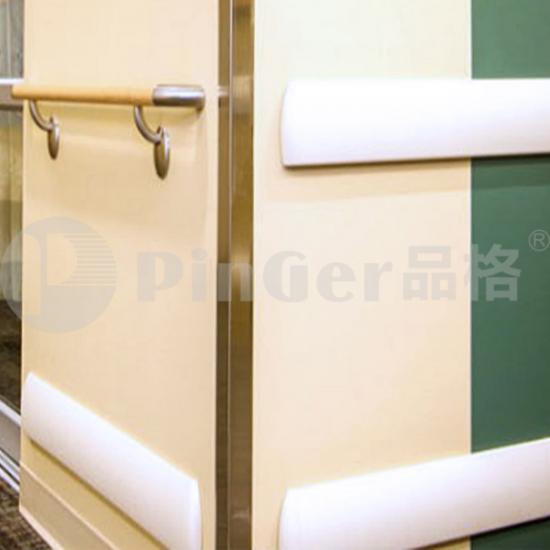

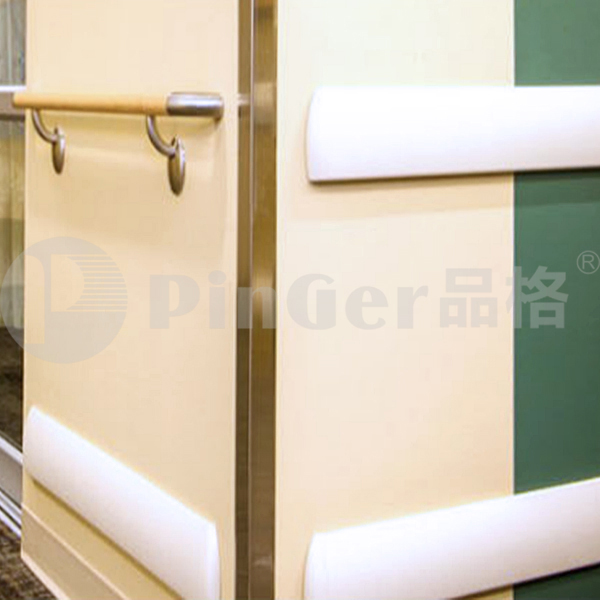

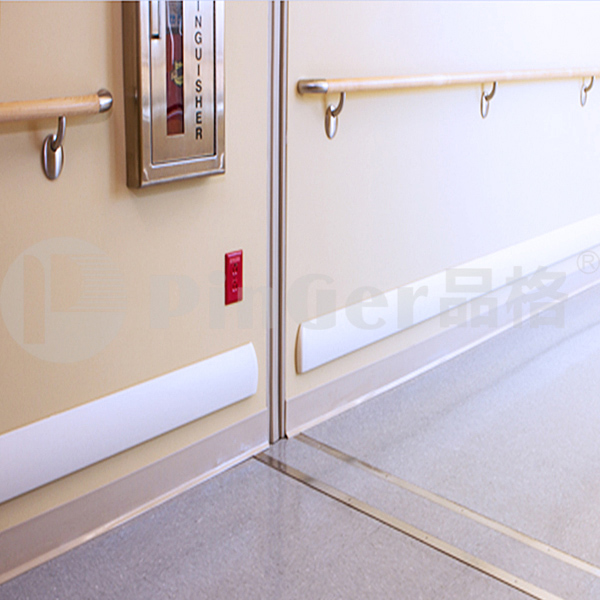

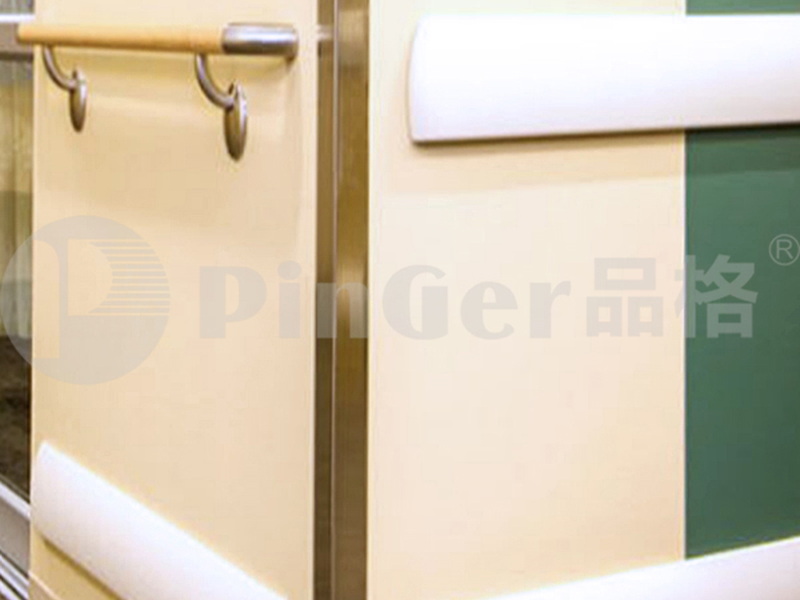

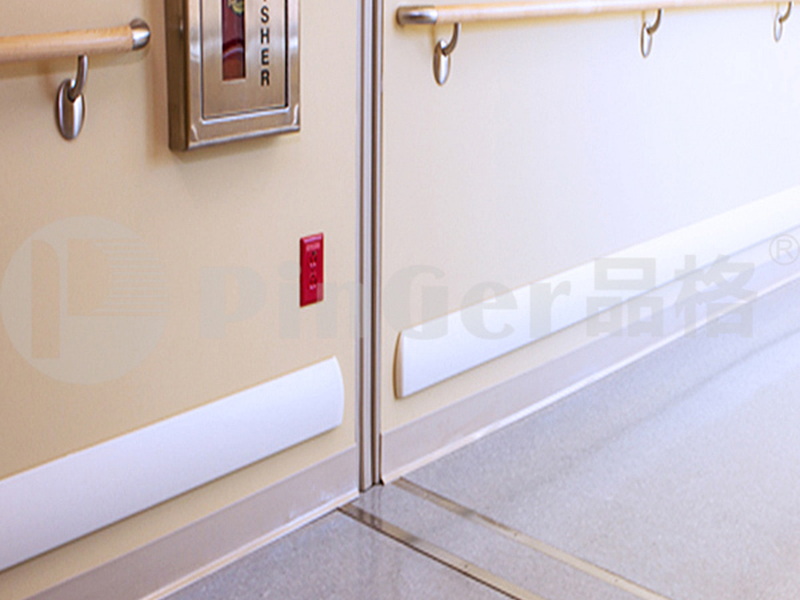

Pinger wall guard installed on the turning of wall to protect it from impact.
WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS
●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung
Semiconductor Precision Workshop.
●Also suitable for interior decoration of hospital， schools laboratories， pharmaceutical plants airplanes， ships，
high-speed rails.
FeatureSpecification
● Anti-bacterial and strongly anti-mildew
● Fire retardant
● Chemical resistance and strong corrosion resistance
●Free Formaldenhyde and green envionment
● No benzene,no heavy metal,can be recycled and used
●Anti-collosion and wear-resistant with super weather resistance
● The surface of wall panel is easy to clean
● Rich color
● Stable size
● Easy to install,no noise during installation
Technical Data Sheet
●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .
●Class A fire and smoke rating. (per ASTM E84-17)
●Class B fire and smoke rating (per GB8624-2012)
●Horizontal Burning (per UL94HB)
●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .
●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .
●TVOC (per CA CDPH 01350-voc )
●Color Difference (per SAEJ1545-2005)
●Color Stainning (per EN423:2001)
●Phthalate Test (per SGS)
●Formaldehyde (per CA CDPH 01350-voc And GB/T 18580-2017)
●Heavy Metal Test (per CA65)

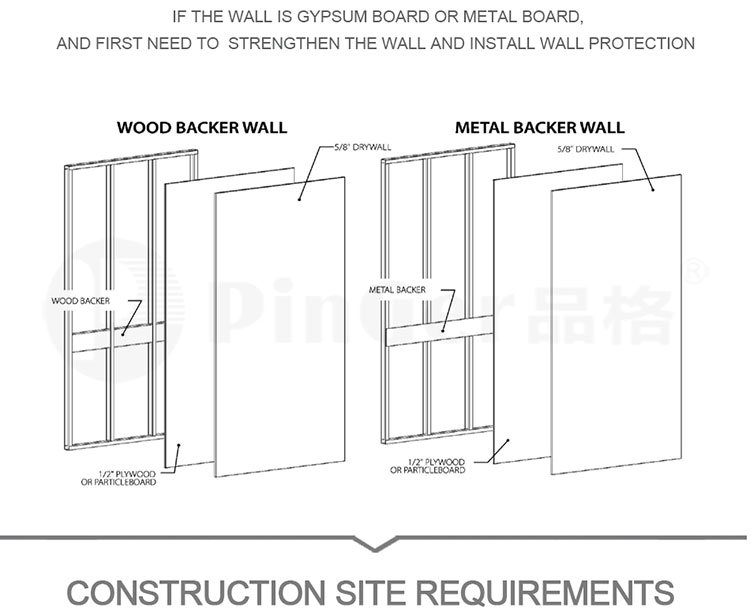

Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height.

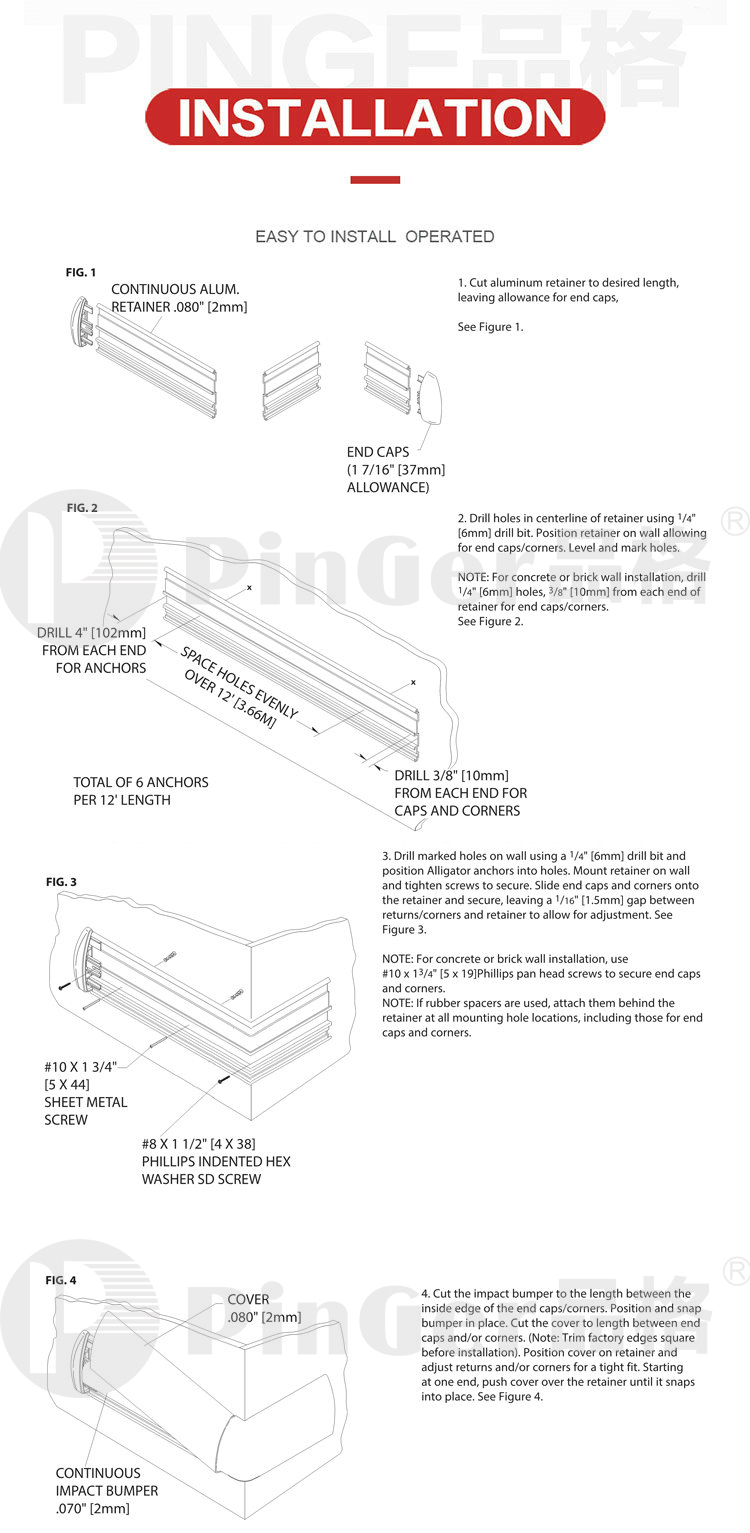

Installation Instruction
●Clean-upand Maintenance Instructions
●Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth
●If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe
●If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe
●Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.
Cleaning Tool Selection
●clothes: clean clothes or scouring pad
●Detergent: Use a neutral detergent or alcohol. Special reminder: oily (paint) stains trace is more difficult to remove, so the product can be made. spray painting to decorate the wall, such as oil (paint class) after the spray painting to remove and replace as a block wallboard. (Oily pen wants to wipe, usable pure alcohol or alcohol adds water to scrub and wipe).
|
TECHNICAL DATA |
||
|
Certificate |
Certificate standard |
Result |
|
Antibacterial |
ASTME2180 |
>99.9% inhibis growth |
|
Mould Proof |
ASTM G21-15 |
0 Class non growth |
|
Fire and smoke Rating |
ASTM E84-17 Class A |
Class A |
|
Horizontal Burning |
UL94HB |
PASS |
|
Crashproo |
ASTM D256-10el |
PASS |
|
Chemical and Corrosion resistance |
ASTM D543-14/ASTM D2240-15/ASTM D638-14 |
G00D |
|
TVOC |
CA CDPH 01350-voc |
G00D |
|
Color Diference |
SAEJ1545-2005 |
G00D |
|
Color staining |
EN423：2001 |
G00D |
|
Phthalate Test |
SGS |
PASS |
|
Fomaldehyde |
CA CDPH 01350-voc GB/T 18580-2017 |
PASS |
|
Heavy metal Test[Lead& Cadmium |
CA65 |
PASS |
| Appication | ||
| Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on. | ||
CARE INSTRUCTIONS
| Cleaning And Maintenance Requirements | ||
|
Visitor folw rate |
cleaning and maintenance |
Stain processing |
|
Privte room |
one time in one year |
Require time |
|
Public place or corrider |
two or three times in one year |
Require time |
|
Main channel or main entry door |
one time lin one month |
Require time |
Renark：
1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth
2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe
3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.
4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.
Cleaning tool selection:
(1)clothes: clean clothes or scouring pad
(2)cleaner: nataural cleaner
Special remind：
●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.
