135° Impact Surface Mount Corner Guard
135° Impact Surface Mount Corner Guard
135° Impact Surface Mount Corner Guard
135° Impact Surface Mount Corner Guard
135° Impact Surface Mount Corner Guard
135° Impact Surface Mount Corner Guard
135° Impact Surface Mount Corner Guard
135° Impact Surface Mount Corner Guard
135° Impact Surface Mount Corner Guard
135° Impact Surface Mount Corner Guard

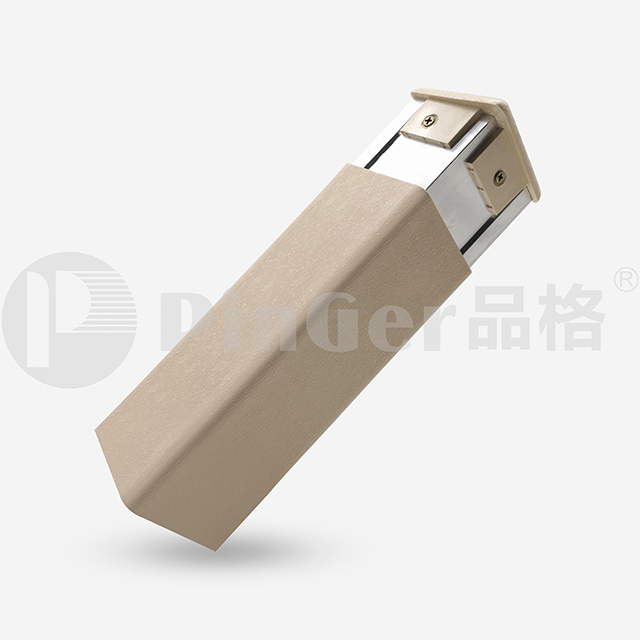

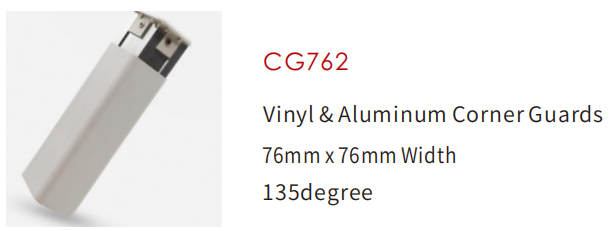

Vinyl With Aluminum High Impact Corner Guards

● Model No.:CG762

● Materials:2mm vinyl + 1.8mm aluminum in solid color

● Wing Width:76mm*76mm(3'' * 3'')

● Angle: 135°

● Length:1m/PC、1.5m/PC、2m/PC(customize)

● 6063T5 Aluminum



  • Item No.:

    CG762
  • Product Detail

Product Name:Vinyl With Aluminum High Impact Corner Guards



Specification

●Available in 135°, this corner guard can be installed on vinyl wall covering using heavy-duty adhesive.

● Surface-mounted corner guards offer cost-effective protection for existing facilities, easy insallation and a wide variety of styles and materials to meet virtually any requiement

Vinyl With Aluminum High Impact Corner Guards

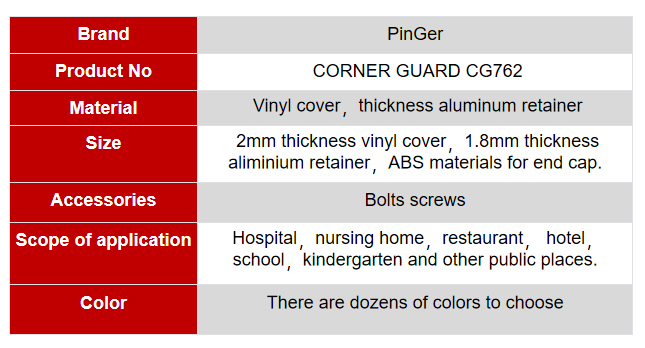

TECHNOLOGY DATA
Brand  PinGer
Product No  CORNER GUARD CG762
Material  Vinyl cover,thickness aluminum retainer
Size  2mm thickness vinyl cover,1.8mm thickness aliminium retainer,ABS materials for end cap.
Accessories  Bolts screws
Scope of application  Hospital,nursing home,restaurant, hotel,school,kindergarten and other public places.
Color  There are dozens of colors to choose.

Vinyl With Aluminum High Impact Corner Guards

PRODUCT CHARACTERISTICS

1、Atibacterial Vinyl Materia

Vinyl surface cover plate has fine particles and compact density. It has ant-collision,fireproof,anti-scratch and

abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.

The surface layer has anti slip fine lines and anti-fouling treatment, which is easy to clean.

Vinyl With Aluminum High Impact Corner Guards

2、High impact& Durable

The 6063-T 5 aluminum is oxidized to ensure no rust and can be used effectively for along time.

Vinyl With Aluminum High Impact Corner Guards

3、Comfortable and convenient

Pinger corner guard installed on the turning of wall to protect it from impact. Recommended height are

1.2m, 1.5m, 2m, 3m.

Vinyl With Aluminum High Impact Corner Guards

Vinyl With Aluminum High Impact Corner Guards

Vinyl With Aluminum High Impact Corner Guards

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital, schools laboratories, pharmaceutical plants airplanes, ships,

high-speed rails.

Vinyl With Aluminum High Impact Corner Guards

Vinyl With Aluminum High Impact Corner Guards

Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height

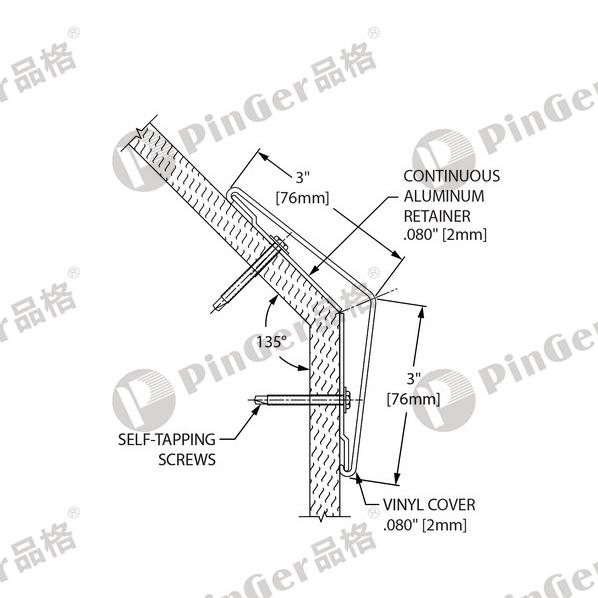

Installation Instruction–Wall Protection Corner Guards

●Aluminum insert for cover base installation with screws fixed.

Vinyl With Aluminum High Impact Corner Guards

Applications :

●High-traffic and high-impact areas . cleaning room,Corridors . Classrooms . Patient/resident rooms . Conference rooms .

Back of house . Columns Benefits . Endless design options allows for coordination within any interior design scheme . Durable.

Pinger keeps interior protected and looking good .

●Pinger color is integral throughout, helping reduce discoloration caused by scratching Building Segments . Aviation &

Transportation . Education . Healthcare . Hospitality . Office & Mixed Use . Retail . Senior Living . Sports & Entertainment



Pinger Project History

●Pinger now owns dozens of national inventions and new practical patents. It has passed third-party certifications from ISO9001

quality system certification, ISO14001 environmental monitoring system certification, EU CE certification, and Europe and the United

States SGS international testing certification.

● Pinger wall panel and wall protection system products are in the leading position among similar products. We not only have a stable

market share in China, but also sell products in more than 100 countries and regions in the world, and occupy a certain market share in the international market.

TECHNICAL DATA

 Certificate

 Certificate standard

 Result

 Antibacterial

 ASTME2180

 >99.9% inhibis growth

 Mould Proof

 ASTM G21-15

 0 Class non growth

 Fire and smoke Rating

 ASTM E84-17 Class A

 Class A

 Horizontal Burning

 UL94HB

 PASS

 Crashproo

 ASTM D256-10el

 PASS

 Chemical and Corrosion resistance

 ASTM D543-14/ASTM D2240-15/ASTM D638-14

 G00D

 TVOC

 CA CDPH 01350-voc

 G00D

 Color Diference

 SAEJ1545-2005

 G00D

 Color staining

 EN423:2001

 G00D

 Phthalate Test

 SGS

 PASS

 Fomaldehyde

 CA CDPH 01350-voc GB/T 18580-2017

 PASS

 Heavy metal Test[Lead& Cadmium

 CA65

 PASS

Appication
Hospital hotel airport,High-end ofice building High-end Vila,kKindergarten,School,Sport Hal,Factory,.Plane,High-speed Train,Loose pulley.public place and so on.

CARE INSTRUCTIONS

Cleaning And Maintenance Requirements

Visitor folw rate

cleaning and maintenance

Stain processing

Privte room

one time in one year

Require time

Public place or corrider

two or three times in one year

Require time

Main channel or main entry door

one time lin one month

Require time

Remark:

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind:

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

Vinyl With Aluminum High Impact Corner Guards

90 Degree Vinyl and Aluminium insert Corner Guards
