Product Name：Public Place Vinyl Anti-Collision Wall Corner Guard

Specification

●The 6063-T5 aluminum is oxidized to ensure no rust and can be used effectively for a long time.

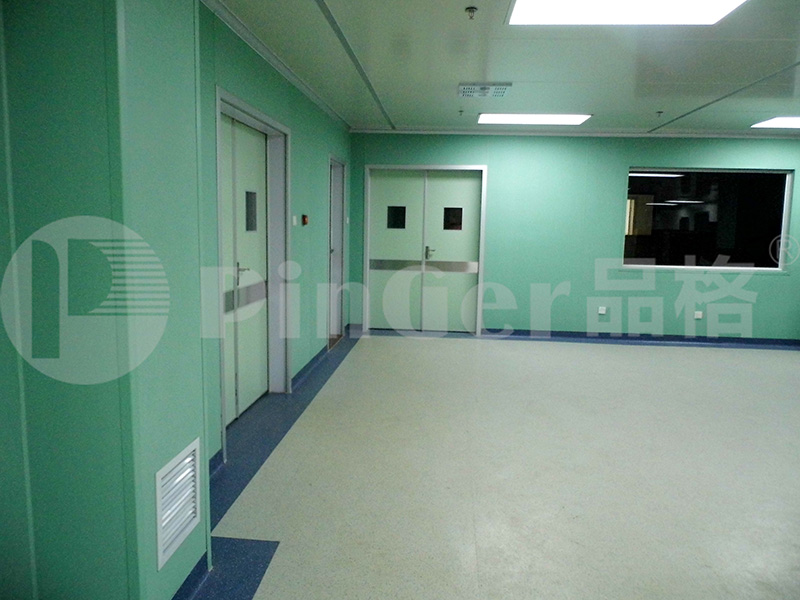

●Also suitable for interior decoration of hospital, schools, laboratiories, pharmaceutical plants, airplanes, ships, high-seed rails.

Pinger Project History.

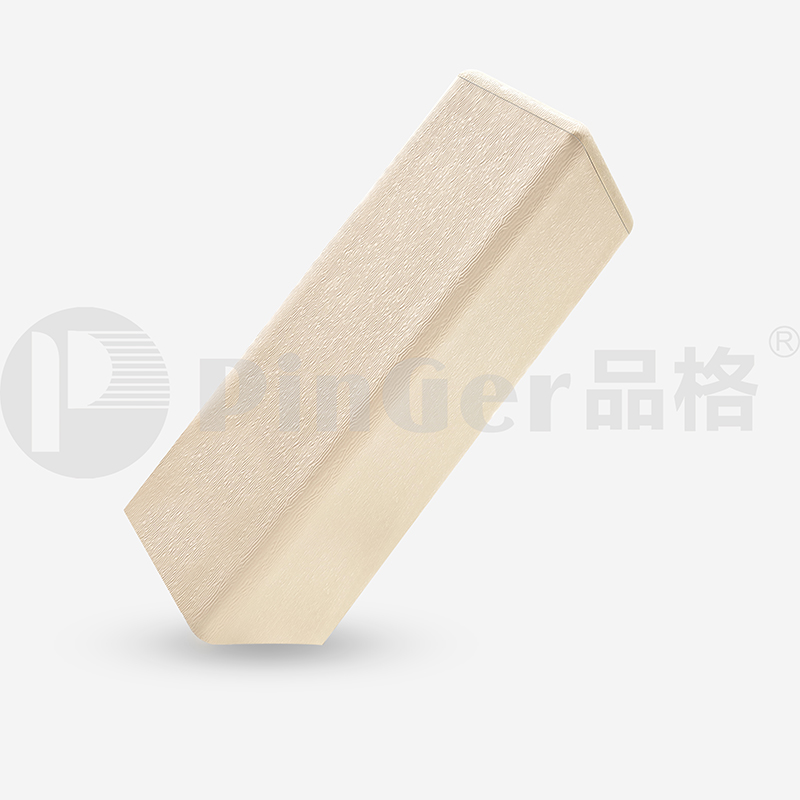

Public Place Vinyl Anti-Collision Wall Corner Guard

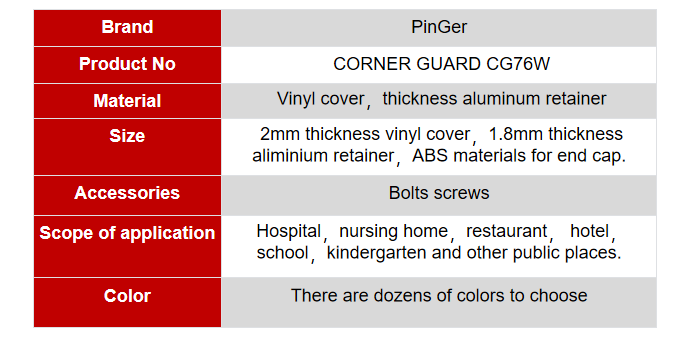

TECHNOLOGY DATA
Brand	PinGer
Product No	CORNER GUARD CG76W

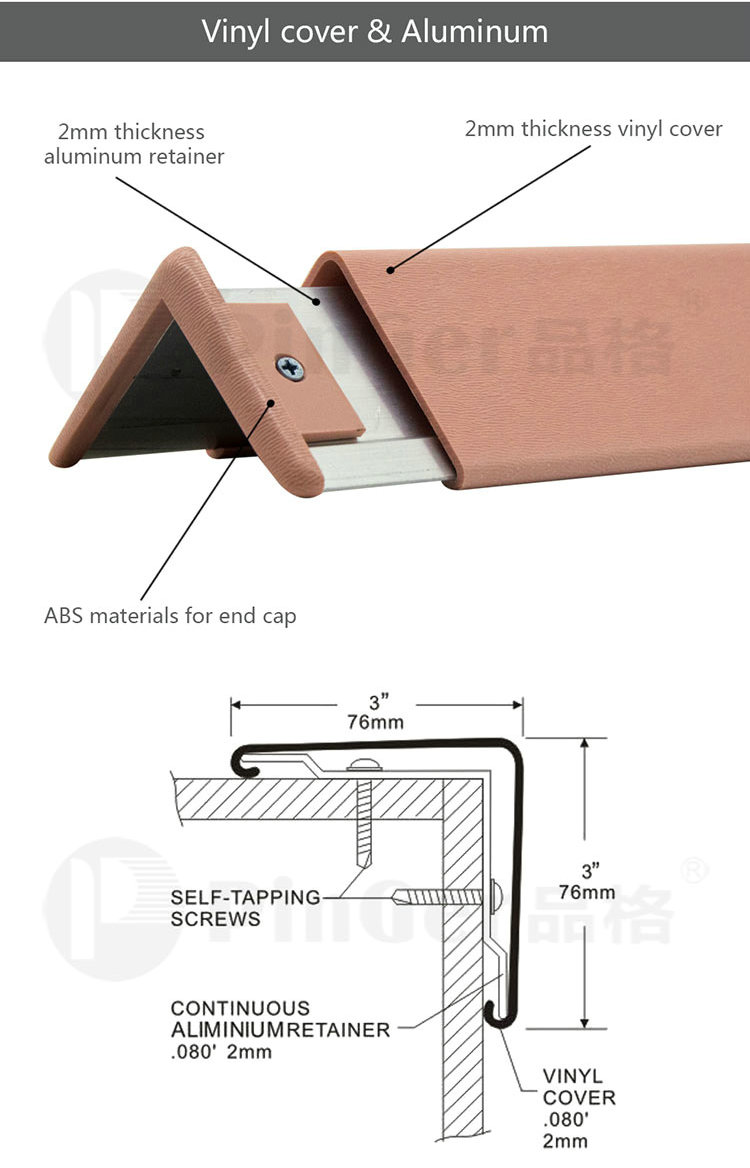

Material	Vinyl cover，thickness aluminum retainer
Size	2mm thickness vinyl cover，2mm thickness aluminum retainer，ABS materials for end cap.
Accessories	Bolts screws
Scope of application	Hospital，nursing home，restaurant， hotel，school，kindergarten and other public places.
Color	There are dozens of colors to choose.

Public Place Vinyl Anti-Collision Wall Corner Guard

PRODUCT CHARACTERISTICS

1、Atibacterial Vinyl Materia

Vinyl surface cover plate has fine particles and compact density. It has ant-collision，fireproof，anti-scratch and

abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.

The surface layer has anti slip fine lines and anti-fouling treatment， which is easy to clean.

2、High impact& Durable

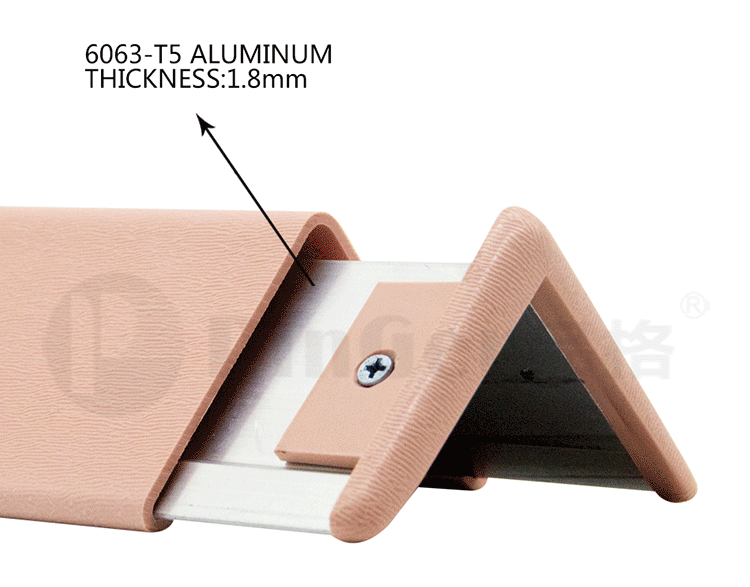

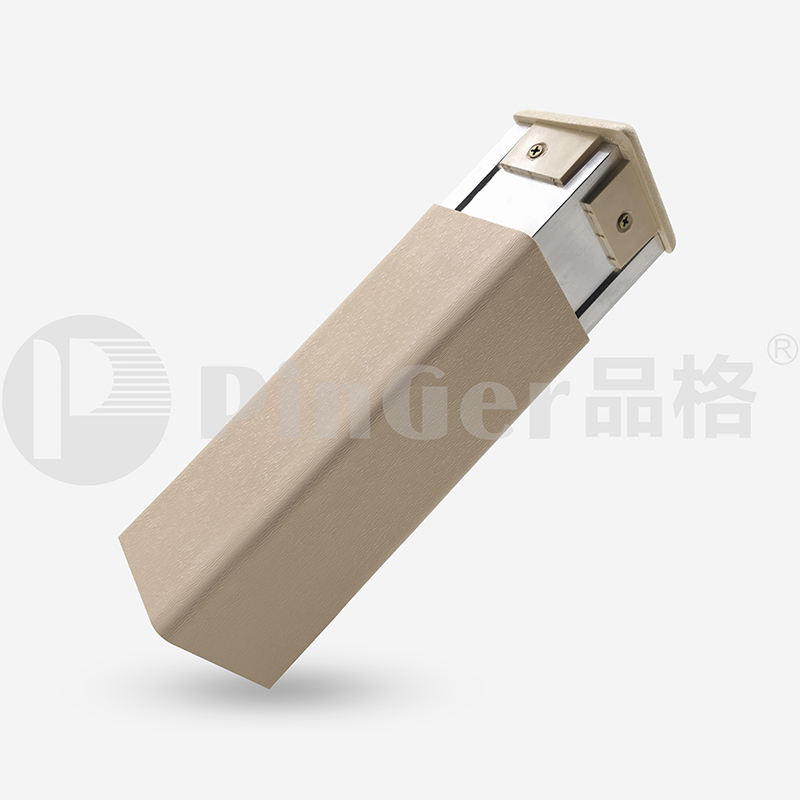

The 6063-T 5 aluminum is oxidized to ensure no rust and can be used effectively for along time.

3 Comfortable and convenient

Pinger comer guard installed on the tuming of wall to protect it from lmpact

Recommended heiaht are 1.2m.1.5m.2m.3m

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital， schools laboratories， pharmaceutical plants airplanes， ships，

high-speed rails.

Office Building Wall Corner Protection

Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test (per SGS)

●Formaldehyde (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test (per CA65)

Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height

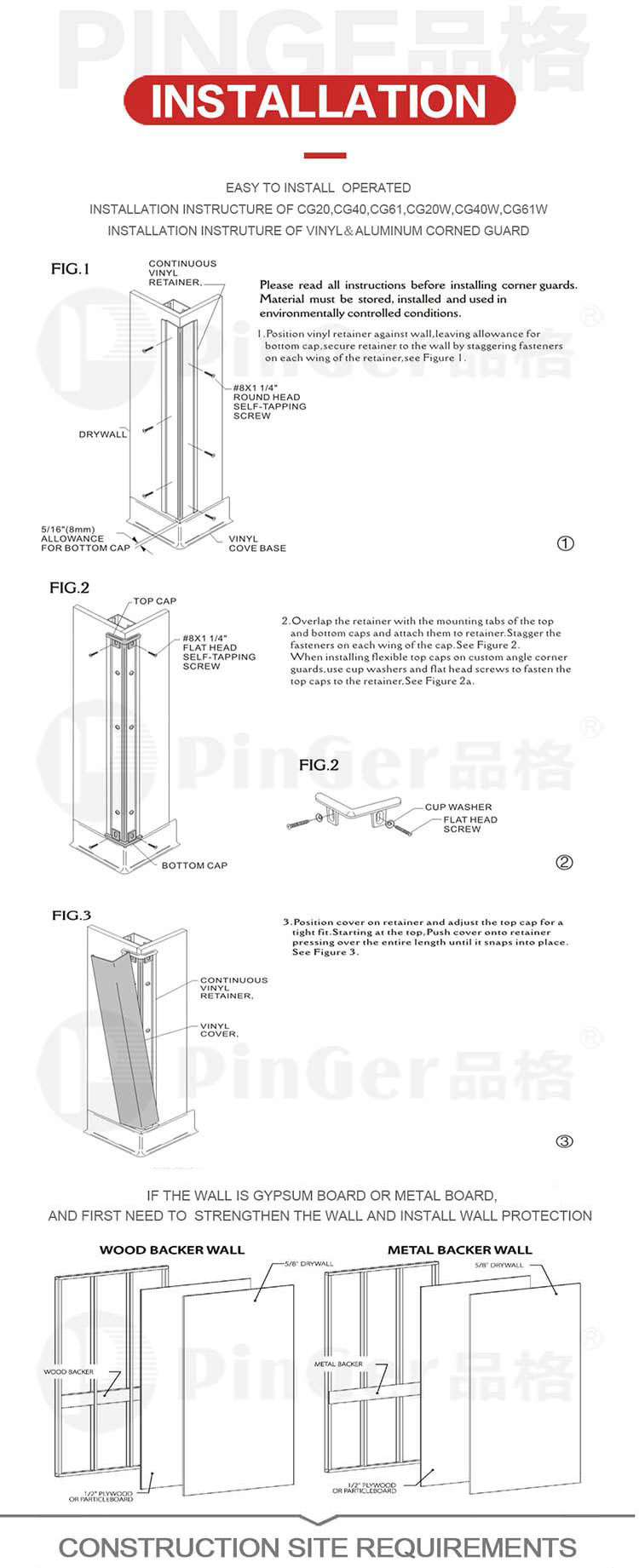

Installation Instruction–Wall Protection Corner Guards

●Aluminum insert for cover base installation with screws fixed.

Office Building Wall Corner Protection

Applications :

●High-traffic and high-impact areas . cleaning room,Corridors . Classrooms . Patient/resident rooms . Conference rooms .

Back of house . Columns Benefits . Endless design options allows for coordination within any interior design scheme . Durable.

Pinger keeps interior protected and looking good .

●Pinger color is integral throughout, helping reduce discoloration caused by scratching Building Segments . Aviation &

Transportation . Education . Healthcare . Hospitality . Office & Mixed Use . Retail . Senior Living . Sports & Entertainment

Pinger Project History

●Pinger now owns dozens of national inventions and new practical patents. It has passed third-party certifications from ISO9001

quality system certification, ISO14001 environmental monitoring system certification, EU CE certification, and Europe and the United

States SGS international testing certification.

● Pinger wall panel and wall protection system products are in the leading position among similar products. We not only have a stable

market share in China, but also sell products in more than 100 countries and regions in the world, and occupy a certain market share in the international market.

TECHNICAL DATA
Certificate	Certificate standard	Result
Antibacterial	ASTME2180	>99.9% inhibis growth
Mould Proof	ASTM G21-15	0 Class non growth
Fire and smoke Rating	ASTM E84-17 Class A	Class A
Horizontal Burning	UL94HB	PASS
Crashproo	ASTM D256-10el	PASS
Chemical and Corrosion resistance	ASTM D543-14/ASTM D2240-15/ASTM D638-14	G00D
TVOC	CA CDPH 01350-voc	G00D
Color Diference	SAEJ1545-2005	G00D
Color staining	EN423：2001	G00D
Phthalate Test	SGS	PASS
Fomaldehyde	CA CDPH 01350-voc GB/T 18580-2017	PASS
Heavy metal Test[Lead& Cadmium	CA65	PASS
Appication
Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on.

CARE INSTRUCTIONS

Cleaning And Maintenance Requirements
Visitor folw rate	cleaning and maintenance	Stain processing
Privte room	one time in one year	Require time
Public place or corrider	two or three times in one year	Require time
Main channel or main entry door	one time lin one month	Require time

Renark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

Office Building Wall Corner Protection

wall protection vinyl sheet

Mini handrail aluminum wall raillings

PinGer® Public Place Vinyl Anti-Collision Wall Corner Guard

Technical Specifications & Downloads

Download Pinger official technical documentation and specifications catalog below for Corner Guard Model CG76W.

Pinger Corner Guard CG76W Technical Specifications Download PDF

Technical Data & Specifications

Pinger Public Place Vinyl Anti-Collision Wall Corner Guard CG76W is engineered with 1.8mm vinyl + 1.8mm aluminum in wood color ● Wing Width：76mm*76mm(3'' * 3'') ● Angle: 90° ● Length：1m/PC、1.5m/PC、2m/PC（customize）. Specially designed for hospital corridors and high-traffic commercial spaces, CG76W offers exceptional heavy-duty collision protection, fire-retardant performance, and non-phthalate environmental safety.

HYGIENE

PinGer Wall Guard Antibacterial and Mould Proof Technical Data

Bacterial & Fungal Resistant

ANTIBACTERIAL PERFORMANCE

JIS Z 2801:2010 (>99.9% inhibits growth of E. coli & S. aureus)

FUNGAL & MOULD PROOF

ASTM G21-15 (>99.9% inhibits, Class 0 zero-growth rating against Aspergillus & Penicillium)

SAFETY

PinGer Fire Retardant and Flame Spread Rating Technical Data

Fire Performance

FIRE & SMOKE RATING
ASTM E84-17 (Class A) / Euro EN13501-1 (Class B)

HORIZONTAL BURNING
ASTM D635-22 (Self-extinguishing, stable under fire)

SMOKE TOXICITY
Non-toxic, low smoke density growth

DURABILITY PinGer Heavy Duty Impact & Chemical Resistance Technical Data

Impact & Chemical

HIGH IMPACT PROTECTION
ASTM D256-10el & GB/T 14153-1993 Heavy-duty crash test pass

CHEMICAL RESISTANCE
ASTM D543-14 (Resists hospital disinfectants, acids & alkalis)

STAIN RESISTANCE
EN 423:2001 (Level 0 stain resistant, easy to clean)

SUSTAINABILITY PinGer LEED, FSC and LCA Environmental Certifications

Green & LEED Certifications

TVOC & FORMALDEHYDE
CDPH01350 & GB/T 18580-2017 (Low VOC, Formaldehyde-free)

HEAVY METAL SAFETY
CA65 & SGS Certified (Phthalate-free, Lead & Benzene-free)

SUSTAINABLE & RECYCLABLE
LEED Compliant, FSC Certified & 100% Recyclable materials

CG76W Core Performance Highlights

Designed for hospital corridors, clinical nursing stations, cleanrooms, laboratories, senior care facilities, educational institutions, and high-traffic commercial spaces requiring continuous corner protection.

Anti-Bacterial and Mildew Corner Guard CG76W

ANTI-BACTERIAL & MILDEW PROOF

PinGer CG76W corner guard incorporates advanced antibacterial agents that actively inhibit bacterial growth (>99.9%) and mould formation. The non-porous surface withstands frequent cleaning with medical-grade disinfectants, helping hospitals achieve strict hygienic standards.

FIRE SAFETY & FLAME RETARDANT

Engineered to comply with ASTM E84 Class A and Euro EN13501-1 Class B fire standards, the CG76W corner guard offers excellent self-extinguishing properties and low smoke density, ensuring enhanced building interior safety during fire emergencies.

Heavy Duty Anti-Collision Corner Guard CG76W

HEAVY-DUTY IMPACT PROTECTION

Featuring a heavy-duty impact-resistant construction, CG76W effectively absorbs and deflects severe collisions from hospital beds, wheelchairs, and service carts, dramatically cutting drywall repair costs.

AVAILABLE IN VARIOUS COLORS & STYLES

LEED, LCA & GREEN SUSTAINABLE

PinGer CG76W corner guard products are LCA life-cycle assessed and LEED green building compliant. Free of phthalates, heavy metals, and formaldehyde, CG76W maintains superior indoor air quality with ultra-low VOC emissions and is 100% recyclable.

TECHNOLOGY DATA

QUALITY ASSURANCE

1. Fire Performance Characteristics

Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.

2. Fungal and Bacterial Resistance

The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial proof:JISZ2801:2010.

3. Mould Proof

ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.

4. Horizontal burning

As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.

5. Impact Strength

Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.

6. Environmental friendly

No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO 16000-3-6-9 AND SGS:CA CDPH 01350 -VOC

7. Does not stain

Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye，Staining test:EN423:2001.

8. ISO Certified

Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.

9. Chemical and CORROSION Resistance

Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.

10. No heavy metals

Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65

11. Durable and easy to install

Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.

versatile vinyl wall covering

Standard Surface Textures & Finishes

Explore our complete range of professional surface finishes designed for medical wall protection systems. (Click any image to zoom)From hospitals to care homes and nurseries.

Surface Textures Overview

11 Standard Finishes

Lightly (HD)

5 Series Color Card Systems

Browse our complete palette divided into 5 specialized series.

Download Pinger official color card catalog below.

Pinger Color Card Catalog System (5 Series)Download PDF

From hospitals to care homes and nurseries. From rooms to corridors,PinGer offers unrivalled hygiene and impact resistance, exceptionalease of maintenance and outstanding design

Pinger wall panel solutions for hospital nurse stations and corridors under the "Vitality Hue" concept.

It highlights core advantages: color motivation (soft tones for comfort), protection adaptation (2mm - thick, impact/scratch - resistant panels), and detail safety (99.9% antibacterial, seamless welding).

Design suggestions include series like Legend, Lotus, Wood, MO, and Artist,

with various color options for weave - effect panels.

01 SAGA

43 Standard Options

1024D

1866D

1035D

1027D

1602D

1609D

1702D

1704D

1880D

1886D

1039D

3011B

3012B

3412B

3413B

1051P

1053P

1054P

+28 More

02 Nelumbo Nucifera

43 Standard Options

9139A

7443A

9677A

9274A

9378A

9353A

9621A

9240A

9273A

126G

169G

190G

180G

168G

164G

162G

112G

129G

+28 More

03 WOOD

43 Standard Options

1032S

1016S

1002C

1003C

1021C

1050C

1014S

1020C

5016S

5017C

5013S

8071S

8079S

5017C

8086C

8103C

8080C

8084S

+28 More

04 MO

43 Standard Options

1048G

1049M

1052M

1053M

1051M

1707M

1712M

1862M

3012M

9021G

8176MO

8205M

8188M

8198MO

8192MO

8187M

8179M

8314M

+28 More

05 ARTIST

43 Standard Options

8212H

8214H

8215HO

8211HO

8217H

8218HO

8219H

8244H

8239H

8240O

8238H

8241O

8242O

8243O

8245O

8246O

8231H

8233H

+28 More

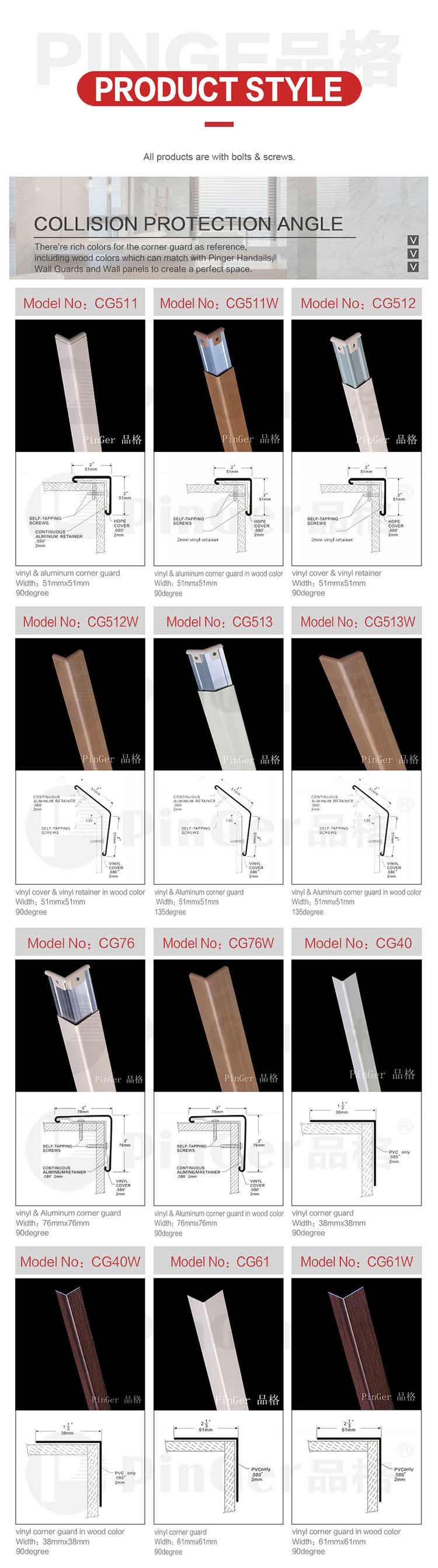

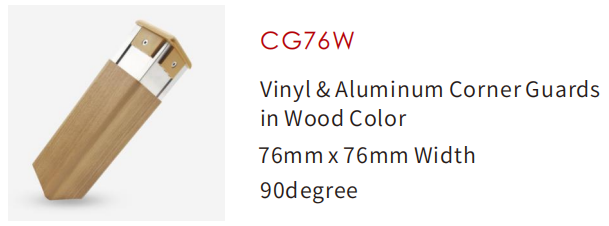

CORNER GUARD CG76W

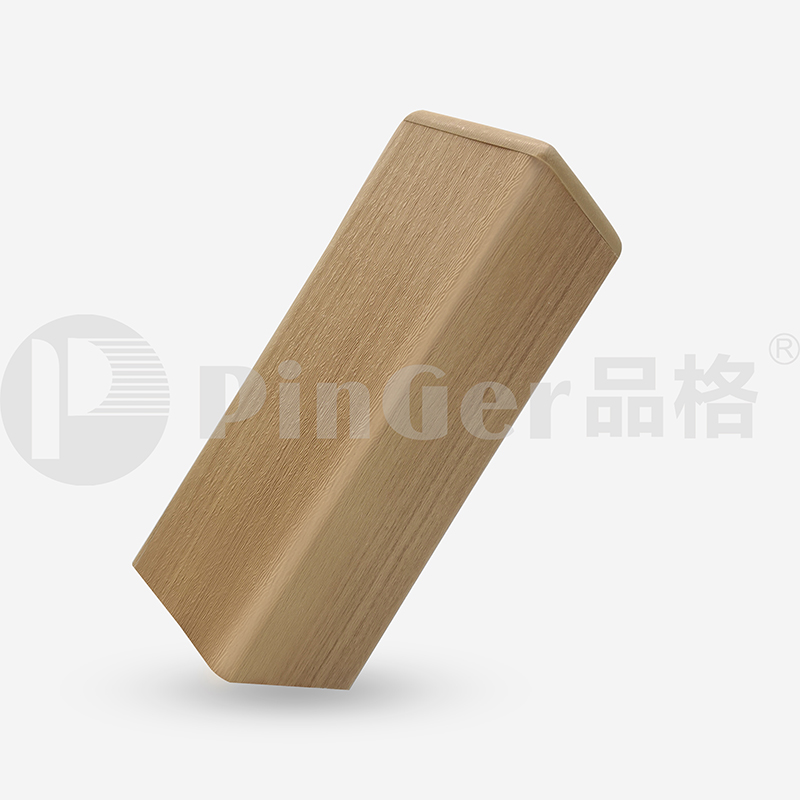

●There're many colors for the Corner Guards as reference, including woodcolors which can match with PinGer Handrails.Wall Guards & Wall Panels to create aperfectsapce.

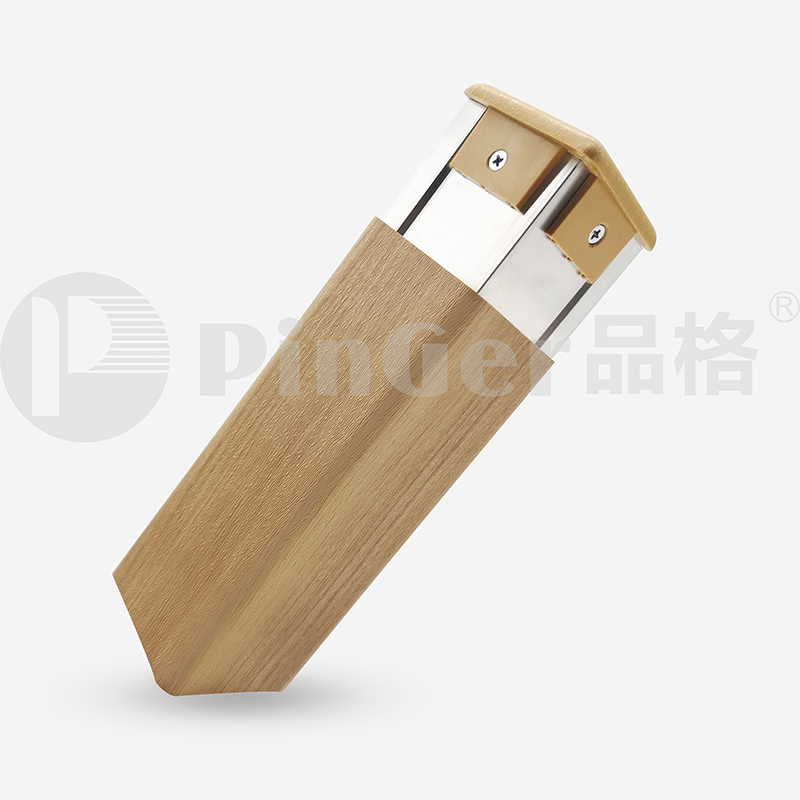

●Above products are with bolts & screws.

PRODUCT CHARACTERISTICS

1、Atibacterial Vinyl Materia

Vinyl surface cover plate has fine particles and compact density. It has ant-collision，fireproof，anti-scratch and

abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.

The surface layer has anti slip fine lines and anti-fouling treatment， which is easy to clean.

2、High impact& Durable

The 6063-T 5 aluminum is oxidized to ensure no rust and can be used effectively for along time.

3 Comfortable and convenient

Pinger comer guard installed on the tuming of wall to protect it from lmpact

Recommended heiaht are 1.2m.1.5m.2m.3m

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital， schools laboratories， pharmaceutical plants airplanes， ships，

high-speed rails.

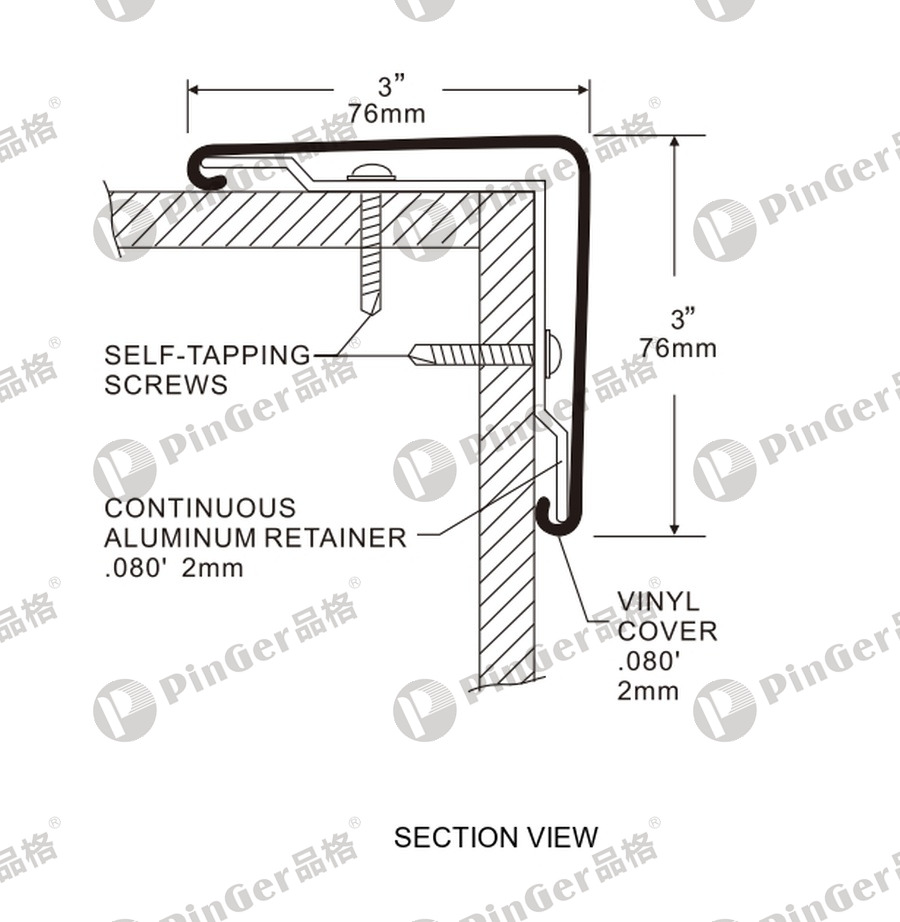

CAD Drawings

Download professional architectural CAD drawings for Pinger Corner Guard CG76 to incorporate into your healthcare building designs.

Pinger Corner Guard CG76 CAD Drawing Download PDF

[Pinger 品格 ® Cleaning and Maintenance]

Cleaning And Maintenance Requirements
Visitor folw rate	cleaning and maintenance	Stain processing
Privte room	one time in one year	Require time
Public place or corrider	two or three times in one year	Require time
Main channel or main entry door	one time lin one month	Require time

Remark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

Sustainable & Eco-Friendly Details

Designed with environmental responsibility and medical-grade safety at the core, the Pinger CG76W corner guard helps healthcare, aged-care and commercial projects meet green building and indoor air quality requirements.

1. Green & 100% Recyclable Materials

Manufactured with eco-friendly formulations, the Pinger CG76W corner guard (1.8mm vinyl + 1.8mm aluminum in wood color) is 100% recyclable at end of life. It is completely free from formaldehyde, benzene, heavy metals and phthalates/DEHP (California Prop 65 and SGS phthalate tested), so there are no toxic emissions during installation or daily use.

2. Low VOC Emissions & Indoor Air Quality

Emissions are tested to CA CDPH 01350 and ISO 16000, with non-detectable TVOC and formaldehyde results. The low-emitting, non-porous surface supports LEED v4 and WELL indoor air quality documentation, making CG76W suitable for ICUs, operating theatres, neonatal units and occupied healthcare corridors.

3. Long Durability That Reduces Lifecycle Waste

Built for a long service life, CG76W acts as heavy-duty armour against daily equipment impact, preventing repeated wall or corner repairs, repainting and plasterboard replacement. Fewer repairs mean less construction waste and a lower total cost of ownership over the building lifecycle. Wood-grain and solid-colour finishes are available for wayfinding and interior design schemes.

Frequently Asked Questions (FAQ)

Answers to the questions architects, contractors and hospital procurement teams ask most often about the Pinger CG76W corner guard.

Q1: What is the Pinger CG76W corner guard used for?

CG76W is a corner guard used to protect exposed 90° wall corners from trolleys, wheelchairs, beds and service carts in hospitals, clinics, schools, hotels, airports and commercial corridors. It absorbs impact that would otherwise crack plasterboard and damage paint, cutting maintenance costs in high-traffic areas.

Q2: Is the CG76W corner guard fire rated for hospitals and commercial buildings?

Yes. Pinger CG76W corner guard is fire retardant to ASTM E84 Class A (flame spread and smoke developed) and EN 13501-1 Class B, with UL94HB horizontal burning compliance. It self-extinguishes and produces low smoke density, which is what healthcare and public-building codes require.

Q3: How does CG76W support infection control and daily cleaning?

The vinyl surface carries antibacterial additives tested above 99.9% bacterial reduction (JIS Z 2801 / ASTM E2180) and is mould-proof to ASTM G21-15. Because it is non-porous and chemically resistant (EN 423 grade A, ASTM D543), cleaning teams can sanitise it repeatedly with medical-grade disinfectants, alcohol or diluted bleach without fading or surface damage.

Q4: Is the CG76W corner guard easy to install on site?

Yes. CG76W is a two-part system: first fix the aluminium retainer to the wall corner with screws or structural adhesive, then cut the vinyl cover to length and snap it over the retainer, finishing with matching end caps at the top and bottom. Most contractors install it in minutes per corner with standard tools.

Q5: What are the standard sizes and material specifications of CG76W?

Model CG76W is supplied with a wing width of 76mm*76mm(3'' * 3''), formed at a 90° angle. Custom lengths, solid colours and wood-grain finishes are available on request. It is built with 1.8mm vinyl + 1.8mm aluminum in wood color, and Pinger supplies matching end caps, corner accessories and fixings so a complete run can be installed from one order.

Q6: Can CG76W contribute to LEED or other green building certification?

Yes. CG76W is a 100% recyclable, low-VOC product, so it can be documented under LEED v4 Low-Emitting Materials and supports Material & Resources credits for recyclable content and long service life. Pinger provides the supporting test reports (SGS / Intertek, ASTM and EN standards) for project submittals.
