4 (102mm) wall bumper rail protector extends 1 (25mm) from wall Supplier,Manufacturer

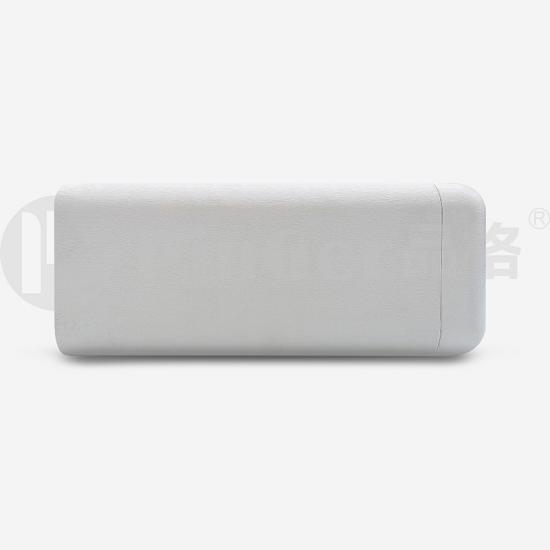

Product Name：4" (102mm) wall bumper rail protector extends 1" (25mm) from wall

Specification

●Heavy-gauge aluminum retainers and the industry’s heaviest rigid vinyl covers

●Available with or without rubber spacers for reveal or flush mounting

●Constructed of heavy-gauge aluminum retainers and the heaviest rigid vinyl covers in the industry.

4" (102mm) wall bumper rail protector extends 1" (25mm) from wall

TECHNOLOGY DATA
Brand	PinGer

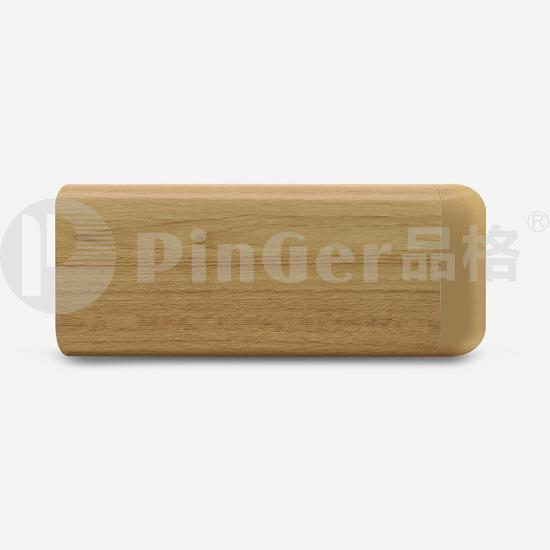

Product No	WALL GUARD WG1021W
Material	Vinyl cover，thickness aluminum retainer
Size	2mm thickness vinyl cover，2mm thickness aluminum retainer，ABS materials for end cap.
Accessories	Bolts screws
Scope of application	Hospital，nursing home，restaurant， hotel，school，kindergarten and other public places.
Color	There are dozens of colors to choose.

4" (102mm) wall bumper rail protector extends 1" (25mm) from wall

MORE DETAILS

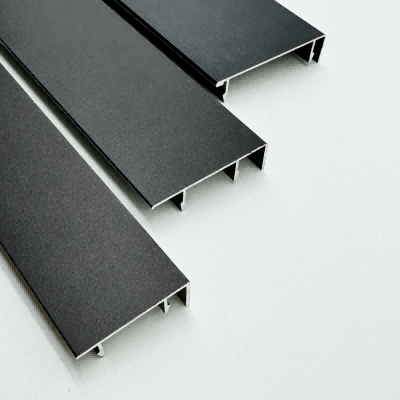

Pinger wall guads is assembled by the following parts：2mm thickness vinyl cover，2mm thickness aluminum retainer，

ABS materials for elbow and bracket.

PRODUCT CHARACTERISTICS

1、Atibacterial Vinyl Materia

Vinyl surface cover plate has fine particles and compact density.It has anti-collision，fireproof，anti-scratch and abrasion

resistance，antibacterial and environmental protection functions through special treatment on the surface.The surface layer has

anti-slip fine lines and anti-fouling treatment，which is easy to clean.

4" (102mm) wall bumper rail protector extends 1" (25mm) from wall

2、High impact & Durable

The 6063-T 5 aluminum is oxidized to ensure no rust and can be used effectively for along time.

4" (102mm) wall bumper rail protector extends 1" (25mm) from wall

3、Comfortable And Convenient

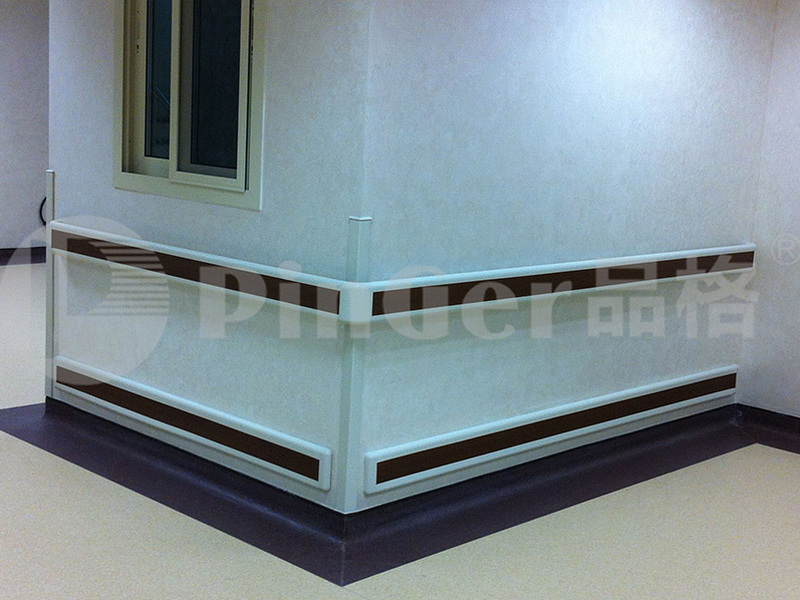

Pinger wall guard installed on the turning of wall to protect it from impact.

4" (102mm) wall bumper rail protector extends 1" (25mm) from wall

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital， schools laboratories， pharmaceutical plants airplanes， ships，

high-speed rails.

4" (102mm) wall bumper rail protector extends 1" (25mm) from wall

FeatureSpecification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation

Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test (per SGS)

●Formaldehyde (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test (per CA65)

Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height.

4" (102mm) wall bumper rail protector extends 1" (25mm) from wall

Installation Instruction

●Clean-upand Maintenance Instructions

●Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

●If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

●If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe

●Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning Tool Selection

●clothes: clean clothes or scouring pad

●Detergent: Use a neutral detergent or alcohol. Special reminder: oily (paint) stains trace is more difficult to remove, so the product can be made. spray painting to decorate the wall, such as oil (paint class) after the spray painting to remove and replace as a block wallboard. (Oily pen wants to wipe, usable pure alcohol or alcohol adds water to scrub and wipe).

TECHNICAL DATA
Certificate	Certificate standard	Result
Antibacterial	ASTME2180	>99.9% inhibis growth
Mould Proof	ASTM G21-15	0 Class non growth
Fire and smoke Rating	ASTM E84-17 Class A	Class A
Horizontal Burning	UL94HB	PASS
Crashproo	ASTM D256-10el	PASS
Chemical and Corrosion resistance	ASTM D543-14/ASTM D2240-15/ASTM D638-14	G00D
TVOC	CA CDPH 01350-voc	G00D
Color Diference	SAEJ1545-2005	G00D
Color staining	EN423：2001	G00D
Phthalate Test	SGS	PASS
Fomaldehyde	CA CDPH 01350-voc GB/T 18580-2017	PASS
Heavy metal Test[Lead& Cadmium	CA65	PASS
Appication
Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on.

CARE INSTRUCTIONS

Cleaning And Maintenance Requirements
Visitor folw rate	cleaning and maintenance	Stain processing
Privte room	one time in one year	Require time
Public place or corrider	two or three times in one year	Require time
Main channel or main entry door	one time lin one month	Require time

Renark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

4" (102mm) wall bumper rail protector extends 1" (25mm) from wall

TECHNOLOGY DATA

QUALITY ASSURANCE

1. Fire Performance Characteristics

Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.

2. Fungal and Bacterial Resistance

The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial proof:JISZ2801:2010.

3. Mould Proof

ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.

4. Horizontal burning

As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.

5. Impact Strength

Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.

6. Environmental friendly

No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO 16000-3-6-9 AND SGS:CA CDPH 01350 -VOC

7. Does not stain

Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye，Staining test:EN423:2001.

8. ISO Certified

Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.

9. Chemical and CORROSION Resistance

Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.

10. No heavy metals

Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65

11. Durable and easy to install

Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.

versatile vinyl wall covering

Wall Guard WG1021W

●Pinger wall panels(Antibacterial wall vinyl sheet) is a new type of greenenvironmental protection building materials,with antibacterial,fireretardant,anticollision,green environmental protection,wear-resisting,mouldproof moistureproof and easy to clean,richcolors,dimension stability,lightweight portable product features,etc.

●As a new wall material with a homogeneous core, the material is rich insilver ions, which can effectively inhibit the growth of fungi, mold andother pathogenic microorganisms attached to the surface of the board,and reduce the possibility of bacterial cross-infection and diseasetransmission in public places.

●The wall panel is antibacterial ant the effectdoes not diminish with the life cycle of the material.

●At the same time, thePinger Wall Panel has strong anti-collision performance, which canprotect the wall well in the process of wheel chair and impact.

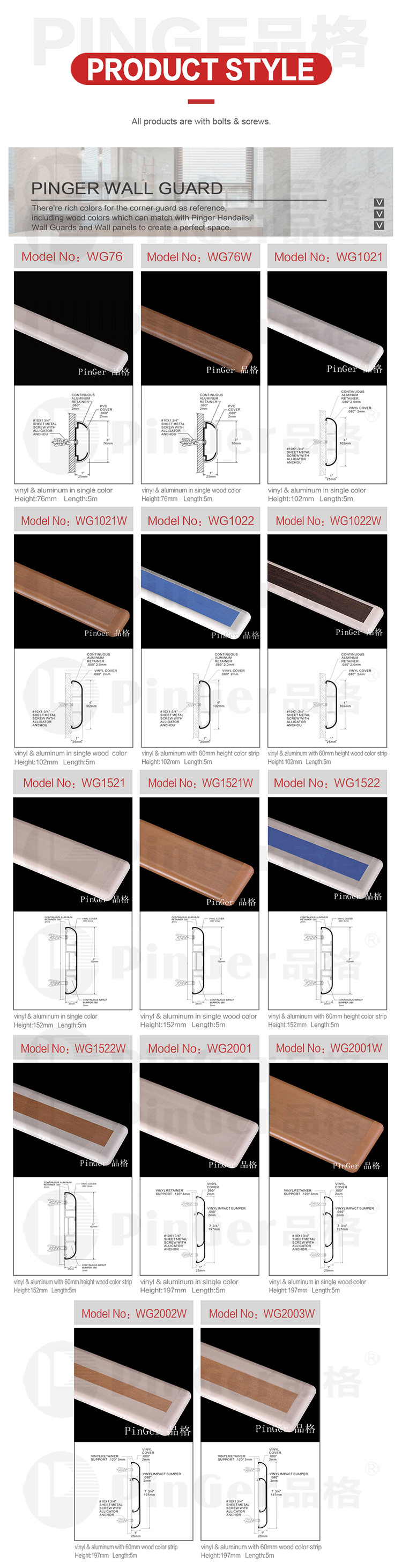

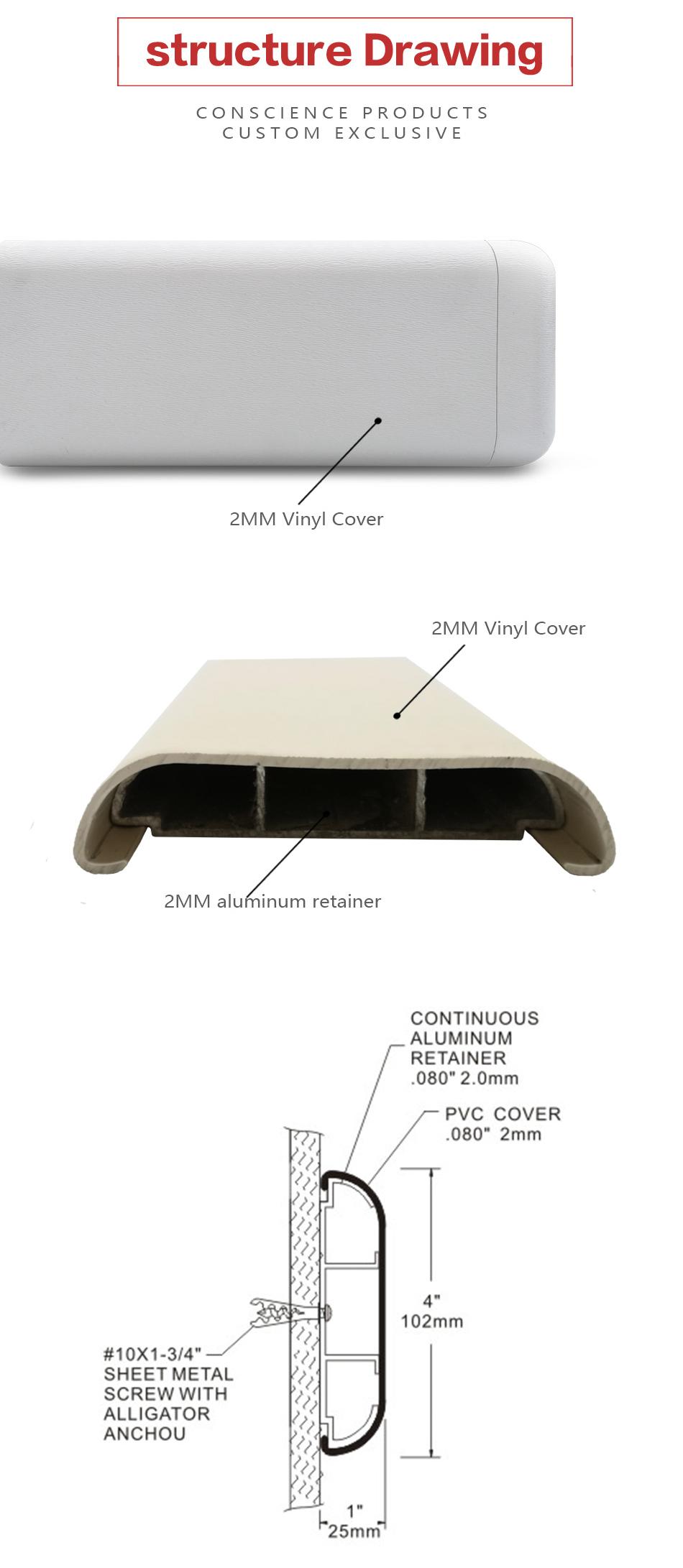

Structural Drawings

Superior Impact Aluminum Retainer Wall Corner Guard

[Pinger 品格 ® Cleaning and Maintenance]

Cleaning And Maintenance Requirements
Visitor folw rate	cleaning and maintenance	Stain processing
Privte room	one time in one year	Require time
Public place or corrider	two or three times in one year	Require time
Main channel or main entry door	one time lin one month	Require time

Remark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

A: Recently, we've heard that your company has achieved a lot in environmental protection. Could you introduce your company and the environmental - protection measures for your wall guard products?

B: We're a company deeply committed to environmental protection. Our wall guard products are designed with a strong emphasis on being green and pollution - free. They are primarily crafted from high - quality vinyl with a certain thickness (for example, we might use a 3mm thick vinyl in some products), and the connection parts or additional accessories are made of non - toxic ABS materials. These materials are carefully selected to ensure they pose no harm to human health. During the production process, we take every measure to minimize the negative impact on the environment. We've invested in advanced production technologies that help reduce waste generation as much as possible. Also, we're constantly looking for ways to cut down on energy consumption throughout the manufacturing process.

A: What efforts has your company made to extend the life cycle of wall guard products and promote the sustainable use of resources?

B: Our wall guard products, such as the WALL GUARD WG30, have features that support resource sustainability. The vinyl material used is highly durable. It can withstand regular impacts and wear - and - tear, which significantly extends the product's lifespan. Moreover, we offer a diverse color palette. This means that the wall guards can be used in different settings for a long time without losing their aesthetic appeal. Even when a wall guard reaches the end of its useful life, we're actively exploring recycling methods. We aim to ensure that the materials can be recycled or repurposed, thus reducing the amount of waste ending up in landfills.

A: How do your wall guard products meet the needs of both protection and decoration?

B: Our wall guard products are multi - functional. They are highly impact - resistant, effectively safeguarding walls from damage caused by collisions, whether it's from furniture, equipment, or people moving around. Additionally, they have excellent stain - resistance and are easy to clean. This ensures that they maintain a good appearance over time. In terms of decoration, we offer a wide variety of colors, numbering in the dozens. This enables the wall guards to match different interior design styles. They can be seamlessly integrated into spaces like hospitals, nursing homes, restaurants, hotels, schools, or kindergartens. So, they not only protect walls but also enhance the overall visual appeal of the area.

A: Are there any other certifications or features that highlight the quality and environmental - friendliness of your wall guard products?

B: Currently, although we may not hold the EPD certification, our products are designed in strict accordance with environmental - friendly concepts. We're constantly engaged in research and development to meet even higher environmental standards. For instance, the materials we use guarantee that no harmful substances are released during the product's use. We're also in the process of seeking more comprehensive certifications. This is to better demonstrate our dedication to product quality and environmental protection. Our goal is to continuously improve our wall guard products to contribute to a more sustainable built environment.
