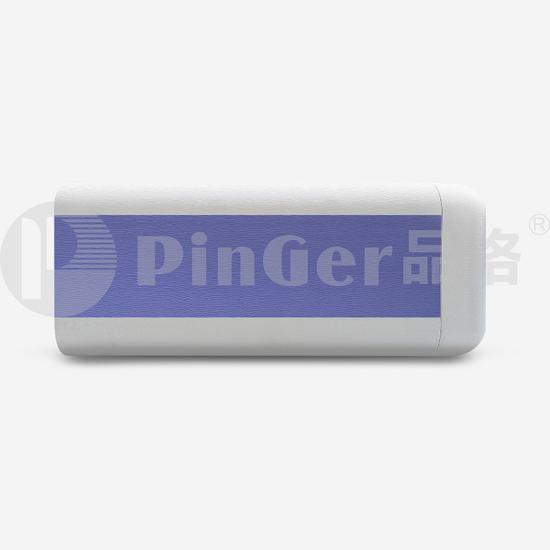

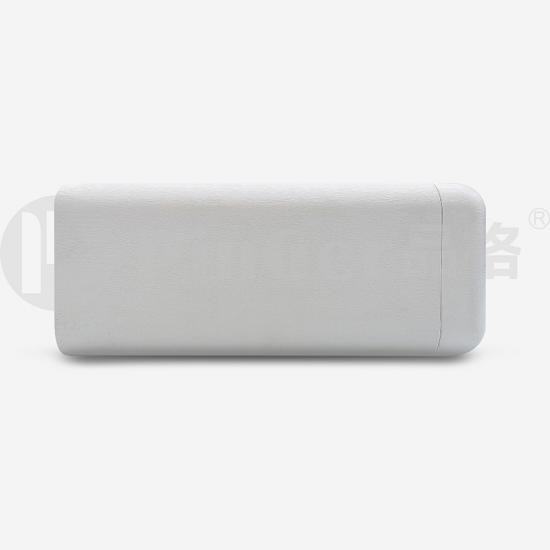

Wall Guard System For Wall Protection And Decoration

Model No.:WG1021
Materials:vinyl cover+aluminum in single color
Standard Length:5m
Standard Width:102mm
Thickness of vinyl cover:2mm
Thickness of aluminum:2mm


  • Item No.:

    WG1021
  • Product Detail

Product Name:Wall Guard System For Wall Protection And Decoration



Specification

●Gently curved upper edge helps prevent injury from accident falls,discourages use as a footrest and eliminates litter and dust buildup

●Heavy-gauge aluminum retainers and the industry’s heaviest rigid vinyl covers

●Available with or without rubber spacers for reveal or flush mounting

●Constructed of heavy-gauge aluminum retainers and the heaviest rigid vinyl covers in the industry.

Corner Guard System For Wall Protection And Decoration

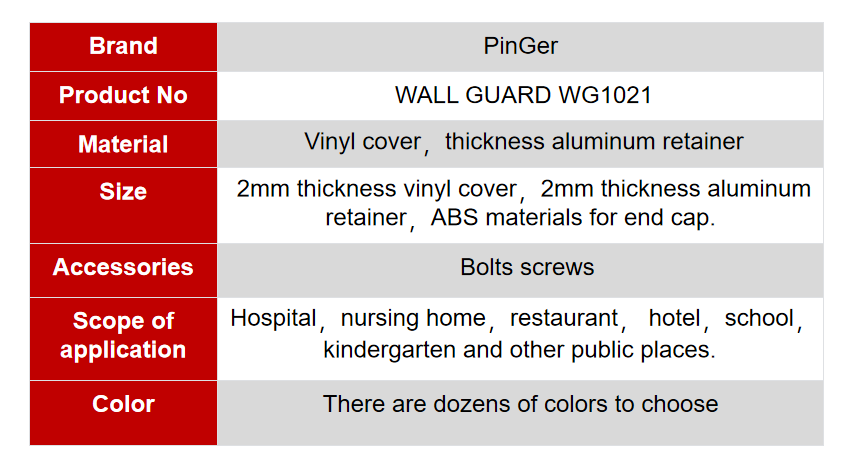

TECHNOLOGY DATA
Brand  PinGer
Product No  WALL GUARD WG1021
Material  Vinyl cover,thickness aluminum retainer
Size  2mm thickness vinyl cover,2mm thickness aluminum retainer,ABS materials for end cap.
Accessories  Bolts screws
Scope of application  Hospital,nursing home,restaurant, hotel,school,kindergarten and other public places.
Color  There are dozens of colors to choose.

Corner Guard System For Wall Protection And Decoration

Corner Guard System For Wall Protection And Decoration

Corner Guard System For Wall Protection And Decoration

MORE DETAILS

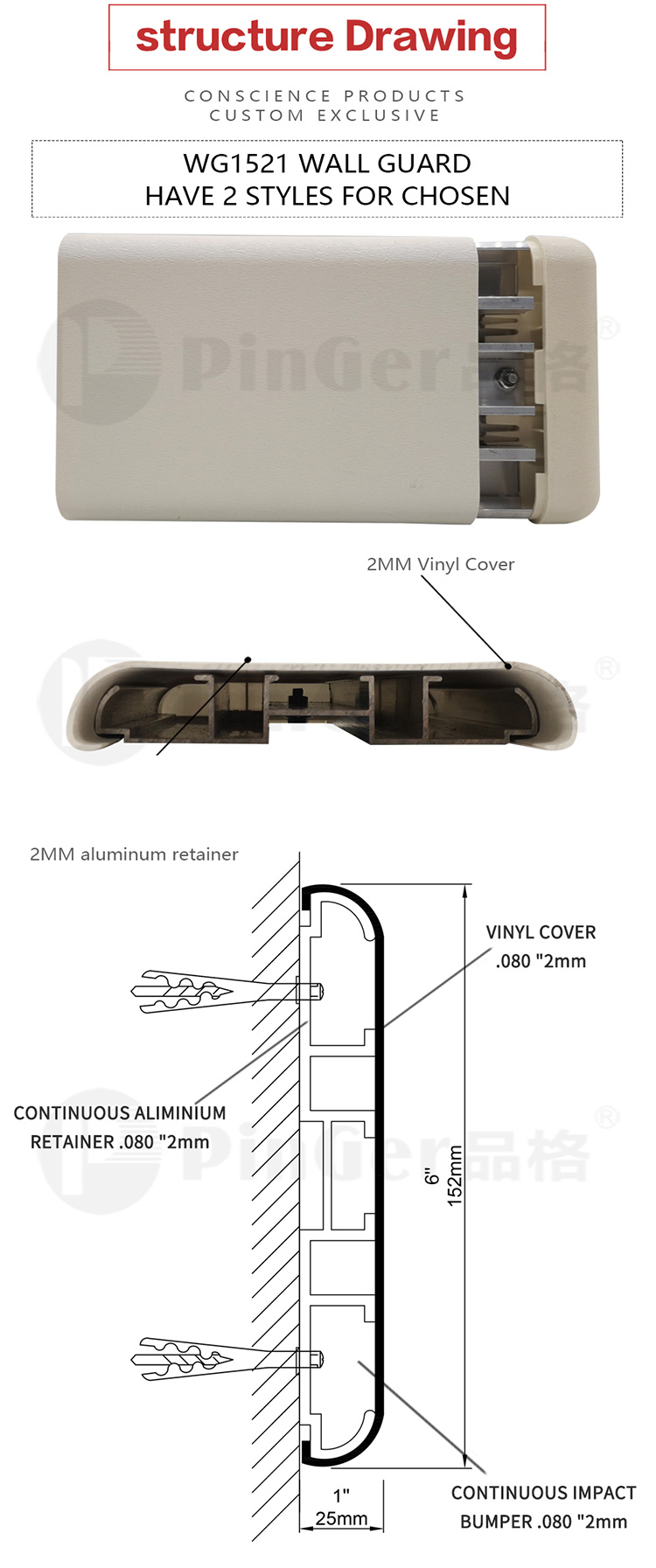

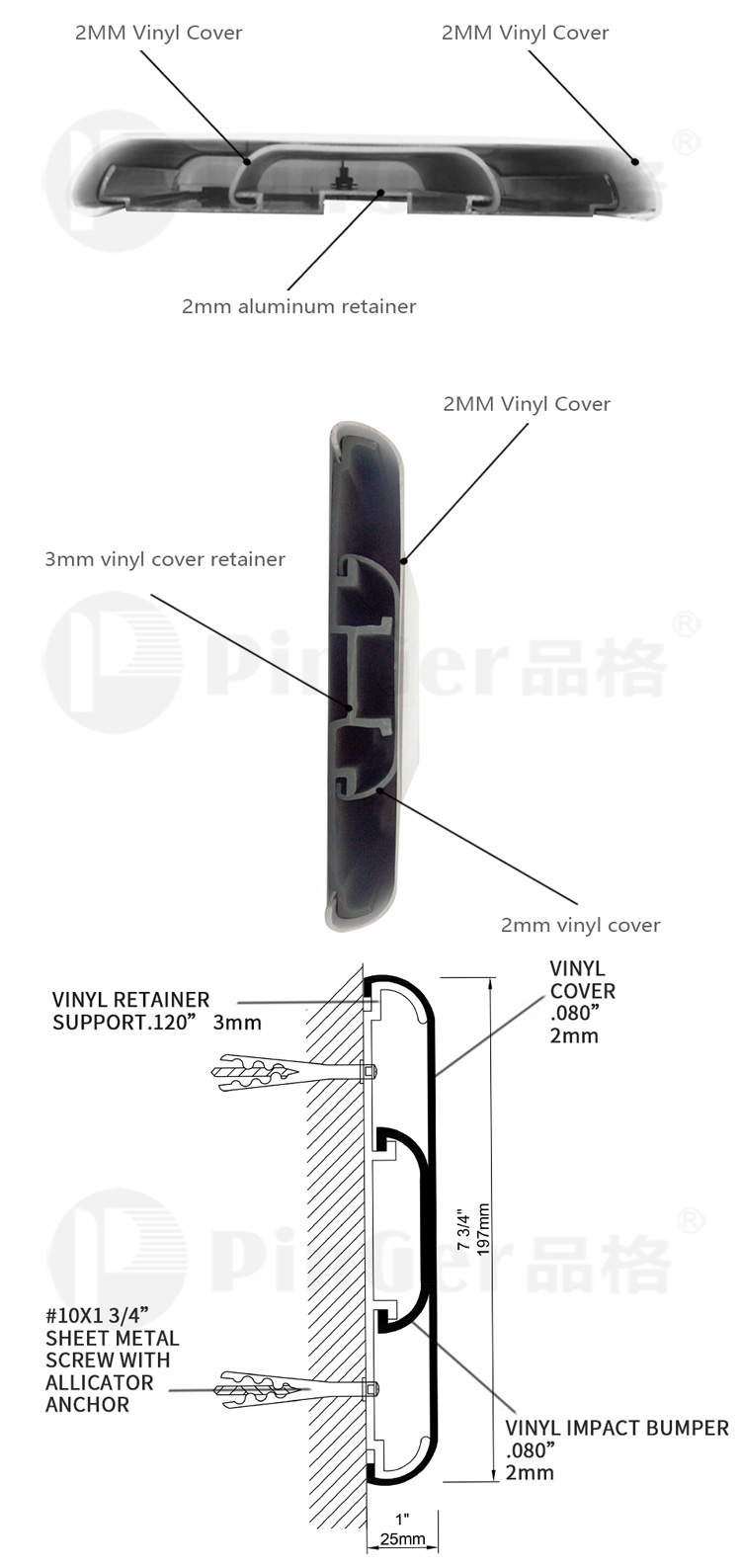

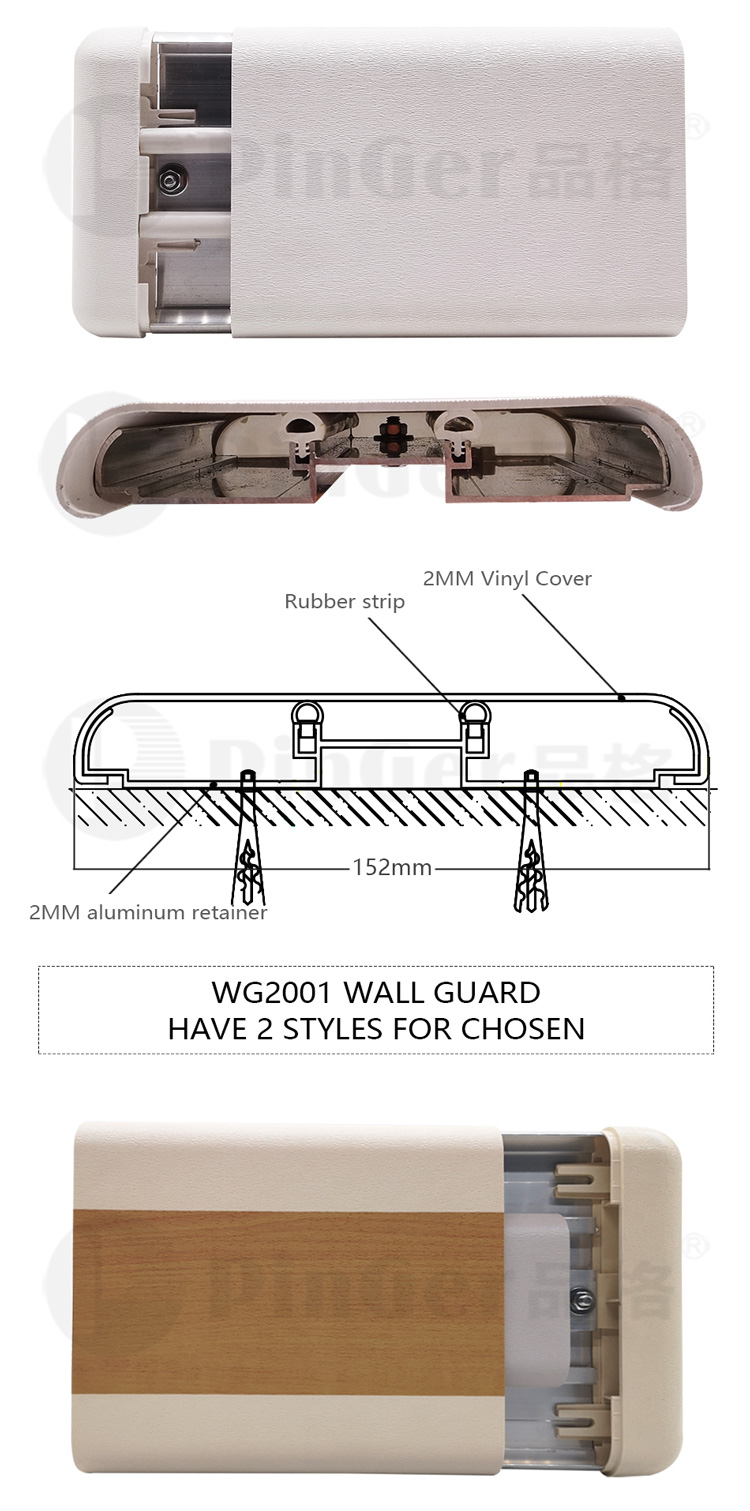

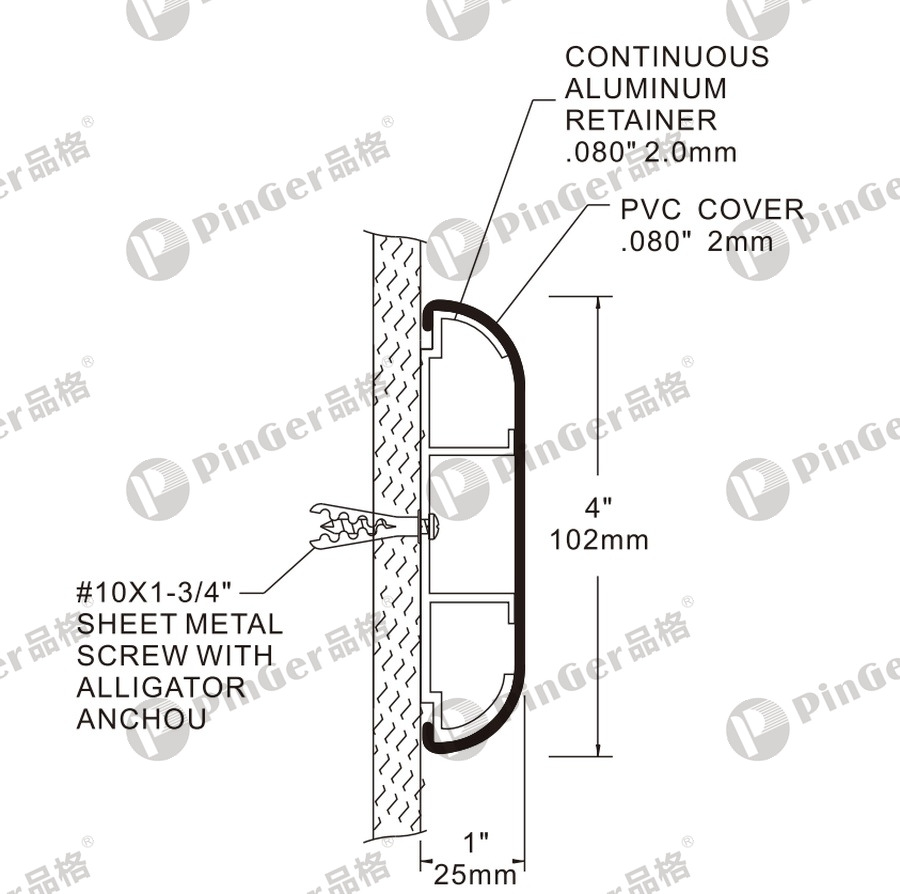

Pinger wall guads is assembled by the following parts:2mm thickness vinyl cover,2mm thickness aluminum retainer,

ABS materials for elbow and bracket.

PRODUCT CHARACTERISTICS

1、Atibacterial Vinyl Materia

Vinyl surface cover plate has fine particles and compact density.It has anti-collision,fireproof,anti-scratch and abrasion

resistance,antibacterial and environmental protection functions through special treatment on the surface.The surface layer has

anti-slip fine lines and anti-fouling treatment,which is easy to clean.

Durability Flat Profile Rigid Vinyl Wall Guards

2、High impact & Durable

The 6063-T 5 aluminum is oxidized to ensure no rust and can be used effectively for along time.

Corner Guard System For Wall Protection And Decoration

3、Comfortable And Convenient

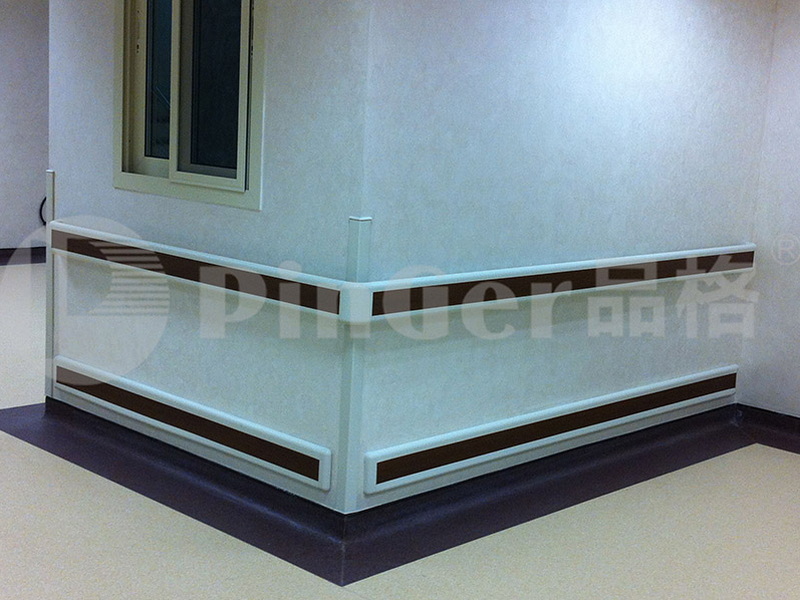

Pinger wall guard installed on the turning of wall to protect it from impact.

Corner Guard System For Wall Protection And Decoration

Corner Guard System For Wall Protection And Decoration

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital, schools laboratories, pharmaceutical plants airplanes, ships,

high-speed rails.

Corner Guard System For Wall Protection And Decoration

FeatureSpecification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation


Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

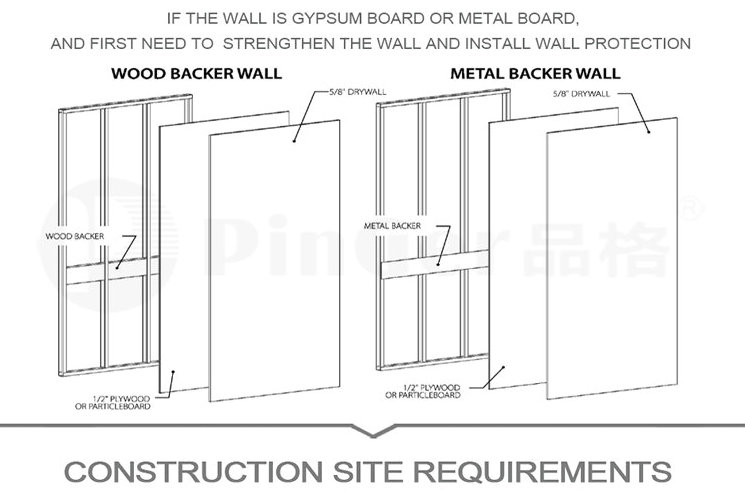

Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height.


Corner Guard System For Wall Protection And Decoration

Corner Guard System For Wall Protection And Decoration

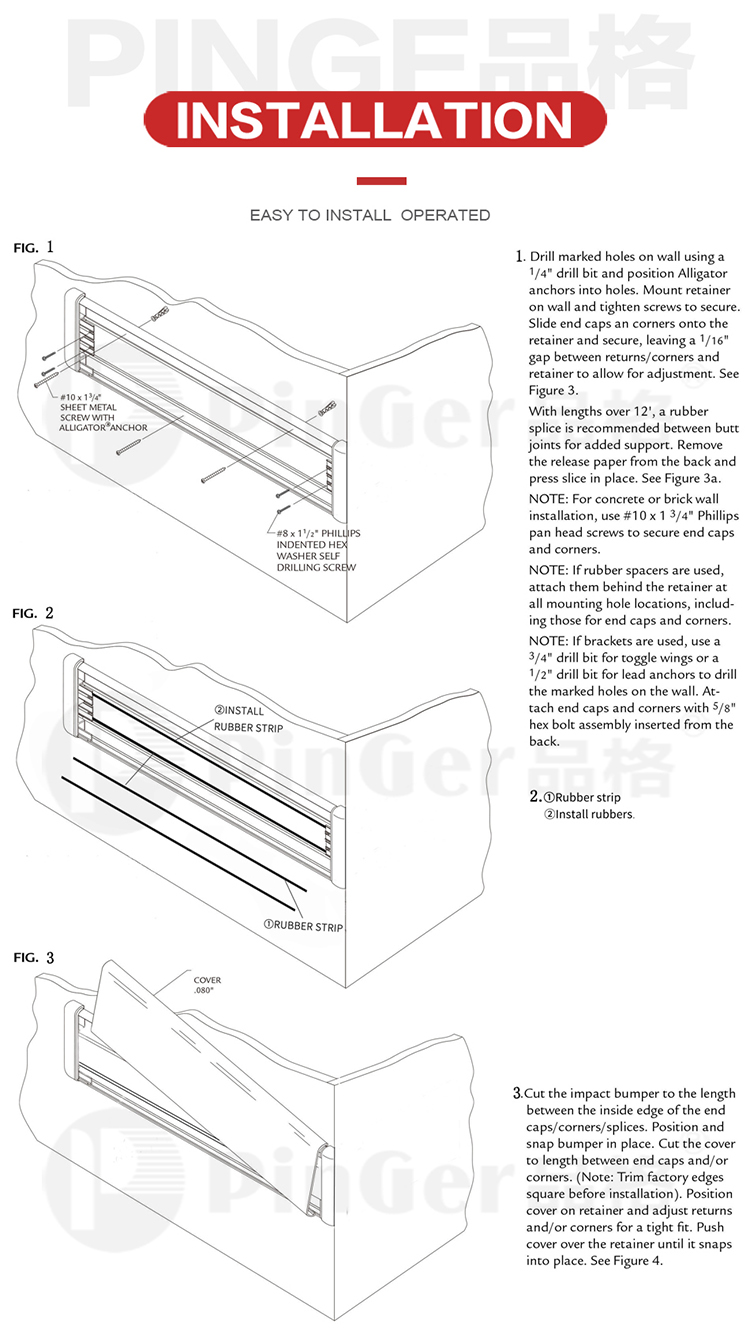

Installation Instruction

●Clean-upand Maintenance Instructions

●Daily cleaning and maintenance ,it can be used to clean the dust  layer with a clean cloth

●If there are a few stains: footprints,tea marks,etc,use a clean cloth  to wipe

●If the stain is not timely treatment,stay too long,use a clean cloth  and neutral cleaner to wipe

●Use dishcloth to add warm warm water or cleaner to wipe, need to  use clean dry dishcloth to wipe Water mark.



Cleaning Tool Selection

●clothes: clean clothes or scouring pad

●Detergent: Use a neutral detergent or alcohol. Special reminder: oily  (paint) stains trace is more difficult to remove, so the product can be  made. spray painting to decorate the wall, such as oil (paint class) after  the spray painting to remove and replace as a block wallboard. (Oily pen  wants to wipe, usable pure alcohol or alcohol adds water to scrub and  wipe).


TECHNICAL DATA

 Certificate

 Certificate standard

 Result

 Antibacterial

 ASTME2180

 >99.9% inhibis growth

 Mould Proof

 ASTM G21-15

 0 Class non growth

 Fire and smoke Rating

 ASTM E84-17 Class A

 Class A

 Horizontal Burning

 UL94HB

 PASS

 Crashproo

 ASTM D256-10el

 PASS

 Chemical and Corrosion resistance

 ASTM D543-14/ASTM D2240-15/ASTM D638-14

 G00D

 TVOC

 CA CDPH 01350-voc

 G00D

 Color Diference

 SAEJ1545-2005

 G00D

 Color staining

 EN423:2001

 G00D

 Phthalate Test

 SGS

 PASS

 Fomaldehyde

 CA CDPH 01350-voc GB/T 18580-2017

 PASS

 Heavy metal Test[Lead& Cadmium

 CA65

 PASS

Appication
Hospital hotel airport,High-end ofice building High-end Vila,kKindergarten,School,Sport Hal,Factory,.Plane,High-speed Train,Loose pulley.public place and so on.
CARE INSTRUCTIONS

Cleaning And Maintenance Requirements

Visitor folw rate

cleaning and maintenance

Stain processing

Privte room

one time in one year

Require time

Public place or corrider

two or three times in one year

Require time

Main channel or main entry door

one time lin one month

Require time

Renark:

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind:

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

Corner Guard System For Wall Protection And Decoration

Corner Guard System For Wall Protection And Decoration




Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
Related products
high impact wall guard
WG1021W
Model No.:WG1021W

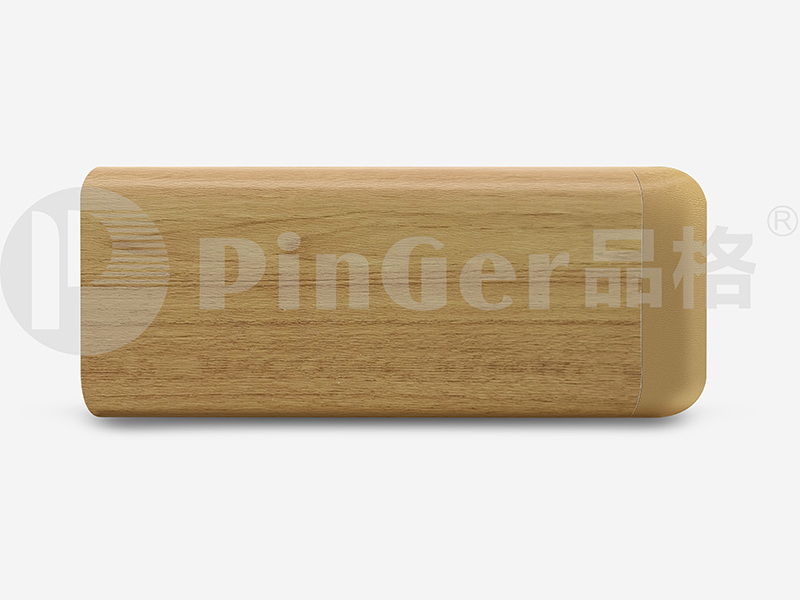

Materials:vinyl cover+aluminum in single wood color
Standard Length:5m
Standard Width:102mm
Thickness of vinyl cover:2mm
Thickness of aluminum:2mm
plastic wall protector Manufacturer
WG1022

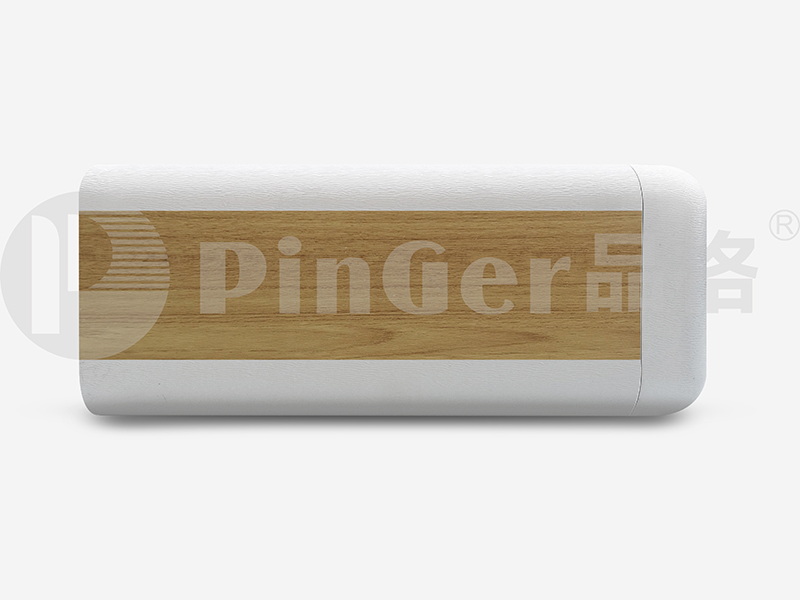

Model No.:WG1022
