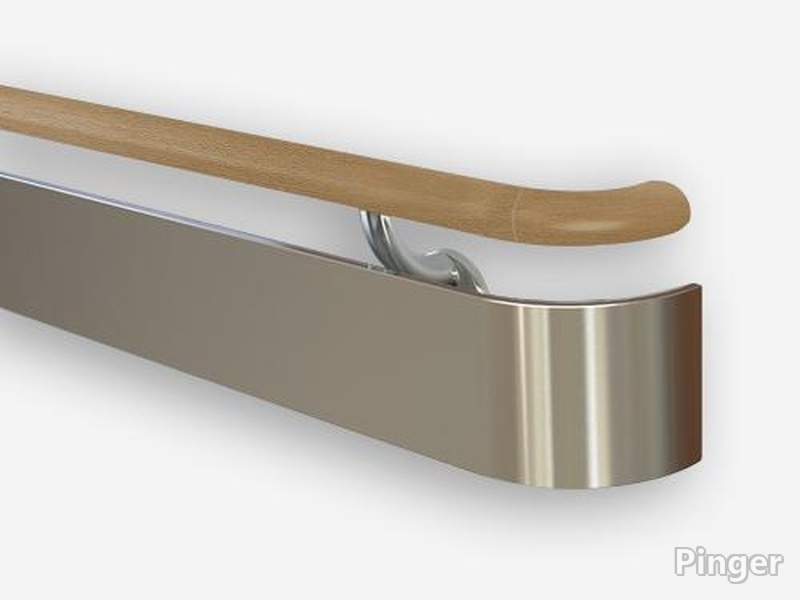

Solid Wood With Stainless Steel Wall Guard Handrail

Product Name：Solid Wood With Stainless Steel Wall Guard Handrail

Specification

• There're Oak,America mahogany,Ordinary wood for the Handrails as reference,Which can match with PinGer Wall Guards, Corner Guards & Pinger wall panel to create a perfect space.
• Above products are with bolts & screws.

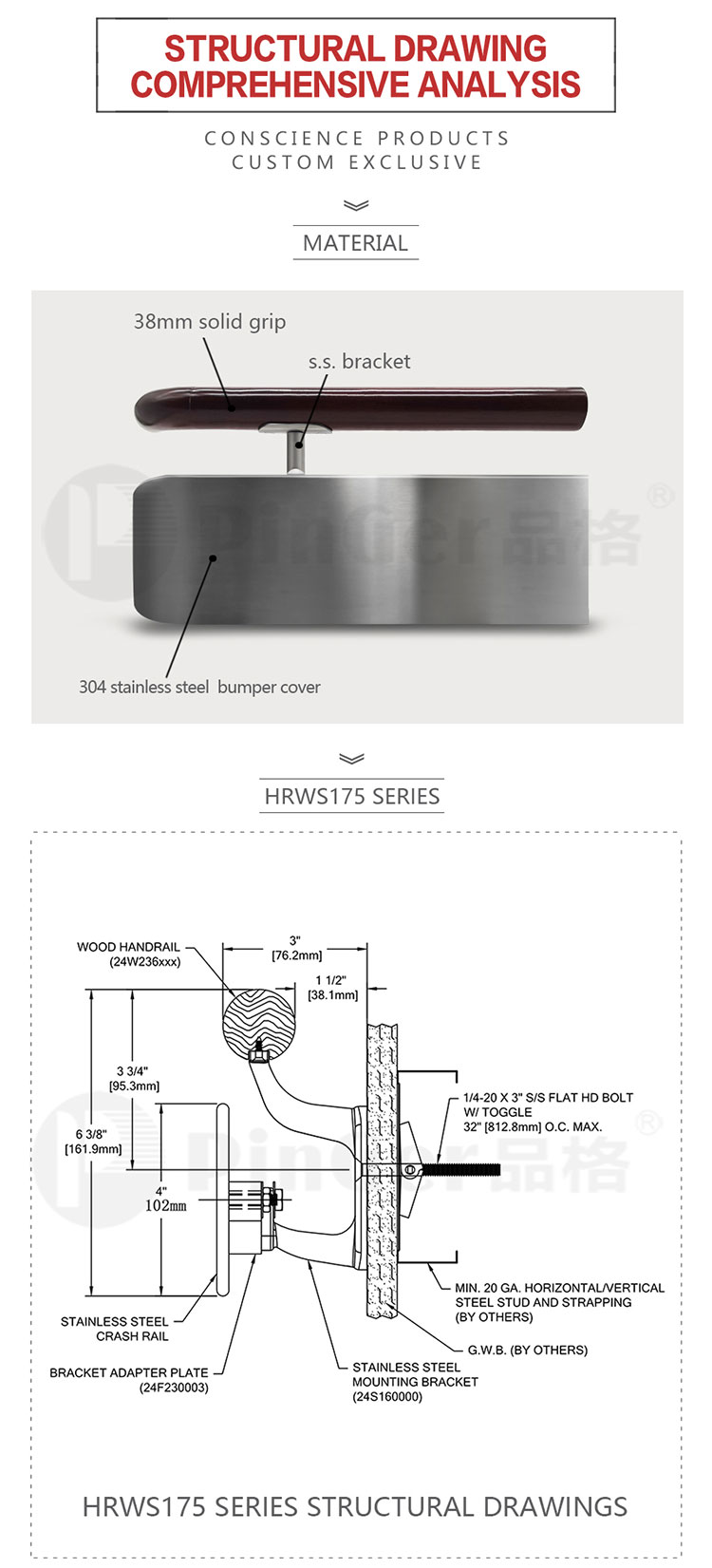

Structural Drawings

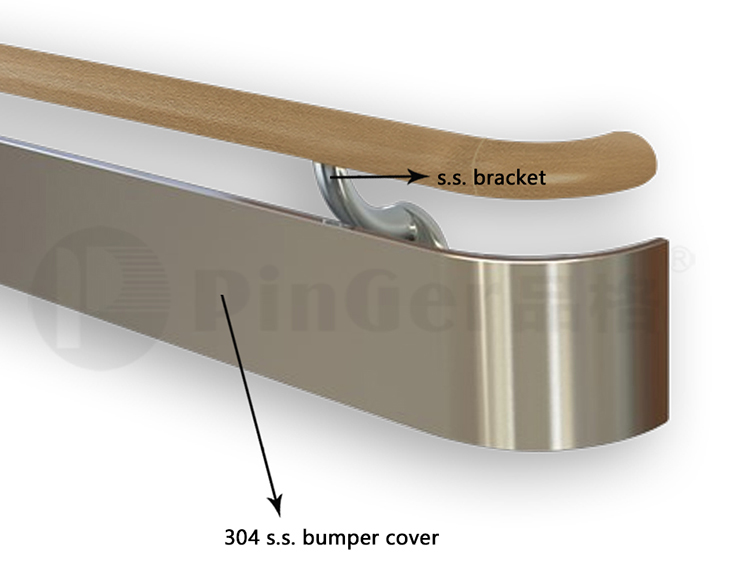

●38mm solid wood grip + 102mm stainless steel bumper cover

●Wall protection and handrail system

●Combines two functions,wall protection and corridor handrailing,which may be used seprately or unsion to prodive a uniform look throughout thr building.

PRODUCT CHARACTERISTICS

1、Antibacterial Materials

The handshake is made of American maple, with fine workmanship, tight and more high-end appearance.

2、Solid And Durable

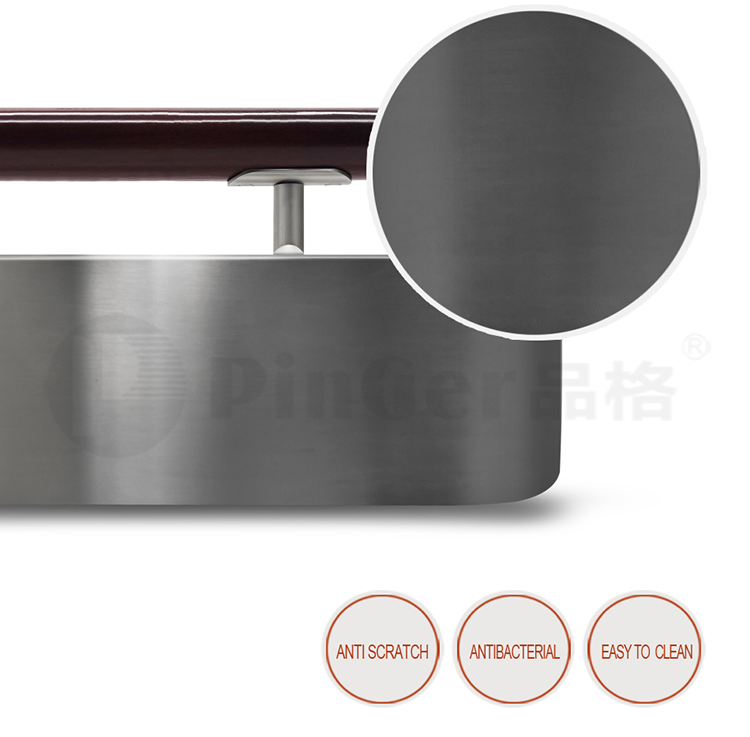

The 304 stainless steel bumper cover is oxidized to ensure no rust and can be used effectively for a long time.

3、Comfortable And Convenient

The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.

Feature Specification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation

Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

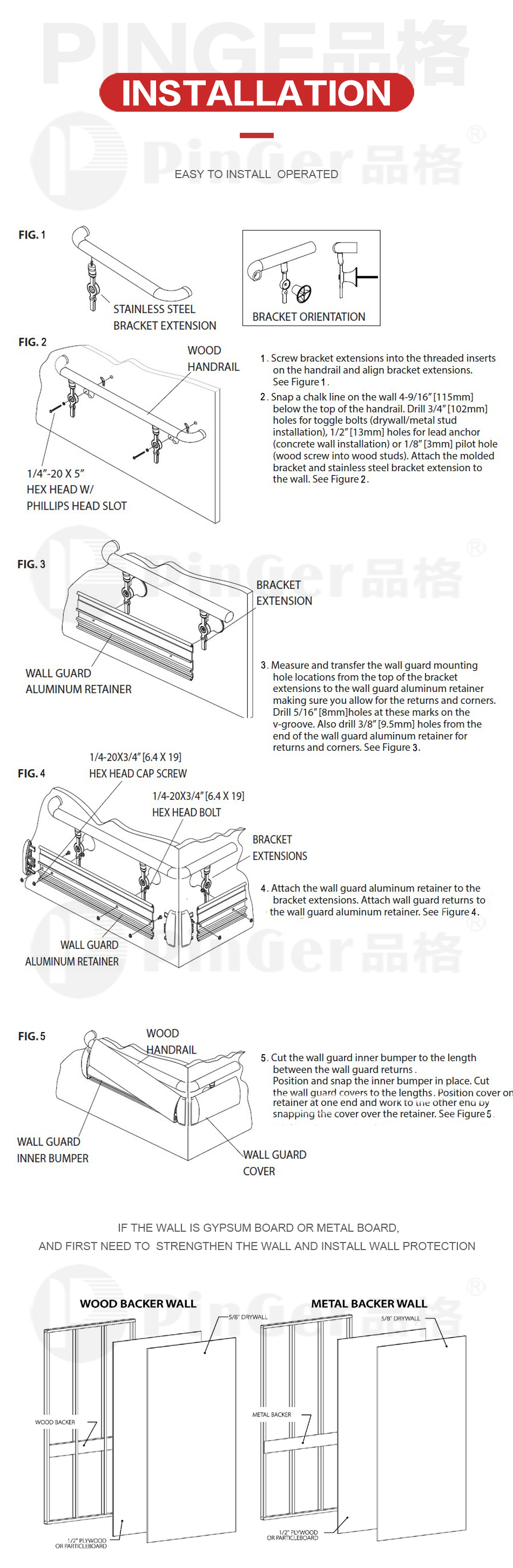

Installation Instruction

●Bolts&Screws

●Cut aluminum retainer and rubber strip to desured length

●Drill the doles

●Measure and transfer the handrail mounting hole locations from the bracket,elbow.

●Cut the vinyl cover to the lengths between returns and elbows.

TECHNOLOGY DATA

QUALITY ASSURANCE

• 1. Fire Performance Characteristics

Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM  E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.

2. Fungal and Bacterial Resistance

The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial  proof:JISZ2801:2010.

3. Mould Proof

ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.

4. Horizontal burning

As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.

5. Impact Strength

Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM  D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.

6. Environmental friendly

No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO  16000-3-6-9 AND SGS:CA CDPH 01350 -VOC

7. Does not stain

Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye，Staining test:EN423:2001.

8. ISO Certified

Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.

9. Chemical and CORROSION Resistance

Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.

10. No heavy metals

Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65

11. Durable and easy to install

Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.

Handrail HRWS175 Series

There're Oak,America mahogany,Ordinary wood for the Handrails as reference,Which can match with Pinger Wall Guards, Corner Guards& Pinger wall panel to create a perfect space.

Above products are with bolts & screws.

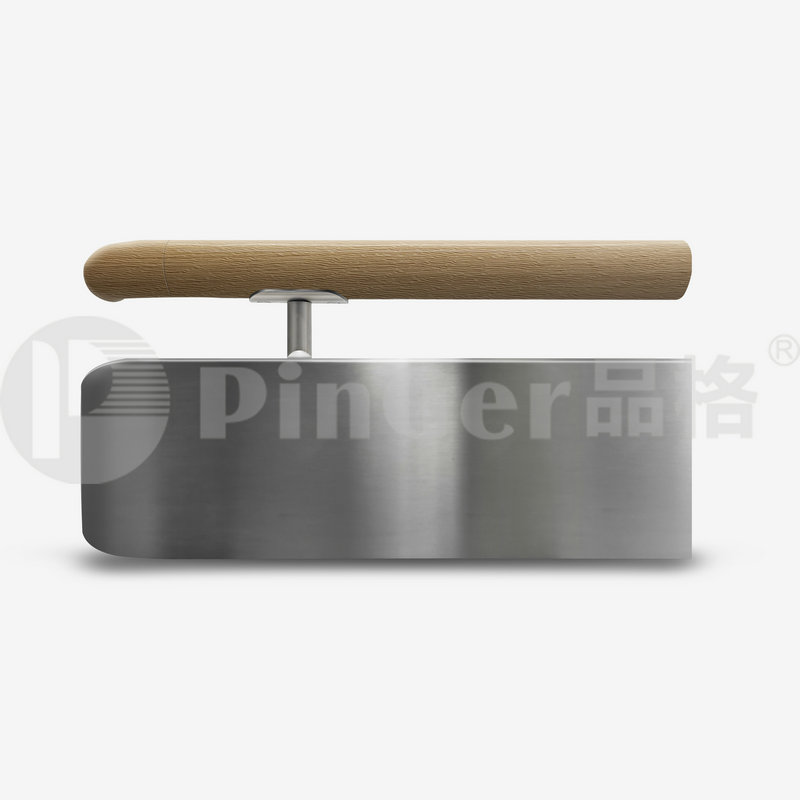

HRWS1751

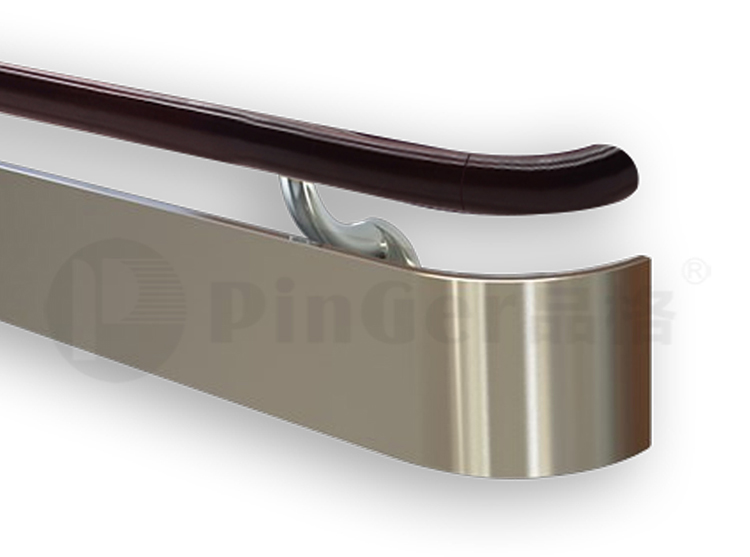

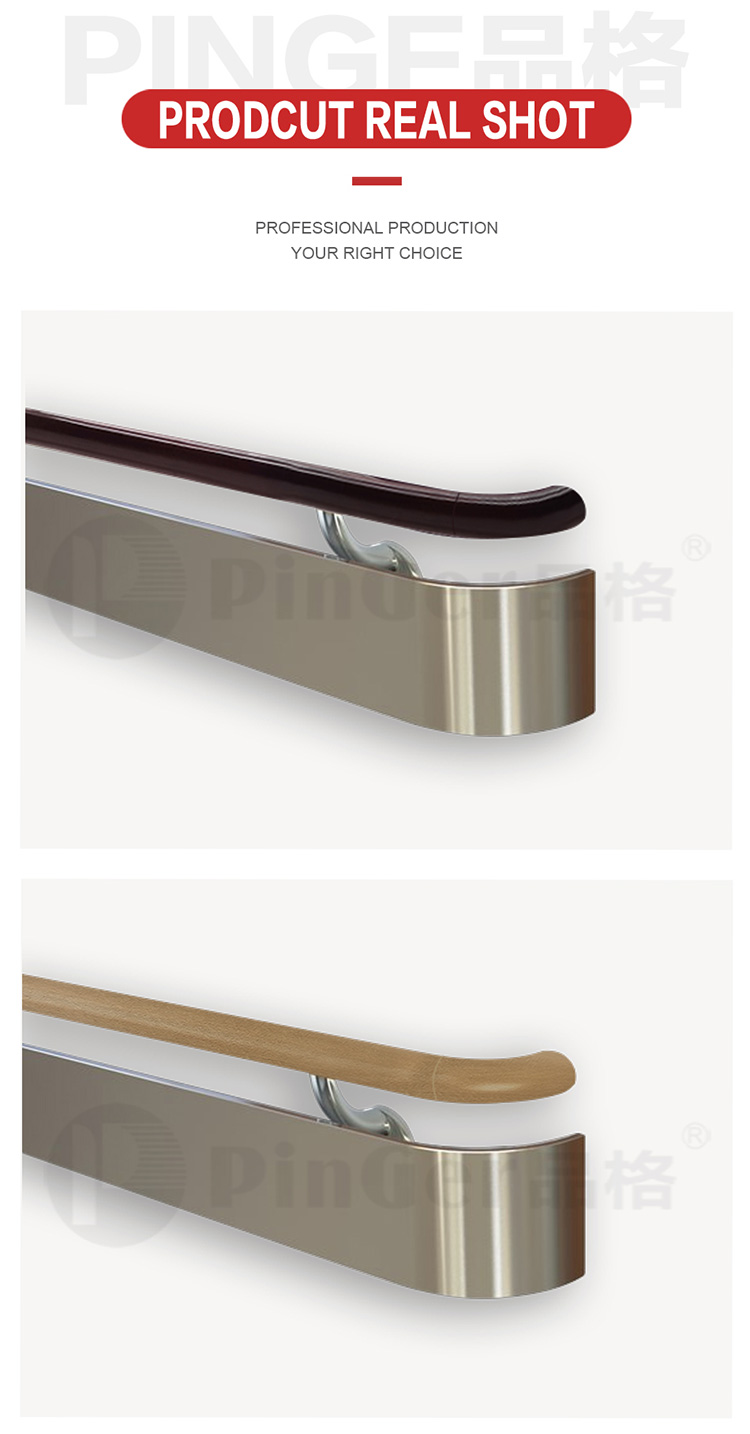

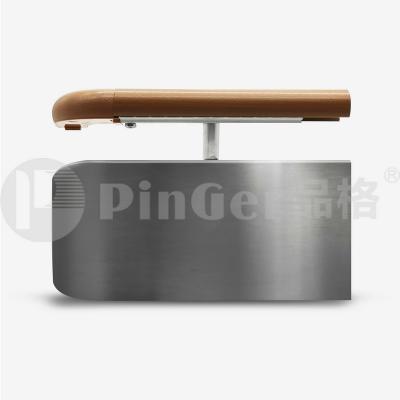

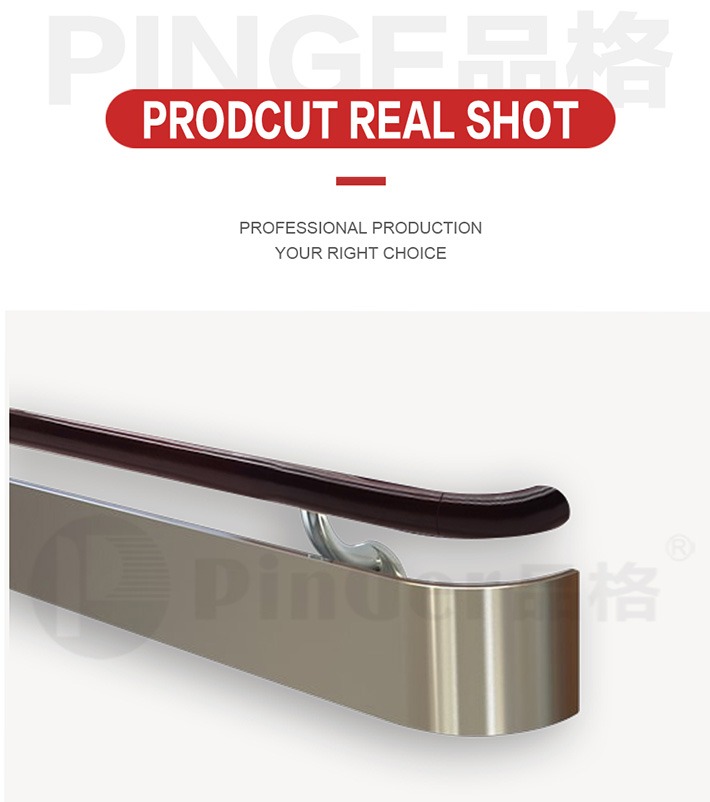

Solid Wood Grip+Stainless Steel Bumper Cover

38mm solid wood grip,102mm stainless steel bumper cover

175mm Height,solid wood grip:2m,stainless steel

cover:2m

stainless steel bracket*ABS bracket

38mm distance with wall

solid wood meterial:Oak,America mahogany,Ordinary wood as reference

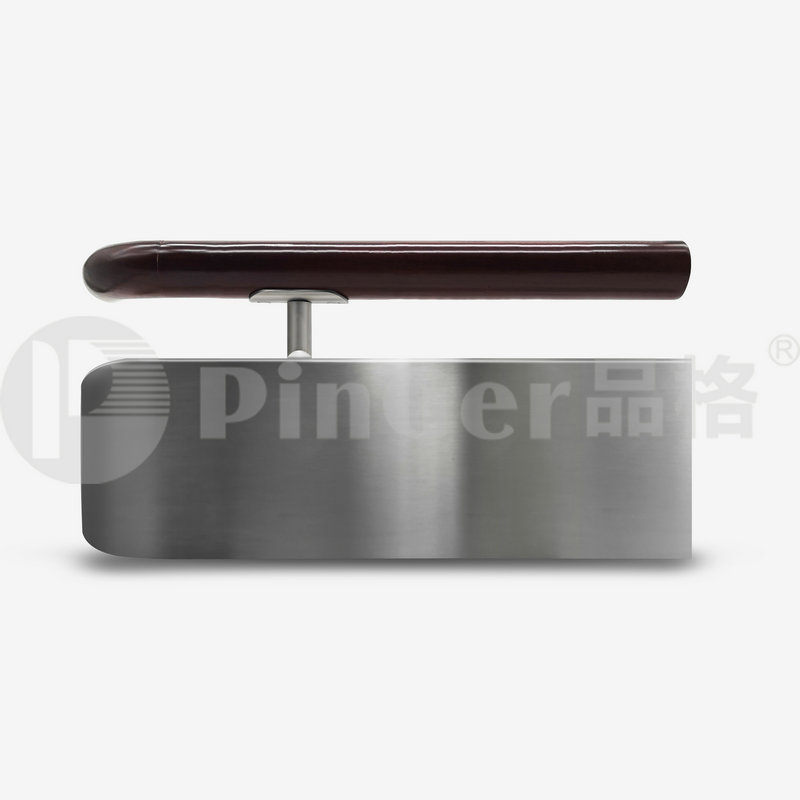

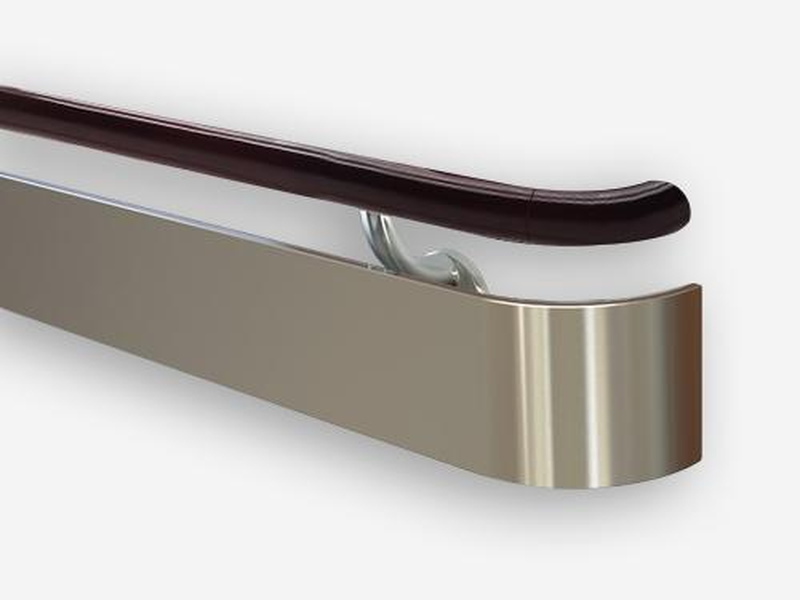

HRWS1752

Solid Wood Grip+Stainless Steel Bumper Cover38mm solid wood grip,102mm stainless steel

bumper cover

175mm Height,solid wood grip:2m,stainless steelcover:2m

stainless steel bracket'ABS bracket

38mm distance with wall

solid wood meterial:Oak,America mahogany,Ordinary wood as reference

Handrail HRWS175 Series

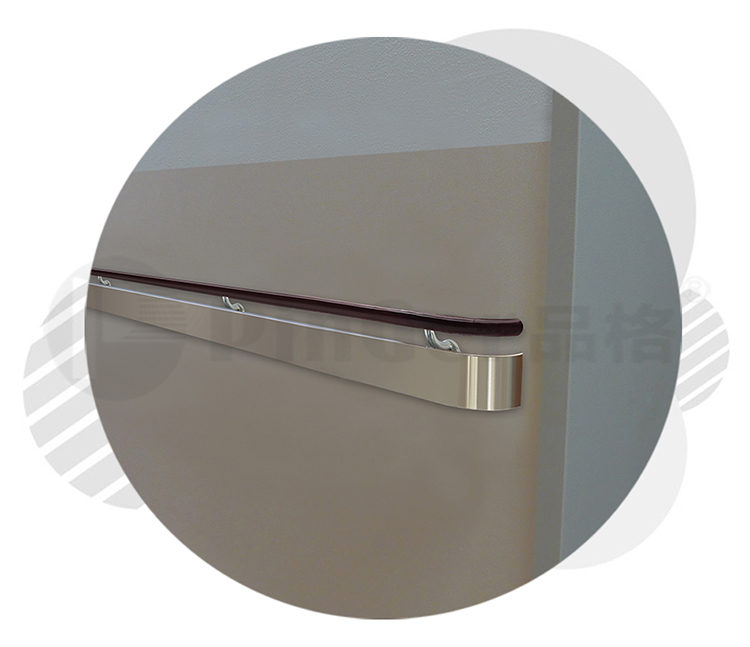

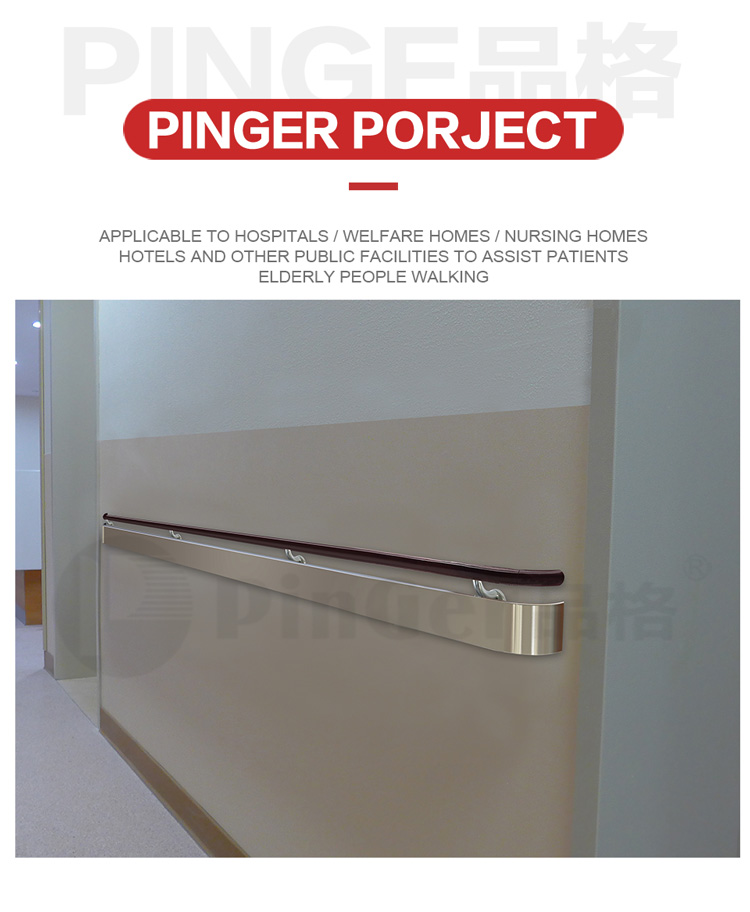

Pinger Handrails installed on the wall which is about 80cm~ 90cm from floor.Handrails can protect the walls well from impact, at the mean while it can support the passerby also.

Handrail assembled by solid wood grip,Stainless Steel Cover,ABS Bracekt.

PRODUCT CHARACTERISTICS

1、Antibacterial Materials

The handshake is made of American maple, with fine workmanship, tight and more high-end appearance.

2、Solid And Durable

The 304 stainless steel bumper cover is oxidized to ensure no rust and can be used effectively for a long time.

3、Comfortable And Convenient

The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.

[Pinger 品格 ® Cleaning and Maintenance]

Remark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.
