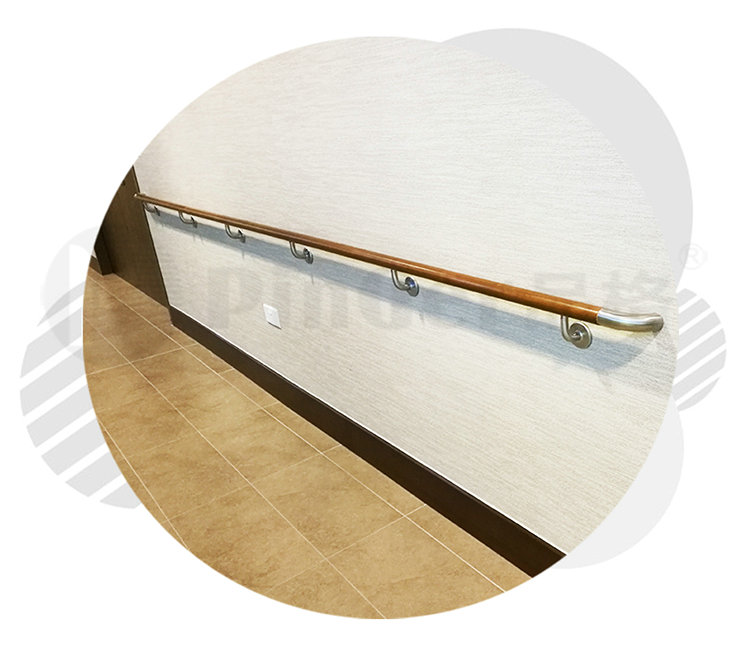

Hospital Antibacterial Solid Wood Handrail Supplier,Manufacturer

Product Name：Hospital Antibacterial Solid Wood Handrail

Specification

●Three-piece vinyl assembly provides unlimited variation pf individual colors for rail,guard rail and feature stripe.

●Class A fire rating

Hospital Antibacterial Solid Wood Handrail

TECHNOLOGY DATA
Brand	PinGer
Product No	Handrails HRWS40
Material	Solid wood handshake、Solid wood elbow、s.s. bracket
Size	Solid wood thickness :38mm
Accessories	Iron piece connector、s.s. positive angle、s.s. pubic angle、bracket screw
Scope of application	Hospital，nursing home，restaurant， hotel，school，kindergarten and other public places.
Color	There are dozens of colors to choose.

Hospital Antibacterial Solid Wood Handrail

PRODUCT CHARACTERISTICS

1、High quality raw msterials

Using 304 stainless steel, fine workmanship, strict, more high-end appearance.

Hospital Antibacterial Solid Wood Handrail

2、Solid and Durable

s.s. elbow thickness：10.2mm, can be ysed effectively for a long time.

Hospital Antibacterial Solid Wood Handrail

3、Confortable and conveninent

The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.

Hospital Antibacterial Solid Wood Handrail

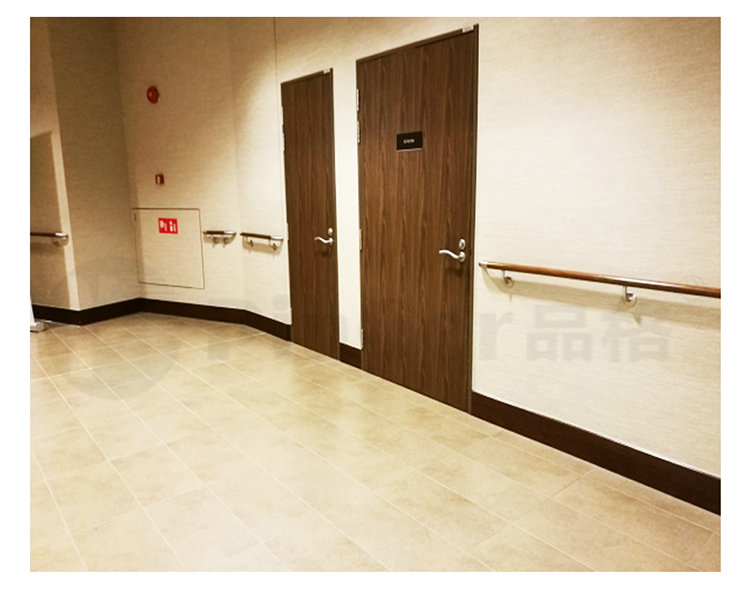

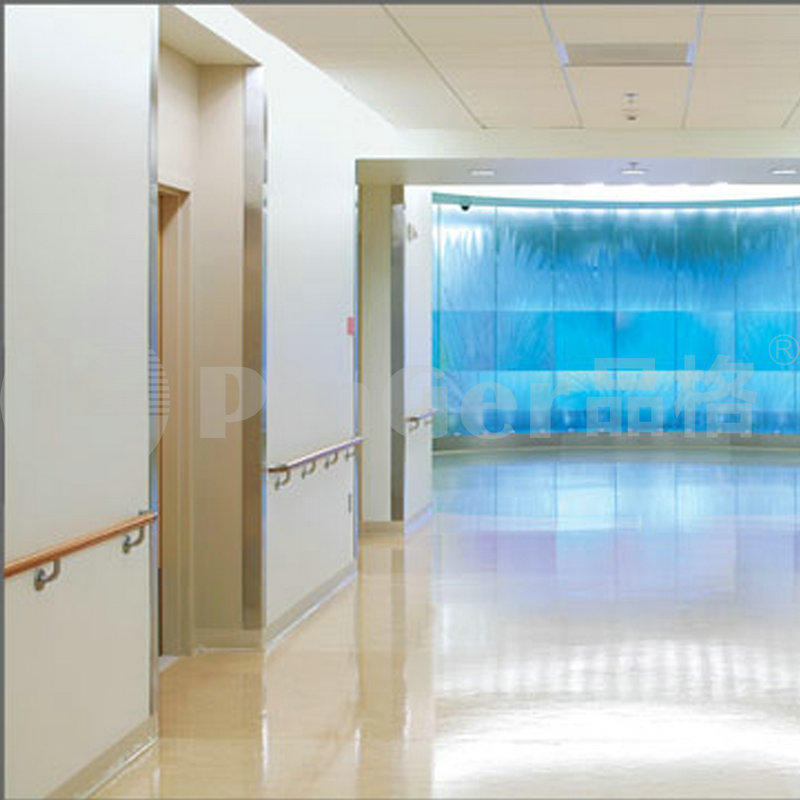

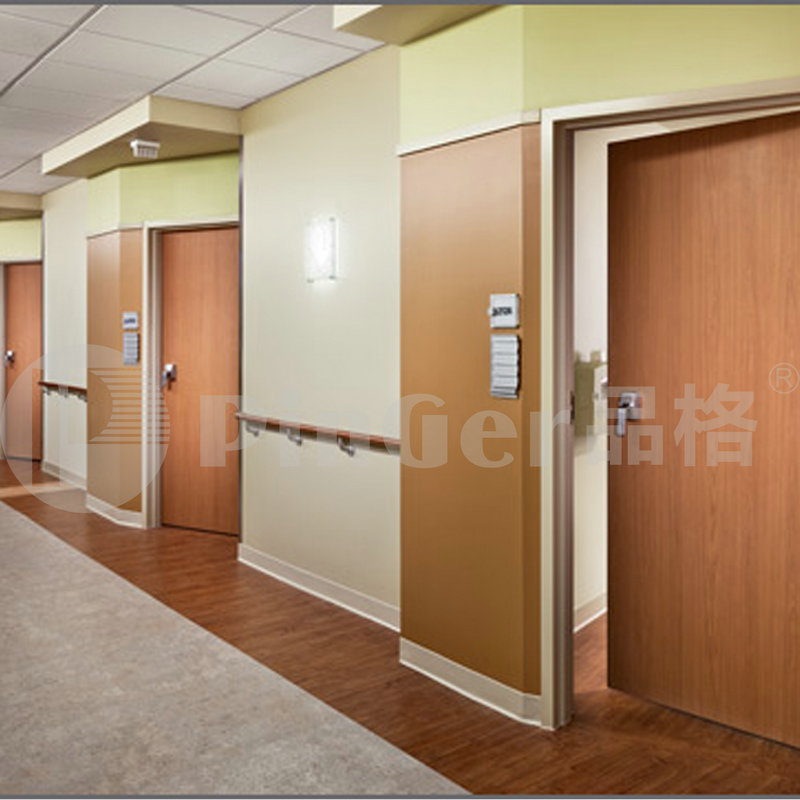

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital， schools laboratories， pharmaceutical plants airplanes， ships，

high-speed rails.

Hospital Antibacterial Solid Wood Handrail

Feature Specification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation

Hospital Antibacterial Solid Wood Handrail

Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test (per SGS)

●Formaldehyde (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test (per CA65)

Hospital Antibacterial Solid Wood Handrail

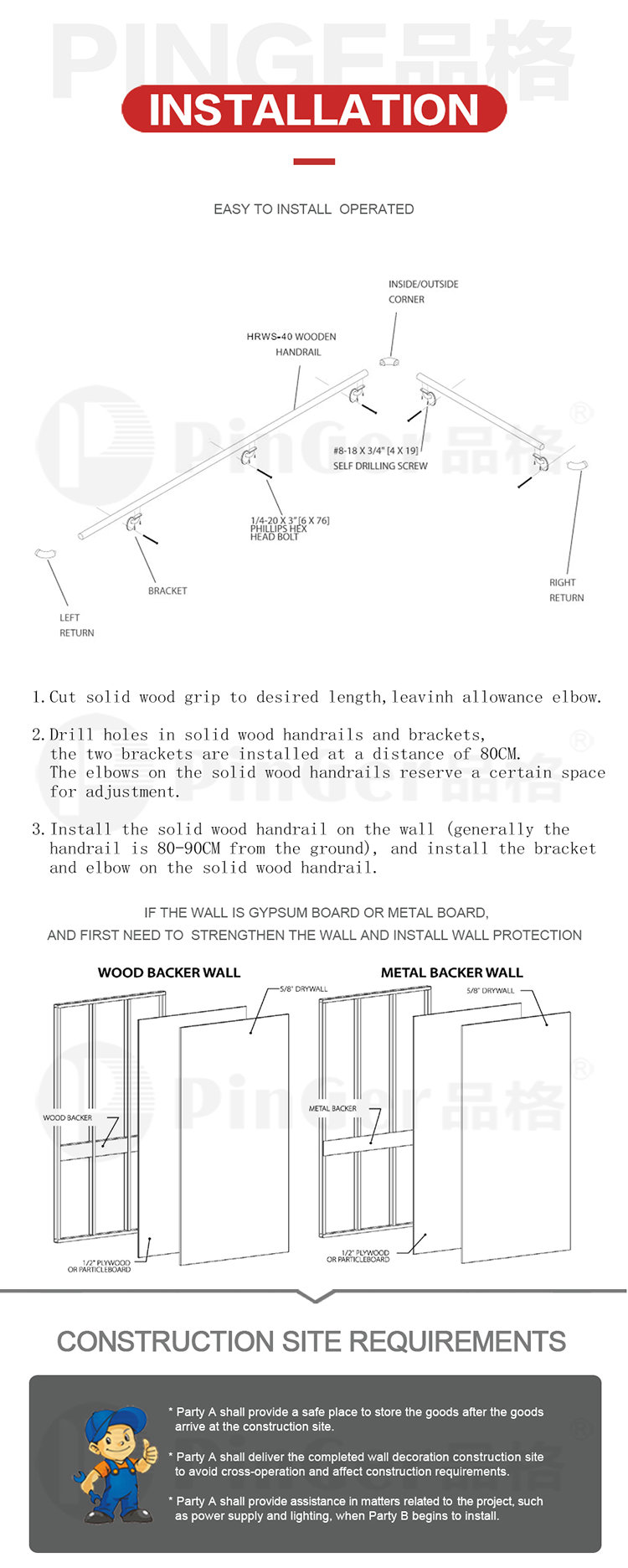

Installation Instruction

●Bolts&Screws

●Cut vinyl cover and aluminum retainer to desured length

●Drill the doles

●Measure and transfer the handrail mounting hole locations from the bracket,elbow.

●Cut the vinyl cover to the lengths between returns and elbows.

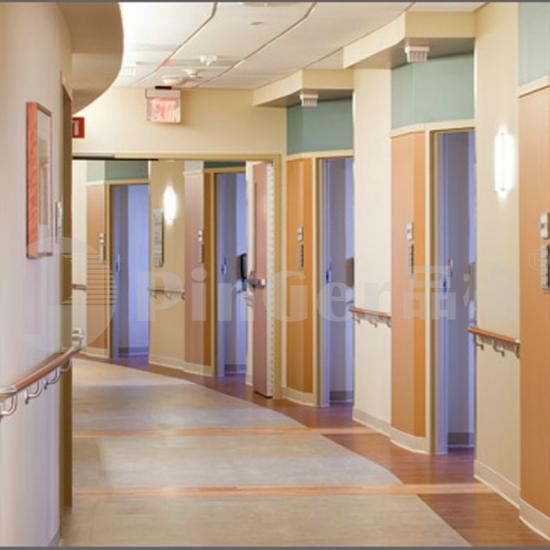

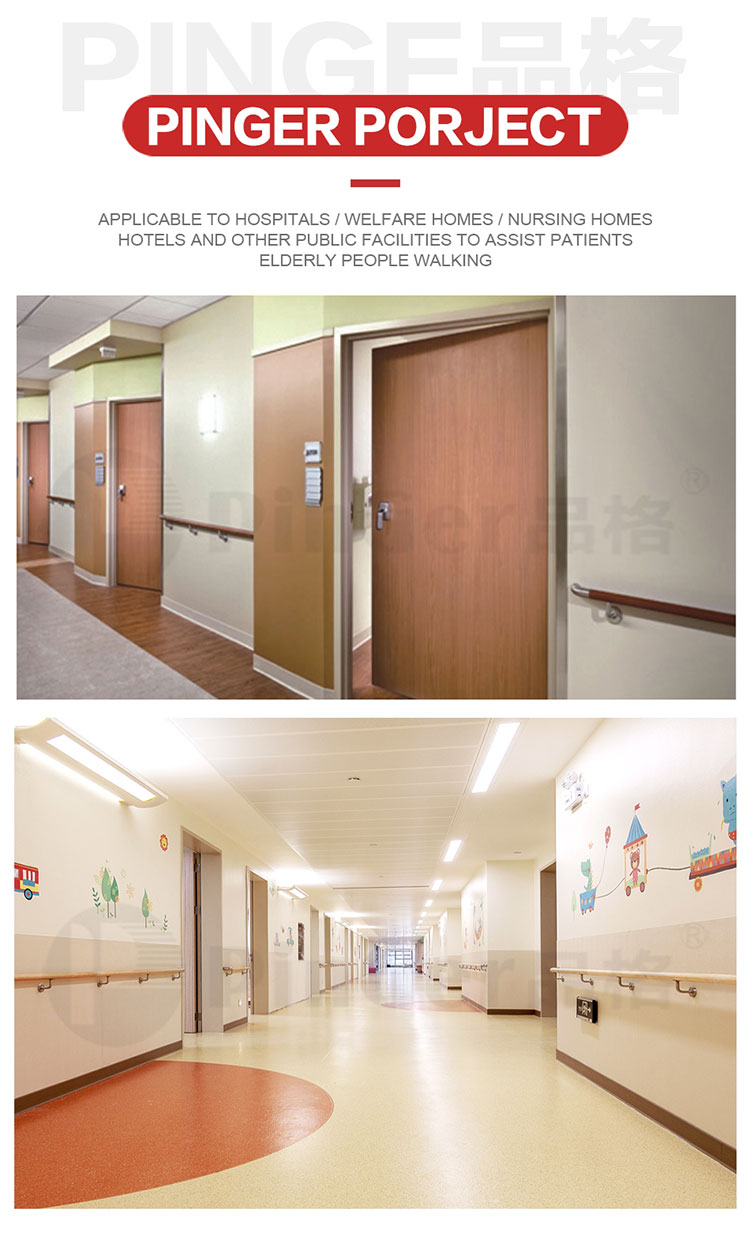

Pinger Project History

●Pinger now owns dozens of national inventions and new practical patents. It has passed third-party certifications from ISO9001 quality system certification, ISO14001 environmental monitoring system certification, EU CE certification, and Europe and the United States SGS international testing certification.

● Pinger wall panel and wall protection system products are in the leading position among similar products. We not only have a stable market share in China, but also sell products in more than 100 countries and regions in the world, and occupy a certain market share in the international market.

TECHNICAL DATA
Certificate	Certificate standard	Result
Antibacterial	ASTME2180	>99.9% inhibis growth
Mould Proof	ASTM G21-15	0 Class non growth
Fire and smoke Rating	ASTM E84-17 Class A	Class A
Horizontal Burning	UL94HB	PASS
Crashproo	ASTM D256-10el	PASS
Chemical and Corrosion resistance	ASTM D543-14/ASTM D2240-15/ASTM D638-14	G00D
TVOC	CA CDPH 01350-voc	G00D
Color Diference	SAEJ1545-2005	G00D
Color staining	EN423：2001	G00D
Phthalate Test	SGS	PASS
Fomaldehyde	CA CDPH 01350-voc GB/T 18580-2017	PASS
Heavy metal Test[Lead& Cadmium	CA65	PASS
Application
Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on.

CARE INSTRUCTIONS

Cleaning And Maintenance Requirements
Visitor folw rate	cleaning and maintenance	Stain processing
Privte room	one time in one year	Require time
Public place or corrider	two or three times in one year	Require time
Main channel or main entry door	one time lin one month	Require time

Remark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean clothRemark：

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

Hospital Antibacterial Solid Wood Handrail

wall protection vinyl sheet

Mini handrail aluminum wall raillings

PinGer® Hospital Antibacterial Solid Wood Handrail

Technical Specifications & Downloads

Download Pinger official technical documentation and specifications catalog below for Handrail Model HRWS40.

Pinger Handrail HRWS40 Technical Specifications Download PDF

Technical Data & Specifications

Pinger Hospital Antibacterial Solid Wood Handrail HRWS40 is engineered with premium impact-resistant materials. Specially designed for hospital corridors and high-traffic commercial spaces, HRWS40 offers exceptional heavy-duty collision protection, fire-retardant performance, and non-phthalate environmental safety.

HYGIENE

PinGer Wall Guard Antibacterial and Mould Proof Technical Data

Bacterial & Fungal Resistant

ANTIBACTERIAL PERFORMANCE

JIS Z 2801:2010 (>99.9% inhibits growth of E. coli & S. aureus)

FUNGAL & MOULD PROOF

ASTM G21-15 (>99.9% inhibits, Class 0 zero-growth rating against Aspergillus & Penicillium)

SAFETY

PinGer Fire Retardant and Flame Spread Rating Technical Data

Fire Performance

FIRE & SMOKE RATING
ASTM E84-17 (Class A) / Euro EN13501-1 (Class B)

HORIZONTAL BURNING
ASTM D635-22 (Self-extinguishing, stable under fire)

SMOKE TOXICITY
Non-toxic, low smoke density growth

DURABILITY PinGer Heavy Duty Impact & Chemical Resistance Technical Data

Impact & Chemical

HIGH IMPACT PROTECTION
ASTM D256-10el & GB/T 14153-1993 Heavy-duty crash test pass

CHEMICAL RESISTANCE
ASTM D543-14 (Resists hospital disinfectants, acids & alkalis)

STAIN RESISTANCE
EN 423:2001 (Level 0 stain resistant, easy to clean)

SUSTAINABILITY PinGer LEED, FSC and LCA Environmental Certifications

Green & LEED Certifications

TVOC & FORMALDEHYDE
CDPH01350 & GB/T 18580-2017 (Low VOC, Formaldehyde-free)

HEAVY METAL SAFETY
CA65 & SGS Certified (Phthalate-free, Lead & Benzene-free)

SUSTAINABLE & RECYCLABLE
LEED Compliant, FSC Certified & 100% Recyclable materials

HRWS40 Core Performance Highlights

Designed for hospital corridors, clinical nursing stations, cleanrooms, laboratories, senior care facilities, educational institutions, and high-traffic commercial spaces requiring continuous handrail protection.

Anti-Bacterial and Mildew Handrail HRWS40

ANTI-BACTERIAL & MILDEW PROOF

PinGer HRWS40 handrail incorporates advanced antibacterial agents that actively inhibit bacterial growth (>99.9%) and mould formation. The non-porous surface withstands frequent cleaning with medical-grade disinfectants, helping hospitals achieve strict hygienic standards.

FIRE SAFETY & FLAME RETARDANT

Engineered to comply with ASTM E84 Class A and Euro EN13501-1 Class B fire standards, the HRWS40 handrail offers excellent self-extinguishing properties and low smoke density, ensuring enhanced building interior safety during fire emergencies.

Heavy Duty Anti-Collision Handrail HRWS40

HEAVY-DUTY IMPACT PROTECTION

Featuring a 40mm Length: 4m Thickness of elbow: 1.2mm diameter grip profile, HRWS40 effectively absorbs and deflects severe collisions from hospital beds, wheelchairs, and service carts, dramatically cutting drywall repair costs.

AVAILABLE IN VARIOUS COLORS & STYLES

LEED, LCA & GREEN SUSTAINABLE

PinGer HRWS40 handrail products are LCA life-cycle assessed and LEED green building compliant. Free of phthalates, heavy metals, and formaldehyde, HRWS40 maintains superior indoor air quality with ultra-low VOC emissions and is 100% recyclable.

TECHNOLOGY DATA

QUALITY ASSURANCE

1. Fire Performance Characteristics

Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.

2. Fungal and Bacterial Resistance

The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial proof:JISZ2801:2010.

3. Mould Proof

ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.

4. Horizontal burning

As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.

5. Impact Strength

Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.

6. Environmental friendly

No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO 16000-3-6-9 AND SGS:CA CDPH 01350 -VOC

7. Does not stain

Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye，Staining test:EN423:2001.

8. ISO Certified

Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.

9. Chemical and CORROSION Resistance

Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.

10. No heavy metals

Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65

11. Durable and easy to install

Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.

versatile vinyl wall covering

Standard Surface Textures & Finishes

Explore our complete range of professional surface finishes designed for medical wall protection systems. (Click any image to zoom)From hospitals to care homes and nurseries.

Surface Textures Overview

11 Standard Finishes

Lightly (HD)

5 Series Color Card Systems

Browse our complete palette divided into 5 specialized series.

Download Pinger official color card catalog below.

Pinger Color Card Catalog System (5 Series)Download PDF

From hospitals to care homes and nurseries. From rooms to corridors,PinGer offers unrivalled hygiene and impact resistance, exceptionalease of maintenance and outstanding design

Pinger wall panel solutions for hospital nurse stations and corridors under the "Vitality Hue" concept.

It highlights core advantages: color motivation (soft tones for comfort), protection adaptation (2mm - thick, impact/scratch - resistant panels), and detail safety (99.9% antibacterial, seamless welding).

Design suggestions include series like Legend, Lotus, Wood, MO, and Artist,

with various color options for weave - effect panels.

01 SAGA

43 Standard Options

1024D

1866D

1035D

1027D

1602D

1609D

1702D

1704D

1880D

1886D

1039D

3011B

3012B

3412B

3413B

1051P

1053P

1054P

+28 More

02 Nelumbo Nucifera

43 Standard Options

9139A

7443A

9677A

9274A

9378A

9353A

9621A

9240A

9273A

126G

169G

190G

180G

168G

164G

162G

112G

129G

+28 More

03 WOOD

43 Standard Options

1032S

1016S

1002C

1003C

1021C

1050C

1014S

1020C

5016S

5017C

5013S

8071S

8079S

5017C

8086C

8103C

8080C

8084S

+28 More

04 MO

43 Standard Options

1048G

1049M

1052M

1053M

1051M

1707M

1712M

1862M

3012M

9021G

8176MO

8205M

8188M

8198MO

8192MO

8187M

8179M

8314M

+28 More

05 ARTIST

43 Standard Options

8212H

8214H

8215HO

8211HO

8217H

8218HO

8219H

8244H

8239H

8240O

8238H

8241O

8242O

8243O

8245O

8246O

8231H

8233H

+28 More

Handrail HRWS40 Series

●Pinger handrails can match with Pinger Wall Guards, Corner Guards & Pinger wall panel to create a perfectspace

●Above products are with bolts & screws.

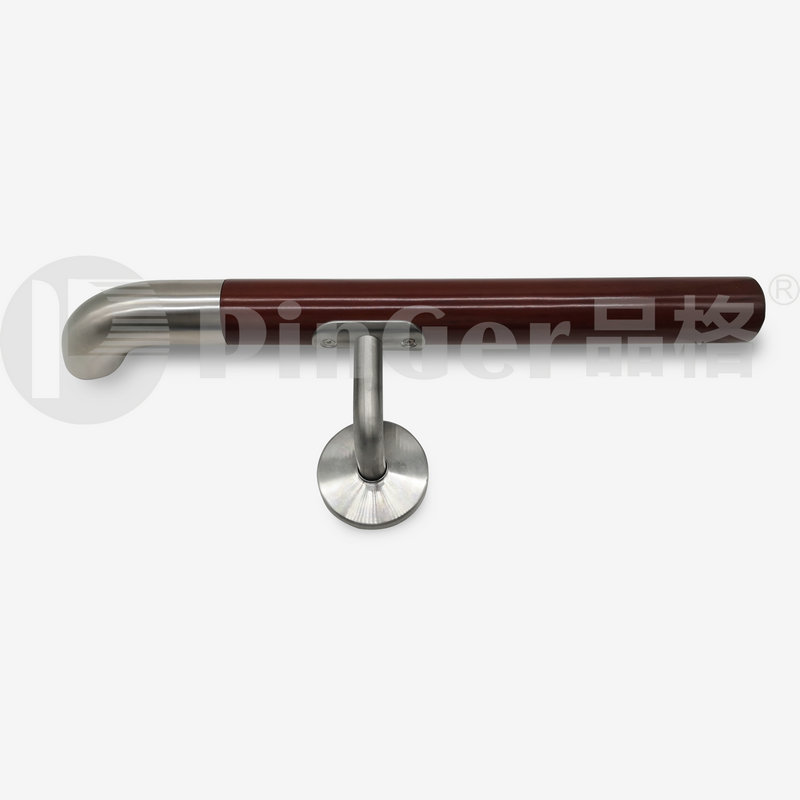

Hospital Antibacterial Solid Wood Handrail

HRWS-40

Solid Wood Grip

Duameter:40mm

Length:4m/pc304S.S Elbow

thickness:1.2mm,304 S.S.bracket

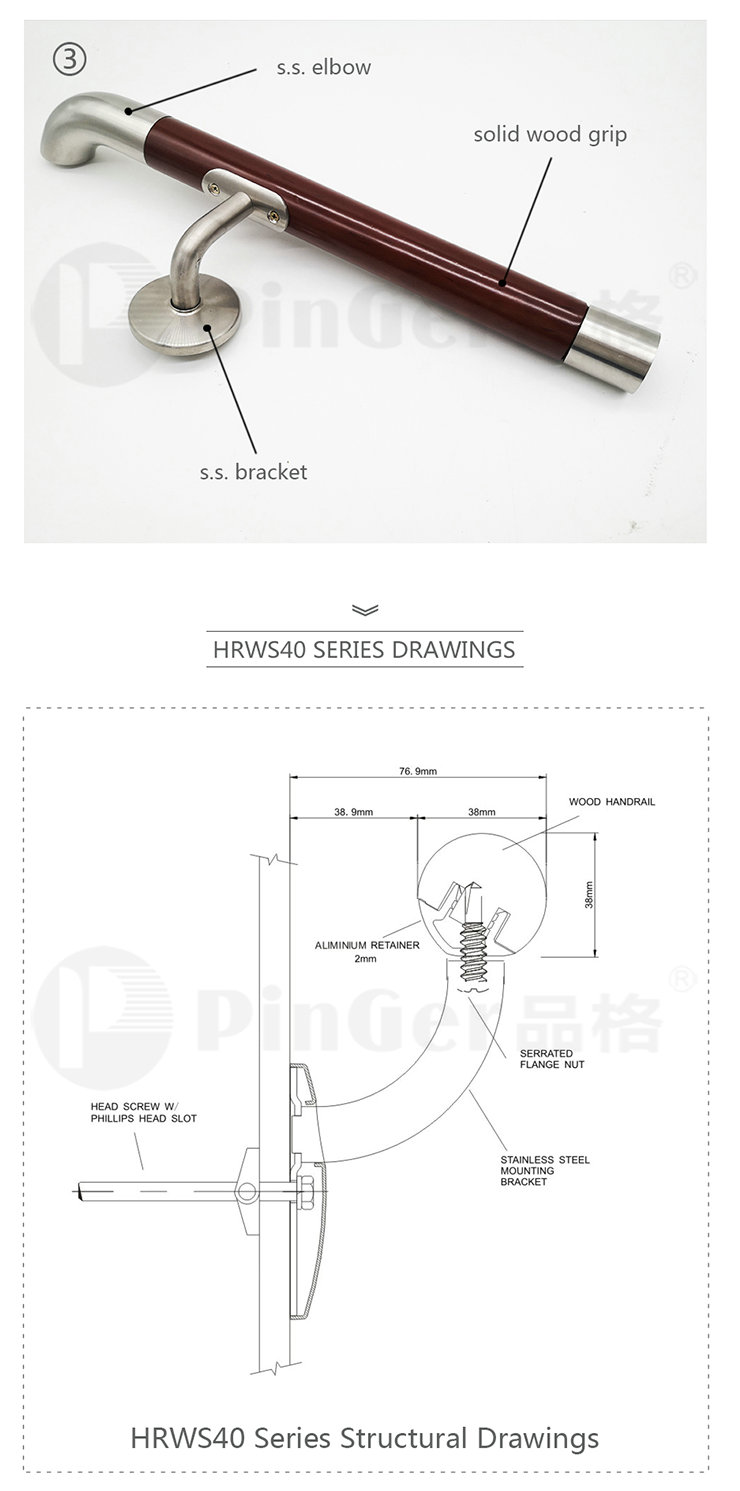

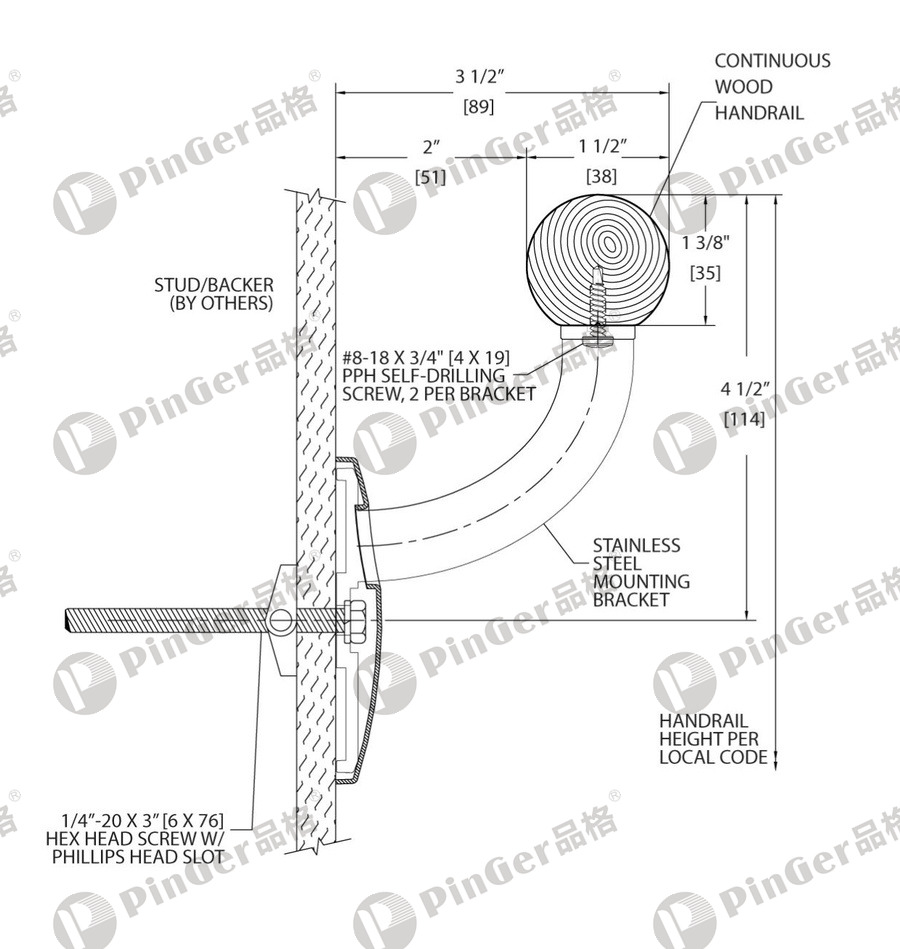

CAD Drawings

Download professional architectural CAD drawings for Pinger Handrail HRWS40 to incorporate into your healthcare building designs.

Pinger Handrail HRWS40 CAD Drawing Download PDF

Hospital Antibacterial Solid Wood Handrail

[Pinger 品格 ® Cleaning and Maintenance]

Cleaning And Maintenance Requirements
Visitor folw rate	cleaning and maintenance	Stain processing
Privte room	one time in one year	Require time
Public place or corrider	two or three times in one year	Require time
Main channel or main entry door	one time lin one month	Require time

Remark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

Sustainable & Eco-Friendly Details

Designed with environmental responsibility and medical-grade safety at the core, the Pinger HRWS40 handrail helps healthcare, aged-care and commercial projects meet green building and indoor air quality requirements.

1. Green & 100% Recyclable Materials

Manufactured with eco-friendly formulations, the Pinger HRWS40 handrail (the solid wood grip with 304 stainless steel elbows and brackets) is 100% recyclable at end of life. It is completely free from formaldehyde, benzene, heavy metals and phthalates/DEHP (California Prop 65 and SGS phthalate tested), so there are no toxic emissions during installation or daily use.

2. Low VOC Emissions & Indoor Air Quality

Emissions are tested to CA CDPH 01350 and ISO 16000, with non-detectable TVOC and formaldehyde results. The low-emitting, non-porous surface supports LEED v4 and WELL indoor air quality documentation, making HRWS40 suitable for ICUs, operating theatres, neonatal units and occupied healthcare corridors.

3. Long Durability That Reduces Lifecycle Waste

Built for a long service life, HRWS40 acts as heavy-duty armour against daily equipment impact, preventing repeated wall or corner repairs, repainting and plasterboard replacement. Fewer repairs mean less construction waste and a lower total cost of ownership over the building lifecycle.

Frequently Asked Questions (FAQ)

Answers to the questions architects, contractors and hospital procurement teams ask most often about the Pinger HRWS40 handrail.

Q1: What is the Pinger HRWS40 handrail used for?

HRWS40 is a wall-mounted crash handrail (also called a corridor handrail or bumper rail) that gives patients, elderly residents and visitors a continuous, easy-to-grip support along hospital and nursing-home corridors, while shielding the wall from wheelchair and stretcher impact.

Q2: Is the HRWS40 handrail fire rated for hospitals and commercial buildings?

Yes. Pinger HRWS40 handrail is fire retardant to ASTM E84 Class A (flame spread and smoke developed) and EN 13501-1 Class B, with UL94HB horizontal burning compliance. It self-extinguishes and produces low smoke density, which is what healthcare and public-building codes require.

Q3: How does HRWS40 support infection control and daily cleaning?

The solid wood grip is sealed with a low-VOC, water-based coating that resists moisture and staining, while the vinyl/aluminium components carry antibacterial additives tested above 99.9% bacterial reduction (JIS Z 2801 / ASTM E2180). HRWS40 can be wiped down daily with standard hospital disinfectants.

Q4: Is the HRWS40 handrail easy to install on site?

Yes. Mark the bracket centres (typically 600–900mm), screw the continuous aluminium retainer to the wall, cut the solid wood grip to length, snap it onto the retainer and finish with end caps, inside/outside corners and returns. Cut-to-length service and pre-drilled retainers are available for large projects.

Q5: What are the standard sizes and material specifications of HRWS40?

Model HRWS40 is supplied with a 40mm gripping diameter. Custom lengths, solid colours and wood-grain finishes are available on request. It is built with the solid wood grip with 304 stainless steel elbows and brackets, and Pinger supplies matching end caps, corner accessories and fixings so a complete run can be installed from one order.

Q6: Can HRWS40 contribute to LEED or other green building certification?

Yes. HRWS40 is a 100% recyclable, low-VOC product, so it can be documented under LEED v4 Low-Emitting Materials and supports Material & Resources credits for recyclable content and long service life. Pinger provides the supporting test reports (SGS / Intertek, ASTM and EN standards) for project submittals.
