PETG Hygienic Decorative Wall Panel for for Healthcare and Commercial
Product Description:

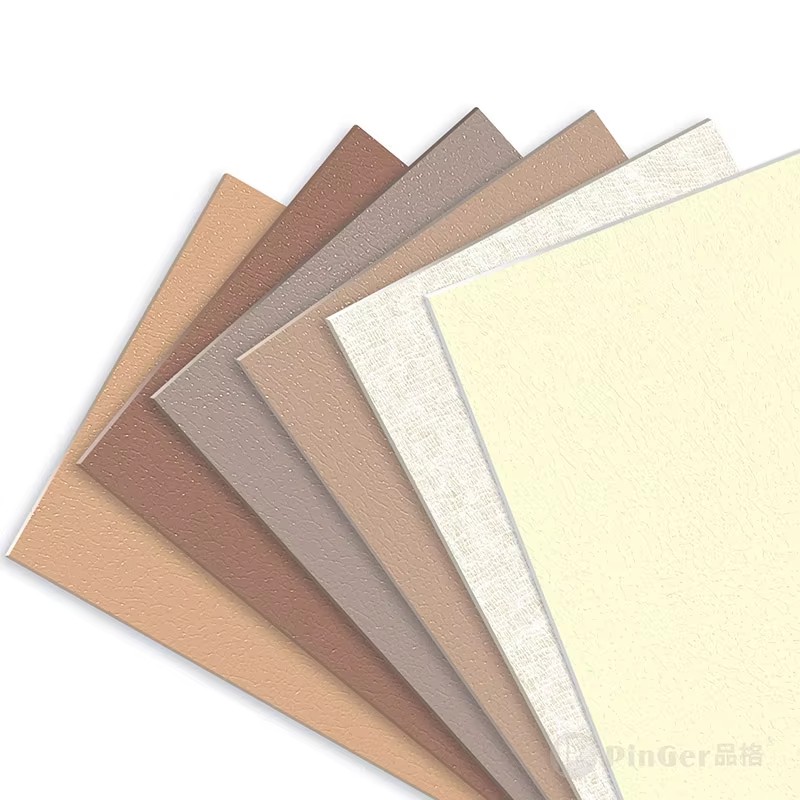

Pinger® Hospital Rigid PETG Wall Panel Sheet is an eco-friendly, non-toxic, and high-impact wall protection solution specifically designed for healthcare and cleanroom environments. Made from 100% recyclable virgin PETG copolyester, it provides superior impact resistance, B1 fire rating, and resistance to chemical disinfectants, making it the ideal choice for modern hospital corridors, operating rooms, and laboratory wall protection.
Material: PETG
● PVC-Free ●BPA-Free ●PBT-Free
● Phthalate/DEHP-Free ●Class A Fire Rated
Standard sheet size:
●Solid color:1.22m x 2.44m,1.22m x 2.8m
●Wooden color :1.18m x 2.44m,1.18m x 2.8m
●Thickness:0.8mm,1.0mm,1.5mm.2.0mm,2.5mm,3mm
Key Features:
●Customizable ●Eco-Friendly ●Fire Safety
●Antimicrobial ●Durable ●Easy Install
Pinger® PETG Wall Cladding Panel Sheet is engineered to protect commercial and healthcare interiors from heavy cart traffic, equipment impact, and daily wear. Free from phthalates and BPA, PETG is a sustainable, highly durable alternative to traditional wall coverings, delivering outstanding hygienic and safety performance.
| Specification | Details |
|---|---|
| Material | 100% Virgin PETG Copolyester |
| Thickness | 0.8mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm (Custom thickness available) |
| Standard Sizes | Solid Color: 1.22m × 2.44m (4' × 8'), 1.22m × 2.80m Wood Grain: 1.18m × 2.44m, 1.18m × 2.80m |
| Surface Texture | Fine Textured / Orange Peel / Smooth Matte / Glossy |
| Fire Rating | Class B1 / Class A (EN 13501-1 / ASTM E84) |
| Color Options | Solid Colors, Wood Grain, Marble, and Custom RAL Colors |
| Applications | Hospitals, Clinics, Cleanrooms, Laboratories, Schools, Public Facilities |
As a trusted manufacturer in wall protection systems, Pinger provides comprehensive interior wall protection solutions, including wall panels, handrails, corner guards, and wall guards. Our PETG sheets offer long-term durability and lower lifetime maintenance costs for healthcare facility managers and architects worldwide.
Download Pinger official technical documentation and PETG wall protection catalog below.
Comprehensive certified performance metrics, international fire ratings, and environmental standards for high-performance clinical wall protection.
Pinger Rigid PETG Wall Panel is made from medical-grade, antibacterial, non-phthalate, and eco-friendly PETG material. It is fireproof, crash-resistant, wear-resistant, mold-proof, insect-resistant, age-resistant, and 100% recyclable with a smooth, easy-to-clean surface.
Designed for healthcare facilities, cleanrooms, pharmaceutical workshops, high-end commercial spaces, schools, laboratories, luxury hotels, and transport interiors.
Explore our complete range of professional surface finishes designed for medical wall protection systems. (Click any image to zoom)From hospitals to care homes and nurseries.
Lightly (A)
Weave (B)
Suede (C)
Coarse (D)
Matte (G)
Starburst (H)
Flax (M)
Basket (O)
Leather (P)
Wood (S)

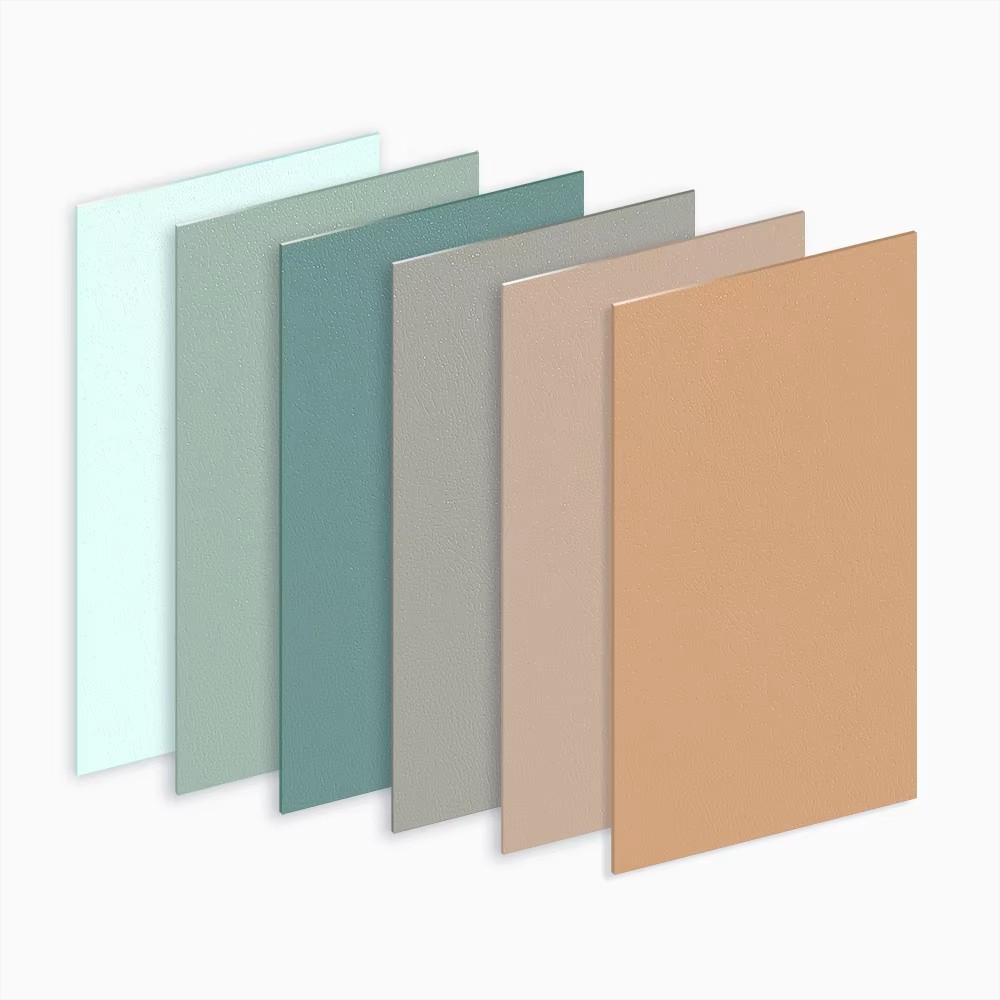

Striped (T)Browse our complete palette divided into 5 specialized series.
Download Pinger official color card catalog below.
From hospitals to care homes and nurseries. From rooms to corridors,PinGer offers unrivalled hygiene and impact resistance, exceptionalease of maintenance and outstanding design

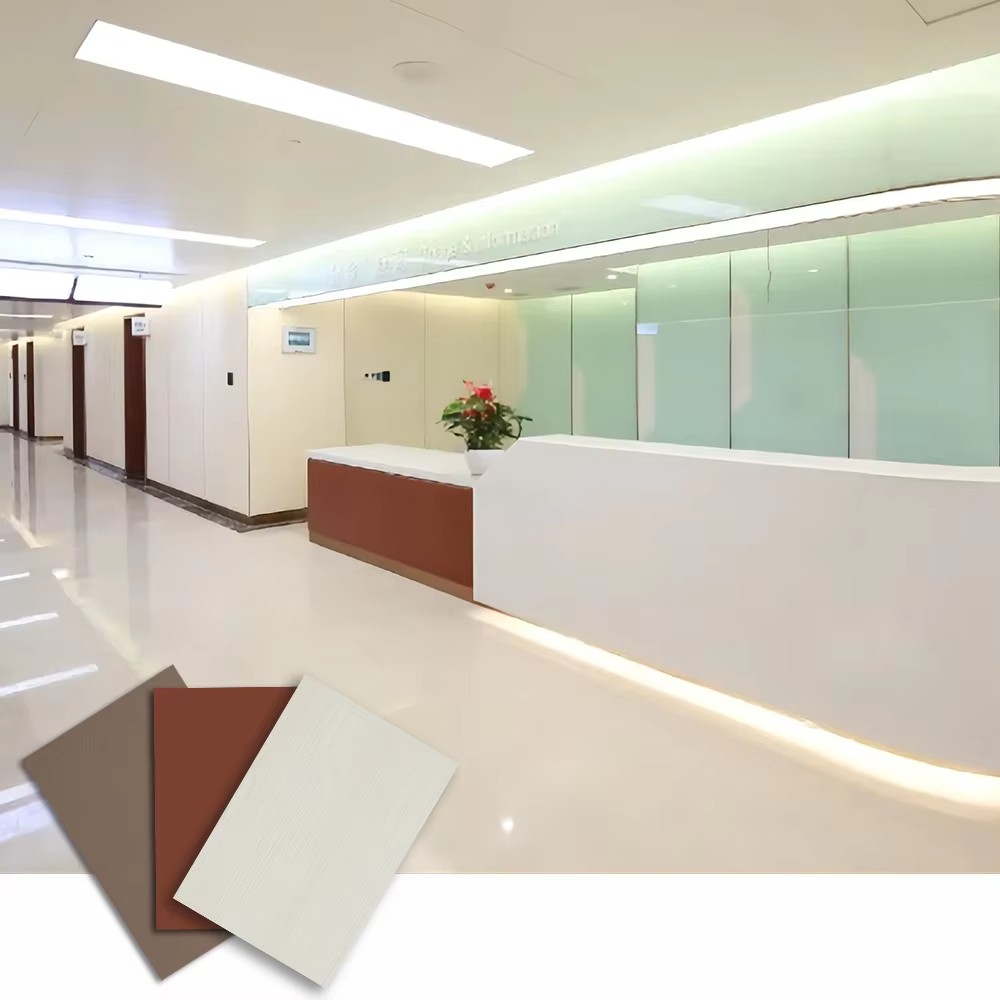

Pinger wall panel solutions for hospital nurse stations and corridors under the "Vitality Hue" concept.
It highlights core advantages: color motivation (soft tones for comfort), protection adaptation (2mm - thick, impact/scratch - resistant panels), and detail safety (99.9% antibacterial, seamless welding).
Design suggestions include series like Legend, Lotus, Wood, MO, and Artist,
with various color options for weave - effect panels.
01 SAGA
1024D
1866D
1035D
1027D
1602D
1609D
1702D
1704D
1880D
1886D
1039D
3011B
3012B
3412B
3413B
1051P
1053P
1054P
02 Nelumbo Nucifera
9139A
7443A
9677A
9274A
9378A
9353A
9621A
9240A
9273A
126G
169G
190G
180G
168G
164G
162G
112G
129G
03 WOOD
1032S
1016S
1002C
1003C
1021C
1050C
1014S
1020C
5016S
5017C
5013S
8071S
8079S5017C
8086C
8103C
8080C
8084S
04 MO
1048G
1049M
1052M
1053M
1051M
1707M
1712M
1862M
3012M
9021G
8176MO
8205M
8188M
8198MO
8192MO
8187M
8179M
8314M
05 ARTIST
8212H
8214H
8215HO
8211HO
8217H
8218HO
8219H
8244H
8239H
8240O
8238H
8241O
8242O
8243O
8245O
8246O
8231H
8233H
Download professional CAD files for Pinger wall protection systems to incorporate into your architectural drawings.
Comprehensive Wall Solution installation guidelines, substrate standards, and structural treatment for Pinger rigid vinyl wall panels.
Approved Substrates (Correct): Level and smooth surfaces including smooth gypsum board, factory-finished MDF walls, and solid brick walls.
Unsuitable Substrates (Requires Rectification):
• Brick Walls: Rough masonry texture prevents direct adhesion.
• Peeling Paint / Lime Surfaces: Loose lime paint falls off, destroying adhesive bonding.
• Uneven Surfaces: Covered with lime slurry or bumps, causing air pockets.
• Damp / Moldy Walls: High humidity destroys adhesive. (Dehumidify with electric fans and seal moisture before proceeding).
[ Click to zoom: Approved vs. Unsuitable Wall Substrates ]For Unsuitable Wall Surfaces: (such as brick walls, uneven walls, peeling paint walls, or damp/moldy walls), a substrate layer must be installed onto the structural wall before applying Pinger panels.
Approved Backing Substrate Materials:
Workflow: Fix the backing board securely to the wall framework — Ensure the surface is dust-free and dry — Proceed with standard Pinger panel installation.
[ Click to zoom: Backing Substrate Installation Diagram ]Adhered using professional high-strength adhesives with proper joint processing:
[ Click to zoom: Panel Splicing & Joint Details ]Ensure impact resistance and aesthetic continuity across room angles:
[ Click to zoom: In-corner & Out-corner Profiles ]System integration and maintenance guidelines for optimal longevity:
[ Click to zoom: System Coordination & Finishing ]
Professional guidelines for maintaining medical-grade wall protection systems.
| Traffic Volume | Routine Cleaning and Maintenance | Stain Removal |
|---|---|---|
| Low: Private offices, changing rooms | Once a month | As needed |
| Moderate: Internal corridors of public offices, conference rooms | Two to three times a month | As needed |
| High: Main entrances, corridors, studios | Once a week | As needed |
Oil-based (paint-like) stains are difficult to remove. For decorative wall surfaces, spraying can be done. If oil-based (paint-like) spray needs to be removed, the block panel can be replaced. (For removal of oil-based pen marks, pure alcohol or a mixture of alcohol and water can be used for scrubbing and wiping.)
Engineered with environmental sustainability and medical-grade safety at its core for modern, green-certified healthcare interiors.
Manufactured with 100% recyclable virgin PETG copolyester, our wall panels support circular economy practices. They can be fully repurposed at the end of their lifecycle, drastically reducing building waste sent to landfills.
Completely free from PVC, plasticizers (BPA, DEHP, phthalates), heavy metals, and halogenated additives. PETG ensures zero toxic off-gassing and safe combustion without releasing dangerous chlorine gas during emergency fires.
Rigorously tested under international standards (such as CA CDPH 01350 and ISO 16000), our PETG sheets show non-detectable TVOC and formaldehyde emissions, preserving indoor air quality in sensitive operating rooms, ICUs, and wards.
Find detailed technical answers regarding our PETG wall cladding systems, material properties, and installation versatility.
Yes. High-quality PETG wall panels meet international fire safety standards, achieving a Class A / Class B1 rating (tested under ASTM E84 / EN 13501-1 standards). They offer excellent flame retardancy, self-extinguishing properties, and minimal toxic smoke production.
Yes. PETG features a non-porous, dense surface that inherently prevents moisture absorption and bacteria from penetrating. When engineered with medical-grade antibacterial surface treatments, it actively inhibits bacterial growth and mold formation, meeting strict clinical hygiene standards.
Yes, 100%. PETG (Polyethylene Terephthalate Glycol) is a 100% recyclable, eco-friendly copolyester. Unlike traditional materials, it is completely free from PVC, plasticizers (such as BPA and phthalates/DEHP), and heavy metals, emitting zero toxic VOCs during its lifecycle.
Yes, especially in healthcare, cleanrooms, and eco-conscious architectural projects. PETG is completely PVC-free and phthalate-free, releasing no chlorine gas or toxic plasticizers when heated or burned. It also offers superior impact toughness, better cold-bend flexibility, and enhanced chemical resistance against harsh hospital-grade disinfectants without yellowing or cracking over time.
Standard thicknesses range from 0.8mm to 3.0mm. Common commercial and clinical options include: 0.8mm–1.0mm (light cladding & doors), 1.5mm–2.0mm (healthcare corridors & patient rooms), and 2.5mm–3.0mm (heavy impact zones like emergency rooms & loading bays).
Yes. PETG is renowned for its exceptional thermoforming and cold-bending capabilities. It can easily be bent or heat-formed on-site to create seamless 90° inside/outside wall corners, curved pillars, and window alcoves without stress whitening or cracking.
PETG has high chemical resistance (EN 423 / ASTM D543 Grade A). Routine cleaning can be done with mild detergents and a soft microfiber cloth. For clinical disinfection, it withstands daily wiping with hospital-grade disinfectants, alcohol, bleach, iodine, or acidic cleansers without discoloring or degrading the surface. Avoid abrasive scouring pads or pure acetone.
Yes. Because PETG is completely non-porous and waterproof, it will not absorb moisture, swell, warp, or rot in damp environments. When sealed with proper waterproof adhesives and silicone joints, PETG panels are ideal for hospital scrub rooms, laboratories, shower stalls, and commercial bathrooms.
