Hospital Rigid PETG Wall Panel Sheet Supplier,Manufacturer

Overview

Pinger® Hospital Rigid PETG Wall Panel Sheet is engineered to protect commercial and healthcare interiors from heavy cart traffic, equipment impact, and daily wear. Free from phthalates and BPA, PETG is a sustainable, highly durable alternative to traditional wall coverings, delivering outstanding hygienic and safety performance.

Key Features & Benefits

High Impact & Wear Resistance: Effectively absorbs impact from hospital beds, wheelchairs, and trolleys without denting or cracking.
Eco-Friendly & Non-Toxic: 100% recyclable, free from plasticizers (BPA/Phthalates), meeting stringent indoor air quality standards.
Class B1 Fire Performance: Meets international fire safety codes, flame-retardant with low smoke emissions.
Chemical & Antimicrobial Resistance: Stands up to harsh medical cleansers, disinfectants, and stain-causing agents for easy maintenance.
Easy Installation & Thermoforming: Can be easily cut, thermoformed, or bent on-site for seamless wall corners and full protection.

Product Specifications

Specification	Details
Material	100% Virgin PETG Copolyester
Thickness	0.8mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm (Custom thickness available)
Standard Sizes	Solid Color: 1.22m × 2.44m (4' × 8'), 1.22m × 2.80m Wood Grain: 1.18m × 2.44m, 1.18m × 2.80m
Surface Texture	Fine Textured / Orange Peel / Smooth Matte / Glossy
Fire Rating	Class B1 / Class A (EN 13501-1 / ASTM E84)

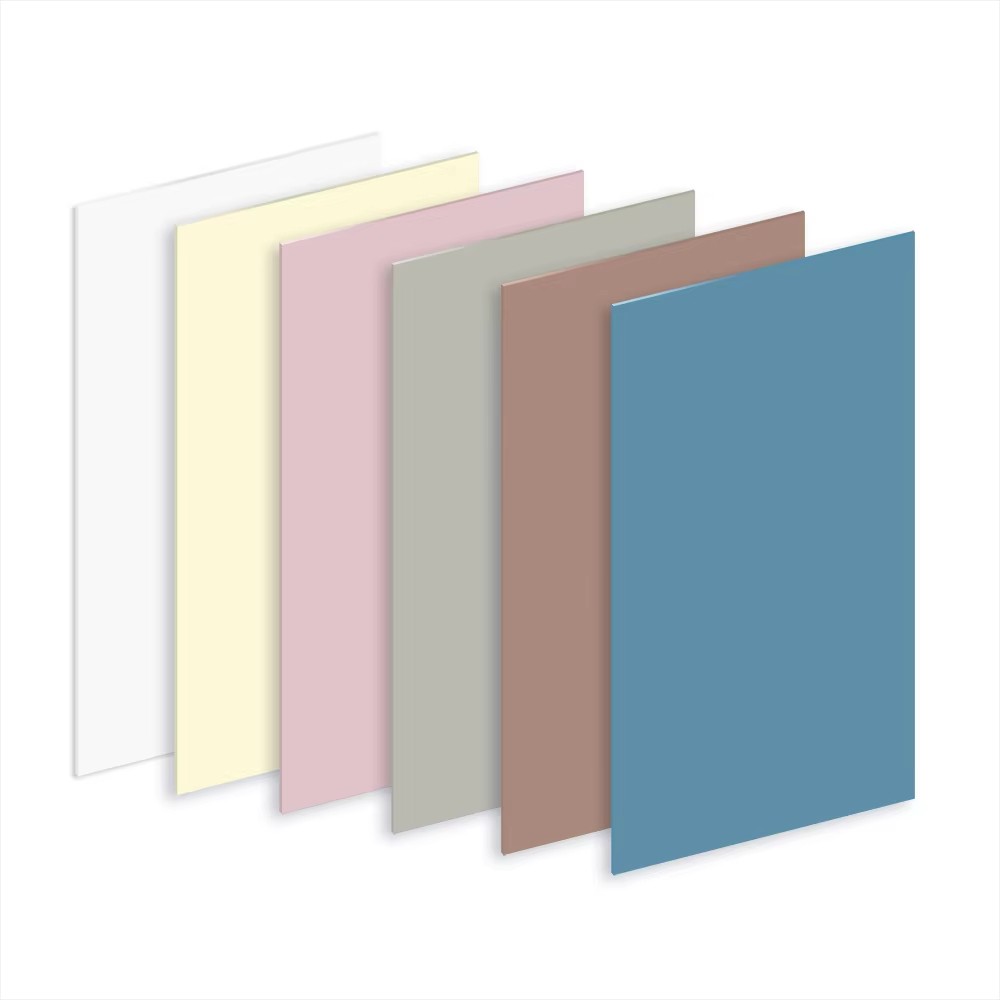

Color Options	Solid Colors, Wood Grain, Marble, and Custom RAL Colors
Applications	Hospitals, Clinics, Cleanrooms, Laboratories, Schools, Public Facilities

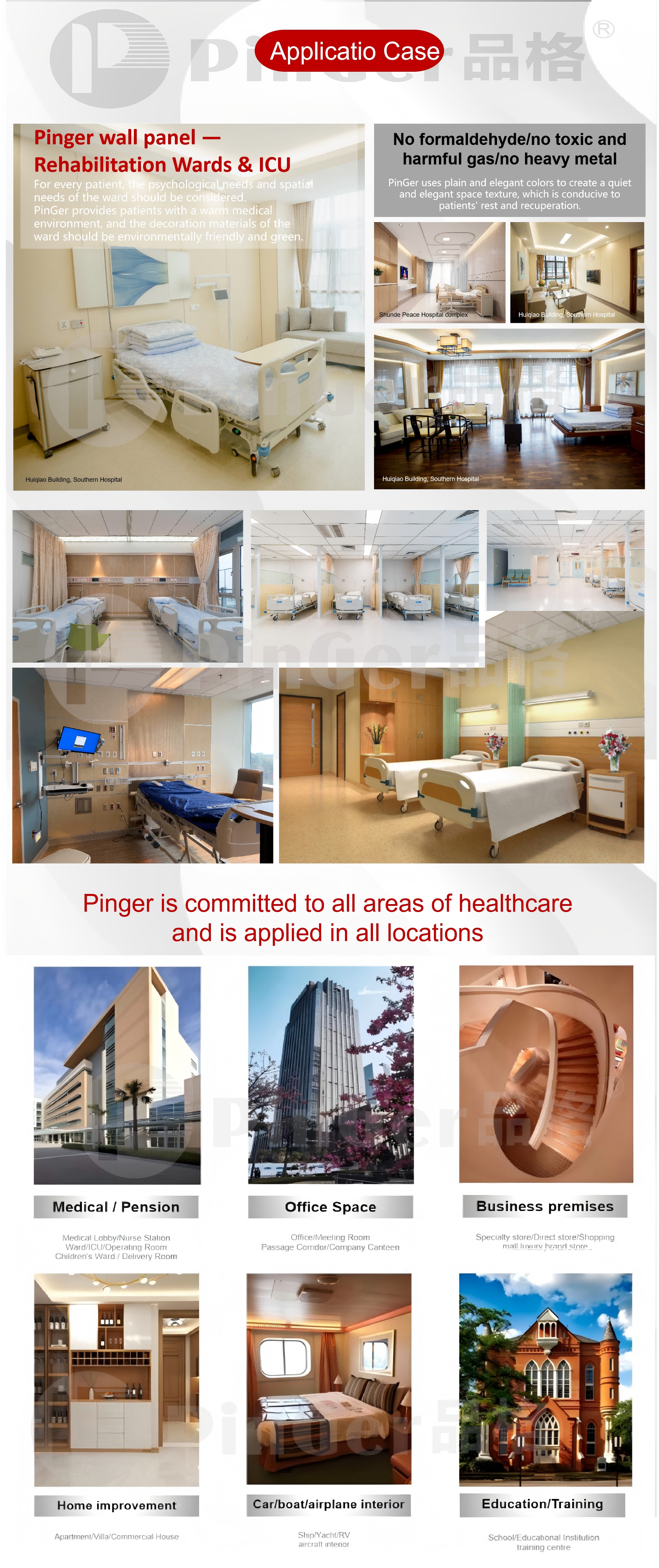

Why Choose Pinger® PETG Wall Panels?

As a trusted manufacturer in wall protection systems, Pinger provides comprehensive interior wall protection solutions, including wall panels, handrails, corner guards, and wall guards. Our PETG sheets offer long-term durability and lower lifetime maintenance costs for healthcare facility managers and architects worldwide.

PinGer® Antibacterial Rigid PETG Wall Panel

Technical Specifications & Downloads

Download Pinger official technical documentation and PETG wall protection catalog below.

Pinger PETG Wall Panel Sheet Technical Specifications Download PDF

Technical Data & Specifications

Comprehensive certified performance metrics, international fire ratings, and environmental standards for high-performance clinical wall protection.

Pinger Rigid PETG Wall Panel is made from medical-grade, antibacterial, non-phthalate, and eco-friendly PETG material. It is fireproof, crash-resistant, wear-resistant, mold-proof, insect-resistant, age-resistant, and 100% recyclable with a smooth, easy-to-clean surface.

HYGIENE

PinGer PETG Wall Panel Antibacterial and Mould Proof Technical Data

Bacterial & Fungal Resistant

ANTIBACTERIAL PERFORMANCEJIS Z 2801:2010 (>99.9% inhibits E. coli & S. aureus)

FUNGAL & MOULD RESISTANCEASTM G21-15 (>99.9% inhibits, Class 0 zero-growth rating)

SAFETY

PinGer Fire Retardant and Flame Spread Rating Technical Data

Fire Performance

FIRE & SMOKE RATINGASTM E84 Class A / Euro EN13501-1 Class B

HORIZONTAL BURNINGASTM D635-22 (Self-extinguishing performance)

SMOKE TOXICITYNon-toxic, ultra-low smoke emission

DURABILITY PinGer Chemical Resistance and Stain Proof Technical Data

Chemical & Stain

COLOR STAININGEN 423:2001 (Level 0 - High stain resistance, easy-clean)

CHEMICAL RESISTANCEASTM D543-14 / D638-14 (Resists acids, alkalis, & medical disinfectants)

CRASH PROTECTIONASTM D256-10e1 & GB/T 14153 (Superior impact resistance)

SUSTAINABILITY PinGer LEED, FSC and LCA Environmental Certifications

Green & LEED Certifications

TVOC & FORMALDEHYDECDPH 01350 & GB/T 18580 (Low VOC & Formaldehyde-Free)

HEAVY METAL SAFETYCA65 & SGS Certified (Lead, Phthalate, & Heavy-metal free)

GREEN SUSTAINABLELEED Compliant, FSC Certified & LCA Assessed

Core Performance Highlights

Designed for healthcare facilities, cleanrooms, pharmaceutical workshops, high-end commercial spaces, schools, laboratories, luxury hotels, and transport interiors.

ANTI-BACTERIAL AND MILDEW RESISTANT

PinGer PETG wall protection panels provide long-lasting surface resistance against bacteria, mold, and fungal growth. Combining hygienic performance with superior durability, they help healthcare and cleanroom facilities maintain clean, safe, and low-maintenance environments.

FIRE SAFETY & FLAME RETARDANT

Engineered to meet rigorous international fire safety standards (ASTM E84 Class A & Euro Class B), PinGer PETG panels suppress flame spread and smoke development, offering reliable passive fire protection for commercial and clinical interiors.

ANTI-COLLISION & WEAR RESISTANCE

Effectively protects walls from severe impact caused by hospital beds, wheelchairs, and heavy service carts. High toughness prevents denting and scratching, greatly extending wall service life.

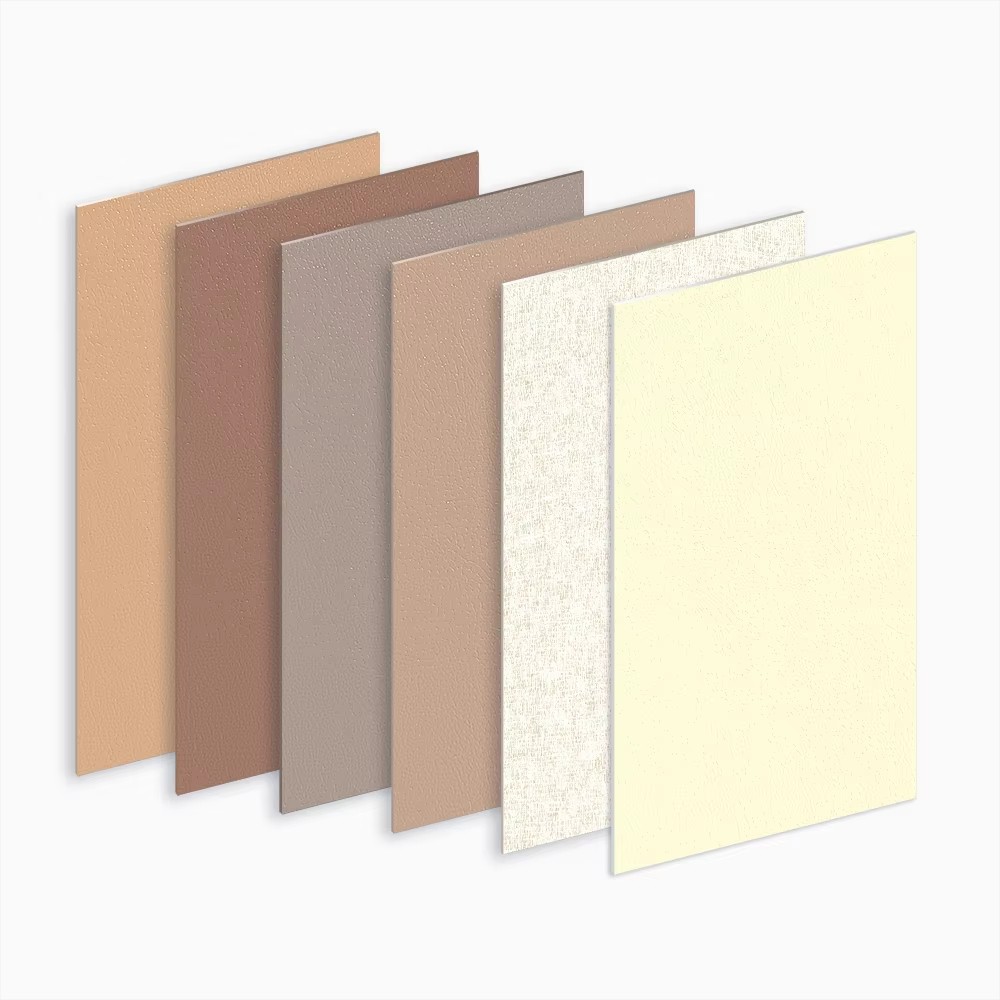

Rich in Colors & Various Decorative Styles

LEED & LCA GREEN SUSTAINABILITY

PinGer PETG wall protection sheets comply with LCA assessment, LEED green building credentials, and FSC accreditation. 100% recyclable, phthalate-free, and certified for ultra-low VOC emissions to ensure superior indoor air quality.

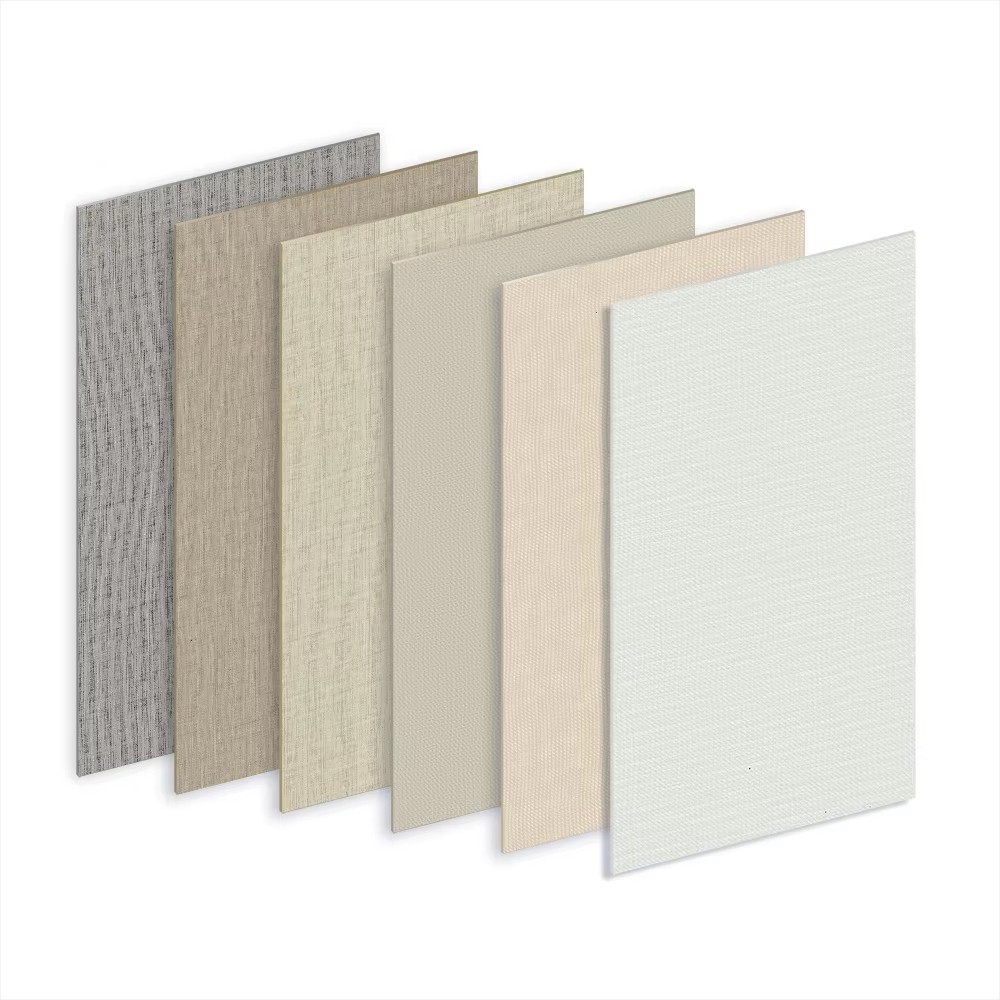

Standard Surface Textures & Finishes

Explore our complete range of professional surface finishes designed for medical wall protection systems. (Click any image to zoom)From hospitals to care homes and nurseries.

Surface Textures Overview

11 Standard Finishes

Lightly (A)

Weave (B)

Suede (C)

Coarse (D)

Matte (G)

Starburst (H)

Flax (M)

Basket (O)

Leather (P)

Wood (S)

Striped (T)

5 Series Color Card Systems

Browse our complete palette divided into 5 specialized series.

Download Pinger official color card catalog below.

Pinger Color Card Catalog System (5 Series)Download PDF

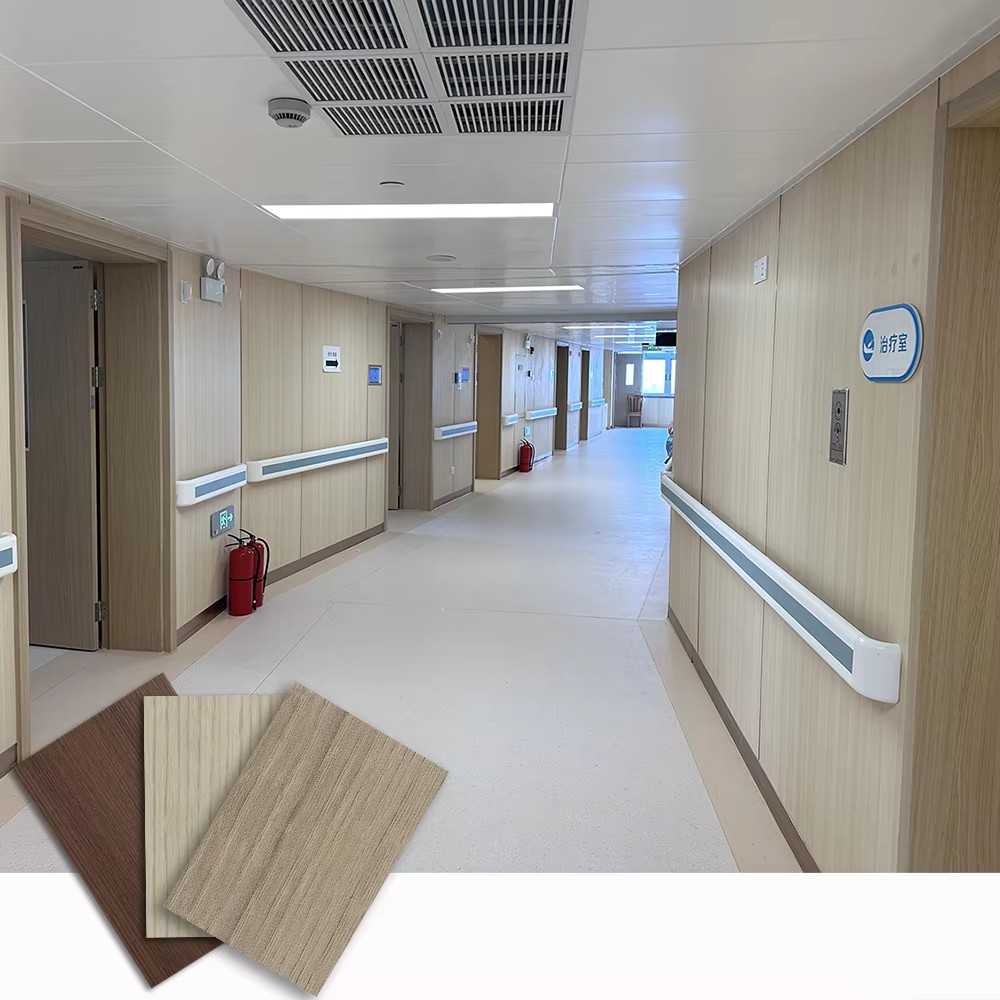

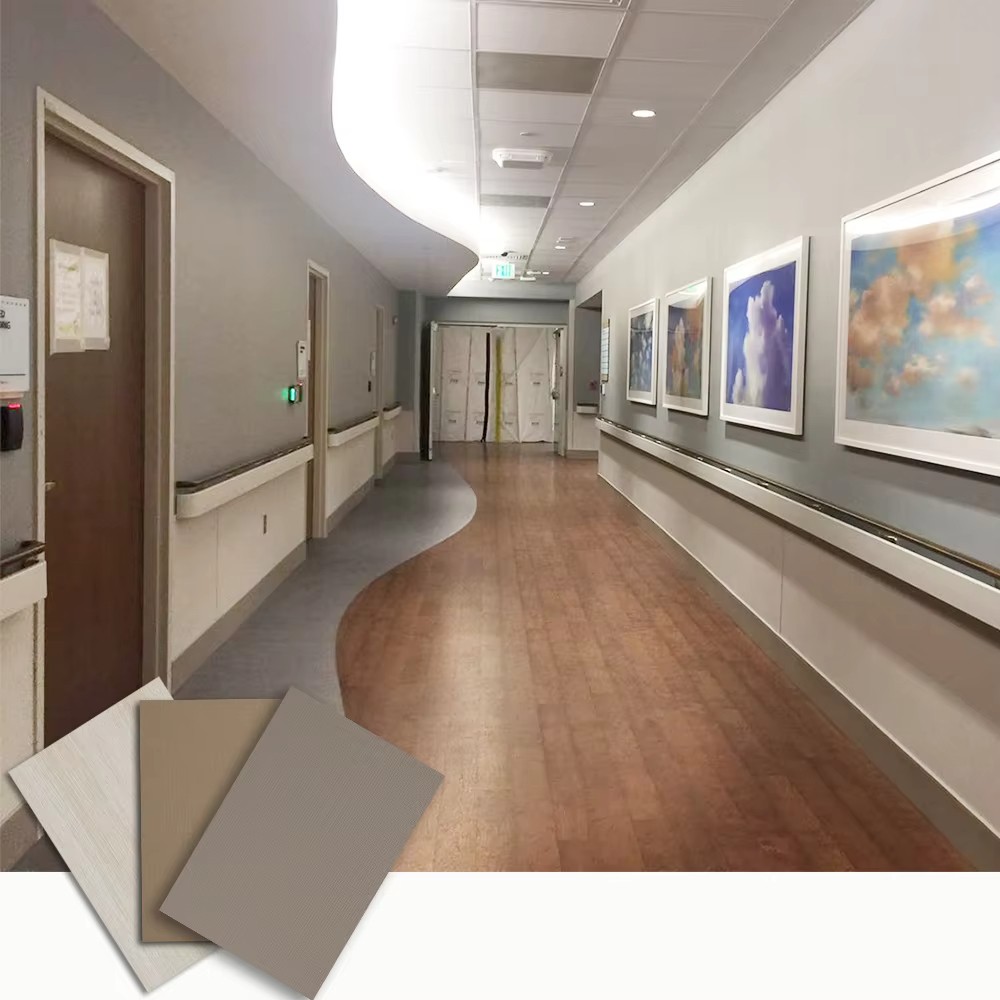

From hospitals to care homes and nurseries. From rooms to corridors,PinGer offers unrivalled hygiene and impact resistance, exceptionalease of maintenance and outstanding design

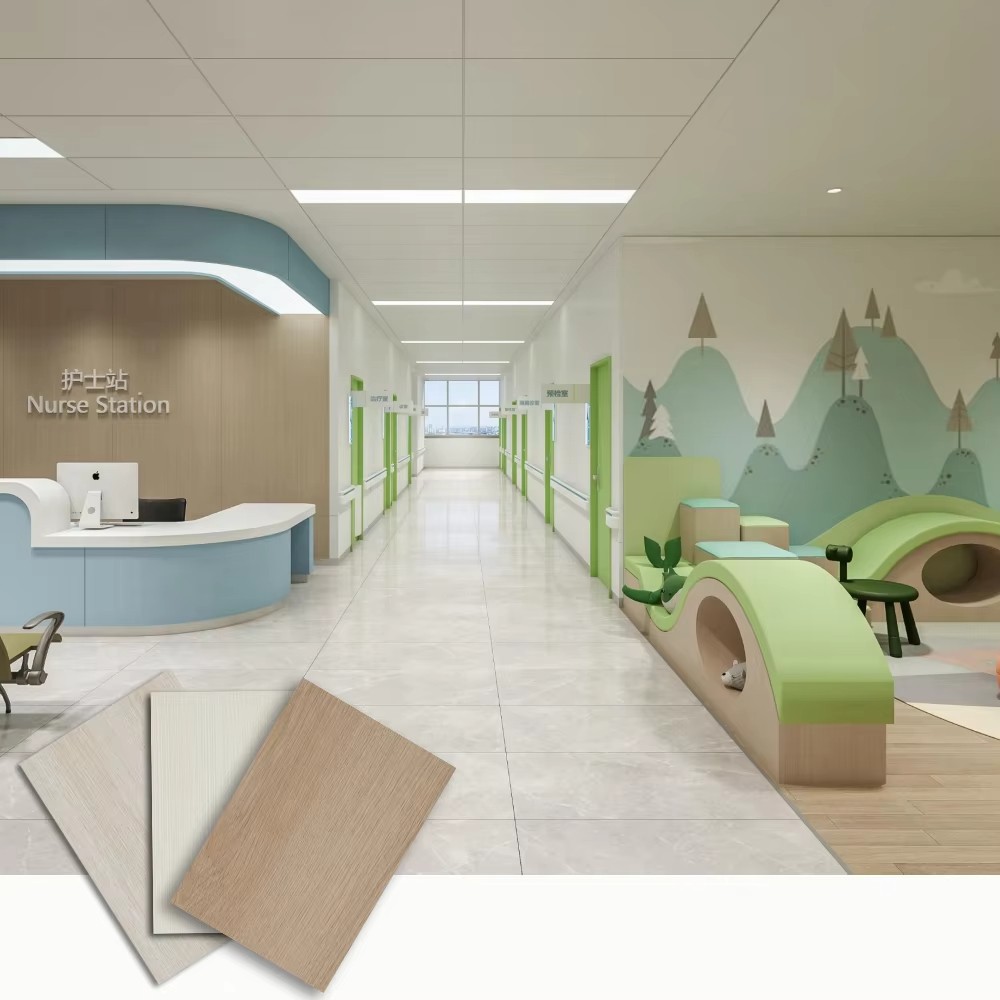

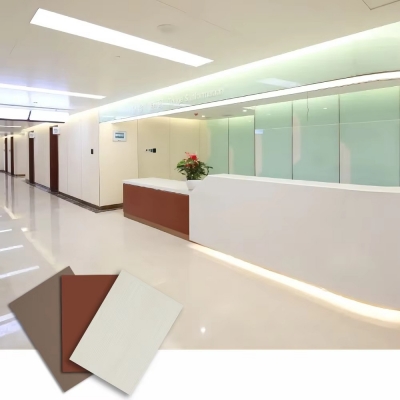

Pinger wall panel solutions for hospital nurse stations and corridors under the "Vitality Hue" concept.

It highlights core advantages: color motivation (soft tones for comfort), protection adaptation (2mm - thick, impact/scratch - resistant panels), and detail safety (99.9% antibacterial, seamless welding).

Design suggestions include series like Legend, Lotus, Wood, MO, and Artist,

with various color options for weave - effect panels.

01 SAGA

43 Standard Options

1024D

1866D

1035D

1027D

1602D

1609D

1702D

1704D

1880D

1886D

1039D

3011B

3012B

3412B

3413B

1051P

1053P

1054P

+28 More

02 Nelumbo Nucifera

43 Standard Options

9139A

7443A

9677A

9274A

9378A

9353A

9621A

9240A

9273A

126G

169G

190G

180G

168G

164G

162G

112G

129G

+28 More

03 WOOD

43 Standard Options

1032S

1016S

1002C

1003C

1021C

1050C

1014S

1020C

5016S

5017C

5013S

8071S

8079S

5017C

8086C

8103C

8080C

8084S

+28 More

04 MO

43 Standard Options

1048G

1049M

1052M

1053M

1051M

1707M

1712M

1862M

3012M

9021G

8176MO

8205M

8188M

8198MO

8192MO

8187M

8179M

8314M

+28 More

05 ARTIST

43 Standard Options

8212H

8214H

8215HO

8211HO

8217H

8218HO

8219H

8244H

8239H

8240O

8238H

8241O

8242O

8243O

8245O

8246O

8231H

8233H

+28 More

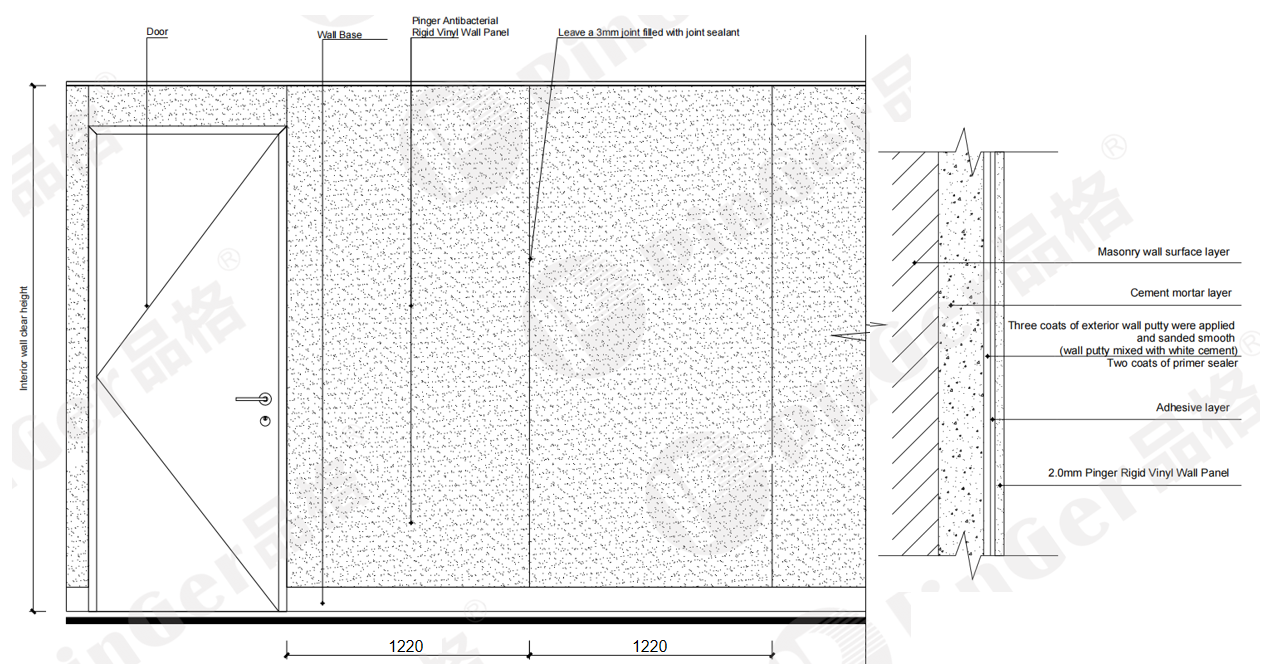

CAD Drawings

Download professional CAD files for Pinger wall protection systems to incorporate into your architectural drawings.

Pinger Wall Panel CAD Drawing Download PDF

Wall Solution

Comprehensive Wall Solution installation guidelines, substrate standards, and structural treatment for Pinger rigid vinyl wall panels.

A. Wall Surface & Substrate Requirements

Approved Substrates (Correct): Level and smooth surfaces including smooth gypsum board, factory-finished MDF walls, and solid brick walls.

Unsuitable Substrates (Requires Rectification):
• Brick Walls: Rough masonry texture prevents direct adhesion.
• Peeling Paint / Lime Surfaces: Loose lime paint falls off, destroying adhesive bonding.
• Uneven Surfaces: Covered with lime slurry or bumps, causing air pockets.
• Damp / Moldy Walls: High humidity destroys adhesive. (Dehumidify with electric fans and seal moisture before proceeding).

[ Click to zoom: Approved vs. Unsuitable Wall Substrates ]

B. Mandatory Substrate Rectification Wall Treatment

For Unsuitable Wall Surfaces: (such as brick walls, uneven walls, peeling paint walls, or damp/moldy walls), a substrate layer must be installed onto the structural wall before applying Pinger panels.

Approved Backing Substrate Materials:

Fire-rated board
MDF (Medium Density Fiberboard)
Plywood Panels

Workflow: Fix the backing board securely to the wall framework — Ensure the surface is dust-free and dry — Proceed with standard Pinger panel installation.

[ Click to zoom: Backing Substrate Installation Diagram ]

C. Splicing of boards

Adhered using professional high-strength adhesives with proper joint processing:

Use connecting strips to connect and finish;
Leave a gap and fill it with grout and sealant;
Close fitting. (thin rigid vinyl panels support backer installation with edge-beveling).

[ Click to zoom: Panel Splicing & Joint Details ]

D. Treatment of wall corners

Ensure impact resistance and aesthetic continuity across room angles:

Directly grind the edges of the wallboard;
Perform hot bending;
Use inside and corners (Internal 1/2" [13mm] angles & heavy-duty external profiles).

[ Click to zoom: In-corner & Out-corner Profiles ]

E. Finishing

System integration and maintenance guidelines for optimal longevity:

Use outside corners or connecting strips directly;
Match with wall protection products such as chair guards, skirting boards;
Use products such as silicone sealant and grout to fill.

[ Click to zoom: System Coordination & Finishing ]

Pinger Wall Panel Installation & Cleaning

Professional guidelines for maintaining medical-grade wall protection systems.

Installation Demonstration

Pinger [品格®] Cleaning and Maintenance

Recommended Cleaning Frequencies for Different Traffic Levels

Traffic Volume	Routine Cleaning and Maintenance	Stain Removal
Low: Private offices, changing rooms	Once a month	As needed
Moderate: Internal corridors of public offices, conference rooms	Two to three times a month	As needed
High: Main entrances, corridors, studios	Once a week	As needed

Instructions

For routine cleaning and maintenance, simply use a clean cloth to remove dust.
In case of minor stains such as footprints, tea stains, or coffee stains, wipe with a clean cloth and warm water.
If stains are not dealt with in a timely manner and have been left for too long, use a clean cloth with a neutral cleaner to wipe.
After wiping with warm water or a cleaner, use a dry clean cloth to dry the water marks.

Cleaning Tool Selection

Cloths: Use clean and uncontaminated cloths, preferably microfiber cloths.
Cleaners: Neutral cleaners or alcohol can be used.

Special Notes

Oil-based (paint-like) stains are difficult to remove. For decorative wall surfaces, spraying can be done. If oil-based (paint-like) spray needs to be removed, the block panel can be replaced. (For removal of oil-based pen marks, pure alcohol or a mixture of alcohol and water can be used for scrubbing and wiping.)

PETG Eco-Friendly & Sustainable Features

Designed with environmental responsibility and medical-grade safety at the core for modern healthcare facilities.

1. 100% Recyclable Virgin PETG Material

Manufactured with 100% recyclable virgin PETG copolyester, our rigid wall sheets are completely free from PVC, BPA, formaldehyde, heavy metals, and phthalates/DEHP, ensuring zero toxic emissions and a safe healing environment.

2. Ultra-Low VOC Emissions & Indoor Air Quality

Tested under rigorous international standards (such as CA CDPH 01350 and ISO 16000), our PETG panels exhibit non-detectable TVOC and formaldehyde levels, contributing to LEED green building certification and protecting sensitive areas like ICUs and operating rooms.

3. Long-Term Durability & Thermoforming Efficiency

PETG's superior impact toughness acts as heavy-duty armor against medical equipment collisions. Its excellent thermoforming capability allows seamless corner bending on-site, drastically reducing installation waste and ongoing maintenance costs.

Frequently Asked Questions (FAQ)

Find answers to common technical and installation queries regarding our clinical PETG wall protection sheets.

Q1: Why are rigid PETG sheets recommended specifically for clinical nursing stations and corridors?

Clinical nursing stations are high-traffic hubs. Pinger rigid PETG sheets offer high impact resistance and scratch protection while providing a 100% non-toxic, plasticizer-free, non-porous surface that inhibits bacterial growth and withstands frequent cart bumps.

Q2: Are PETG wall protection panels compliant with international fire safety standards?

Yes. Pinger PETG wall protection sheets feature a Class A Fire Rating (tested under ASTM E84 / Euro Class B standards), ensuring flame retardancy, self-extinguishing performance, and minimal smoke toxicity in compliance with global healthcare fire codes.

Q3: How do PETG panels perform against aggressive chemical disinfectants?

PETG material exhibits outstanding chemical stability. Tested under EN 423 and ASTM D543 standards, it withstands daily wiping with medical-grade disinfectants, alcohol, iodine, and acidic cleansers without staining, discoloring, or degrading the panel finish.

Q4: Can PETG wall panels be thermoformed or installed over existing walls during hospital renovation?

Yes. PETG can be easily thermoformed and cold-bent on-site for seamless wall corners and door frames. It can be installed directly over existing drywall, concrete, or tile substrates using eco-friendly adhesives, minimizing construction dust and hospital downtime.

Q5: What are the standard sizes and thickness options available for PETG sheets?

Solid color sheets: 1.22m × 2.44m / 2.8m. Wood grain sheets: 1.18m × 2.44m / 2.8m. Thickness options range from 0.8mm to 3.0mm (such as 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm). Custom sizes and RAL color matching are available upon request.
