Antibacterial Wall Panels for Operating Rooms: High - Performance & Hygienic Supplier,Manufacturer

Product Name:ntibacterial Wall Panels for Operating Rooms: High - Performance & Hygienic

Specification

●Offering heavy-duty protection, Pinger Rigid Sheet is the perfect wall covering for interiors subjected to daily abuse. Pinger wall covering is offered in a variety of finish options and even textures

Material:

●Fired Proof.medical used antibacterial,non phthalate and non harmful vinyl material

Pinger Wall Panels Information

●Thickness:1mm 1.2mm 1.5mm 2mm 2.5mm 3mm

●Size:

Solid color:1.22*2.8m/sheet,1.22*2.44m/sheet
wood color:1.18*2.8m/sheet,1.18*2.44m/sheet
●Length can be cutted as your request
●Surface Finished:MicrogrooveTexture
●Color is rich:Can do OEM color as your request
Applicable Places:Hospital,Hotel,Airport,High-end Office Building,High-end Vila,Kindergarten, School,Sport Hall,Factory,Plane,High-speed Train,Loose Pulley,Public Place and soon.

Pinger Wall Panel Technical Data And Feature

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test (per SGS)

●Formaldehyde (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test (per CA65)

Product recommendation and design suggesion

PinGer Medical Crash Proof Vinyl Wall Panel Sheet

Meet the above environmental requirements

Choosing a cool, cool tone, such as light blue, can help people relax. It is also important to choose wall panel colors that are easily visible even if something is placed on them.

Installation Instruction –Pinger Rigid Vinyl Wall Sheet

●Installation Process

1.Scrape the wall surface,leveling putty(self-leveling and concrete)

2.Measure the size fo the wall with a tape measure.

3.Cut Pinger Wall Panels according to its size.

4.Brush adhesive.

5.Waiting 20-30 minutes(according to the actual temperature).

6.Stick the Pinger Wall Panels on the wall.

7.Rolling with a roller to exhaust the gas between the wall and the panels.

Pinger wall panrl installtion

●Pinger Wall Panel Accessories

1. Aluminum Trim Pieces

2. Solid Color Trim Pieces

3. Filling Sealant Fitting

Applications :

●High-traffic and high-impact areas . cleaning room,Corridors . Classrooms . Patient/resident rooms . Conference rooms . Back of house . Columns Benefits . Endless design options allows for coordination within any interior design scheme . Durable.

●Pinger keeps interior protected and looking good

●Pinger color is integral throughout, helping reduce discoloration caused by scratching Building Segments . Aviation & Transportation . Education . Healthcare . Hospitality . Office & Mixed Use . Retail . Senior Living . Sports & Entertainment

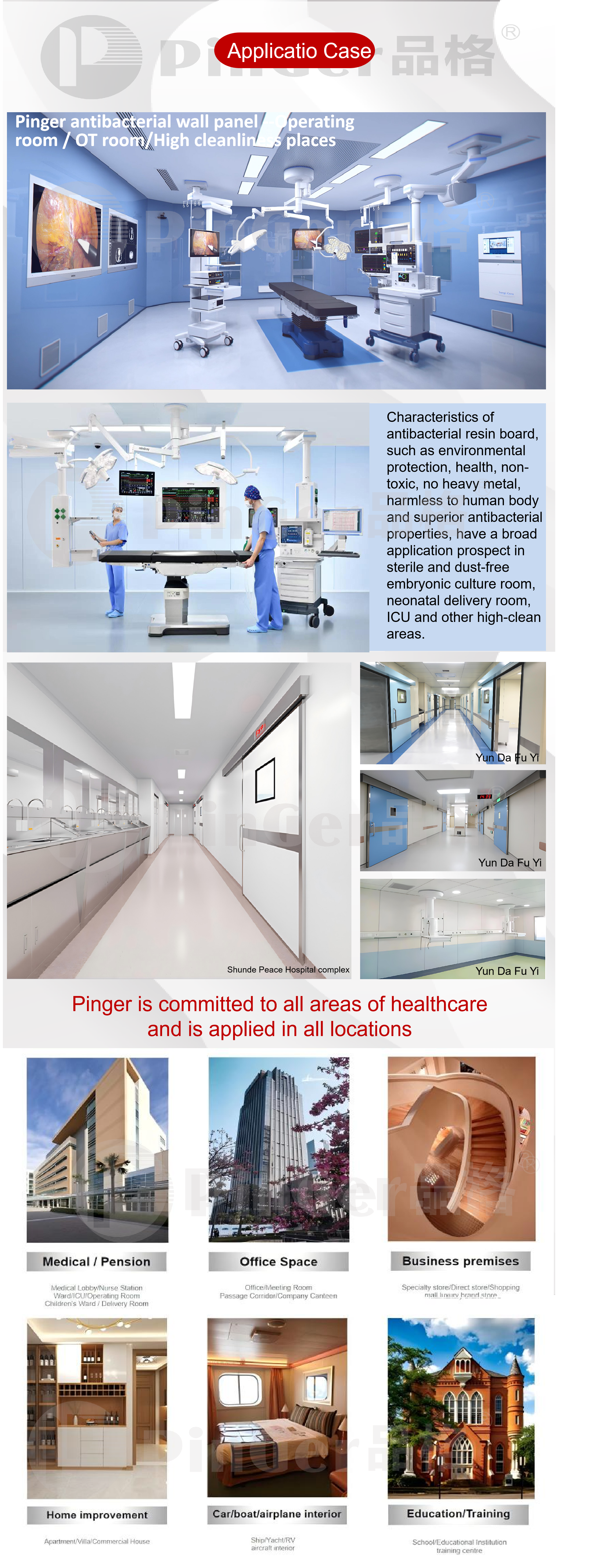

Characteristics of PinGer antibacterial wall board, such as environmental protection, health, non-toxic, no heavy metal, harmless to human body and superior antibacterial properties, have a broad application prospect in sterile and dust-free embryonic culture room, neonatal delivery room, ICU and other high-clean areas.

Pinger Packing

The panel meets the following specification requirements

(1) Antibacterial - JISZ2801:2010 [Japanese standard] Antibacterial rate>99.9%

(2) Mold proof - ASTM G21-15 [American Standard] Grade 0 does not grow

(3) Anti pollution - EN423:2001 [European Standard] Grade A (unaffected)

(4) Fireproof and flame retardant - ASTM E84-17 [American standard]/GB8624-2012 [National standard] Class A

(5) Horizontal Combustion - UL94HB [British Standard] Good

(6) Anti collision performance - ASTM D256-10el [American standard]/GB/T 14153-1993 [National standard] good

(7) Chemical resistance and corrosion resistance - ASTM D543-14/ASTM D2240-15/ASTM D638-14 [American standard] good

(8) TVOC toxic and harmful gas volatilization - CA CDPH 01350-doc [American standard]/IS0 16000-3-6-9-11 [European standard] not detected

(9) Color difference - SAEJ1545-2005 [British standard] No significant color difference

(10) Heavy metal - CA65 [American standard] not detected

(11) Formaldehyde - CA CDPH 01350-doc [American standard]/GB/T 18580-2017 [National standard] not detected

Pinger Innovative Product Blend: A - Class Fire - Protection & Advanced Layers

Pinger presents an innovative product mix that combines Class A fire - protection capabilities with a sophisticated structure of advanced layers. This ensures top - notch safety while providing excellent performance in antibacterial, stain - resistant, and decorative aspects.

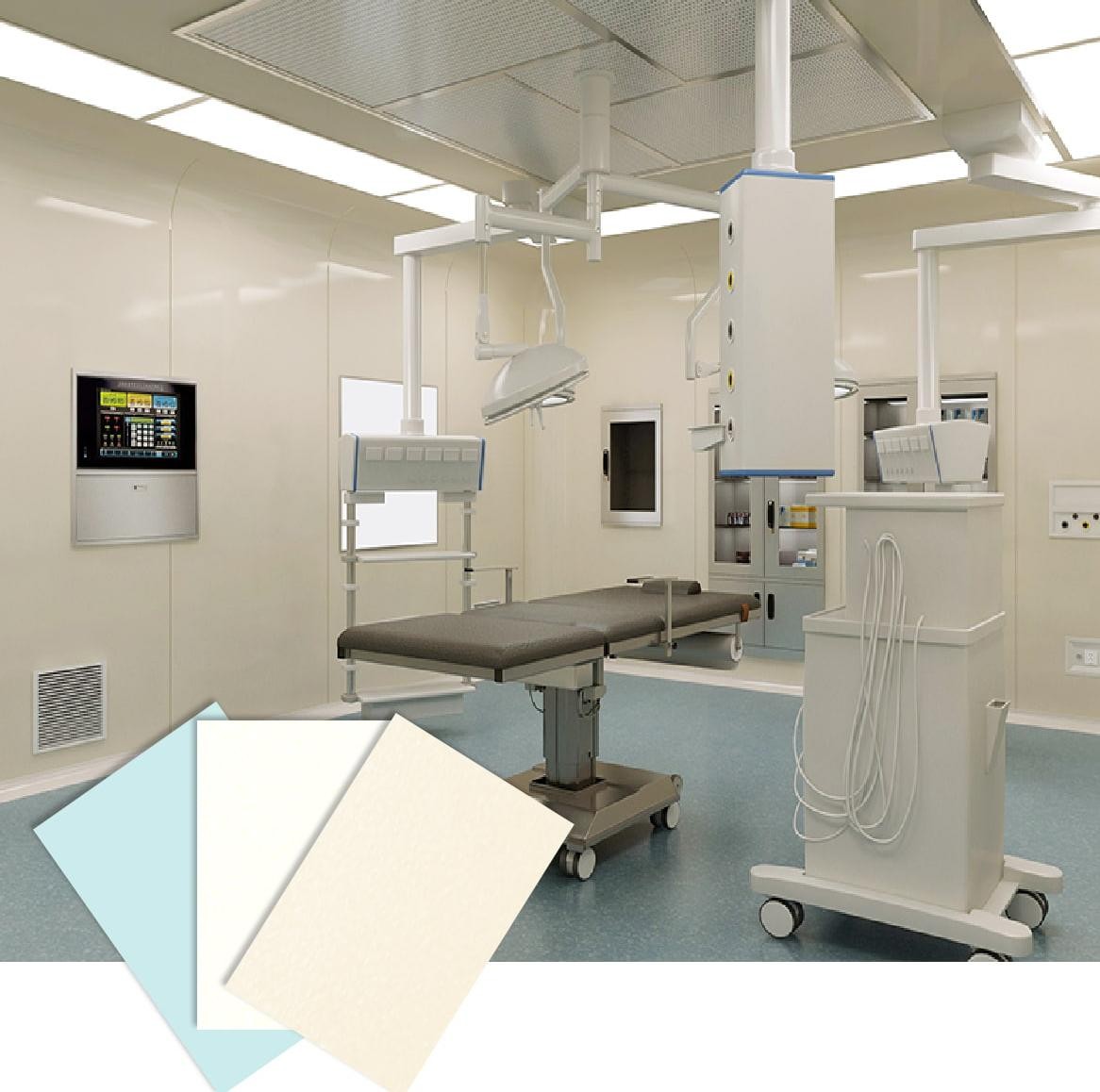

PinGer wall panels meet the requirement of Operating Rooms, Laboratories, and Controlled Environments

In an environment with a high risk of infection, hygiene and effective cleaning are of crucial importance.

For operating rooms, anti - static performance is also equally important.

Main requirements for the selection of wall panels

Special Areas

· Control of particle contamination in the air

· Anti - static properties

· Capable of bearing heavy medical equipment

· Hygiene and high - efficiency cleaning

· Stain - resistant and chemical - resistant — suitable for high - frequency daily cleaning

· Help medical staff concentrate and eliminate tension at the same time

· Good indoor air quality

Pinger wall panrl installtion

[Pinger 品格 ® Cleaning and Maintenance]

Recommended Cleaning Frequencies for Different Traffic Levels

Traffic Volume	Routine Cleaning and Maintenance	Stain Removal
Low: Private offices, changing rooms	Once a month	As needed
Moderate: Internal corridors of public offices, conference rooms	Two to three times a month	As needed
High: Main entrances, corridors, studios	Once a week	As needed

Instructions

1. For routine cleaning and maintenance, simply use a clean cloth to remove dust.

2. In case of minor stains such as footprints, tea stains, or coffee stains, wipe with a clean cloth and warm water.

3. If stains are not dealt with in a timely manner and have been left for too long, use a clean cloth with a neutral cleaner to wipe.

4. After wiping with warm water or a cleaner, use a dry clean cloth to dry the water marks.

Cleaning Tool Selection

1. Cloths: Use clean and uncontaminated cloths, preferably microfiber cloths.

2. Cleaners: Neutral cleaners or alcohol can be used.

Special Notes

· Oil - based (paint - like) stains are difficult to remove. For decorative wall surfaces, spraying can be done. If oil - based (paint - like) spray needs to be removed, the block panel can be replaced. (For removal of oil - based pen marks, pure alcohol or a mixture of alcohol and water can be used for scrubbing and wiping.)

A: Recently, we have heard that you have made many achievements in environmental protection. Could you please introduce company and your environmental protection measures?

B: We are a company committed to environmental protection, focusing on the production of green, pollution-free building materials products. Our products green formulations that are harmless to the human body, and we strive to minimize the negative impact on the environment in all stages of production, use, and recycling. We have advanced process technology, adhering to environmental protection principles from formulation to manufacturing application, achieving 0 wastewater and 0 waste gas emissions.

A: What efforts your company made to extend the life cycle of products and promote the sustainable use of resources?

B: We have EPD certification, committed to extending the life of products promoting the sustainable use of resources. Our products can not only be recycled but also be effectively recycled, reused, or converted into other useful materials at the end of their, truly achieving "from cradle to cradle". In this way, it can effectively reduce resource consumption and waste production, and reduce the burden on the natural environment

A: How do your company's products solve the problems of wall protection and decoration at the same time?

B: Our products have antibacterial, anti-mildew fire-resistant, impact-resistant, anti-stain, anti-corrosion, lightweight, anti-ultraviolet, dimensionally stable, and easy to clean functional properties. properties can effectively protect the walls, extend the service life of the building, and solve the problem of wall protection; its rich colors and wall 3D printing technology give designers a lot of room to play, and can perfectly solve the problem of wall decoration. In addition, our products are easy to construct, no dust, no, no, no heavy metal, and there is no emission of toxic and harmful gases such as formaldehyde and toluene. Therefore, using our products can installed on the same day, and you can move in the next day, effectively ensuring people's health.

A: You mentioned that you have obtained EPD certification, is this certification? What does it mean to you?

B: EPD certification is an assessment of the entire life cycle of a product, proving that it meets certain in environmental performance and complies with the principles of sustainable development. We have obtained this certification, which not only affirms the green, pollution-free, and recyclable of our products but also recognizes and proves our commitment and efforts to sustainable development. We will continue to develop innovative products, contribute to the concept of sustainable design, and together to build a healthy environment. Our long-term vision is to achieve sustainable development and become a leading environmental manager in the industry
