custom Hospital vinyl Crash handrail
custom Hospital vinyl Crash handrail
custom Hospital vinyl Crash handrail
custom Hospital vinyl Crash handrail

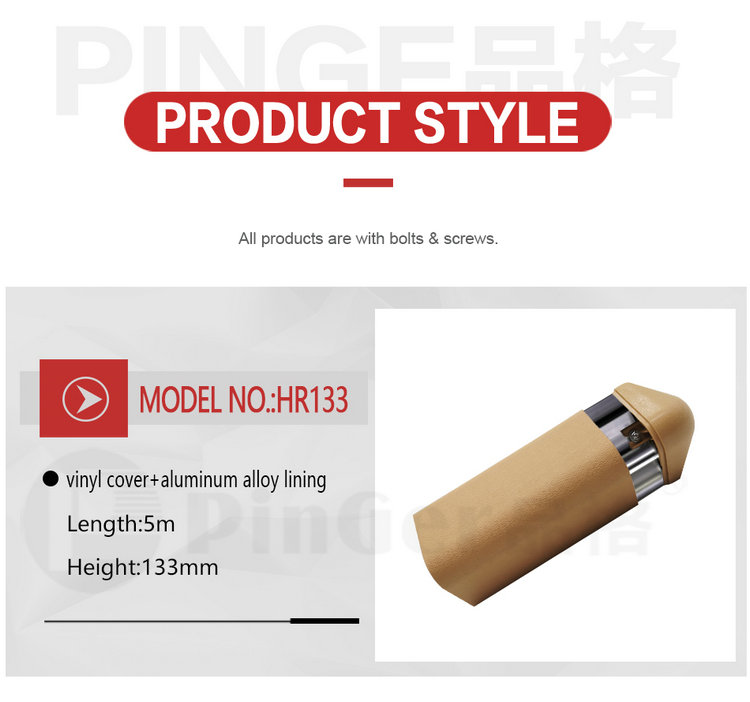

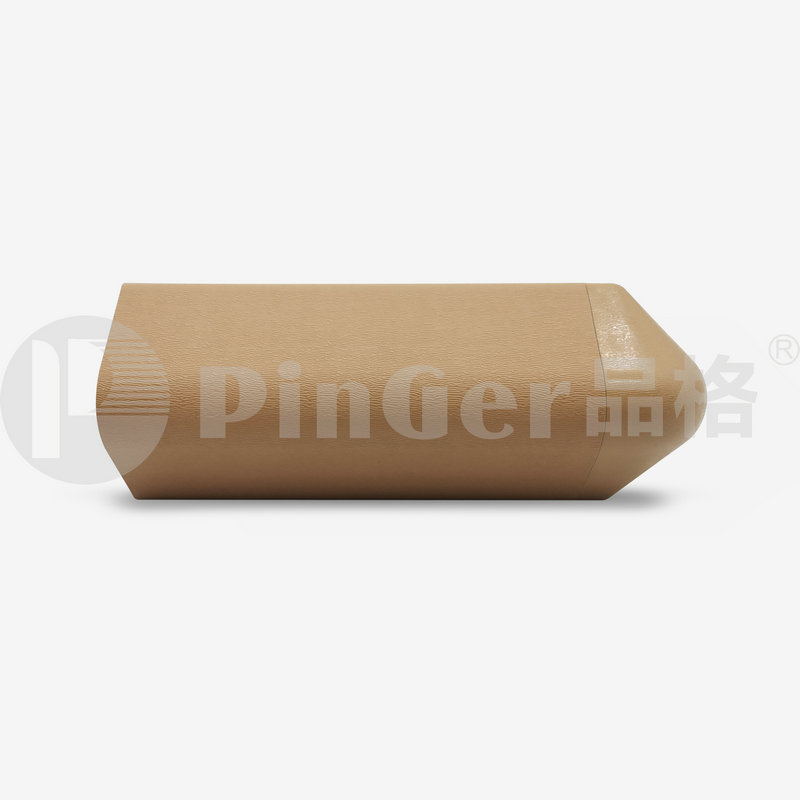

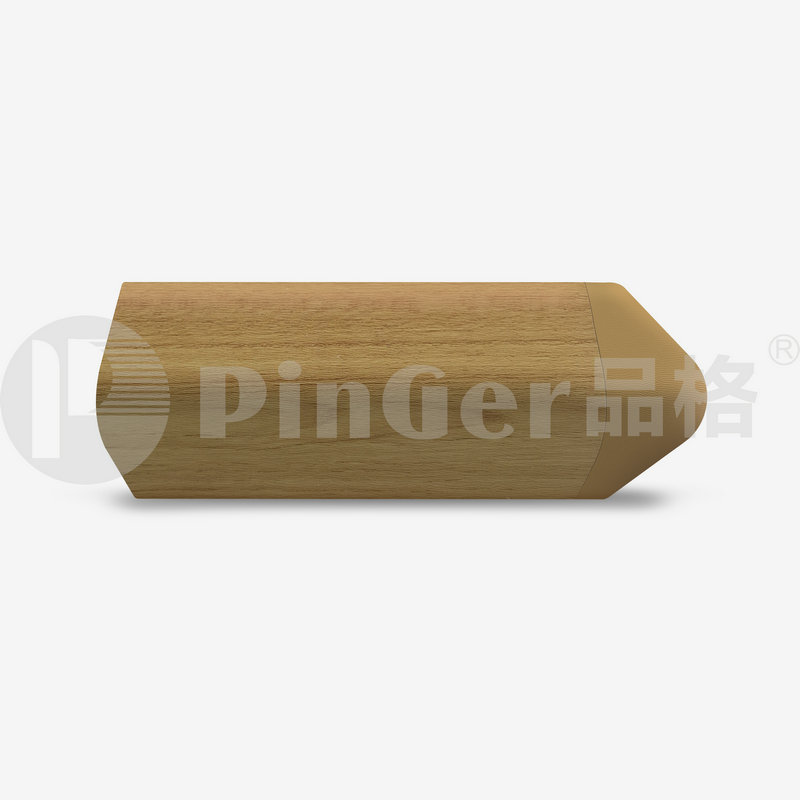

133mm Hospital Wall Protection Vinyl Crash Handrail

Model No.:HR133
Materials: vinyl & aluminum
Wood color
133mm width
5m length
Angle of bend: 135°
Diameter of grip: 38mm
38mm distance with wall
  • Item No.:

    HR133W
  • Product Detail

Product Name:Beadhouse Used Non-Slip PVC Crash Handrails


Specification

●Handrail can protect the wall well form impact, at the mean while it can support the passerby alaso.

●Handrail assembled by 2mm vinyl cover(135 degree), 2mm Aliminium Retainer, ABS Elbow piece, inside corner, Ouside corner, etc.

Beadhouse Used Non-Slip PVC Crash Handrails

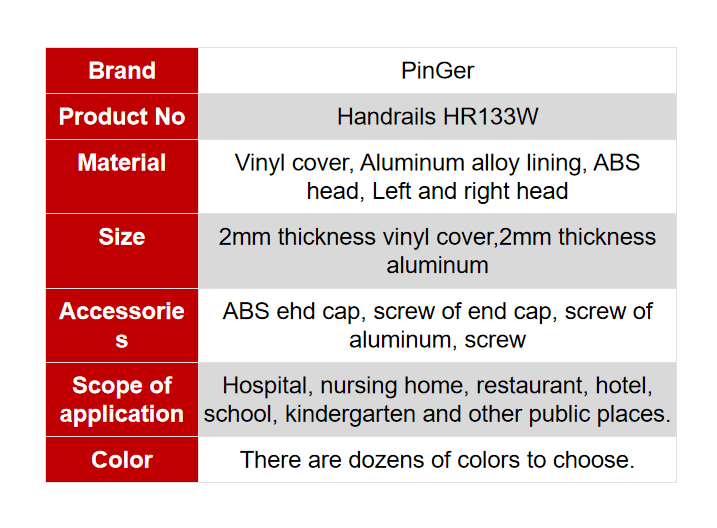

TECHNOLOGY DATA
Brand  PinGer
Product No  Handrails HR133W
Material  Vinyl cover, Aluminum alloy lining, ABS head, Left and right head
Size  2mm thickness vinyl cover,2mm thickness aluminum
Accessories  ABS ehd cap, screw of end cap, screw of aluminum, screw
Scope of application  Hospital,nursing home,restaurant, hotel,school,kindergarten and other public places.
Color  There are dozens of colors to choose.

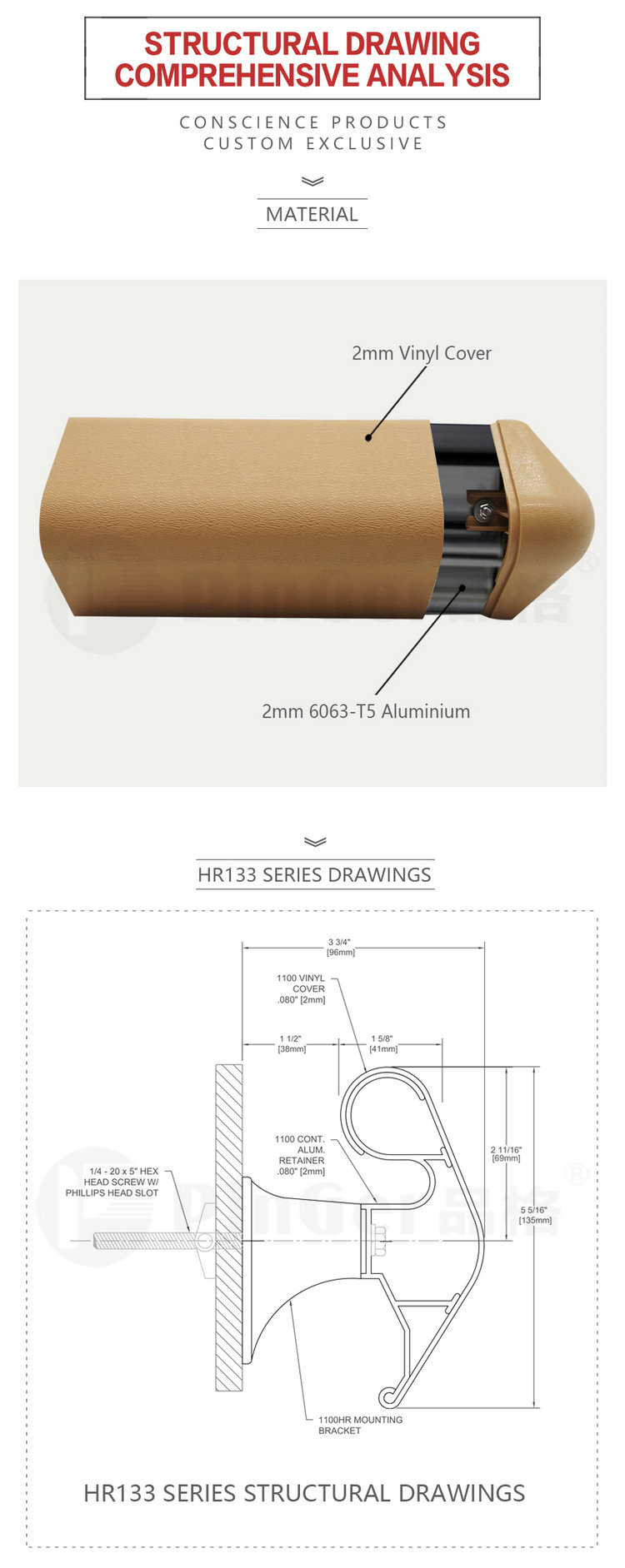

Structural Drawings

●Chemical and corrosion resistance vinyl cover & insert aluminum with rubber strip

●return,inside and putside conrners reinforced with aluminiuminserts

Beadhouse Used Non-Slip PVC Crash Handrails

PRODUCT CHARACTERISTICS

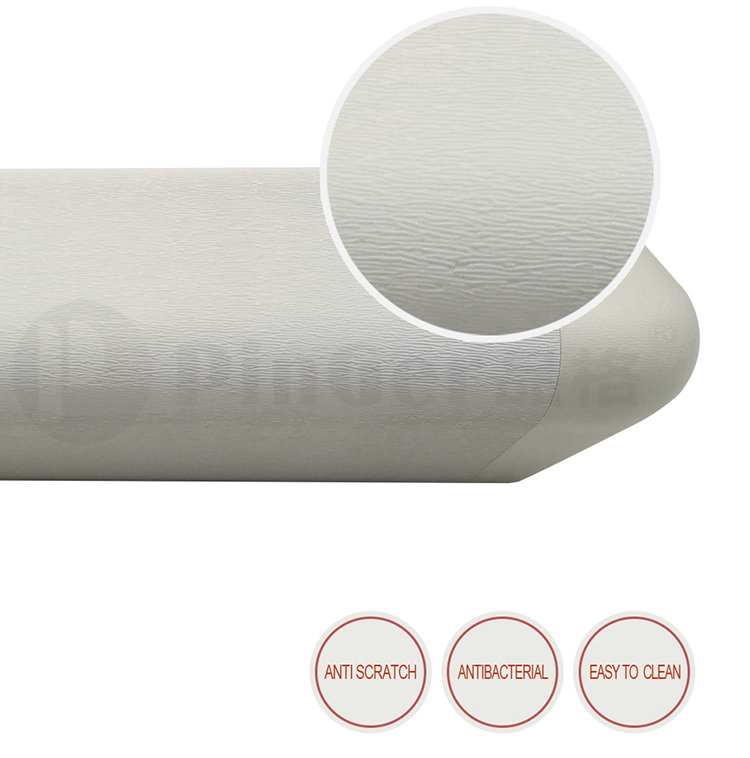

1、ANTIBACTERIAL & HIGH IMPACT

2.0mm vinyl surface cover plate has fine particles and compact density. It has ant-collision,fireproof,anti-scratch and abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.

The surface layer has anti slip fine lines and anti-fouling treatment,which is easy to clean.

Beadhouse Used Non-Slip PVC Crash Handrails

2、Solid And Durable

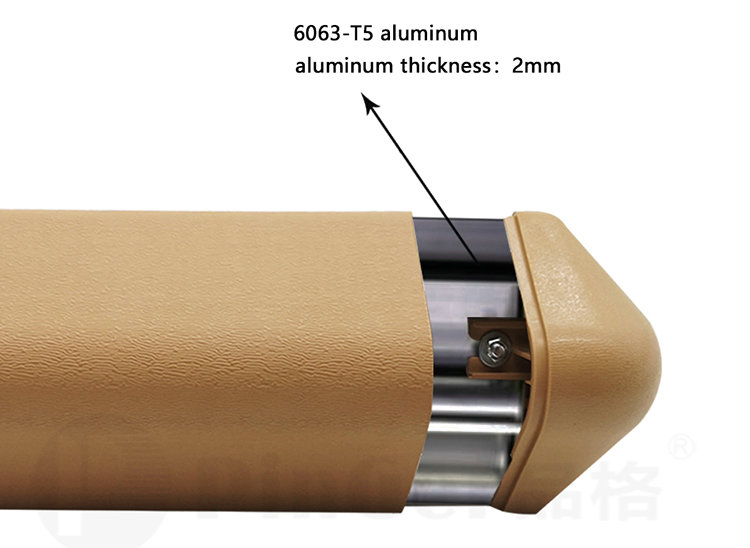

The 6063-T5 aluminum is oxidized to ensure no rust and it can be used for a long time.

Beadhouse Used Non-Slip PVC Crash Handrails

3、Comfortable and convenient

The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.

Beadhouse Used Non-Slip PVC Crash Handrails

Beadhouse Used Non-Slip PVC Crash Handrails

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.

Beadhouse Used Non-Slip PVC Crash Handrails

Feature Specification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation


Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

Beadhouse Used Non-Slip PVC Crash Handrails

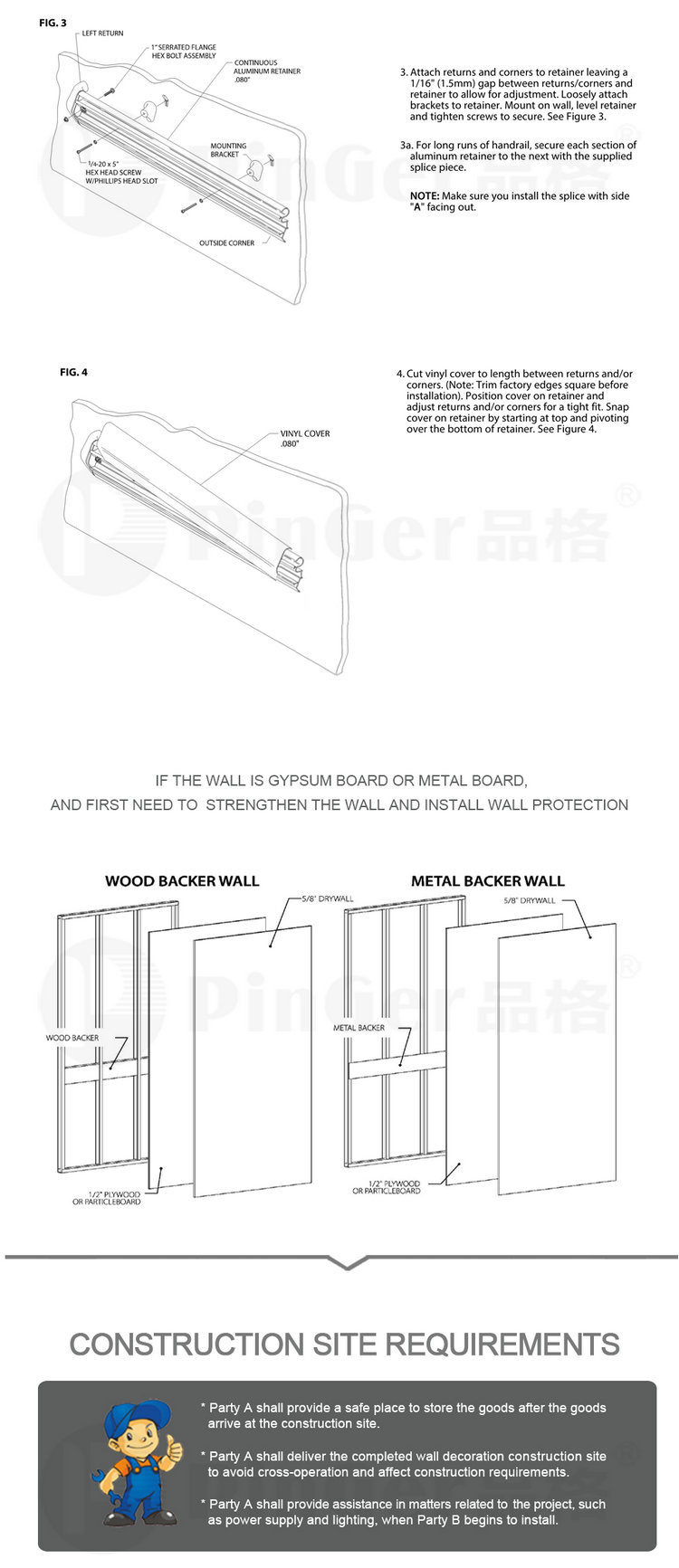

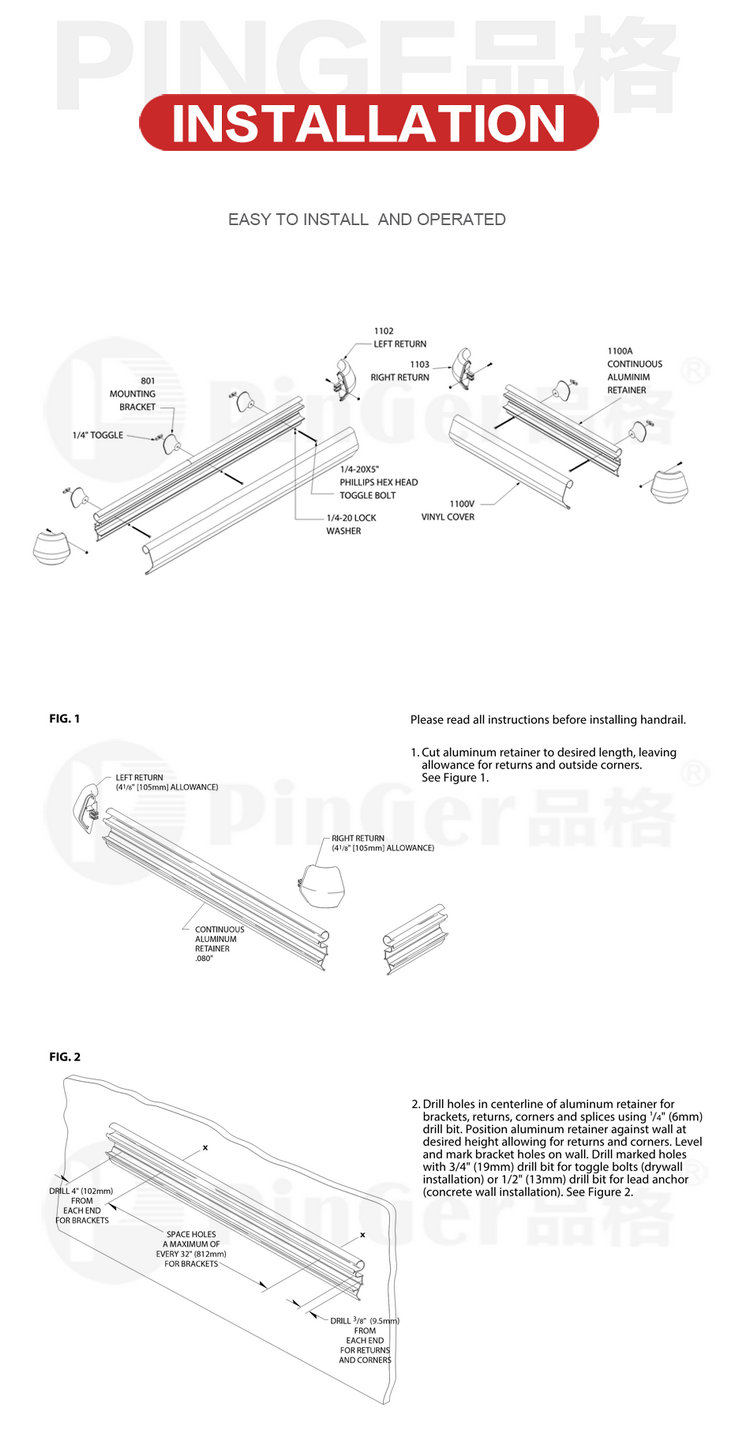

Installation Instruction

●Bolts&Screws

●Cut aluminum retainer and rubber strips to desured length

●Drill the doles

●Measure and transfer the handrail mounting hole locations from the bracket,elbow.

●Cut the vinyl cover to the lengths between returns and elbows.

Beadhouse Used Non-Slip PVC Crash Handrails

Beadhouse Used Non-Slip PVC Crash Handrails

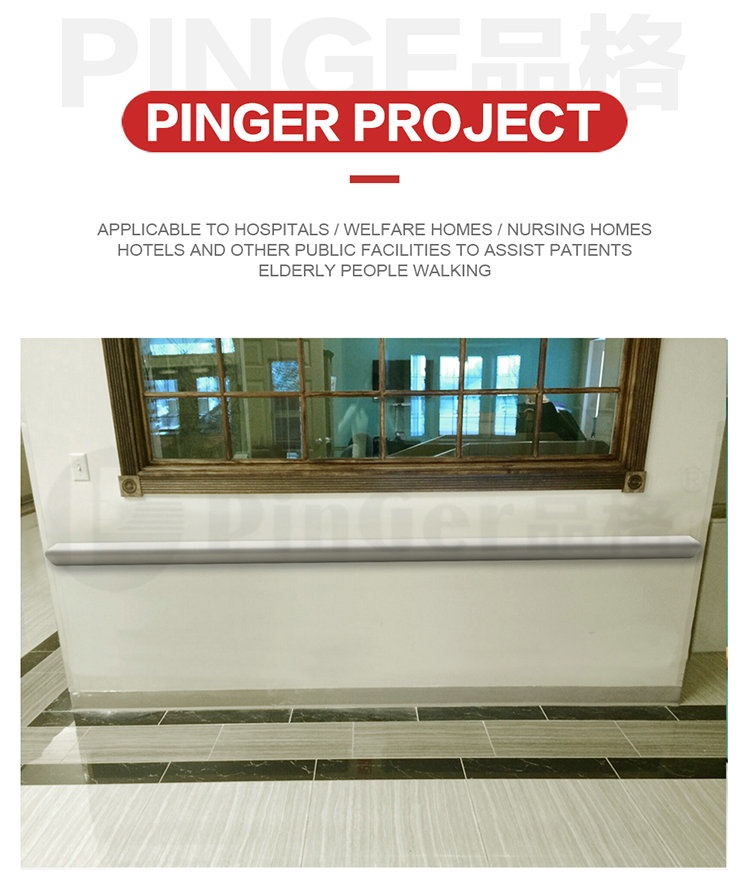

Pinger Project History

●Pinger now owns dozens of national inventions and new practical patents. It has passed third-party certifications from ISO9001 quality system certification, ISO14001 environmental monitoring system certification, EU CE certification, and Europe and the United States SGS international testing certification.

● Pinger wall panel and wall protection system products are in the leading position among similar products. We not only have a stable market share in China, but also sell products in more than 100 countries and regions in the world, and occupy a certain market share in the international market.

TECHNICAL DATA

 Certificate

 Certificate standard

 Result

 Antibacterial

 ASTME2180

 >99.9% inhibis growth

 Mould Proof

 ASTM G21-15

 0 Class non growth

 Fire and smoke Rating

 ASTM E84-17 Class A

 Class A

 Horizontal Burning

 UL94HB

 PASS

 Crashproo

 ASTM D256-10el

 PASS

 Chemical and Corrosion resistance

 ASTM D543-14/ASTM D2240-15/ASTM D638-14

 G00D

 TVOC

 CA CDPH 01350-voc

 G00D

 Color Diference

 SAEJ1545-2005

 G00D

 Color staining

 EN423:2001

 G00D

 Phthalate Test

 SGS

 PASS

 Fomaldehyde

 CA CDPH 01350-voc GB/T 18580-2017

 PASS

 Heavy metal Test[Lead& Cadmium

 CA65

 PASS

Application
Hospital hotel airport,High-end ofice building High-end Vila,kKindergarten,School,Sport Hal,Factory,.Plane,High-speed Train,Loose pulley.public place and so on.


Beadhouse Used Non-Slip PVC Crash Handrails

CARE INSTRUCTIONS

Cleaning And Maintenance Requirements

Visitor folw rate

cleaning and maintenance

Stain processing

Privte room

one time in one year

Require time

Public place or corrider

two or three times in one year

Require time

Main channel or main entry door

one time lin one month

Require time

Remark:

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean clothRemark:

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind:

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

Beadhouse Used Non-Slip PVC Crash Handrails




Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
Related products
Discount PVC Anti-collision Crash handrails
HR133

Model No.:HR133
Materials: vinyl & aluminum
Single color
133mm width
5m length
Angle of bend: 135°
Diameter of grip: 38mm
38mm distance with wall


China LHR1599 manufacturer
LHR1599

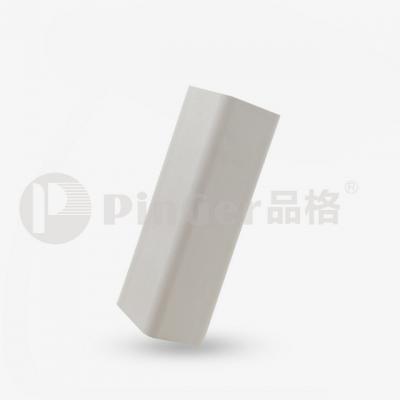

high impact wall guard
WG1021W
Model No.:WG1021W
Materials:vinyl cover+aluminum in single wood color
Standard Length:5m
Standard Width:102mm
Thickness of vinyl cover:2mm
Thickness of aluminum:2mm
60mm height color strip handrail for sale
HR1403
Model No.:HR1403
Materials:vinyl & aluminum with 60mm color strip
Standard Length:5m
Standard Width:140mm
diameter of grip:38mm
distance with wall:38mm

wall mounted Crash handrails
LHR1593W
Model No.:LHR1593W
Materials:vinyl & aluminum with wood color grip
Standard Length:5m
Standard Width:159mm
diameter of grip:38mm
distance with wall:38mm
shower hand rails
GB006
Nylon wall support garb bar
Diameter of nylon is 35mm. Length is 600mm and we can make any length as your requirements.
Garb bar installs on the wall directly
GB006 is used beside the commode to assist user standing or sitting.
Porta Stainless Steel Elbow Solid Wood Handrail
HRWS40

Model No.:HRWS-40
Solid wood grip
304 stainless steel for elbow and bracket
Diameter: 40mm
Length: 4m
Thickness of elbow: 1.2mm

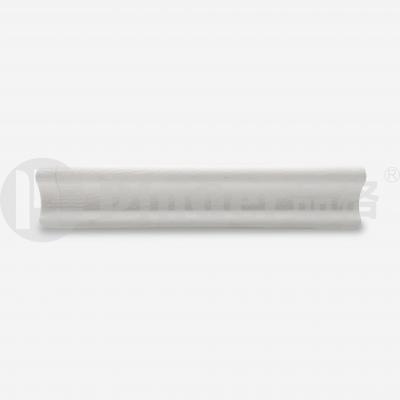

vinyl plastic skirting
