Antibacterial Vinyl Wall Panel For Business Premises Supplier,Manufacturer

Product Name: Antibacterial Vinyl Wall Panel For Business Premises

New Material Wall Coverings

Material:

PVC-Free

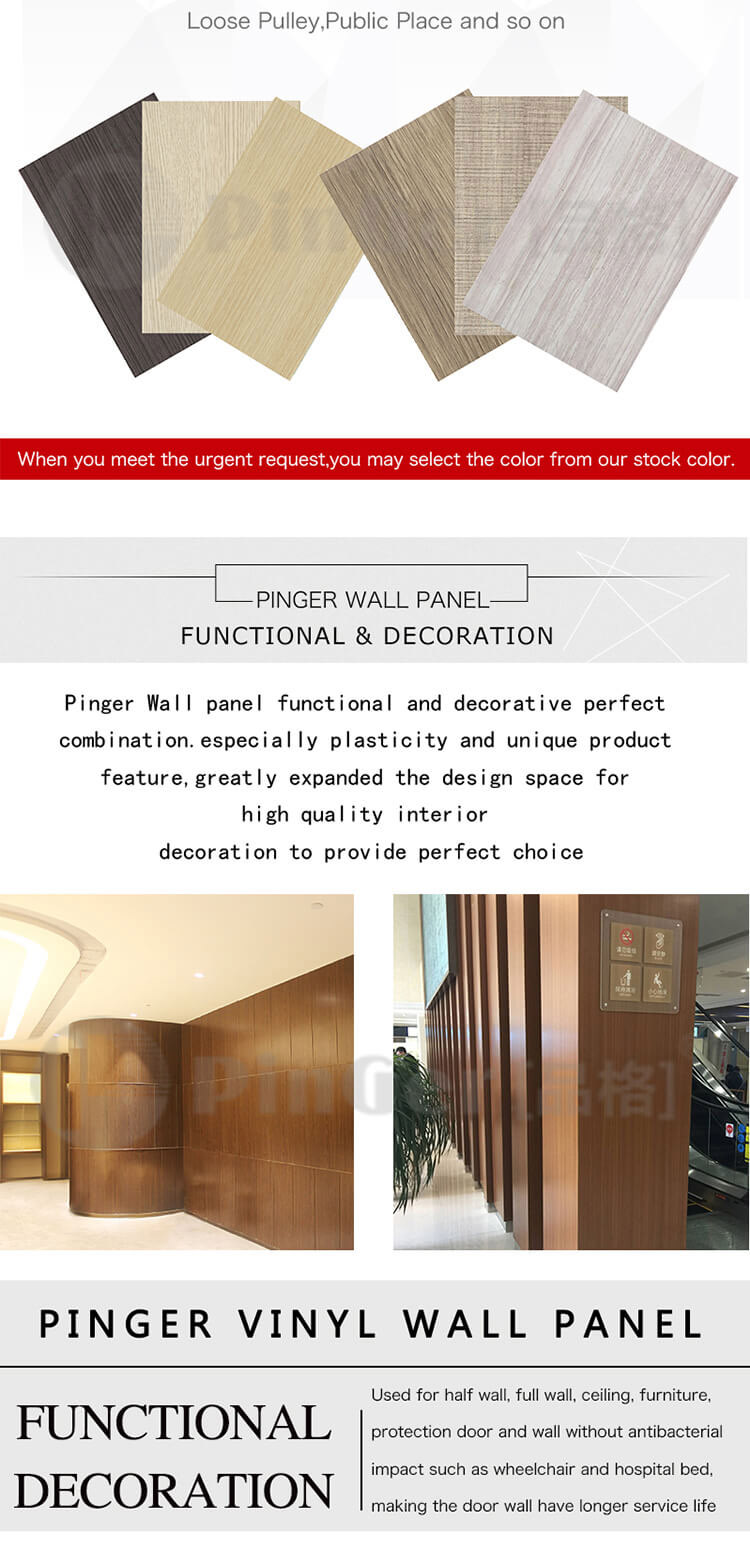

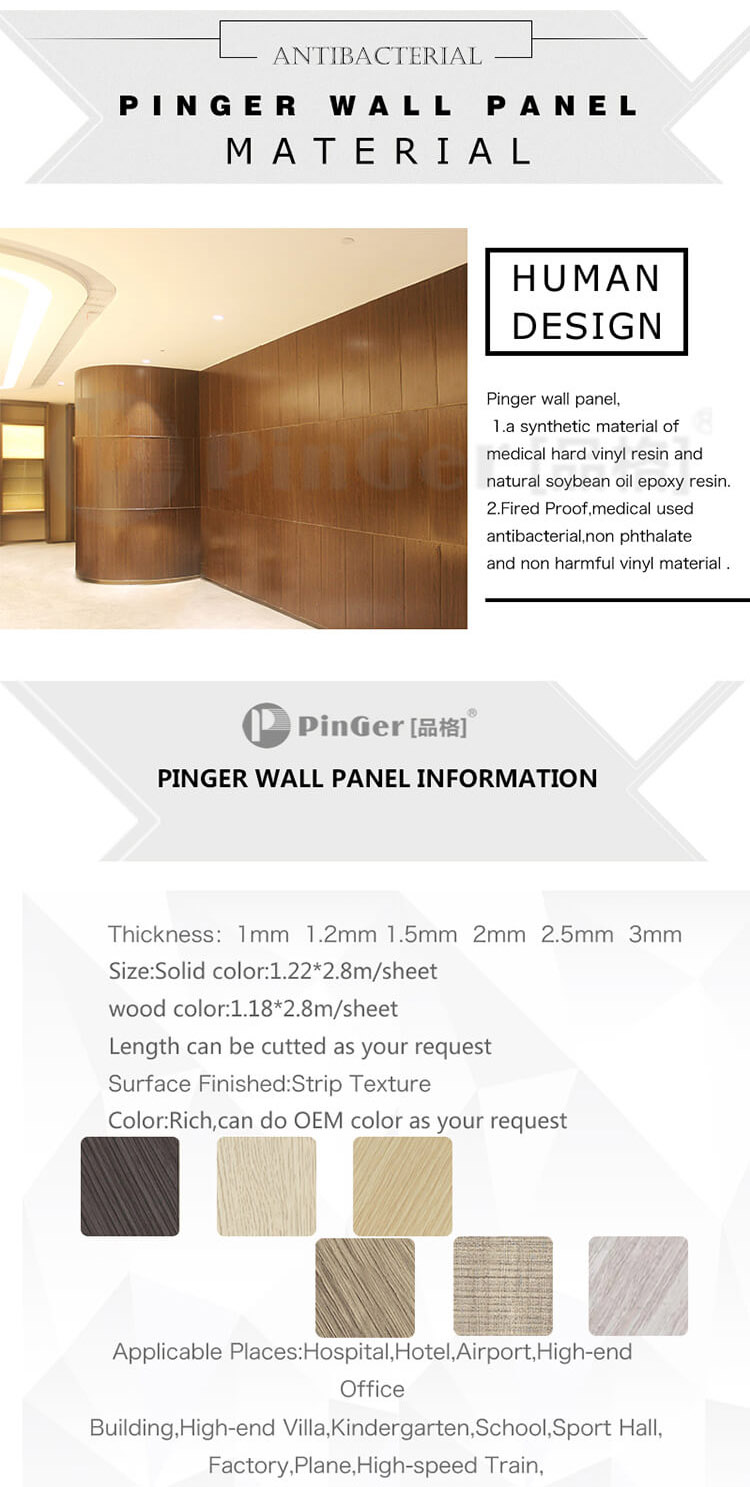

Pinger Wall Panels Information

●Thickness:1mm 1.2mm 1.5mm 2mm 2.5mm 3mm

●Size:

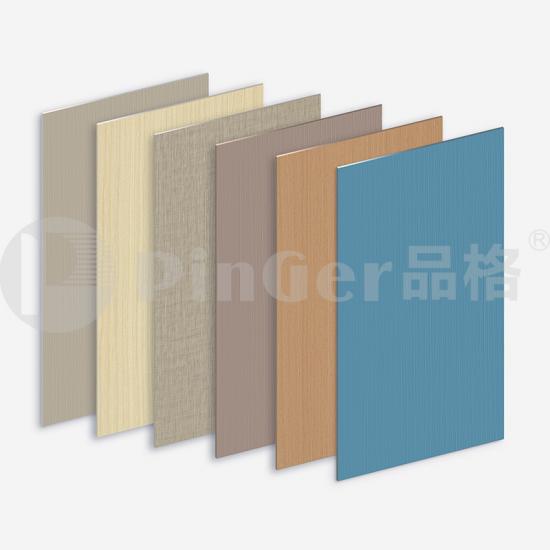

Solid color:1.22*2.8m/sheet,1.22*2.44m/sheet

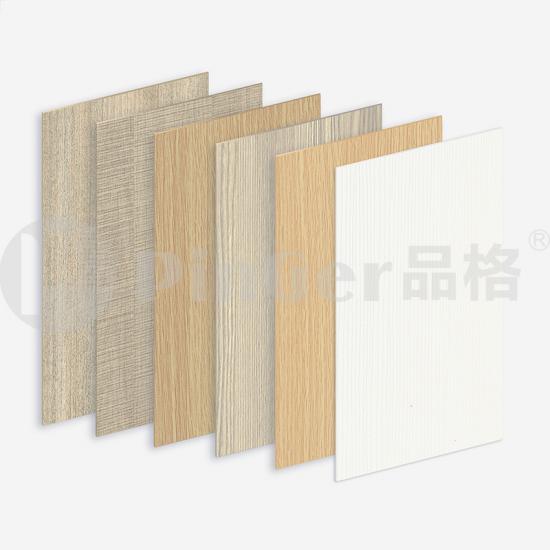

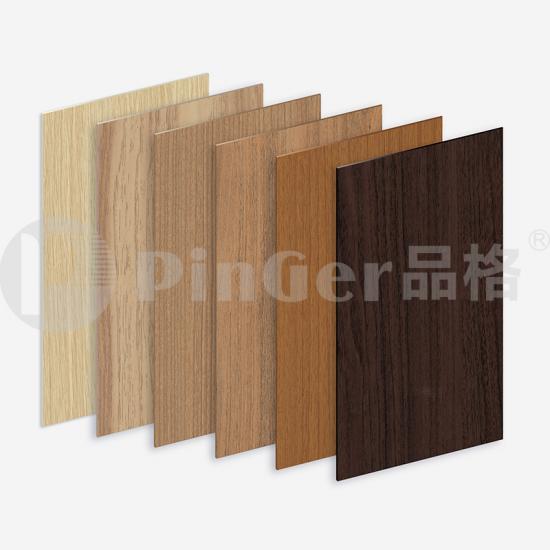

wood color:1.18*2.8m/sheet,1.18*2.44m/sheet
●Length can be cutted as your request
●Surface Finished:Strip Texture

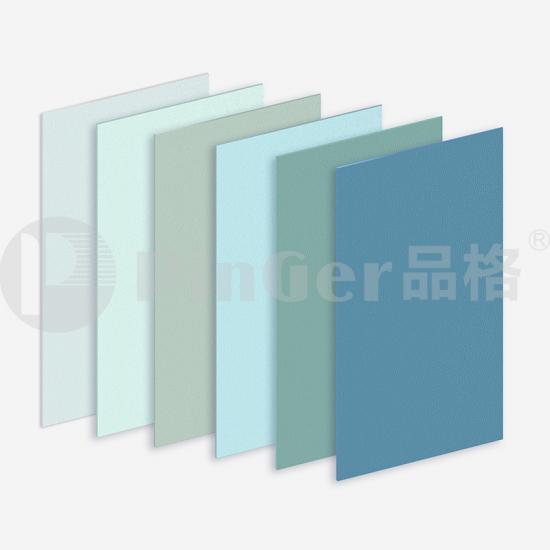

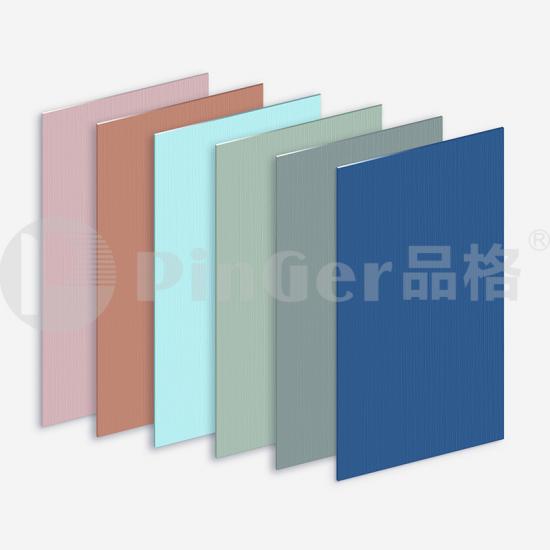

●Color is rich:Can do OEM color as your request

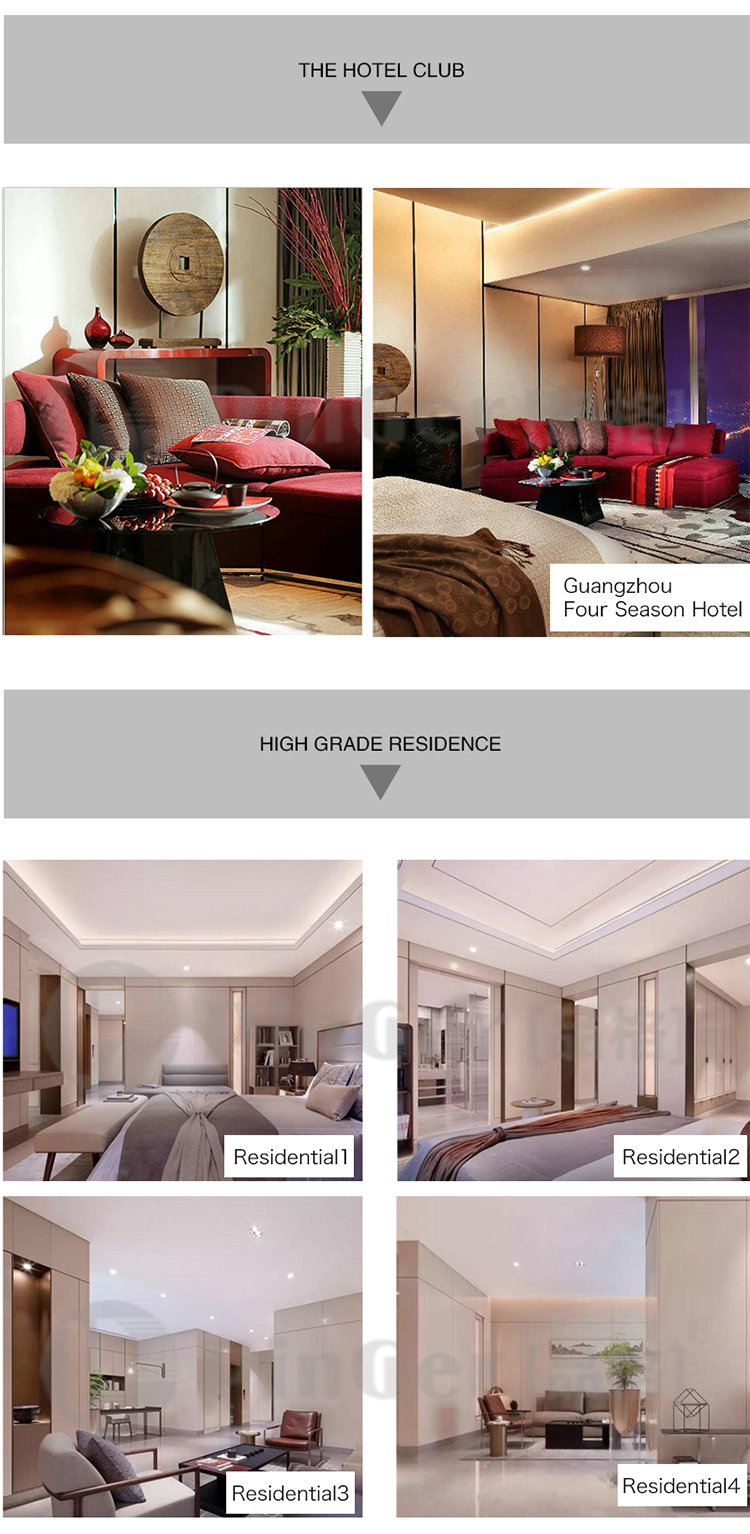

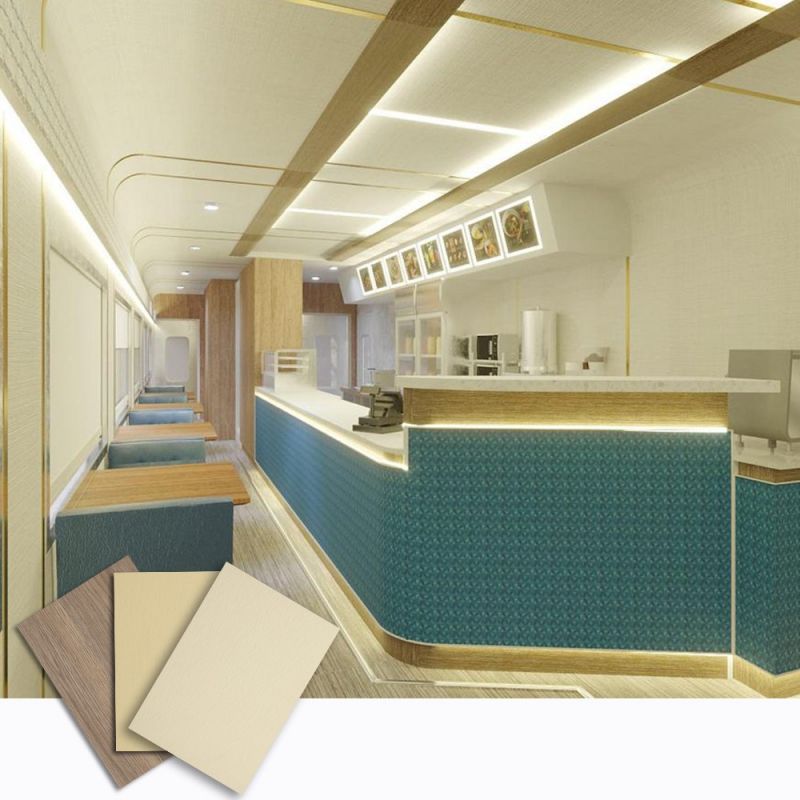

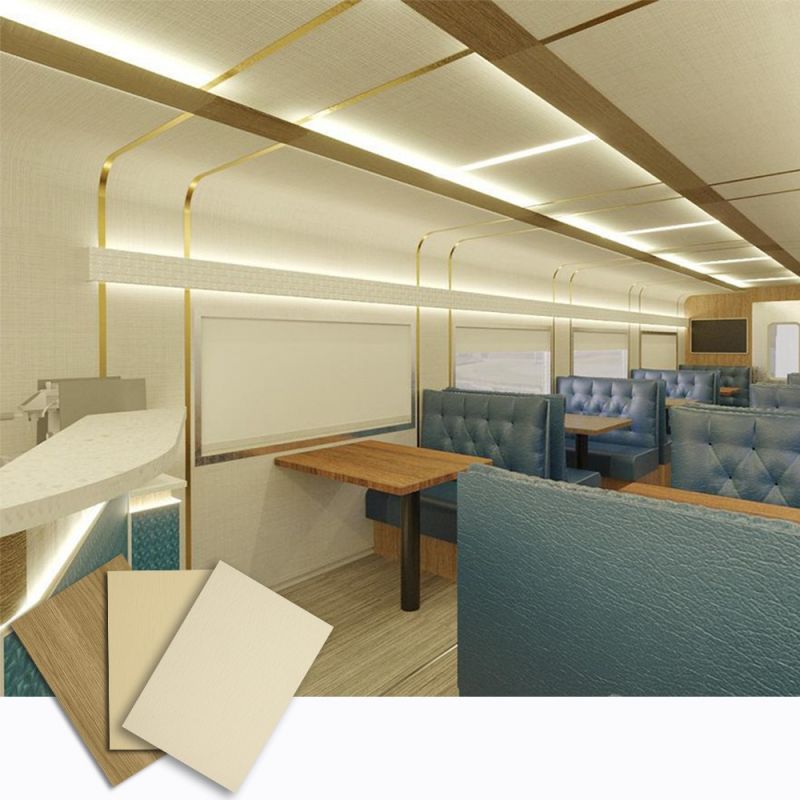

Applicable Places:Hospital,Hotel,Airport,High-end Office Building,High-end Vila,Kindergarten, School,Sport Hall,Factory,Plane,High-speed Train,Loose Pulley,Public Place and soon.

Antibacterial Vinyl Wall Panel For Business Premises

Decorative Vinyl Wall Coverings

Waterproof PVC Wall Coverings

Waterproof PVC Wall Sheets

Pinger wall panel installation

Installation is relatively simple, and installation cost is not high, even in the evening can be installed, very easy to renovate the project after installation, no human damage, life up to 15-25 years

PinGer® Antibacterial Vinyl Wall Panel

Technical Specifications & Downloads

Download Pinger official technical documentation and specifications catalog below.

Pinger Wall Panel Sheet Technical Specifications Download PDF

Technical Data & Specifications

Comprehensive certified performance metrics, international fire ratings, and environmental standards for high-performance clinical wall protection.

Pinger Vinyl Wall Panel for wall protection and decoration

Vinyl Wall panel,

, Fired proof, medical used antibacterial non phthalate and non harmfulvinyl material, Green and environmental protection, crash proof, wareproof, surface cleanly finished, mould proof,insert prevention, ageing resistant and 100% recycling.

HYGIENE

PinGer Wall Panel Antibacterial and Mould Proof Technical Data

Bacterial & Fungal Resistant

ANTIBACTERIAL PERFORMANCE

JIS Z 2801:2010 (>99.9% inhibits growth of E. coli & S. aureus)

FUNGAL& MOULD PROOF RESISTANCE

ASTM G21-15 (>99.9% inhibits, Class 0 zero-growth rating against Aspergillus, Penicillium, & Trichoderma)

SAFETY

PinGer Fire Retardant and Flame Spread Rating Technical Data

Fire Performance

FIRE & SMOKE RATING
ASTM E84-17 (Class A Flame Spread & Smoke Index) / Euro EN13501-1 (Class B Fire Rating)

HORIZONTAL BURNING
ASTM D635-22 (GOOD performance, stable under open fire)

SMOKE TOXICITY
Meets strict safety requirements, non-toxic, low smoke growth

DURABILITY PinGer Chemical Resistance and Stain Proof Technical Data

Chemical & Stain

COLOR STAINING
EN 423:2001 (Level 0 does not affect, easy to wipe and clean)

CHEMICAL RESISTANCE
ASTM D543-14 / D2240-15 / D638-14 (Resists acids, alkalis, salts, alcohols)

CRASH PROOF
ASTM D256-10el & GB/T 14153-1993 (GOOD impact protection)

SUSTAINABILITY PinGer LEED, FSC and LCA Environmental Certifications

Green & LEED Certifications

TVOC & FORMALDEHYDECA CDPH01350-voc & GB/T 18580-2017 (PASS, Low VOC, formaldehyde-free)

HEAVY METAL SAFETY
CA65 & SGS Pass (Lead, cadmium, benzene & phthalate free)

GREEN SUSTAINALE LCA, LEED, FSC
LEED Compliant, FSC Certified & LCA Life Cycle Assessed

Core Performance Highlights

Designed for medical places, high-end commercial space, public space, Super five-star hotel, high-end residential,private villas, high-end clubs, schools, Bymnasium, pharmaceutical purification workshop,electronic chip dust-free workshop,laboratory, aircraft and ship high-speed rail interior decoration.

ANTI-BACTERIAL AND MILDEW

PinGer wall protection panels provide enhanced surface protection against bacterial, mould and fungal growth. By combining hygienic performance with durable wall protection, they help healthcare facilities maintain cleaner, safer and easier-to-maintain interior environments.

FIRE SAFETY & RETARDANT

PinGer wall protection panels are engineered to deliver reliable fire performance for demanding healthcare environments. By helping reduce the contribution of wall protection materials to fire development, they support safer hospital interiors and complement comprehensive fire safety strategies.

ANTI-COLLISION & WEAR RESISTANCE

Effectively protect the wall, extend the service life of the wall. The antibacterial vinyl wall covering has a strong anti-collision property, which can protect the wall well in the wheelchair and the collision process.

RICH IN COLORVARIOUS STYLES

LEED & LCA & Low VOC Green Sustainable

PinGer wall protection products are certified with LCA, LEED green building compliance,FSC forest stewardship accreditation and 100% recyclability. They have also passedstrict LEED-aligned VoC emission testing, ensuring ultra-lowemissions and healthy indoor air quality.

Standard Surface Textures & Finishes

Explore our complete range of professional surface finishes designed for medical wall protection systems. (Click any image to zoom)From hospitals to care homes and nurseries.

Surface Textures Overview

11 Standard Finishes

Lightly (A)

Weave (B)

Suede (C)

Coarse (D)

Matte (G)

Starburst (H)

Flax (M)

Basket (O)

Leather (P)

Wood (S)

Striped (T)

5 Series Color Card Systems

Browse our complete palette divided into 5 specialized series.

Download Pinger official color card catalog below.

Pinger Color Card Catalog System (5 Series)Download PDF

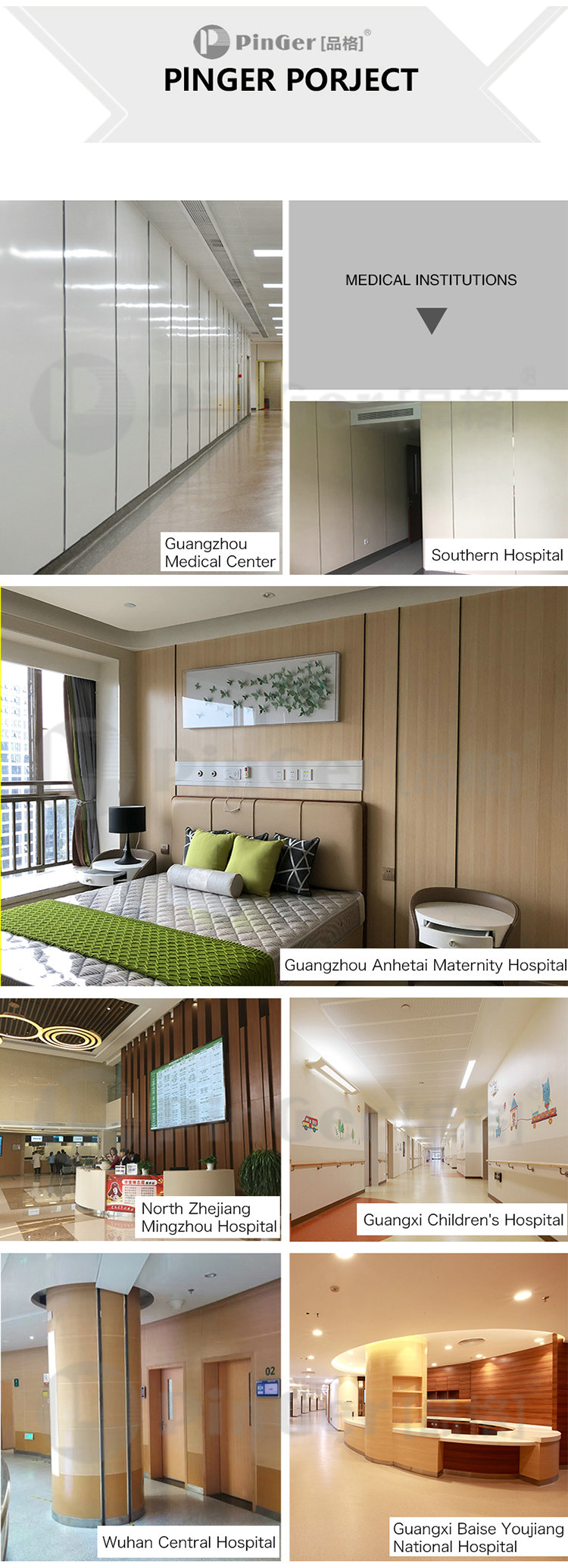

From hospitals to care homes and nurseries. From rooms to corridors,PinGer offers unrivalled hygiene and impact resistance, exceptionalease of maintenance and outstanding design

Pinger wall panel solutions for hospital nurse stations and corridors under the "Vitality Hue" concept.

It highlights core advantages: color motivation (soft tones for comfort), protection adaptation (2mm - thick, impact/scratch - resistant panels), and detail safety (99.9% antibacterial, seamless welding).

Design suggestions include series like Legend, Lotus, Wood, MO, and Artist,

with various color options for weave - effect panels.

01 SAGA

43 Standard Options

1024D

1866D

1035D

1027D

1602D

1609D

1702D

1704D

1880D

1886D

1039D

3011B

3012B

3412B

3413B

1051P

1053P

1054P

+28 More

02 Nelumbo Nucifera

43 Standard Options

9139A

7443A

9677A

9274A

9378A

9353A

9621A

9240A

9273A

126G

169G

190G

180G

168G

164G

162G

112G

129G

+28 More

03 WOOD

43 Standard Options

1032S

1016S

1002C

1003C

1021C

1050C

1014S

1020C

5016S

5017C

5013S

8071S

8079S

5017C

8086C

8103C

8080C

8084S

+28 More

04 MO

43 Standard Options

1048G

1049M

1052M

1053M

1051M

1707M

1712M

1862M

3012M

9021G

8176MO

8205M

8188M

8198MO

8192MO

8187M

8179M

8314M

+28 More

05 ARTIST

43 Standard Options

8212H

8214H

8215HO

8211HO

8217H

8218HO

8219H

8244H

8239H

8240O

8238H

8241O

8242O

8243O

8245O

8246O

8231H

8233H

+28 More

CAD Drawings

Download professional CAD files for Pinger wall protection systems to incorporate into your architectural drawings.

Pinger Wall Panel CAD Drawing Download PDF

Wall Solution

Comprehensive Wall Solution installation guidelines, substrate standards, and structural treatment for Pinger rigid vinyl wall panels.

A. Wall Surface & Substrate Requirements

Approved Substrates (Correct): Level and smooth surfaces including smooth gypsum board, factory-finished MDF walls, and solid brick walls.

Unsuitable Substrates (Requires Rectification):
• Brick Walls: Rough masonry texture prevents direct adhesion.
• Peeling Paint / Lime Surfaces: Loose lime paint falls off, destroying adhesive bonding.
• Uneven Surfaces: Covered with lime slurry or bumps, causing air pockets.
• Damp / Moldy Walls: High humidity destroys adhesive. (Dehumidify with electric fans and seal moisture before proceeding).

[ Click to zoom: Approved vs. Unsuitable Wall Substrates ]

B. Mandatory Substrate Rectification Wall Treatment

For Unsuitable Wall Surfaces: (such as brick walls, uneven walls, peeling paint walls, or damp/moldy walls), a substrate layer must be installed onto the structural wall before applying Pinger panels.

Approved Backing Substrate Materials:

Fire-rated board
MDF (Medium Density Fiberboard)
Plywood Panels

Workflow: Fix the backing board securely to the wall framework — Ensure the surface is dust-free and dry — Proceed with standard Pinger panel installation.

[ Click to zoom: Backing Substrate Installation Diagram ]

C. Splicing of boards

Adhered using professional high-strength adhesives with proper joint processing:

Use connecting strips to connect and finish;
Leave a gap and fill it with grout and sealant;
Close fitting. (thin rigid vinyl panels support backer installation with edge-beveling).

[ Click to zoom: Panel Splicing & Joint Details ]

D. Treatment of wall corners

Ensure impact resistance and aesthetic continuity across room angles:

Directly grind the edges of the wallboard;
Perform hot bending;
Use inside and corners (Internal 1/2" [13mm] angles & heavy-duty external profiles).

[ Click to zoom: In-corner & Out-corner Profiles ]

E. Finishing

System integration and maintenance guidelines for optimal longevity:

Use outside corners or connecting strips directly;
Match with wall protection products such as chair guards, skirting boards;
Use products such as silicone sealant and grout to fill.

[ Click to zoom: System Coordination & Finishing ]

Pinger Wall Panel Installation & Cleaning

Professional guidelines for maintaining medical-grade wall protection systems.

Installation Demonstration

Pinger [品格®] Cleaning and Maintenance

Recommended Cleaning Frequencies for Different Traffic Levels

Traffic Volume	Routine Cleaning and Maintenance	Stain Removal
Low: Private offices, changing rooms	Once a month	As needed
Moderate: Internal corridors of public offices, conference rooms	Two to three times a month	As needed
High: Main entrances, corridors, studios	Once a week	As needed

Instructions

For routine cleaning and maintenance, simply use a clean cloth to remove dust.
In case of minor stains such as footprints, tea stains, or coffee stains, wipe with a clean cloth and warm water.
If stains are not dealt with in a timely manner and have been left for too long, use a clean cloth with a neutral cleaner to wipe.
After wiping with warm water or a cleaner, use a dry clean cloth to dry the water marks.

Cleaning Tool Selection

Cloths: Use clean and uncontaminated cloths, preferably microfiber cloths.
Cleaners: Neutral cleaners or alcohol can be used.

Special Notes

Oil-based (paint-like) stains are difficult to remove. For decorative wall surfaces, spraying can be done. If oil-based (paint-like) spray needs to be removed, the block panel can be replaced. (For removal of oil-based pen marks, pure alcohol or a mixture of alcohol and water can be used for scrubbing and wiping.)

Sustainable & Eco-Friendly Details

Designed with environmental responsibility and medical-grade safety at the core for modern healthcare facilities.

1. Green & 100% Recyclable Materials

Manufactured with eco-friendly formulations, our rigid wall sheets are 100% recyclable. They are completely free from formaldehyde, benzene, heavy metals, and phthalates/DEHP, ensuring zero toxic emissions and a safe healing environment.

2. Low VOC Emissions & Indoor Air Quality

Tested under rigorous international standards (such as CA CDPH 01350 and ISO 16000), our panels exhibit non-detectable TVOC and formaldehyde levels, making them ideal for sensitive areas like ICUs and wards.

3. Durability That Reduces Lifecycle Waste

Acting as a heavy-duty armor against medical cart impacts and daily wear, these sheets prevent frequent wall damage. Long-lasting durability means fewer replacements and minimized construction waste over the building's lifecycle.

Frequently Asked Questions (FAQ)

Find answers to common technical and installation queries regarding our clinical wall protection.

Q1: Why are rigid vinyl sheets recommended specifically for clinical nursing stations?

Clinical nursing stations are high-traffic hubs. Pinger rigid sheets provide superior impact and scratch resistance, protecting drywall while offering a seamless, non-porous surface that prevents bacterial growth and supports infection control.

Q2: Are these wall protection panels compliant with international fire safety standards?

Yes. Pinger wall protection sheets feature a Class A Fire Rating (tested under ASTM E84 / GB8624-2012 standards), ensuring excellent flame retardancy and minimal smoke development in compliance with global medical codes.

Q3: How do these panels perform in terms of infection control and chemical cleaning?

They are engineered for medical-grade hygiene. The surface is tested against aggressive chemical disinfectants and hospital cleaning agents (rated Grade A under EN423), allowing staff to sanitize walls frequently without degrading the material.

Q4: Can these wall panels be installed over existing walls during a hospital renovation?

Yes, they are designed for fast retrofitting. They can be cleanly installed directly over existing substrates (drywall, concrete, or tiles) using recommended adhesives and matching trims, minimizing dust and downtime in active hospital zones.

Q5: What are the standard sizes and thickness options available for projects?

Solid colors: 1.22m × 2.44m / 2.8m. Wood grain: 1.18m × 2.44m / 2.8m. Thickness options range from 0.8mm to 3.0mm depending on impact requirements. Custom lengths are also available upon request.
