wall solutions hangging wall panels system Supplier,Manufacturer

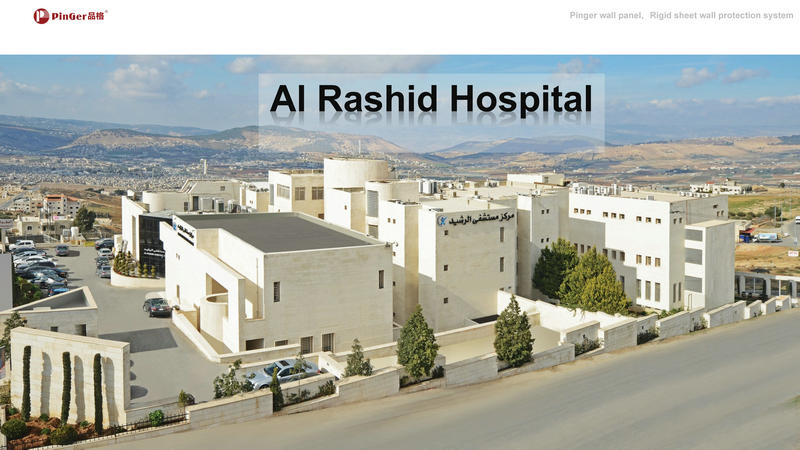

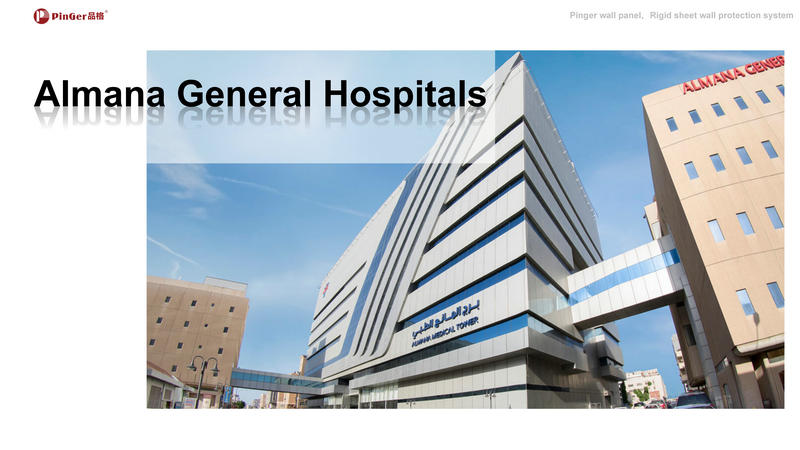

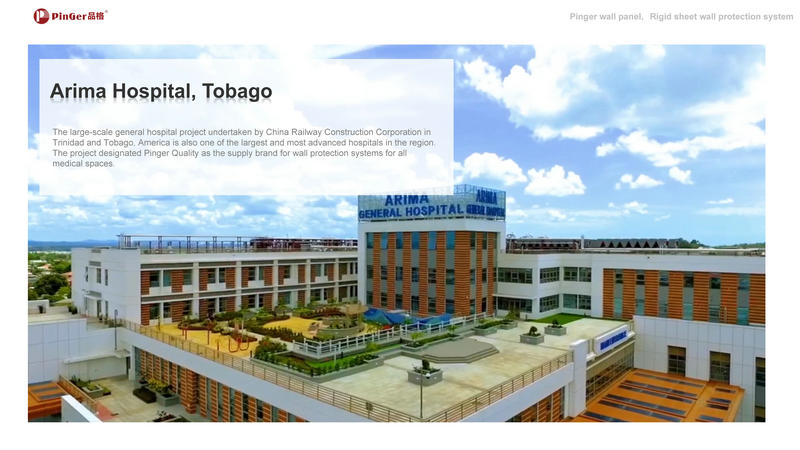

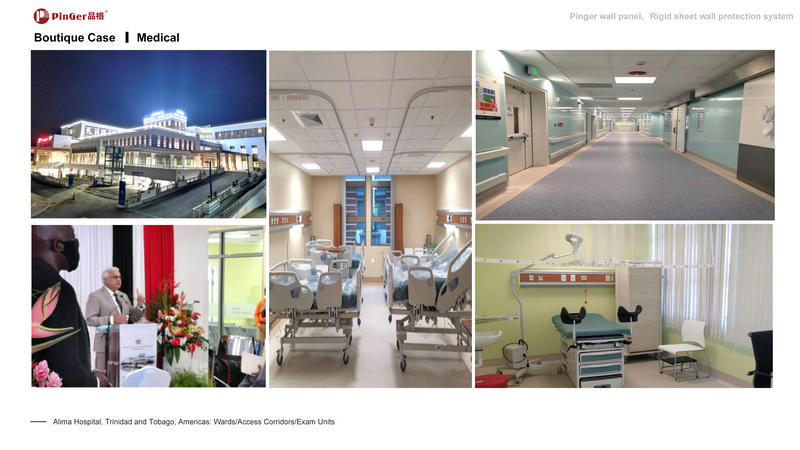

8mm Vinyl Wall Panel System Solutions Case Appreciation——Energy Group

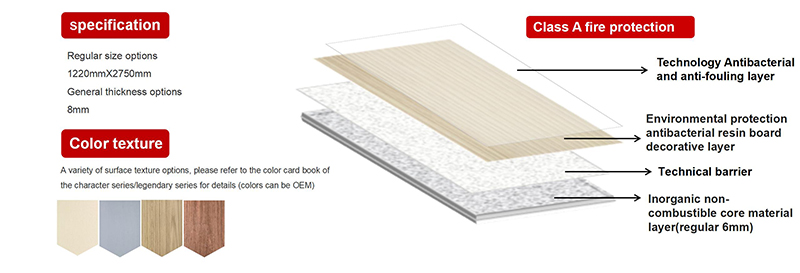

Fireproof vinyl wall panel specifications

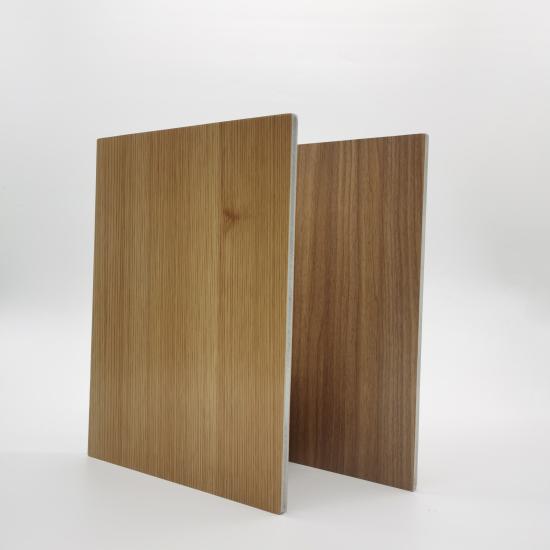

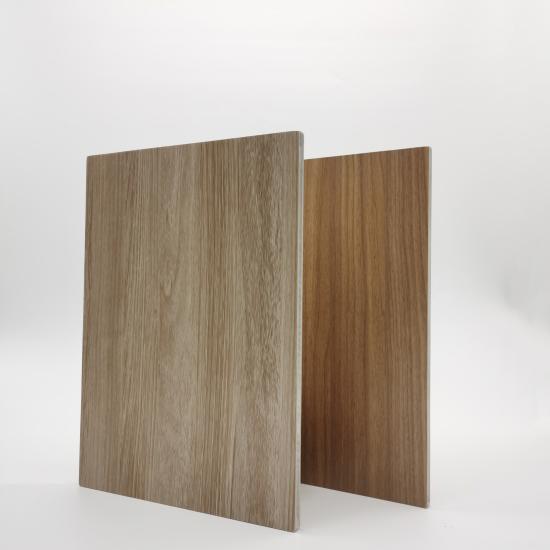

Fireproof vinyl wall panel

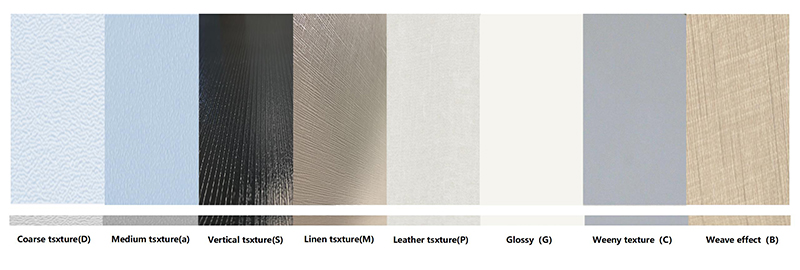

8mm Vinyl Wall Panel System Solutions ,Have 8 types Product texture

8mm Vinyl Wall Panel System Solutions

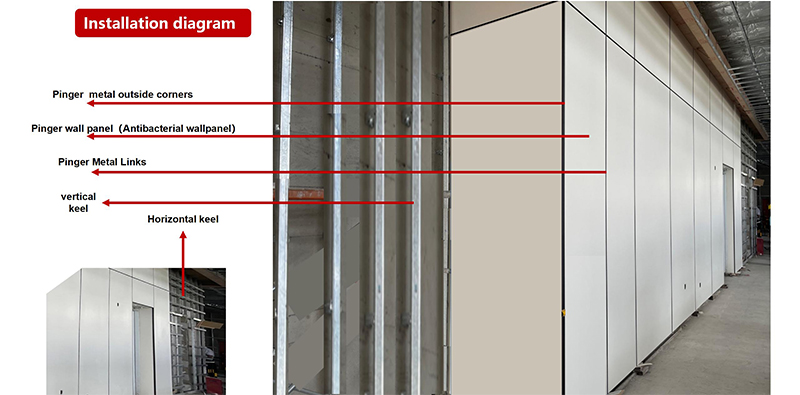

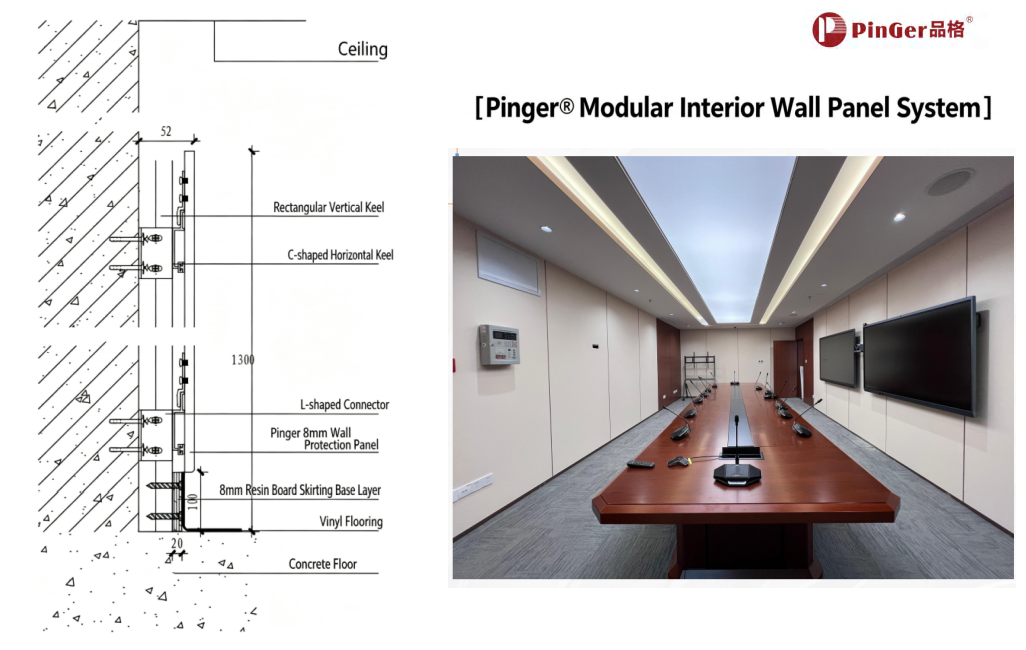

lnstallation of Hygienic PVC Wall Cladding diagram

Hygienic PVC Wall Cladding diagram

8mm vinyl wall protector sheet Product features

★Safety and flame retardant: in line with national indoor A-level fire protection standards.

★Environmental protection and health: no toxic and harmful gas volatilization, no formaldehyde.
★Durable: not easy to fade, anti-collision and wear-resistant.

★Good stain resistance: it is stain-resistant and stain-resistant, easy to clean.

★Chemical resistance: resistance to chemical reagents such as hydrochloric acid.

★Easy construction: dry construction using double-sided tape and viscose.

★Green and environmentally friendly ingredients are safe, do not contain radioactive elements and toxic and harmful gases, and do not contain formaldehyde.

★Effectively resist the corrosion of most acids, alkalis, salts, alcohols, iodine, vegetable oils, liquors, etc., bacteria are not easy to multiply, and the pollution resistance is superior.

★UV resistant, impact resistant, high strength and long service life.
★With high density, low resistance, dirt, dust is not easy to adhere, no fouling, simple maintenance, easier to clean.
★Anti-aging, the material can be used for up to 15 years without damage.

★Safe and Reusable

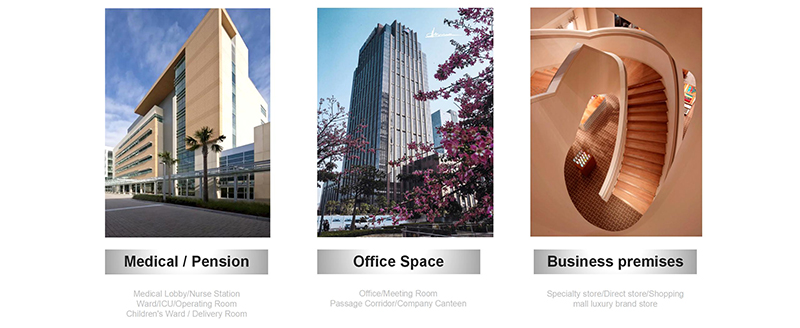

Pinger antimicrobial pvc wall cladding ,Can be used in various fields

antimicrobial pvc wall cladding

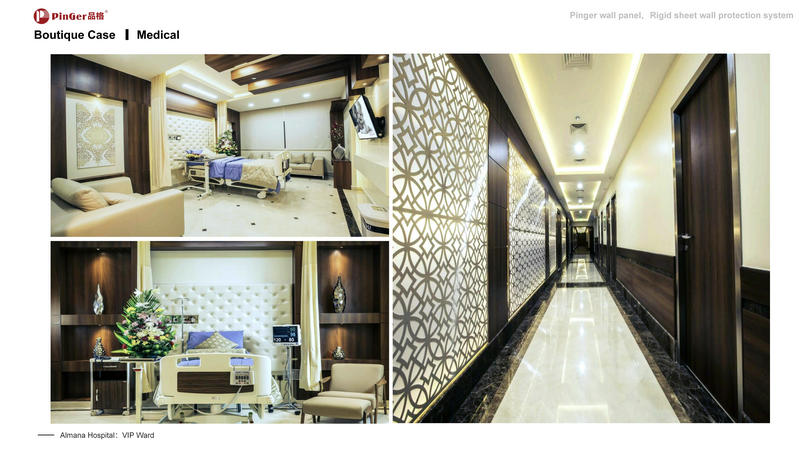

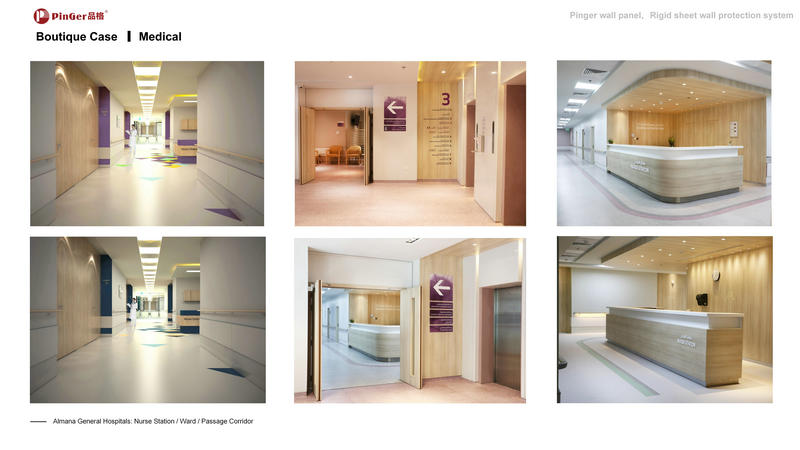

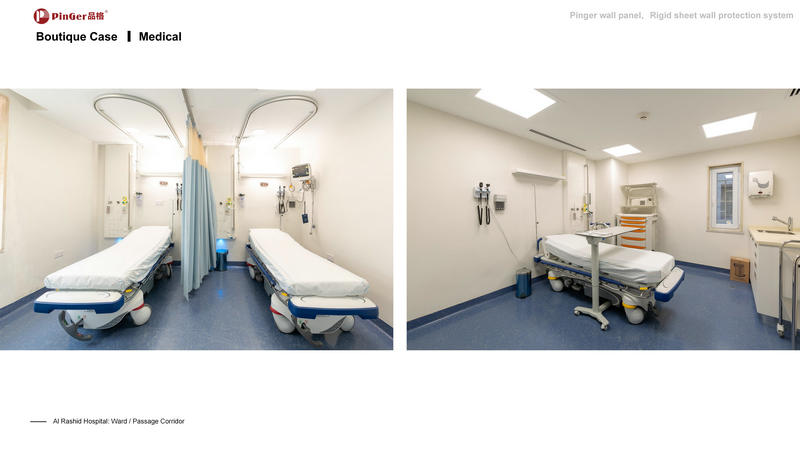

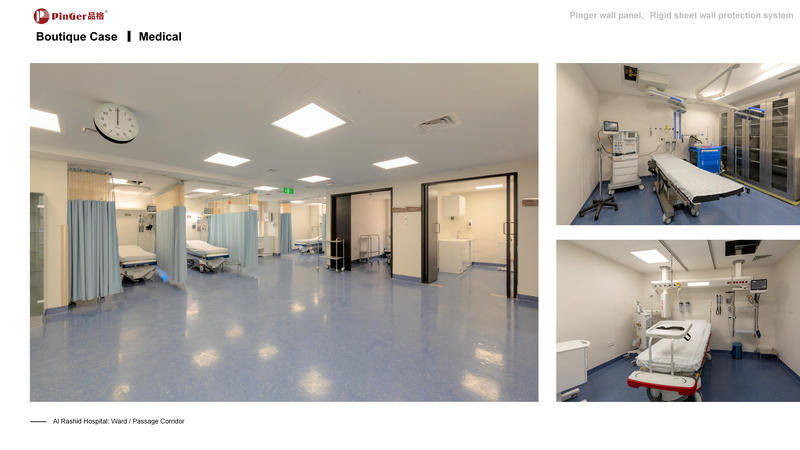

Pinger antimicrobial pvc wall cladding Case

antimicrobial pvc wall cladding

Hygienic PVC Wall Cladding

PinGer® Vinyl Hanging Wall Panel

Technical Specifications & Downloads

Download Pinger official technical documentation and specifications catalog below.

Pinger Vinyl Hanging Wall Panel Technical Specifications Download PDF

Technical Data & Specifications

Comprehensive certified performance metrics, international fire ratings, and environmental standards for high-performance clinical wall protection.

Pinger Vinyl Wall Panel for wall protection and decoration

Vinyl Wall panel,

, Fired proof, medical used antibacterial non phthalate and non harmfulvinyl material, Green and environmental protection, crash proof, wareproof, surface cleanly finished, mould proof,insert prevention, ageing resistant and 100% recycling.

HYGIENE

PinGer Wall Panel Antibacterial and Mould Proof Technical Data

Bacterial & Fungal Resistant

ANTIBACTERIAL PERFORMANCE

JIS Z 2801:2010 (>99.9% inhibits growth of E. coli & S. aureus)

FUNGAL& MOULD PROOF RESISTANCE

ASTM G21-15 (>99.9% inhibits, Class 0 zero-growth rating against Aspergillus, Penicillium, & Trichoderma)

SAFETY

PinGer Fire Retardant and Flame Spread Rating Technical Data

Fire Performance

FIRE & SMOKE RATING
ASTM E84-17 (Class A Flame Spread & Smoke Index) / Euro EN13501-1 (Class B Fire Rating)

HORIZONTAL BURNING
ASTM D635-22 (GOOD performance, stable under open fire)

SMOKE TOXICITY
Meets strict safety requirements, non-toxic, low smoke growth

DURABILITY PinGer Chemical Resistance and Stain Proof Technical Data

Chemical & Stain

COLOR STAINING
EN 423:2001 (Level 0 does not affect, easy to wipe and clean)

CHEMICAL RESISTANCE
ASTM D543-14 / D2240-15 / D638-14 (Resists acids, alkalis, salts, alcohols)

CRASH PROOF
ASTM D256-10el & GB/T 14153-1993 (GOOD impact protection)

SUSTAINABILITY PinGer LEED, FSC and LCA Environmental Certifications

Green & LEED Certifications

TVOC & FORMALDEHYDECA CDPH01350-voc & GB/T 18580-2017 (PASS, Low VOC, formaldehyde-free)

HEAVY METAL SAFETY
CA65 & SGS Pass (Lead, cadmium, benzene & phthalate free)

GREEN SUSTAINALE LCA, LEED, FSC
LEED Compliant, FSC Certified & LCA Life Cycle Assessed

Core Performance Highlights

Designed for medical places, high-end commercial space, public space, Super five-star hotel, high-end residential,private villas, high-end clubs, schools, Bymnasium, pharmaceutical purification workshop,electronic chip dust-free workshop,laboratory, aircraft and ship high-speed rail interior decoration.

ANTI-BACTERIAL AND MILDEW

PinGer wall protection panels provide enhanced surface protection against bacterial, mould and fungal growth. By combining hygienic performance with durable wall protection, they help healthcare facilities maintain cleaner, safer and easier-to-maintain interior environments.

FIRE SAFETY & RETARDANT

PinGer wall protection panels are engineered to deliver reliable fire performance for demanding healthcare environments. By helping reduce the contribution of wall protection materials to fire development, they support safer hospital interiors and complement comprehensive fire safety strategies.

ANTI-COLLISION & WEAR RESISTANCE

Effectively protect the wall, extend the service life of the wall. The antibacterial vinyl wall covering has a strong anti-collision property, which can protect the wall well in the wheelchair and the collision process.

RICH IN COLORVARIOUS STYLES

LEED & LCA & Low VOC Green Sustainable

PinGer wall protection products are certified with LCA, LEED green building compliance,FSC forest stewardship accreditation and 100% recyclability. They have also passedstrict LEED-aligned VoC emission testing, ensuring ultra-lowemissions and healthy indoor air quality.

Standard Surface Textures & Finishes

Explore our complete range of professional surface finishes designed for medical wall protection systems. (Click any image to zoom)From hospitals to care homes and nurseries.

Surface Textures Overview

11 Standard Finishes

Lightly (A)

Weave (B)

Suede (C)

Coarse (D)

Matte (G)

Starburst (H)

Flax (M)

Basket (O)

Leather (P)

Wood (S)

Striped (T)

5 Series Color Card Systems

Browse our complete palette divided into 5 specialized series.

Download Pinger official color card catalog below.

Pinger Color Card Catalog System (5 Series)Download PDF

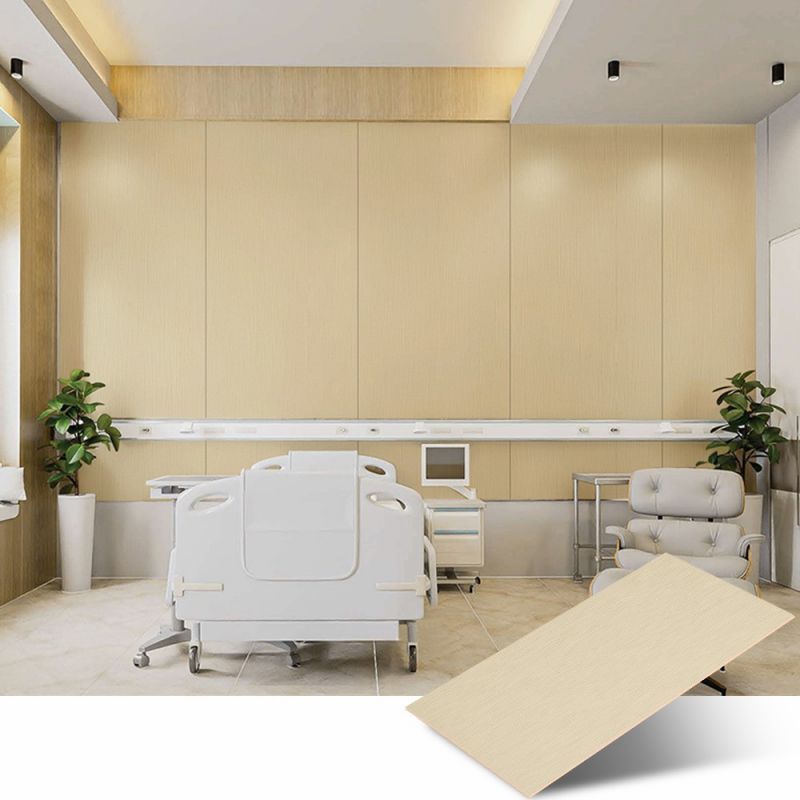

From hospitals to care homes and nurseries. From rooms to corridors,PinGer offers unrivalled hygiene and impact resistance, exceptionalease of maintenance and outstanding design

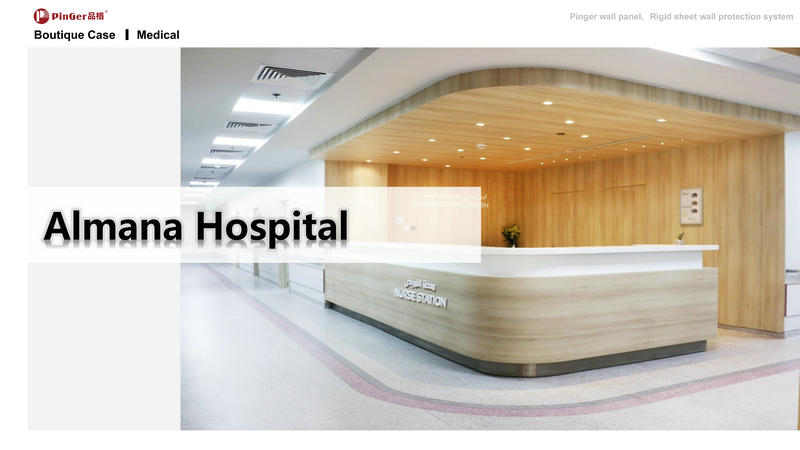

Pinger wall panel solutions for hospital nurse stations and corridors under the "Vitality Hue" concept.

It highlights core advantages: color motivation (soft tones for comfort), protection adaptation (2mm - thick, impact/scratch - resistant panels), and detail safety (99.9% antibacterial, seamless welding).

Design suggestions include series like Legend, Lotus, Wood, MO, and Artist,

with various color options for weave - effect panels.

01 SAGA

43 Standard Options

1024D

1866D

1035D

1027D

1602D

1609D

1702D

1704D

1880D

1886D

1039D

3011B

3012B

3412B

3413B

1051P

1053P

1054P

+28 More

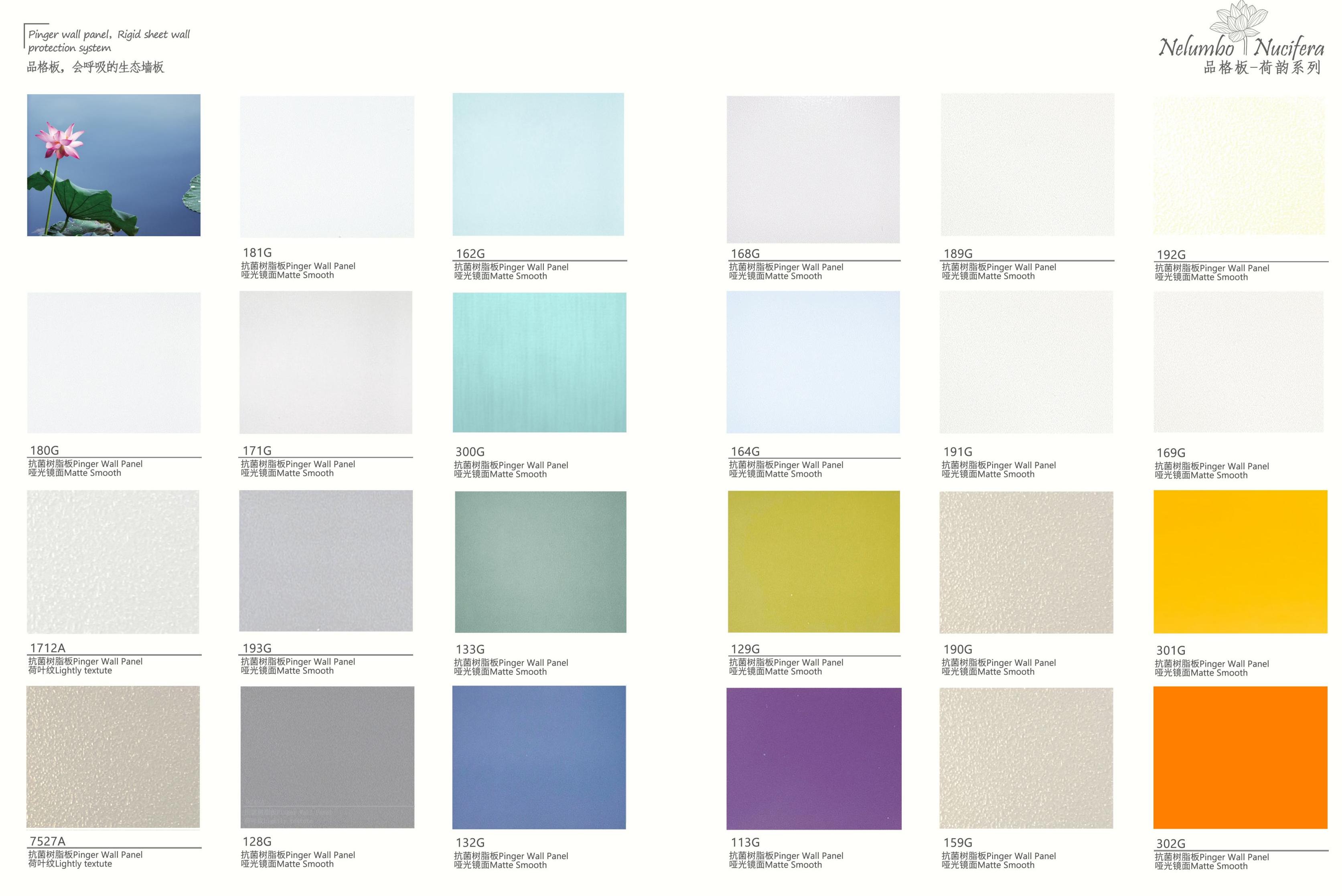

02 Nelumbo Nucifera

43 Standard Options

9139A

7443A

9677A

9274A

9378A

9353A

9621A

9240A

9273A

126G

169G

190G

180G

168G

164G

162G

112G

129G

+28 More

03 WOOD

43 Standard Options

1032S

1016S

1002C

1003C

1021C

1050C

1014S

1020C

5016S

5017C

5013S

8071S

8079S

5017C

8086C

8103C

8080C

8084S

+28 More

04 MO

43 Standard Options

1048G

1049M

1052M

1053M

1051M

1707M

1712M

1862M

3012M

9021G

8176MO

8205M

8188M

8198MO

8192MO

8187M

8179M

8314M

+28 More

05 ARTIST

43 Standard Options

8212H

8214H

8215HO

8211HO

8217H

8218HO

8219H

8244H

8239H

8240O

8238H

8241O

8242O

8243O

8245O

8246O

8231H

8233H

+28 More

CAD Drawings

Download professional CAD files for Pinger vinyl hanging wall panel systems to incorporate into your architectural drawings.

Pinger Vinyl Hanging Wall Panel CAD Drawing Download PDF

Wall Solution

Comprehensive Wall Solution installation guidelines, substrate standards, and structural treatment for Pinger rigid vinyl wall panels.

A. Wall Surface & Substrate Requirements

Approved Substrates (Correct): Level and smooth surfaces including smooth gypsum board, factory-finished MDF walls, and solid brick walls.

Unsuitable Substrates (Requires Rectification):
• Brick Walls: Rough masonry texture prevents direct adhesion.
• Peeling Paint / Lime Surfaces: Loose lime paint falls off, destroying adhesive bonding.
• Uneven Surfaces: Covered with lime slurry or bumps, causing air pockets.
• Damp / Moldy Walls: High humidity destroys adhesive. (Dehumidify with electric fans and seal moisture before proceeding).

[ Click to zoom: Approved vs. Unsuitable Wall Substrates ]

B. Mandatory Substrate Rectification Wall Treatment

For Unsuitable Wall Surfaces: (such as brick walls, uneven walls, peeling paint walls, or damp/moldy walls), a substrate layer must be installed onto the structural wall before applying Pinger panels.

Approved Backing Substrate Materials:

Fire-rated board
MDF (Medium Density Fiberboard)
Plywood Panels

Workflow: Fix the backing board securely to the wall framework — Ensure the surface is dust-free and dry — Proceed with standard Pinger panel installation.

[ Click to zoom: Backing Substrate Installation Diagram ]

C. Splicing of boards

Adhered using professional high-strength adhesives with proper joint processing:

Use connecting strips to connect and finish;
Leave a gap and fill it with grout and sealant;
Close fitting. (thin rigid vinyl panels support backer installation with edge-beveling).

[ Click to zoom: Panel Splicing & Joint Details ]

D. Treatment of wall corners

Ensure impact resistance and aesthetic continuity across room angles:

Directly grind the edges of the wallboard;
Perform hot bending;
Use inside and corners (Internal 1/2" [13mm] angles & heavy-duty external profiles).

[ Click to zoom: In-corner & Out-corner Profiles ]

E. Finishing

System integration and maintenance guidelines for optimal longevity:

Use outside corners or connecting strips directly;
Match with wall protection products such as chair guards, skirting boards;
Use products such as silicone sealant and grout to fill.

[ Click to zoom: System Coordination & Finishing ]

Pinger Wall Panel Installation & Cleaning

Professional guidelines for maintaining medical-grade wall protection systems.

Installation Demonstration

Pinger [品格®] Cleaning and Maintenance

Recommended Cleaning Frequencies for Different Traffic Levels

Traffic Volume	Routine Cleaning and Maintenance	Stain Removal
Low: Private offices, changing rooms	Once a month	As needed
Moderate: Internal corridors of public offices, conference rooms	Two to three times a month	As needed
High: Main entrances, corridors, studios	Once a week	As needed

Instructions

For routine cleaning and maintenance, simply use a clean cloth to remove dust.
In case of minor stains such as footprints, tea stains, or coffee stains, wipe with a clean cloth and warm water.
If stains are not dealt with in a timely manner and have been left for too long, use a clean cloth with a neutral cleaner to wipe.
After wiping with warm water or a cleaner, use a dry clean cloth to dry the water marks.

Cleaning Tool Selection

Cloths: Use clean and uncontaminated cloths, preferably microfiber cloths.
Cleaners: Neutral cleaners or alcohol can be used.

Special Notes

Oil-based (paint-like) stains are difficult to remove. For decorative wall surfaces, spraying can be done. If oil-based (paint-like) spray needs to be removed, the block panel can be replaced. (For removal of oil-based pen marks, pure alcohol or a mixture of alcohol and water can be used for scrubbing and wiping.)

Sustainable & Eco-Friendly Details

Engineered for heavy-duty protection with sustainable manufacturing and environmental safety standards.

1. Heavy-Duty Durability & Resource Conservation

Thanks to its extra thickness, this high-impact panel provides ultimate armor against severe impacts from hospital beds, heavy carts, and equipment. Extended lifespan significantly reduces frequent renovations and building material waste.

2. Non-Toxic & 100% Recyclable Composition

Manufactured using green eco-formulations that are 100% recyclable. Completely free from formaldehyde, heavy metals, and DEHP, safeguarding indoor air quality and patient health in healthcare environments.

3. Low VOC & Green Building Compliance

Rigorously tested for low chemical emissions, meeting strict international interior standards. It supports green building certifications (LEED and equivalent global standards) for modern sustainable architecture.

Frequently Asked Questions (FAQ)

Technical specifications and application guidance for thick wall protection panels.

Q1: What are the main advantages of choosing thick wall protection panels over standard thin sheets?

Thick panels (ranging from 6.0mm to 10mm+) provide superior structural rigidity and maximum impact resistance. They absorb heavy shocks from medical stretchers, food trolleys, and heavy equipment, preventing deep wall dents in extreme high-traffic corridors.

Q2: Where are these heavy-duty thick wall panels typically installed?

They are ideal for high-impact commercial and healthcare zones, including hospital emergency corridors, loading bays, service elevators, ICU transition zones, nursing stations, and institutional hallways prone to heavy cart traffic.

Q3: How do these thick panels handle corner and joint treatments during installation?

Due to their increased thickness, they are typically paired with heavy-duty aluminum or matching vinyl trim accessories, specialized corner guards, and professional-grade high-strength adhesives to ensure a seamless, watertight, and impact-secure finish.

Q4: Are these panels fire-rated for healthcare building regulations?

Yes, Pinger heavy-duty thick panels feature a Class A Fire Rating (tested under ASTM E84 and GB8624 standards), providing exceptional flame retardancy and compliance with stringent public building fire codes.

Q5: What are the available thickness options and dimensions?

Standard thickness options for heavy-duty applications include 6.0mm, 8mm, and 10mm. Standard sheet sizes are 1.22m × 2.44m (or 2.8m), with custom sizing and pre-cut options available for specific project requirements.
