Nursing Home Corridor Vinyl Covers Crash Handrails
Model No.：LHR1599
Materials：vinyl & aluminum（Light grey color）
Standard Length：5m
Standard Width：159mm
diameter of grip：38mm
distance with wall：38mm
Item NO.:
LHR1599Product Name : Nursing Home Corridor Vinyl Covers Crash Handrails
Specification
●Handrail vinyl cover combination with the maximum protection of vinyl -covered aluminum crash rail assembly.
| TECHNOLOGY DATA | |
| Brand | PinGer |
| Product No | Handrails LHR1599 |
| Material | Vinyl cover |
| Size | 2mm thickness vinyl cover,1.8mm thickness aluminum,ABS materials for elbows and brackets.rubber strip |
| Accessories | Bolts screws |
| Scope of application | Hospital，nursing home，restaurant， hotel，school，kindergarten and other public places. |
| Color | There are dozens of colors to choose. |

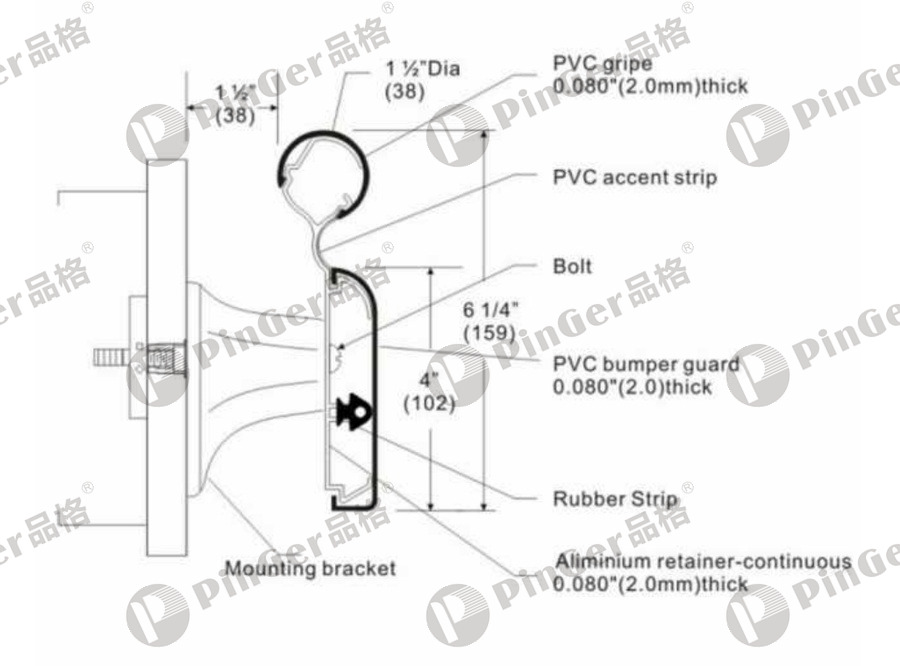

Structural Drawings
●Antibacterial vinyl cover+6063T aluminum +rubber strips with screws.
●Our patented all vinyl contoured handrail combined with high abuse gurad rail.
PRODUCT CHARACTERISTICS
1、Antibacterial Materials
2.0mm vinyl surface cover plate has fine particles and compact density. It has ant-collision，fireproof，anti-scratch and abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.
The surface layer has anti slip fine lines and anti-fouling treatment,which is easy to clean.
2、Solid And Durable
The 6063-T5 aluminum is oxidized to ensure no rust and it can be used for a long time.
3、Comfortable And Convenient
The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.
WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS
●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung Semiconductor Precision Workshop.
●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.
Feature Specification
● Anti-bacterial and strongly anti-mildew
● Fire retardant
● Chemical resistance and strong corrosion resistance
●Free Formaldenhyde and green envionment
● No benzene,no heavy metal,can be recycled and used
●Anti-collosion and wear-resistant with super weather resistance
● The surface of wall panel is easy to clean
● Rich color
● Stable size
● Easy to install,no noise during installation
Technical Data Sheet
●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .
●Class A fire and smoke rating. (per ASTM E84-17)
●Class B fire and smoke rating (per GB8624-2012)
●Horizontal Burning (per UL94HB)
●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .
●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .
●TVOC (per CA CDPH 01350-voc )
●Color Difference (per SAEJ1545-2005)
●Color Stainning (per EN423:2001)
●Phthalate Test (per SGS)
●Formaldehyde (per CA CDPH 01350-voc And GB/T 18580-2017)
●Heavy Metal Test (per CA65)
Installation Instruction
●Bolts&Screws
●Cut aluminum retainer and rubber strip to desured length
●Drill the doles
●Measure and transfer the handrail mounting hole locations from the bracket,elbow.
●Cut the vinyl cover to the lengths between returns and elbows.
|
TECHNICAL DATA |
||
|
Certificate |
Certificate standard |
Result |
|
Antibacterial |
ASTME2180 |
>99.9% inhibis growth |
|
Mould Proof |
ASTM G21-15 |
0 Class non growth |
|
Fire and smoke Rating |
ASTM E84-17 Class A |
Class A |
|
Horizontal Burning |
UL94HB |
PASS |
|
Crashproo |
ASTM D256-10el |
PASS |
|
Chemical and Corrosion resistance |
ASTM D543-14/ASTM D2240-15/ASTM D638-14 |
G00D |
|
TVOC |
CA CDPH 01350-voc |
G00D |
|
Color Diference |
SAEJ1545-2005 |
G00D |
|
Color staining |
EN423：2001 |
G00D |
|
Phthalate Test |
SGS |
PASS |
|
Fomaldehyde |
CA CDPH 01350-voc GB/T 18580-2017 |
PASS |
|
Heavy metal Test[Lead& Cadmium |
CA65 |
PASS |
| Application | ||
| Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on. | ||
、
Download Pinger official technical documentation and specifications catalog below for Handrail Model LHR1599.
Pinger Nursing Home Corridor Vinyl Covers Crash Handrails LHR1599 is engineered with vinyl & aluminum（Light grey color） Standard Length：5m Standard Width：159mm diameter of grip：38mm distance with wall：38mm. Specially designed for hospital corridors and high-traffic commercial spaces, LHR1599 offers exceptional heavy-duty collision protection, fire-retardant performance, and non-phthalate environmental safety.
Designed for hospital corridors, clinical nursing stations, cleanrooms, laboratories, senior care facilities, educational institutions, and high-traffic commercial spaces requiring continuous handrail protection.
TECHNOLOGY DATA
QUALITY ASSURANCE
Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.
2. Fungal and Bacterial Resistance
The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial proof:JISZ2801:2010.
3. Mould Proof
ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.
4. Horizontal burning
As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.
5. Impact Strength
Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.
6. Environmental friendly
No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO 16000-3-6-9 AND SGS:CA CDPH 01350 -VOC
7. Does not stain
Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye，Staining test:EN423:2001.
8. ISO Certified
Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.
9. Chemical and CORROSION Resistance
Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.
10. No heavy metals
Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65
11. Durable and easy to install
Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.
Explore our complete range of professional surface finishes designed for medical wall protection systems. (Click any image to zoom)From hospitals to care homes and nurseries.
Lightly (HD)Browse our complete palette divided into 5 specialized series.
Download Pinger official color card catalog below.
From hospitals to care homes and nurseries. From rooms to corridors,PinGer offers unrivalled hygiene and impact resistance, exceptionalease of maintenance and outstanding design
Pinger wall panel solutions for hospital nurse stations and corridors under the "Vitality Hue" concept.
It highlights core advantages: color motivation (soft tones for comfort), protection adaptation (2mm - thick, impact/scratch - resistant panels), and detail safety (99.9% antibacterial, seamless welding).
Design suggestions include series like Legend, Lotus, Wood, MO, and Artist,
with various color options for weave - effect panels.
01 SAGA
1024D
1866D
1035D
1027D
1602D
1609D
1702D
1704D
1880D
1886D
1039D
3011B
3012B
3412B
3413B
1051P
1053P
1054P
02 Nelumbo Nucifera
9139A
7443A
9677A
9274A
9378A
9353A
9621A
9240A
9273A
126G
169G
190G
180G
168G
164G
162G
112G
129G
03 WOOD
1032S
1016S
1002C
1003C
1021C
1050C
1014S
1020C
5016S
5017C
5013S
8071S
8079S5017C
8086C
8103C
8080C
8084S
04 MO
1048G
1049M
1052M
1053M
1051M
1707M
1712M
1862M
3012M
9021G
8176MO
8205M
8188M
8198MO
8192MO
8187M
8179M
8314M
05 ARTIST
8212H
8214H
8215HO
8211HO
8217H
8218HO
8219H
8244H
8239H
8240O
8238H
8241O
8242O
8243O
8245O
8246O
8231H
8233H
Handrail LHR159 Series

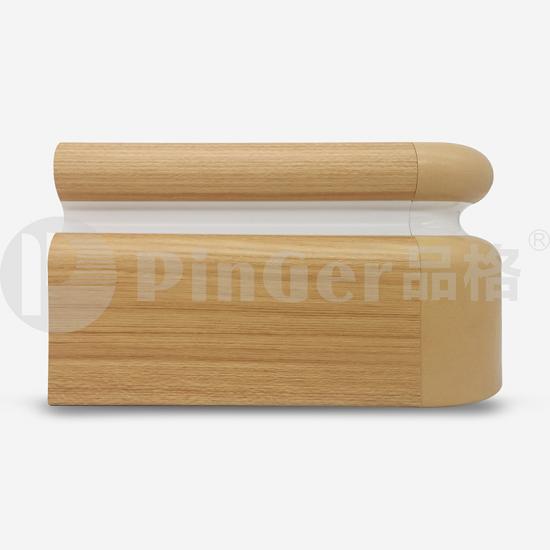

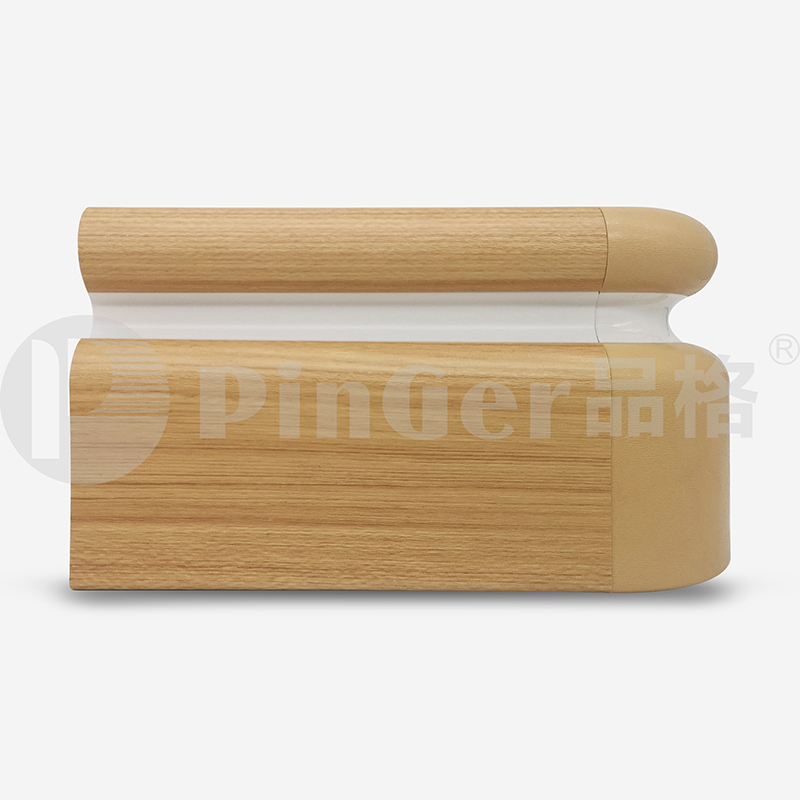

●There're many colors for the Handrails as reference, including Wood colors Which can match with PinGer Wall Guards, Corner Guards & Pinger wall panel to create a perfect space.
●Above products are with bolts & screws.
●Comparing with HR159 series,LHR159 series is with tight structure&exquisite finish.cover of HR159 series is in one ,but LHR159 series seperate it into grips,curve&bumper to make every part perfect and look luxurious with stronger resistant.
Download professional architectural CAD drawings for Pinger Handrail LHR159 to incorporate into your healthcare building designs.
|
Cleaning And Maintenance Requirements |
||
|
Visitor folw rate |
cleaning and maintenance |
Stain processing |
|
Privte room |
one time in one year |
Require time |
|
Public place or corrider |
two or three times in one year |
Require time |
|
Main channel or main entry door |
one time lin one month |
Require time |
Remark：
1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth
2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe
3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.
4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.
Cleaning tool selection:
(1)clothes: clean clothes or scouring pad
(2)cleaner: nataural cleaner
Special remind：
●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.
Designed with environmental responsibility and medical-grade safety at the core, the Pinger LHR1599 handrail helps healthcare, aged-care and commercial projects meet green building and indoor air quality requirements.
Manufactured with eco-friendly formulations, the Pinger LHR1599 handrail (vinyl & aluminum（Light grey color）) is 100% recyclable at end of life. It is completely free from formaldehyde, benzene, heavy metals and phthalates/DEHP (California Prop 65 and SGS phthalate tested), so there are no toxic emissions during installation or daily use.
Emissions are tested to CA CDPH 01350 and ISO 16000, with non-detectable TVOC and formaldehyde results. The low-emitting, non-porous surface supports LEED v4 and WELL indoor air quality documentation, making LHR1599 suitable for ICUs, operating theatres, neonatal units and occupied healthcare corridors.
Built for a long service life, LHR1599 acts as heavy-duty armour against daily equipment impact, preventing repeated wall or corner repairs, repainting and plasterboard replacement. Fewer repairs mean less construction waste and a lower total cost of ownership over the building lifecycle.
Answers to the questions architects, contractors and hospital procurement teams ask most often about the Pinger LHR1599 handrail.
LHR1599 is a wall-mounted crash handrail (also called a corridor handrail or bumper rail) that gives patients, elderly residents and visitors a continuous, easy-to-grip support along hospital and nursing-home corridors, while shielding the wall from wheelchair and stretcher impact.
Yes. Pinger LHR1599 handrail is fire retardant to ASTM E84 Class A (flame spread and smoke developed) and EN 13501-1 Class B, with UL94HB horizontal burning compliance. It self-extinguishes and produces low smoke density, which is what healthcare and public-building codes require.
The vinyl surface carries antibacterial additives tested above 99.9% bacterial reduction (JIS Z 2801 / ASTM E2180) and is mould-proof to ASTM G21-15. Because it is non-porous and chemically resistant (EN 423 grade A, ASTM D543), cleaning teams can sanitise it repeatedly with medical-grade disinfectants, alcohol or diluted bleach without fading or surface damage.
Yes. Mark the bracket centres (typically 600–900mm), screw the continuous aluminium retainer to the wall, cut the vinyl cover to length, snap it onto the retainer and finish with end caps, inside/outside corners and returns. Cut-to-length service and pre-drilled retainers are available for large projects.
Model LHR1599 is supplied with a standard length of 5m, a profile height of 159mm, a 38mm gripping diameter. Custom lengths, solid colours and wood-grain finishes are available on request. It is built with vinyl & aluminum（Light grey color）, and Pinger supplies matching end caps, corner accessories and fixings so a complete run can be installed from one order.
Yes. LHR1599 is a 100% recyclable, low-VOC product, so it can be documented under LEED v4 Low-Emitting Materials and supports Material & Resources credits for recyclable content and long service life. Pinger provides the supporting test reports (SGS / Intertek, ASTM and EN standards) for project submittals.
