Hospital Privacy Curtains

Hospital Privacy Curtains

Model: ct-ov (1#)

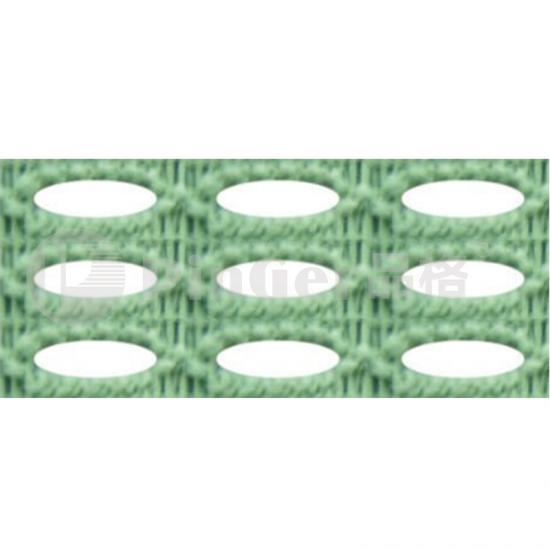

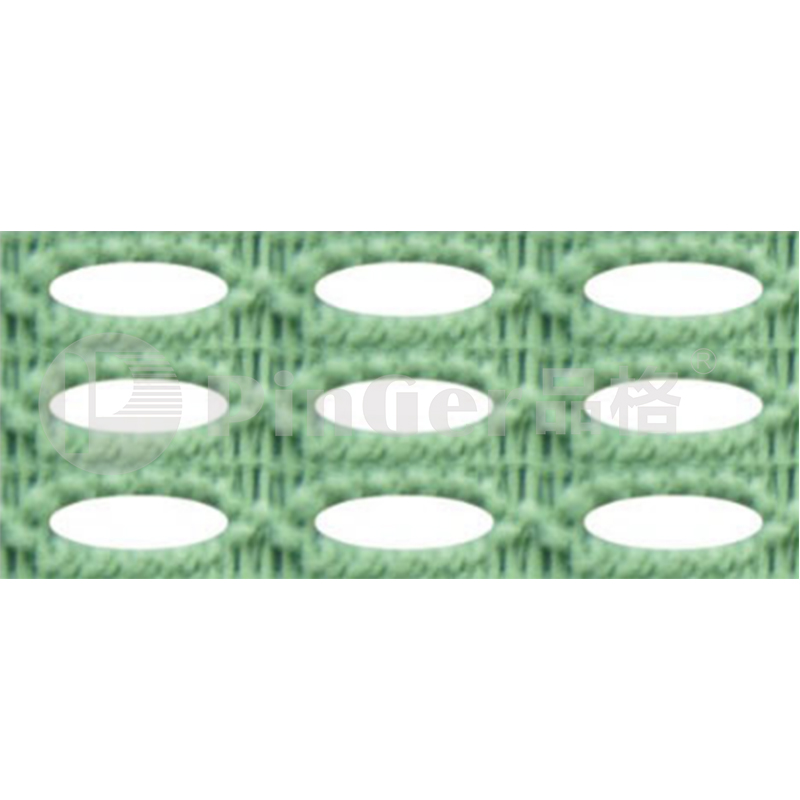

Elliptic grid medical curtain
Standard thickness: 0.6mm
Standard size: H = 2.8m

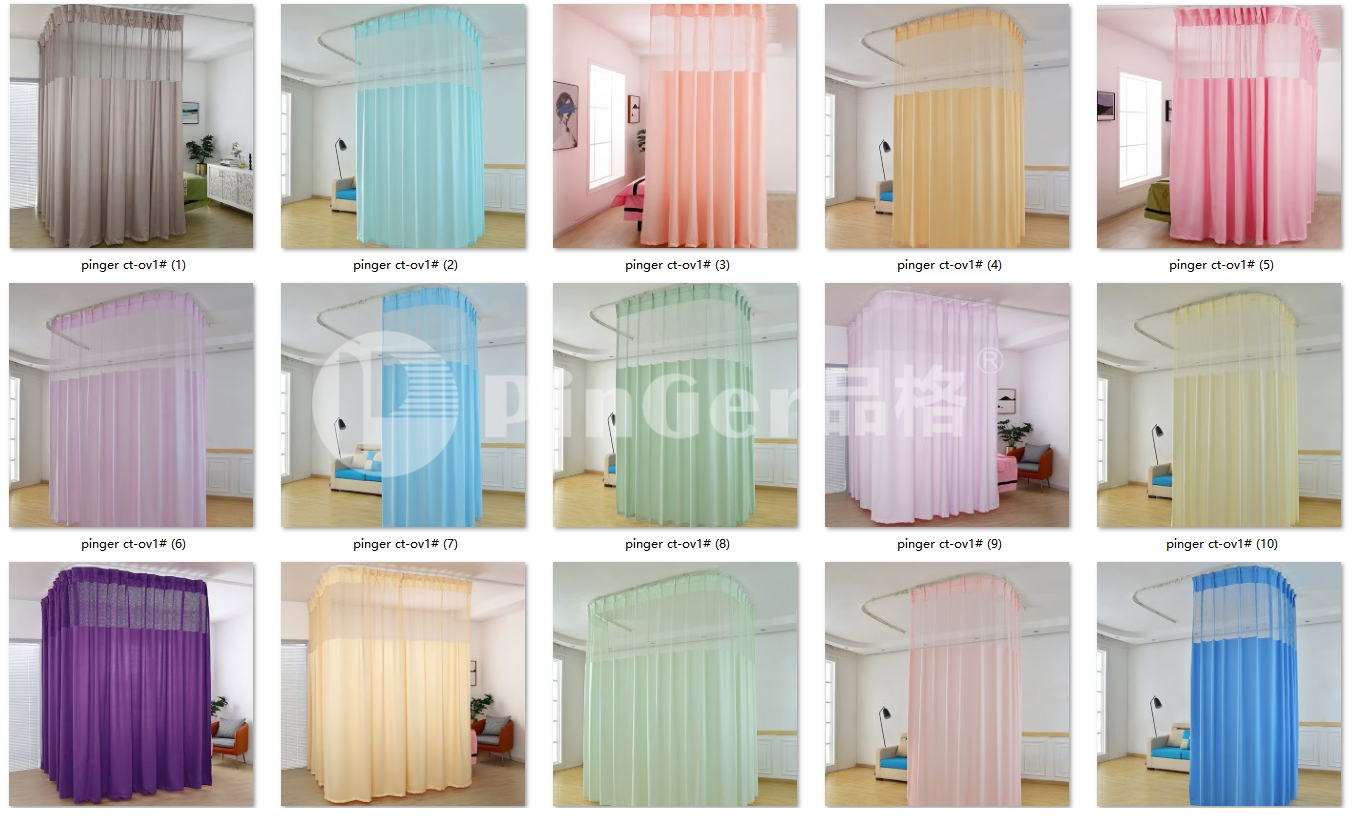

Colors: 9

  • Item NO.:

    CT-OV(1#)

Product Description:
There are mesh ventilation holes above the medical curtain cloth, and air and air conditioning air can be penetrated through the mesh holes to keep the room ventilated.
Medical curtain fabric can be used in ward, injection room and examination room to make the hospital feel neat and beautiful.
The medical partition cord fabric shall comply with the grade B provisions of 6.2.1 in GB8624-1997 < < classification method for combustion performance of building materials > (there are two kinds of hospital partition cord fabrics: fireproof and non Fireproof).
Material: 100% polyester fabric, weight: 200g / M ²- 250 g/m ²。

The 1-meter barrier track shall be used with 1.5-meter medical barrier fabric.

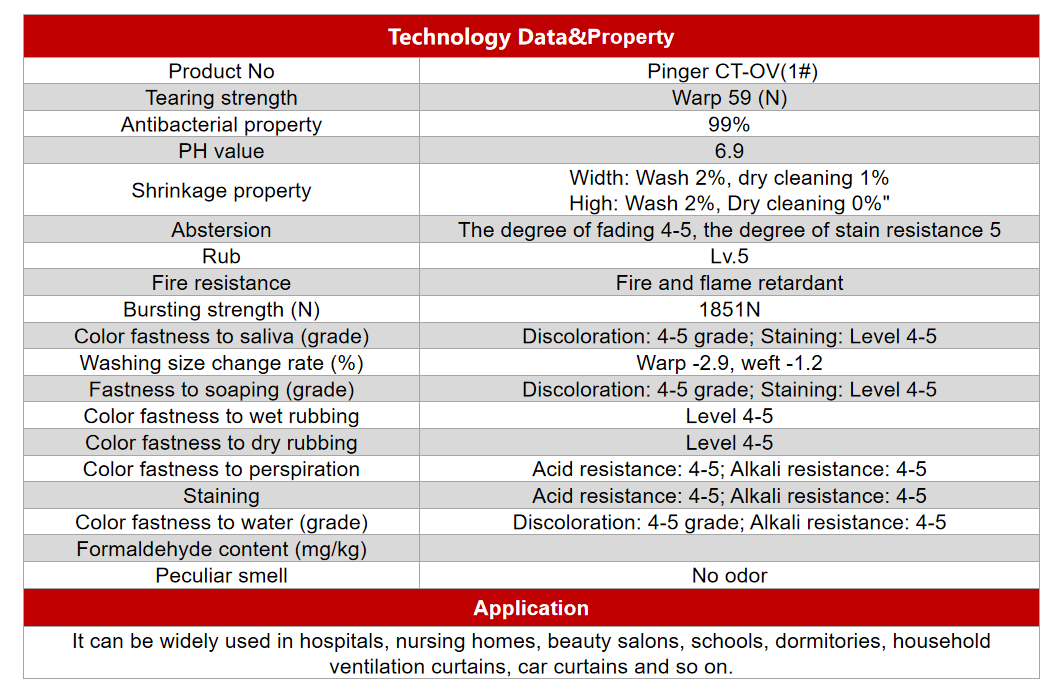

Property

Actual measurement

Result

Tearing strength

Warp 59 (N)

Antibacterial property

99%

PH value

6.9

Shrinkage property

Width: Wash 2%, dry cleaning 1% High: Wash 2%, Dry cleaning 0%"

Abstersion

The degree of fading 4-5, the degree of stain resistance 5

Rub

Lv.5

Fire resistance

Fire and flame retardant

Bursting strength (N)

1851N

Color fastness to saliva (grade)

Discoloration: 4-5 grade; Staining: Level 4-5

Washing size change rate (%)

Warp -2.9, weft -1.2

Fastness to soaping (grade)

Discoloration: 4-5 grade; Staining: Level 4-5

Color fastness to wet rubbing

Level 4-5

Color fastness to dry rubbing

Level 4-5

Color fastness to perspiration

Acid resistance: 4-5; Alkali resistance: 4-5

Staining

Acid resistance: 4-5; Alkali resistance: 4-5

Color fastness to water (grade)

Discoloration: 4-5 grade; Alkali resistance: 4-5

Formaldehyde content (mg/kg)

0

Peculiar smell

No odor

Application

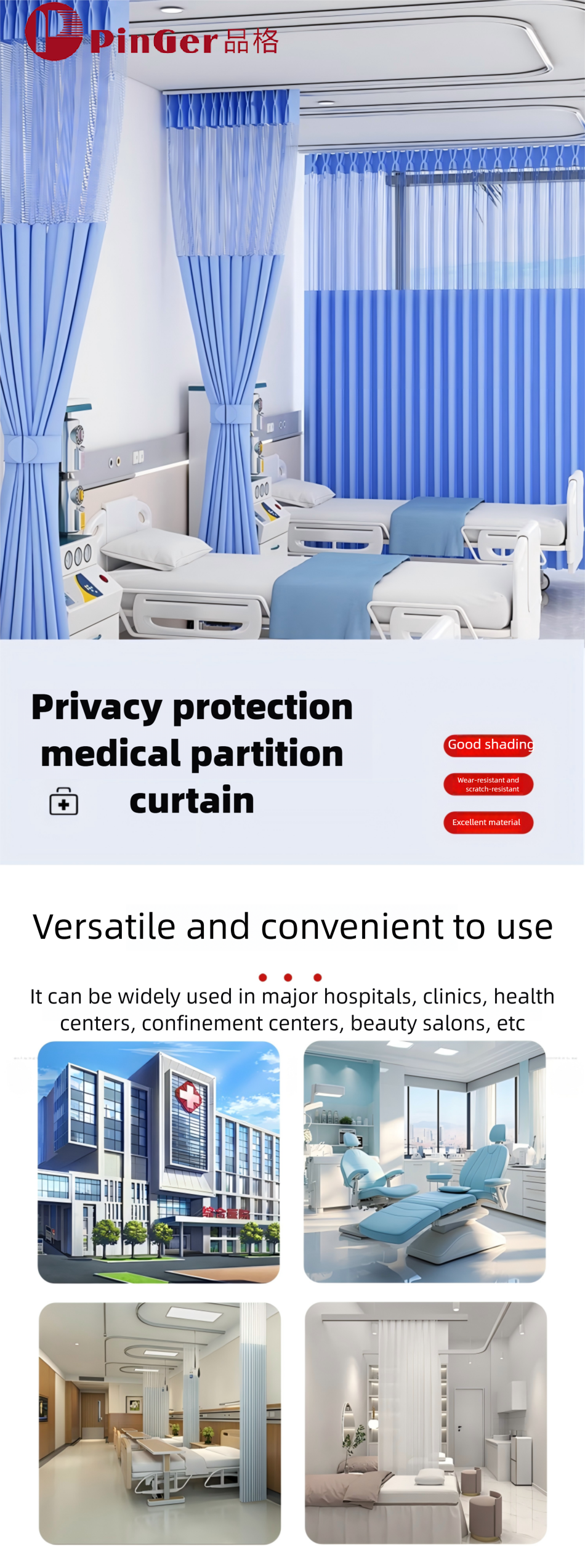

It can be widely used in hospitals, nursing homes, beauty salons, schools, dormitories, household ventilation curtains, car curtains and so on.

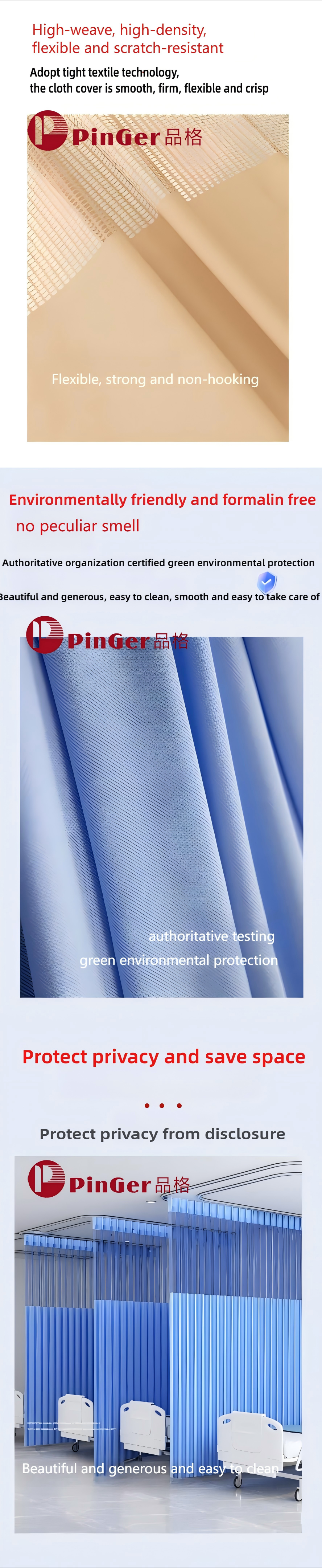

Pinger Medical curtain fabric: Excellence in Every Thread

1. High - Performance Textile Craftsmanship

Pinger Medical curtain fabric are engineered with high - weave, high - density technology. This advanced textile approach ensures a fabric that’s not only flexible but also scratch - resistant. The result? A cover that feels smooth to the touch, maintains firmness, and offers a crisp, durable texture. It’s designed to be flexible yet strong, with no snagging – perfect for environments where both performance and aesthetics matter.

2. Eco - Friendly & Safe

Our commitment to sustainability and safety shines through. Pinger fabrics are formalin - free and emit no peculiar smell, certified by authoritative organizations as a green environmental protection choice. Beyond being eco - conscious, they’re beautifully designed, easy to clean, and low - maintenance. Whether in a busy commercial space or a serene home setting, these fabrics stay looking pristine with minimal effort.

3. Privacy & Space - Saving Innovation

Pinger solutions go beyond just fabric. They’re crafted to protect privacy and optimize space. Ideal for healthcare, office, or any environment where privacy is key, our products shield against unwanted exposure while adding a touch of elegance. The design is both beautiful and practical – easy to clean, visually appealing, and built to enhance the functionality of your space.
From textile innovation to eco - conscious manufacturing and smart space design, Pinger delivers products that redefine quality, sustainability, and practicality. Discover how Pinger can elevate your space – where every detail is designed for excellence.

Pinger Medical Curtains: Crafted for Excellence

Discover the innovation behind Pinger’s medical curtains — designed to blend functionality, comfort, and safety for healthcare spaces.

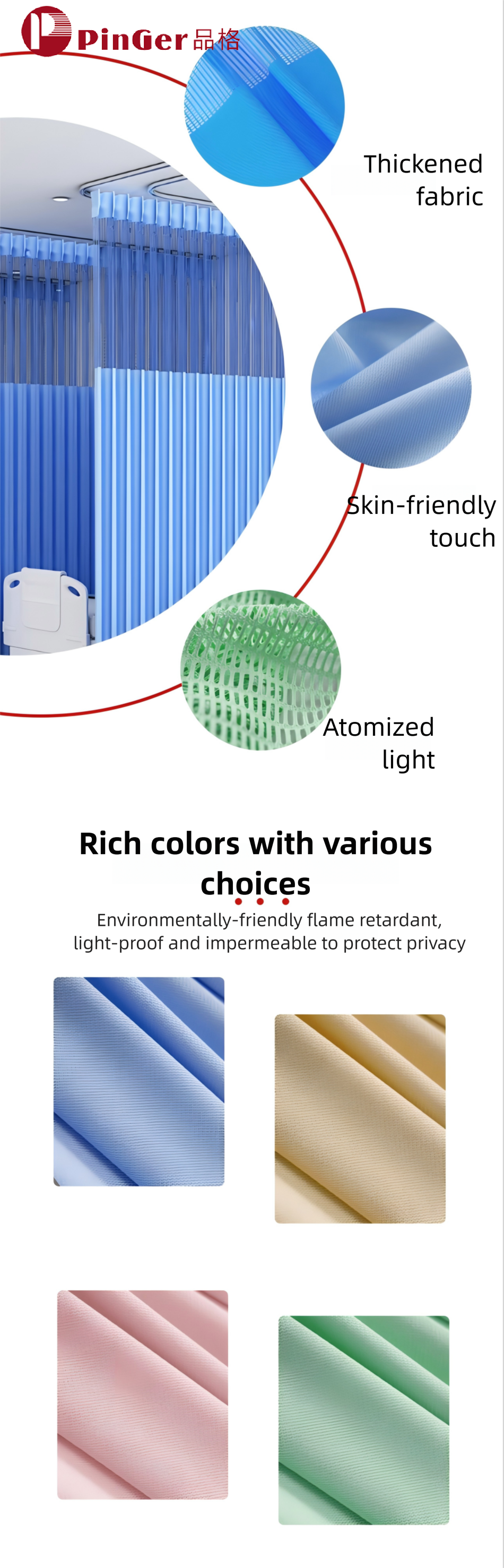

Key Features:

Thickened Fabric: Durable, tear - resistant material ensures long - lasting use in high - traffic medical environments.

Skin - Friendly Touch: Soft, gentle texture ideal for patient - facing areas, minimizing irritation.

Atomized Light Design: Diffuses light effectively, creating a calm, private atmosphere for patients.

Color & Safety:

Choose from a rich color palette to suit any facility’s aesthetic. All curtains feature:

•Environmentally - friendly flame retardancy

•Light - proof & impermeable properties for optimal privacy protection

Elevate your healthcare space with Pinger — where every detail supports patient well - being and operational efficiency.

Hospital Privacy Curtains

Hospital Privacy Curtains

Hospital Privacy Curtains

Pinger Medical curtain fabric

Pinger solutions go beyond just fabric. They’re crafted to protect privacy and optimize space. Ideal for healthcare, office, or any environment where privacy is key, our products shield against unwanted exposure while adding a touch of elegance. The design is both beautiful and practical – easy to clean, visually appealing, and built to enhance the functionality of your space.
From textile innovation to eco - conscious manufacturing and smart space design, Pinger delivers products that redefine quality, sustainability, and practicality. Discover how Pinger can elevate your space – where every detail is designed for excellence.

Pinger Medical Curtains: Crafted for Excellence

Discover the innovation behind Pinger’s medical curtains — designed to blend functionality, comfort, and safety for healthcare spaces.

Key Features:

Thickened Fabric: Durable, tear - resistant material ensures long - lasting use in high - traffic medical environments.

Skin - Friendly Touch: Soft, gentle texture ideal for patient - facing areas, minimizing irritation.

Atomized Light Design: Diffuses light effectively, creating a calm, private atmosphere for patients.

Color & Safety:

Choose from a rich color palette to suit any facility’s aesthetic. All curtains feature:

•Environmentally - friendly flame retardancy

•Light - proof & impermeable properties for optimal privacy protection

Elevate your healthcare space with Pinger — where every detail supports patient well - being and operational efficiency.

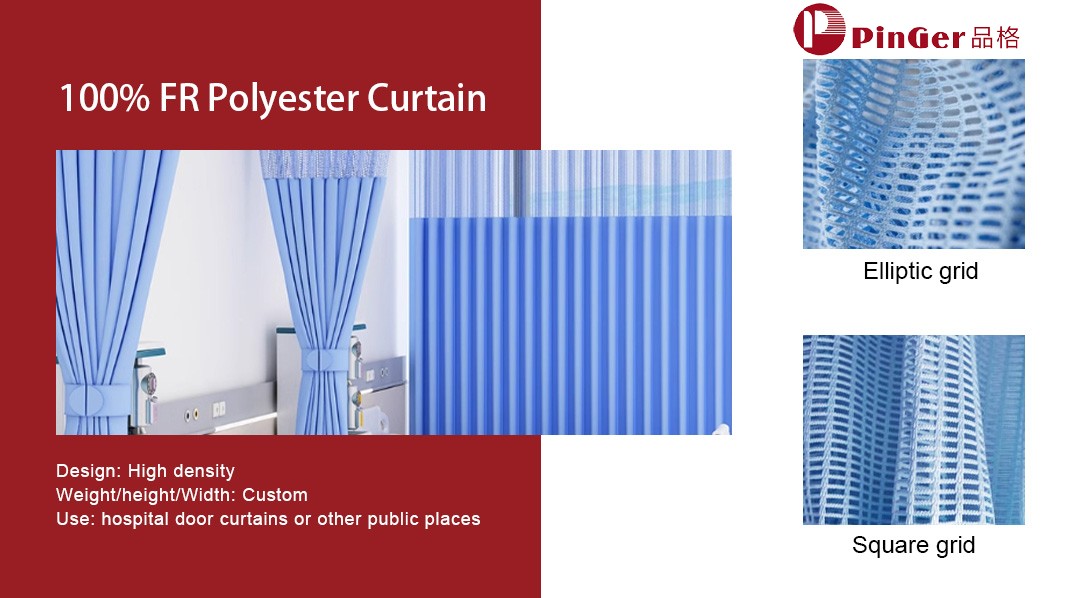

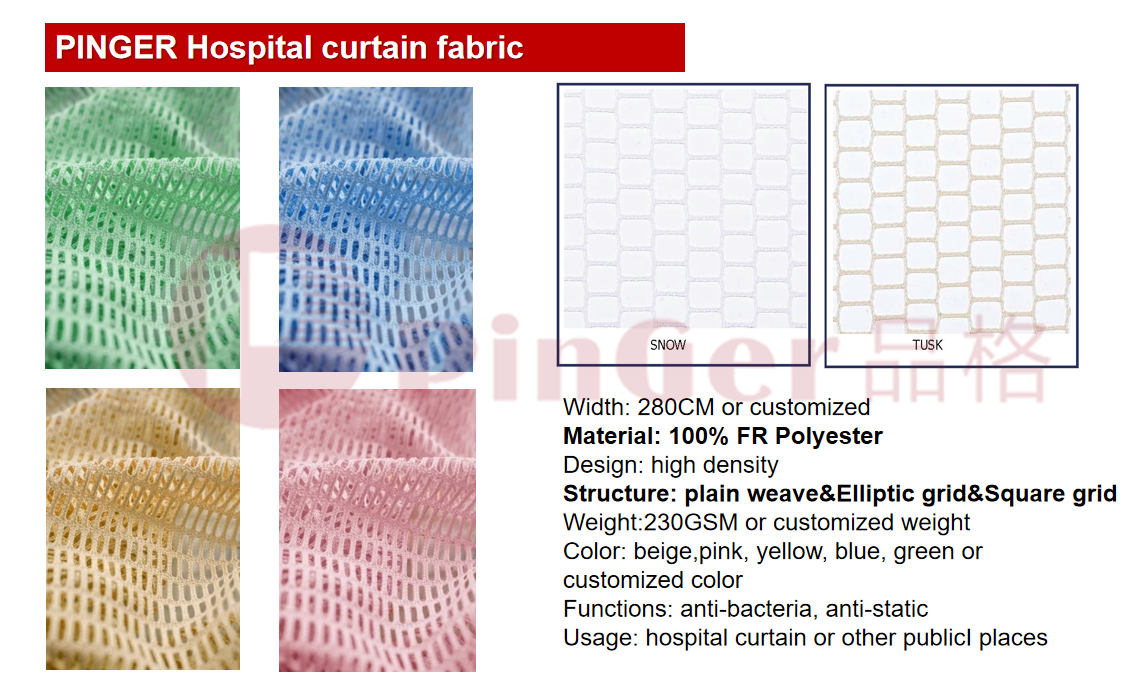

PINGER Hospital Curtain Fabric: Elevate Healthcare Spaces

Introducing PINGER Hospital Curtain Fabric — a premium solution engineered for healthcare environments and public spaces.

Key Specifications:

Width: Standard 280CM (fully customizable to fit your needs).

Material: 100% FR Polyester (flame - retardant, ensuring safety in high - traffic areas).

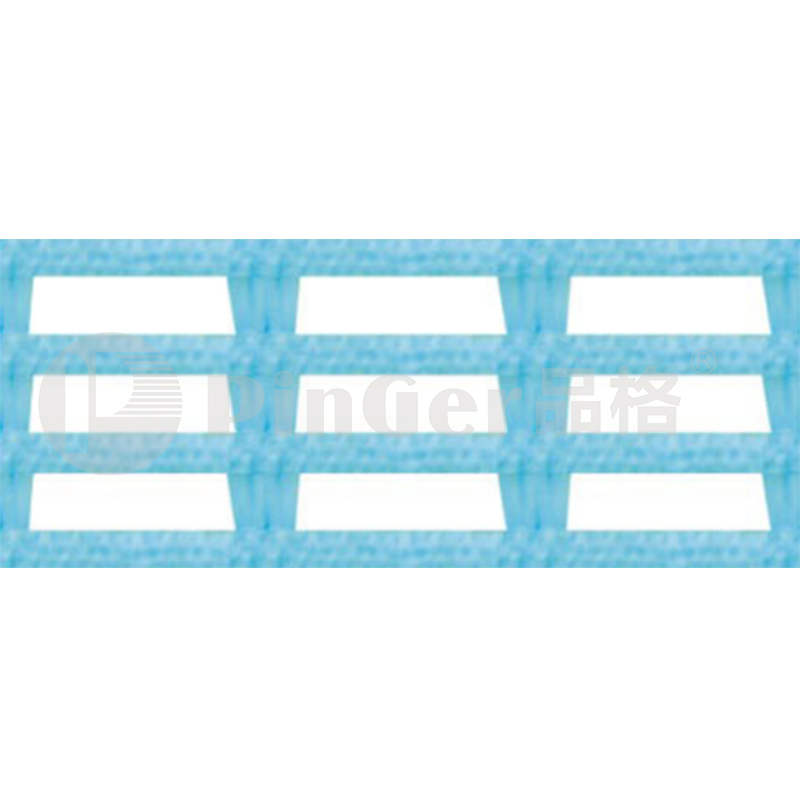

Design & Structure: High - density construction with versatile patterns — choose from plain weave, elliptic grid, or square grid (options like “SNOW” and “TUSK” shown).

Weight: 230GSM (custom weights available for unique requirements).

Color Range: Beige, pink, yellow, blue, green — or tailor - made hues to match your space’s aesthetic.

Core Advantages:

Hygiene - Focused: Anti - bacteria and anti - static properties reduce contamination risks, ideal for hospitals, clinics, and public facilities.

Durability: High - density fabric withstands frequent use, cleaning, and wear - and - tear in busy environments.

Versatility: Perfect for hospital curtains, waiting rooms, or any public space needing privacy, safety, and style.

Upgrade your space with PINGER — where functionality, safety, and design converge.

#HospitalCurtain #HealthcareFabric #HygienicDesign #PingerFabric

A: Recently, we have heard that you have made many achievements in environmental protection. Could you please introduce company and your environmental protection measures?

B: We are a company committed to environmental protection, focusing on the production of green, pollution-free building materials products. Our products green formulations that are harmless to the human body, and we strive to minimize the negative impact on the environment in all stages of production, use, and recycling. We have advanced process technology, adhering to environmental protection principles from formulation to manufacturing application, achieving 0 wastewater and 0 waste gas emissions.



A: What efforts your company made to extend the life cycle of products and promote the sustainable use of resources?

B: We have EPD certification, committed to extending the life of products promoting the sustainable use of resources. Our products can not only be recycled but also be effectively recycled, reused, or converted into other useful materials at the end of their, truly achieving "from cradle to cradle". In this way, it can effectively reduce resource consumption and waste production, and reduce the burden on the natural environment



A: How do your company's handrail products address the needs of both handrail protection and decoration simultaneously?



B: Our handrail products feature functional properties such as being antibacterial, anti-mildew, fire-resistant, impact-resistant, stain-resistant, corrosion-resistant, lightweight, anti-ultraviolet, dimensionally stable, and easy to clean. These properties effectively protect the handrails, extending their service life and solving the handrail protection problem. Moreover, with a wide range of rich colors and wall 3D printing technology, they provide designers with extensive creative room, perfectly tackling the decoration needs. Additionally, our handrails are easy to install—construction generates no dust, contains no heavy metals, and releases no toxic or harmful gases like formaldehyde or toluene. Therefore, they can be installed one day and put into use the next, effectively ensuring people’s health.



A: You mentioned that you have obtained EPD certification, is this certification? What does it mean to you?

B: EPD certification is an assessment of the entire life cycle of a product, proving that it meets certain in environmental performance and complies with the principles of sustainable development. We have obtained this certification, which not only affirms the green, pollution-free, and recyclable of our products but also recognizes and proves our commitment and efforts to sustainable development. We will continue to develop innovative products, contribute to the concept of sustainable design, and together to build a healthy environment. Our long-term vision is to achieve sustainable development and become a leading environmental manager in the industry
