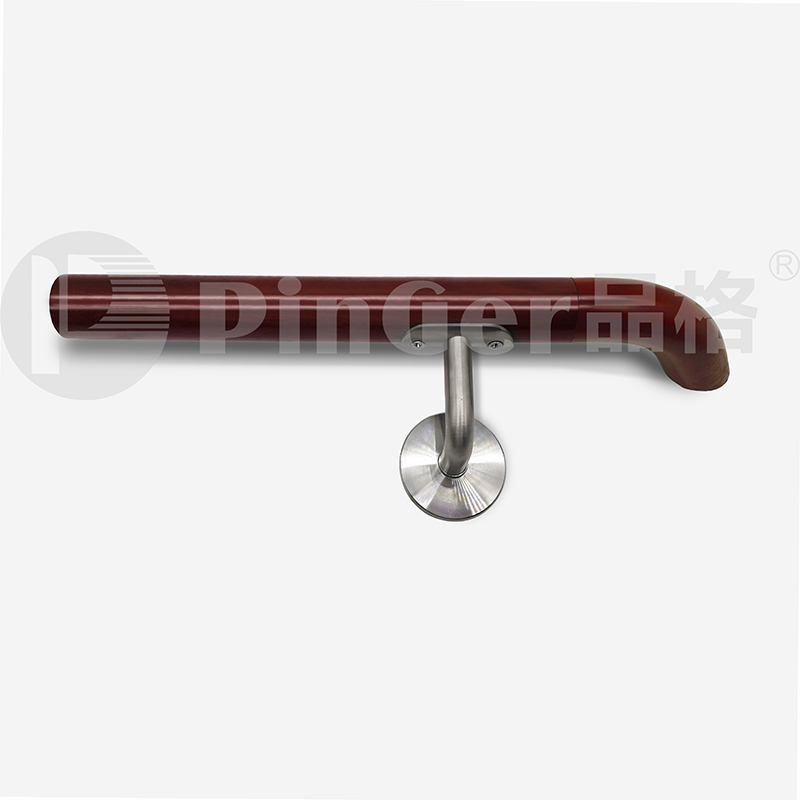

Hospital Corridor Solid Wood Crash Handrail

Product Name：Hospital Corridor Solid Wood Crash Handrail

Specification

●Handrail provides a comfortable and functional gripping surface with an ergonomically designed handrail thumb groove.

PRODUCT CHARACTERISTICS

1、New Vinyl Materials

The use of american maple, deliate workmanship, tight, more high-end appearance.

2、Solid And Durable

solid wood elbow thicknes：38mm. solid wood elbow.

3、Comfortable And Convenient

The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital， schools laboratories， pharmaceutical plants airplanes， ships，

high-speed rails.

Feature Specification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation

Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

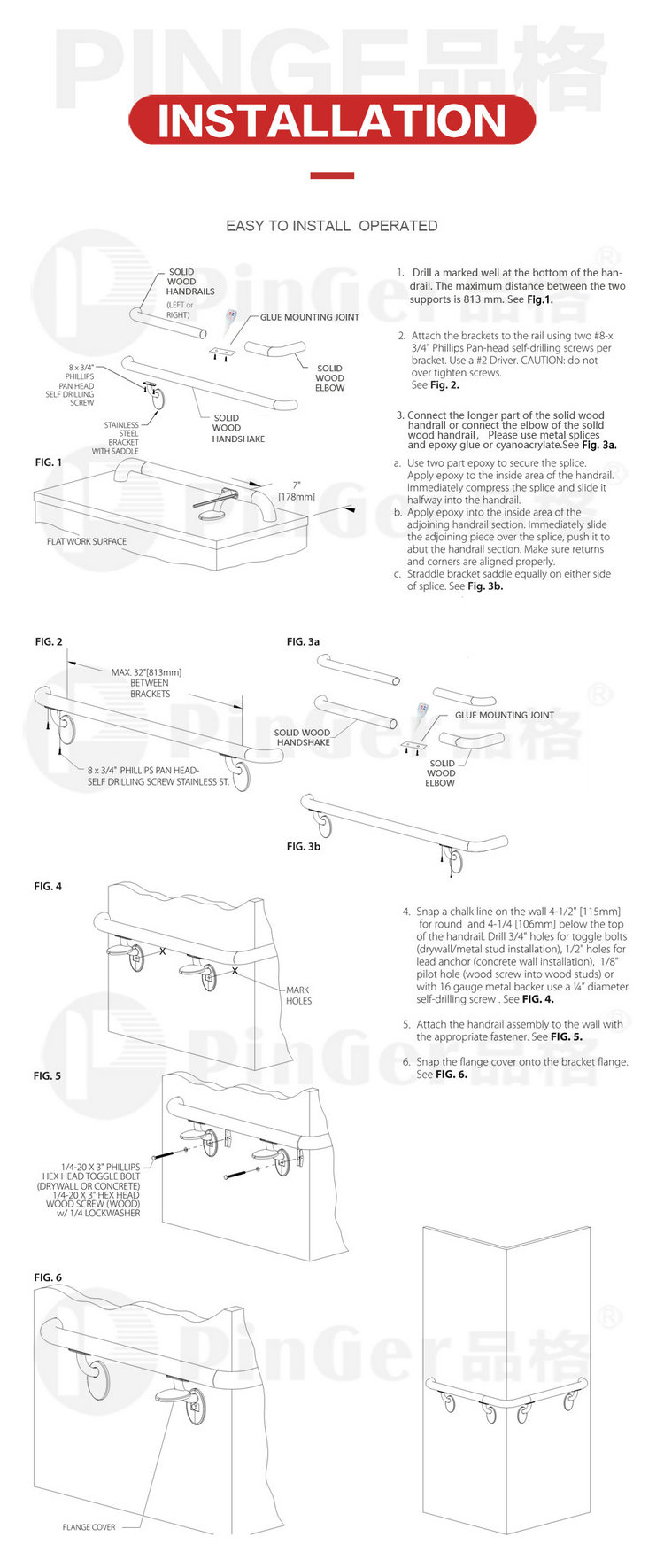

Installation Instruction

●Bolts&Screws

●Cut vinyl cover and aluminum retainer  to desured length

●Drill the doles

●Measure and transfer the handrail mounting hole locations from the bracket,elbow.

●Cut the vinyl cover to the lengths between returns and elbows.

Pinger Project History

●Pinger now owns dozens of national inventions and new practical patents. It has passed third-party certifications from ISO9001 quality system certification, ISO14001 environmental monitoring system certification, EU CE certification, and Europe and the United States SGS international testing certification.

● Pinger wall panel and wall protection system products are in the leading position among similar products. We not only have a stable market share in China, but also sell products in more than 100 countries and regions in the world, and occupy a certain market share in the international market.

TECHNOLOGY DATA

QUALITY ASSURANCE

• 1. Fire Performance Characteristics

Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM  E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.

2. Fungal and Bacterial Resistance

The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial  proof:JISZ2801:2010.

3. Mould Proof

ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.

4. Horizontal burning

As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.

5. Impact Strength

Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM  D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.

6. Environmental friendly

No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO  16000-3-6-9 AND SGS:CA CDPH 01350 -VOC

7. Does not stain

Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye，Staining test:EN423:2001.

8. ISO Certified

Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.

9. Chemical and CORROSION Resistance

Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.

10. No heavy metals

Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65

11. Durable and easy to install

Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.

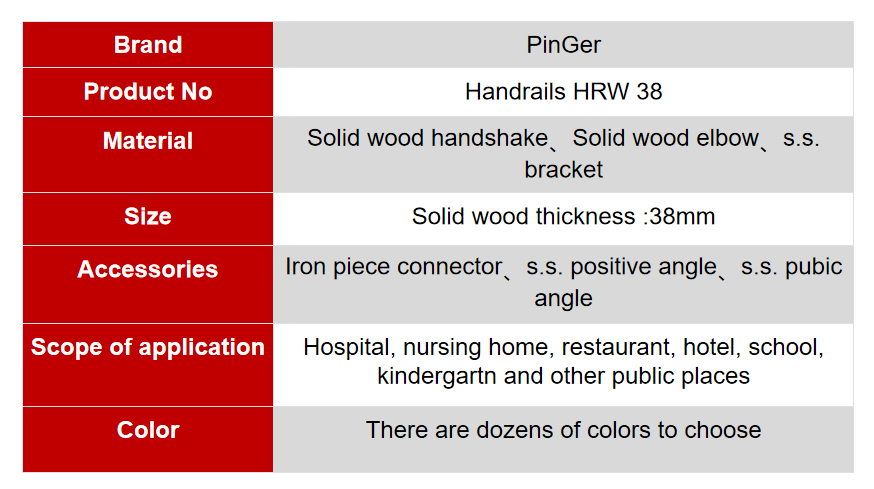

Handrail HRW38 Series

●Handrails can match with PinGer Wall Guards, Corner Guards & Pingerwall panel to create a perfect space.

●Above products are with bolts&screws.

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital， schools laboratories， pharmaceutical plants airplanes， ships，

high-speed rails.

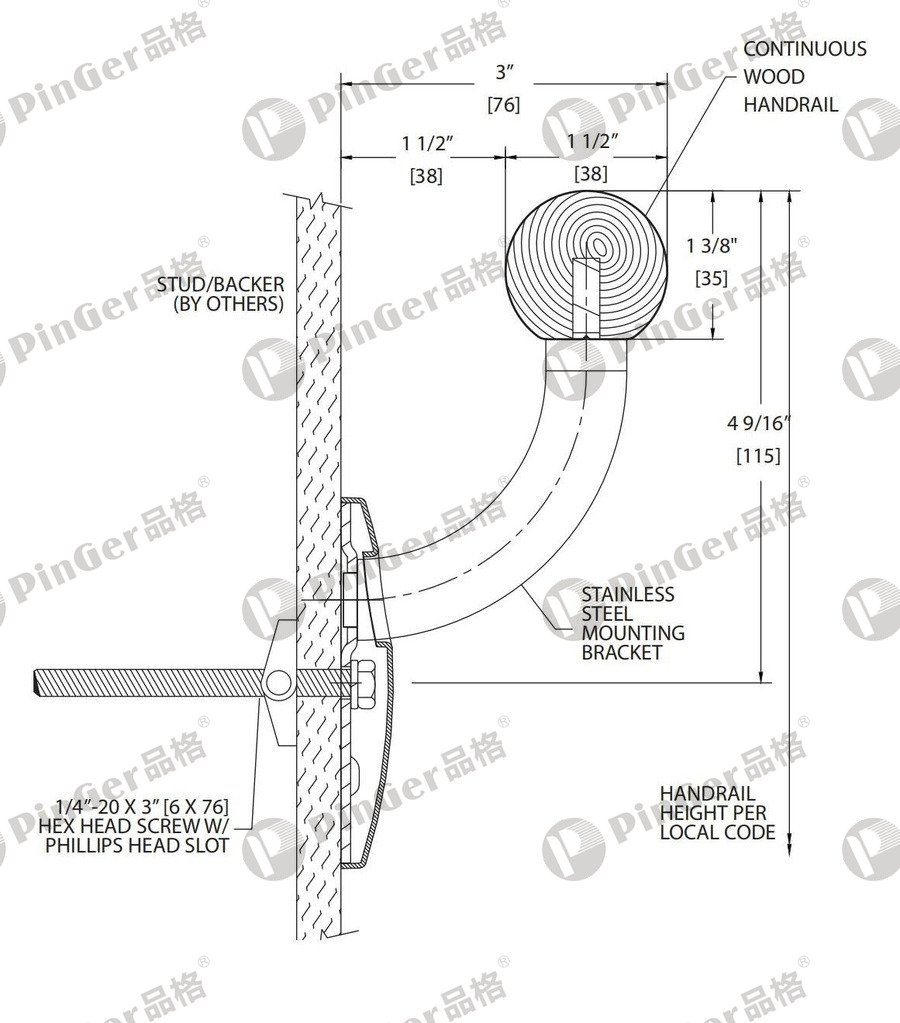

Structural Drawings

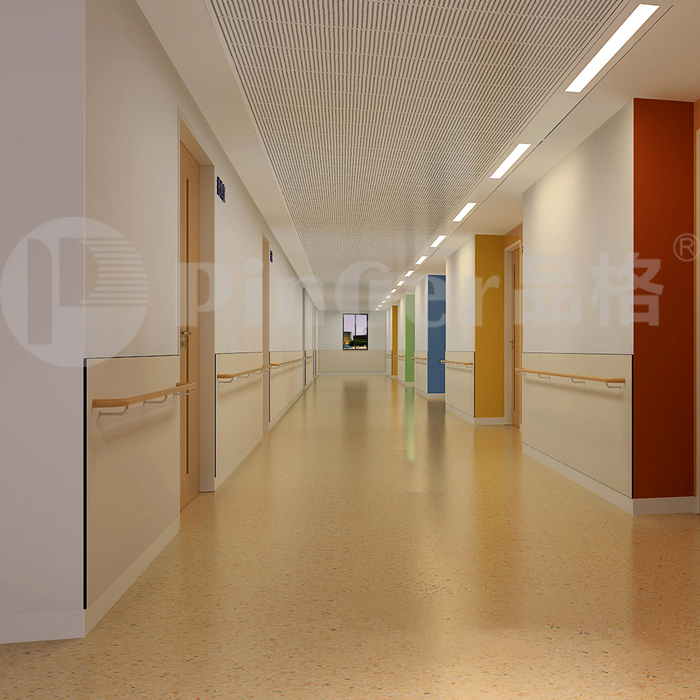

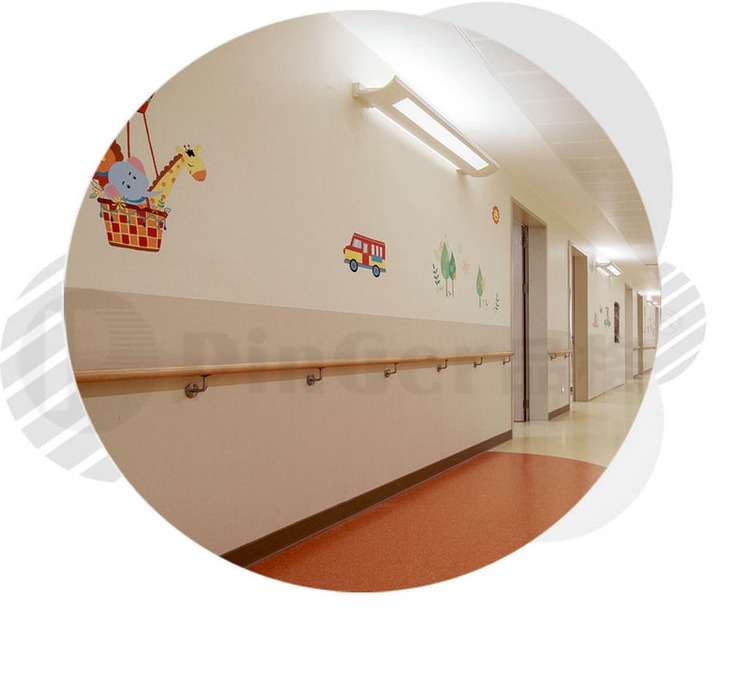

●Pinger Handrails installed on the wall which is about80cm~ 90cm fro m floor.Han drails can protect the walls wellfromimpact, at the mean while it can supportthepasserby also.

●Handrail assem bled by solid wood grip,solid wood elbow,stainless steel bracket,solid wood inside corner

elbowsolidwood outside cornerelbow.

PRODUCT CHARACTERISTICS

1、New Vinyl Materials

The use of american maple, deliate workmanship, tight, more high-end appearance.

2、Solid And Durable

solid wood elbow thicknes：38mm. solid wood elbow.

3、Comfortable And Convenient

The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.

[Pinger 品格 ® Cleaning and Maintenance]

Remark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

A: Recently, we have heard that you have made many achievements in environmental protection. Could you please introduce company and your environmental protection measures?

B: We are a company committed to environmental protection, focusing on the production of green, pollution-free building materials products. Our products green formulations that are harmless to the human body, and we strive to minimize the negative impact on the environment in all stages of production, use, and recycling. We have advanced process technology, adhering to environmental protection principles from formulation to manufacturing application, achieving 0 wastewater and 0 waste gas emissions.

A: What efforts your company made to extend the life cycle of products and promote the sustainable use of resources?

B: We have EPD certification, committed to extending the life of products promoting the sustainable use of resources. Our products can not only be recycled but also be effectively recycled, reused, or converted into other useful materials at the end of their, truly achieving "from cradle to cradle". In this way, it can effectively reduce resource consumption and waste production, and reduce the burden on the natural environment

B: Our handrail products feature functional properties such as being antibacterial, anti-mildew, fire-resistant, impact-resistant, stain-resistant, corrosion-resistant, lightweight, anti-ultraviolet, dimensionally stable, and easy to clean. These properties effectively protect the handrails, extending their service life and solving the handrail protection problem. Moreover, with a wide range of rich colors and wall 3D printing technology, they provide designers with extensive creative room, perfectly tackling the decoration needs. Additionally, our handrails are easy to install—construction generates no dust, contains no heavy metals, and releases no toxic or harmful gases like formaldehyde or toluene. Therefore, they can be installed one day and put into use the next, effectively ensuring people’s health.

A: You mentioned that you have obtained EPD certification, is this certification? What does it mean to you?

B: EPD certification is an assessment of the entire life cycle of a product, proving that it meets certain in environmental performance and complies with the principles of sustainable development. We have obtained this certification, which not only affirms the green, pollution-free, and recyclable of our products but also recognizes and proves our commitment and efforts to sustainable development. We will continue to develop innovative products, contribute to the concept of sustainable design, and together to build a healthy environment. Our long-term vision is to achieve sustainable development and become a leading environmental manager in the industry
