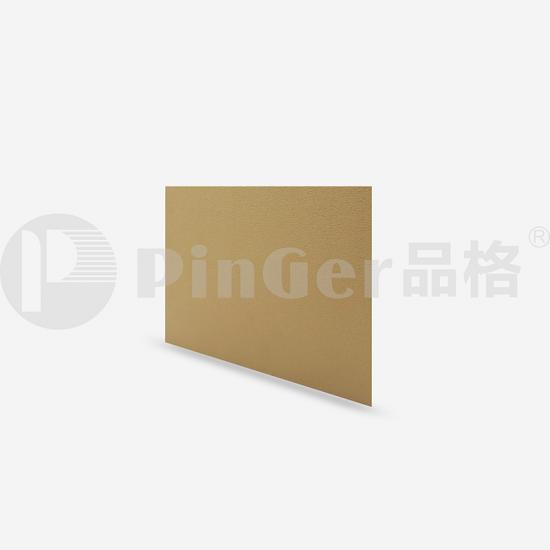

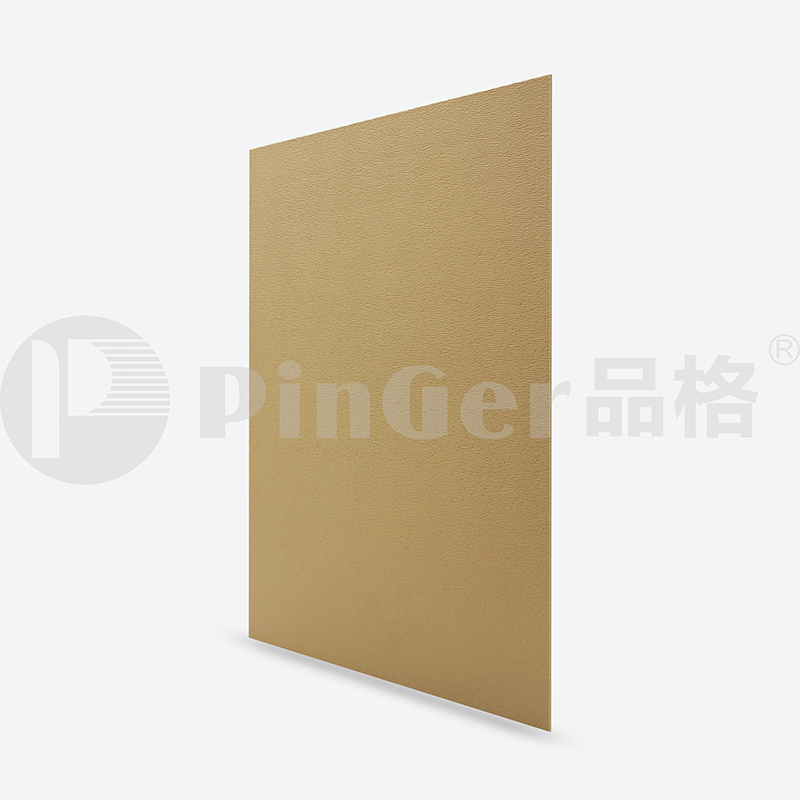

Door And Wall Kickplates Systems

Model: WP102

Wall sheeting

Antimicrobial resin materials,

2mm thickness, 102mm width, 4m/block, can also be cut according to customer requirements

Lines: Coarse lines (Q) and ultra-fine lines (C) are available for selection

Install epoxy glue directly on the wall

  • Item No.:

    WP100
  • Product Detail

Product Name : Door And Wall Kickplates Systems


Specification

Anti - bacteria, anti - collision, anti - friction, chemical corrosion, anti - pollution and easy to clean, green environmental recyclable use.

Door And Wall Kickplates Systems

TECHNOLOGY DATA
Brand  PinGer
Product No  Door & Wall kickplate
Material  Vinyl
Size  vinyl cover:2mm
Scope of application  Hospital,nursing home,restaurant, hotel,school,kindergarten and other public places.
Color  There are dozens of colors to choose.

Door And Wall Kickplates Systems

Door And Wall Kickplates Systems

ITS SURFACE TEXTURE IS SELECTED

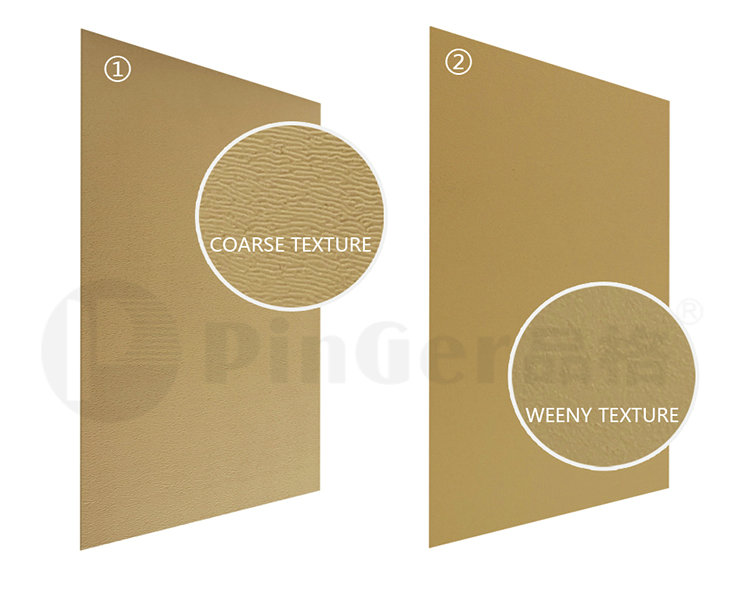

1、Pinger door & wall protection kickplate it has the following two kinds of textures to choose from.

Door And Wall Kickplates Systems

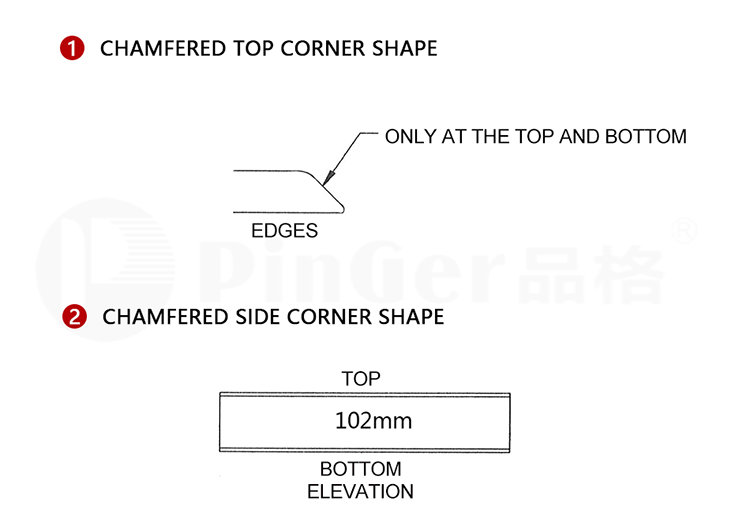

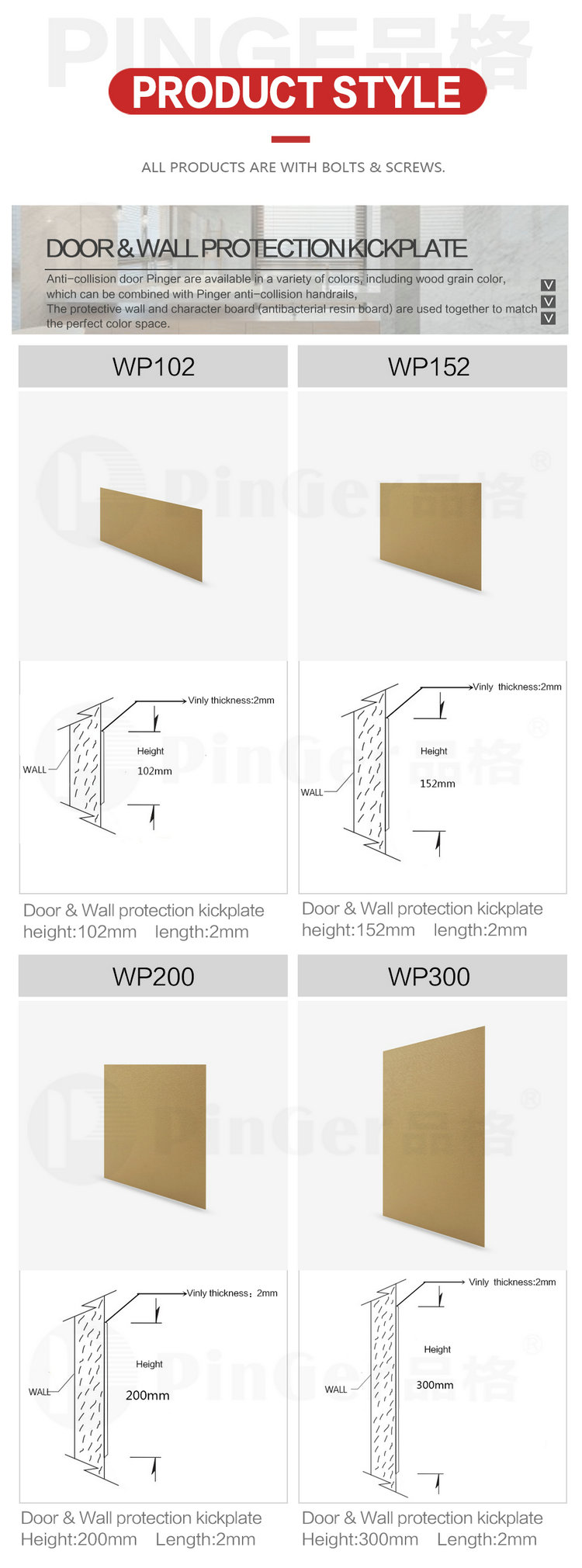

 2、pinger proctection doorwall plate it has shapes of its own.

Door And Wall Kickplates Systems

PRODUCT CHARACTERISTICS

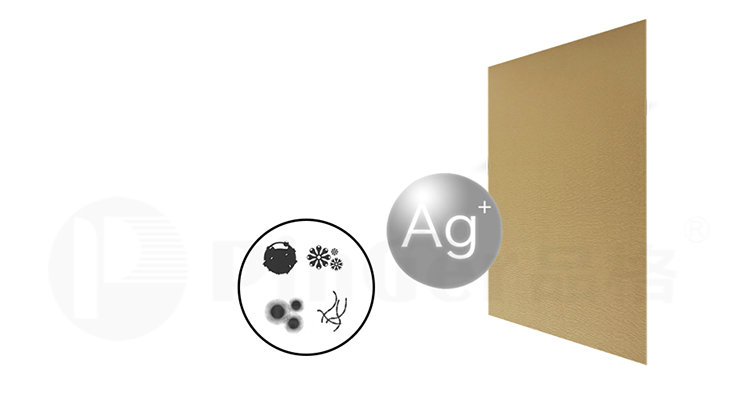

1、Antibacterial & Strongly anti-mildew

The Vinyl material is rich in siler ions, inhibiting the growth of fungi on the surface of plates, e.coli, staphylococcus aureuand other pathogenic organisms as aspergillus brasiliensis, penicillium rehmannii, sprouted short-stemmed mould, pelliculosa, trichoderma virio ides.

Door And Wall Kickplates Systems

 2、Fire retardant

Has passed the American standard ASTM e84-17 firetest and the Britsh standard ul94-2017 level combustion.

Door And Wall Kickplates Systems

3、Anti-collision wear-resisting Super weather resistance

The wall can be well protected during the impact of wheelchairs and wheelchairs with high impact strength.The service life can be as long as 15-25 years without human damage.

Door And Wall Kickplates Systems

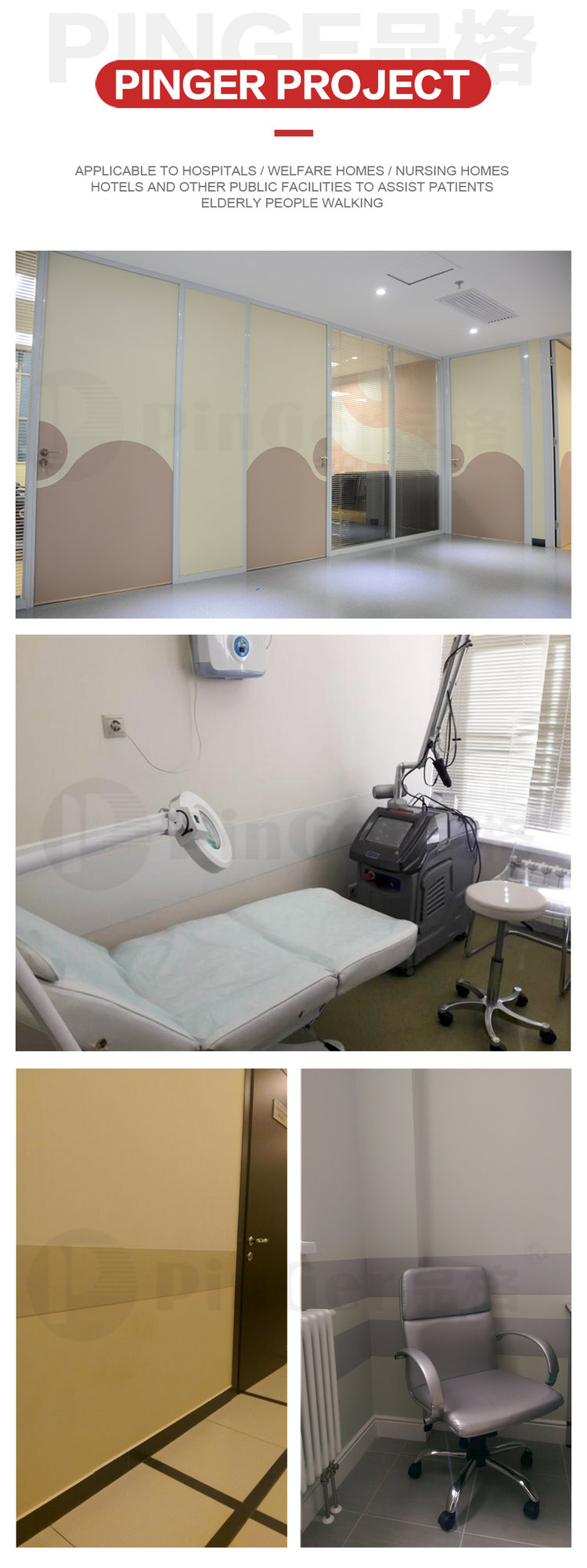

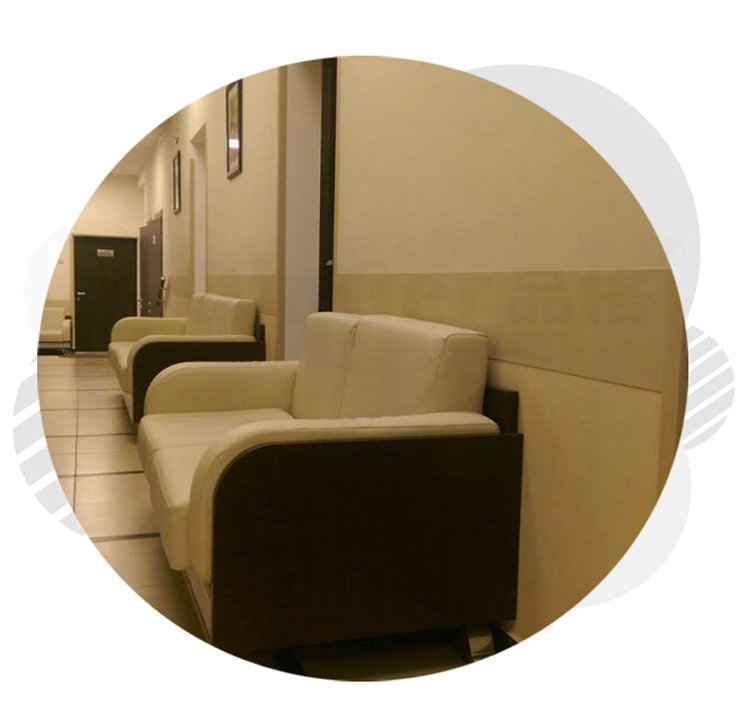

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung

Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital, schools laboratories, pharmaceutical plants airplanes, ships,

high-speed rails.


Door And Wall Kickplates Systems

FeatureSpecification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation


Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

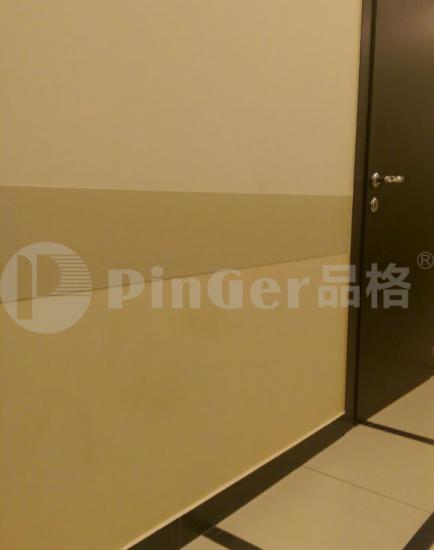

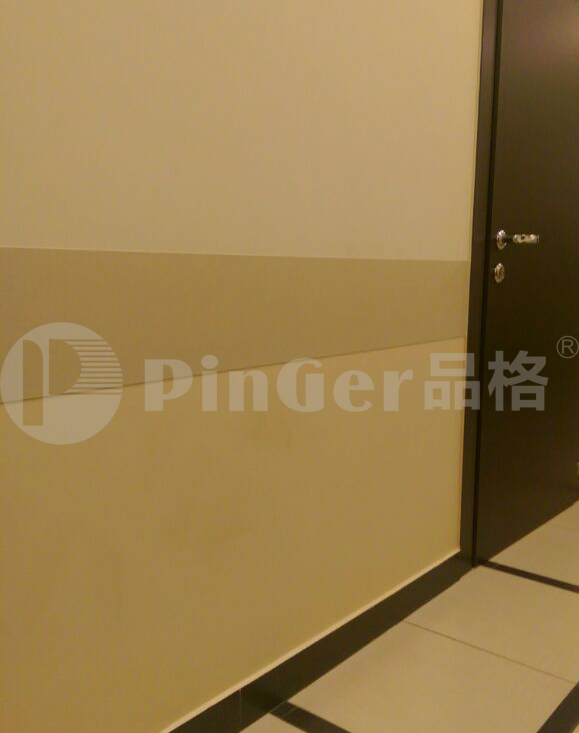

Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height.

Door And Wall Kickplates Systems

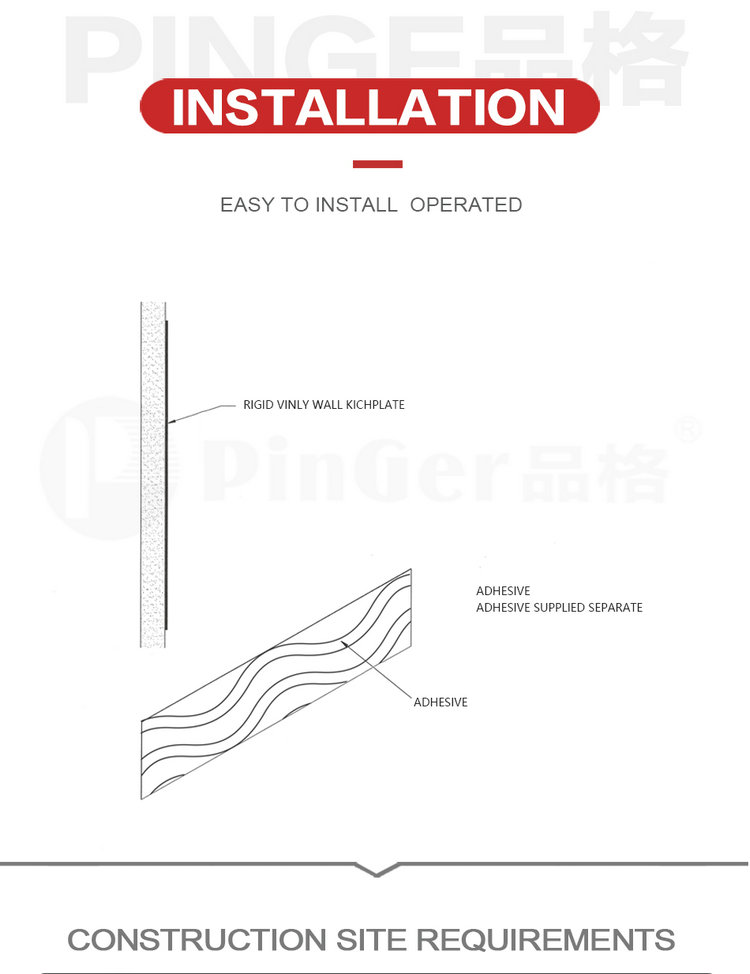

Installation Instruction

●Clean-upand Maintenance Instructions

●Daily cleaning and maintenance ,it can be used to clean the dust  layer with a clean cloth

●If there are a few stains: footprints,tea marks,etc,use a clean cloth  to wipe

●If the stain is not timely treatment,stay too long,use a clean cloth  and neutral cleaner to wipe

●Use dishcloth to add warm warm water or cleaner to wipe, need to  use clean dry dishcloth to wipe Water mark.

 Door And Wall Kickplates Systems

Cleaning Tool Selection

●clothes: clean clothes or scouring pad

●Detergent: Use a neutral detergent or alcohol. Special reminder: oily  (paint) stains trace is more difficult to remove, so the product can be  made. spray painting to decorate the wall, such as oil (paint class) after  the spray painting to remove and replace as a block wallboard. (Oily pen  wants to wipe, usable pure alcohol or alcohol adds water to scrub and  wipe).

TECHNICAL DATA

 Certificate

 Certificate standard

 Result

 Antibacterial

 ASTME2180

 >99.9% inhibis growth

 Mould Proof

 ASTM G21-15

 0 Class non growth

 Fire and smoke Rating

 ASTM E84-17 Class A

 Class A

 Horizontal Burning

 UL94HB

 PASS

 Crashproo

 ASTM D256-10el

 PASS

 Chemical and Corrosion resistance

 ASTM D543-14/ASTM D2240-15/ASTM D638-14

 G00D

 TVOC

 CA CDPH 01350-voc

 G00D

 Color Diference

 SAEJ1545-2005

 G00D

 Color staining

 EN423:2001

 G00D

 Phthalate Test

 SGS

 PASS

 Fomaldehyde

 CA CDPH 01350-voc GB/T 18580-2017

 PASS

 Heavy metal Test[Lead& Cadmium

 CA65

 PASS

Appication
Hospital hotel airport,High-end ofice building High-end Vila,kKindergarten,School,Sport Hal,Factory,.Plane,High-speed Train,Loose pulley.public place and so on.


CARE INSTRUCTIONS

Cleaning And Maintenance Requirements

Visitor folw rate

cleaning and maintenance

Stain processing

Privte room

one time in one year

Require time

Public place or corrider

two or three times in one year

Require time

Main channel or main entry door

one time lin one month

Require time

Renark:

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind:

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

Door And Wall Kickplates SystemsDoor And Wall Kickplates SystemsDoor And Wall Kickplates Systems
