Home Handrails System 159mm Height Iuxury Series Crash Handrail

Crash and bumper rails for high-impact areas

Crash and bumper rails for high-impact areas

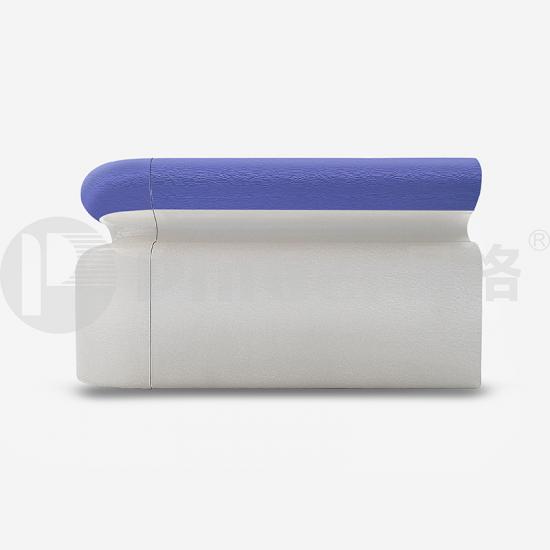

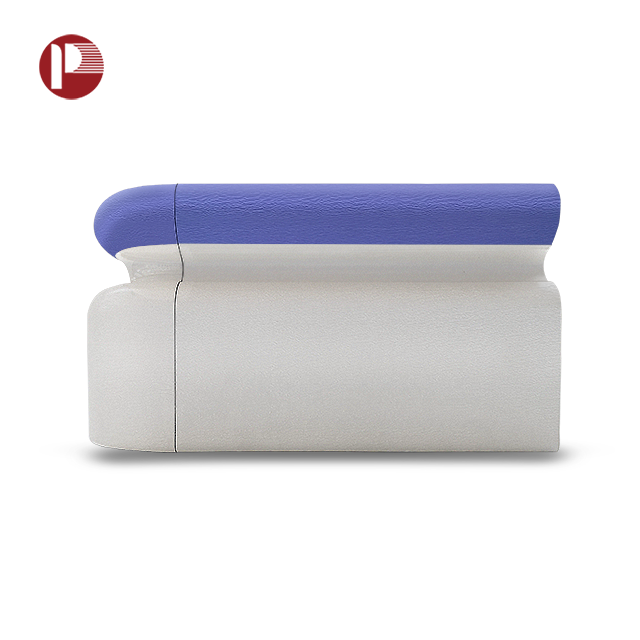

Model No.:LHR1592
Materials:vinyl & aluminum with different color curve
Standard Length:5m
Standard Width:159mm
diameter of grip:38mm
distance with wall:38mm


  • Item NO.:

    LHR1592

Product Name:Crash and bumper rails for high-impact areas LHR1592



Specification

●Unique continuois heavy duty rubber cushion provides maximum impact resistance.

Crash and bumper rails for high-impact areas

TECHNOLOGY DATA
Brand PinGer
Product No Handrails LHR1592
Material Vinyl cover
Size 2mm thickness vinyl cover,1.8mm thickness aluminum,ABS materials for elbows and brackets.rubber strip
Accessories Bolts screws
Scope of application Hospital,nursing home,restaurant, hotel,school,kindergarten and other public places.
Color There are dozens of colors to choose.





Structural Drawings

●Crashproof vinyl cover+high impact aluminum +rubber strips with screws.

●Combines the warmth and feel of a handrail with the maximum protection of a vinyl covered aluminum guard rail assembly.



Crash and bumper rails for high-impact areas

Crash and bumper rails for high-impact areas

PRODUCT CHARACTERISTICS

1、Antibacterial Materials

2.0mm vinyl surface cover plate has fine particles and compact density. It has ant-collision,fireproof,anti-scratch and abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.

The surface layer has anti slip fine lines and anti-fouling treatment,which is easy to clean.

Crash and bumper rails for high-impact areas

2、Solid And Durable

The 6063-T5 aluminum is oxidized to ensure no rust and it can be used for a long time.

Crash and bumper rails for high-impact areas

3、Comfortable And Convenient

The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.

Crash and bumper rails for high-impact areas

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.

Feature Specification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation



Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

Crash and bumper rails for high-impact areas

Installation Instruction

●Bolts&Screws

●Cut aluminum retainer and rubber strip to desured length

●Drill the doles

●Measure and transfer the handrail mounting hole locations from the bracket,elbow.

●Cut the vinyl cover to the lengths between returns and elbows.

Crash and bumper rails for high-impact areas

TECHNICAL DATA

 Certificate

 Certificate standard

 Result

 Antibacterial

 ASTME2180

 >99.9% inhibis growth

 Mould Proof

 ASTM G21-15

 0 Class non growth

 Fire and smoke Rating

 ASTM E84-17 Class A

 Class A

 Horizontal Burning

 UL94HB

 PASS

 Crashproo

 ASTM D256-10el

 PASS

 Chemical and Corrosion resistance

 ASTM D543-14/ASTM D2240-15/ASTM D638-14

 G00D

 TVOC

 CA CDPH 01350-voc

 G00D

 Color Diference

 SAEJ1545-2005

 G00D

 Color staining

 EN423:2001

 G00D

 Phthalate Test

 SGS

 PASS

 Fomaldehyde

 CA CDPH 01350-voc GB/T 18580-2017

 PASS

 Heavy metal Test[Lead& Cadmium

 CA65

 PASS

Application
Hospital hotel airport,High-end ofice building High-end Vila,kKindergarten,School,Sport Hal,Factory,.Plane,High-speed Train,Loose pulley.public place and so on.

PVC aluminum handrail with 159mm height LHR1591

PVC aluminum handrail with 159mm height LHR1591



wall protection vinyl sheet

wall protection vinyl sheet

Crash and bumper rails for high-impact areas

TECHNOLOGY DATA



QUALITY ASSURANCE

  • 1. Fire Performance Characteristics

Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM  E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.

2. Fungal and Bacterial Resistance

The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial  proof:JISZ2801:2010.

3. Mould Proof

ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.

4. Horizontal burning

As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.

5. Impact Strength

Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM  D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.

6. Environmental friendly

No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO  16000-3-6-9 AND SGS:CA CDPH 01350 -VOC

7. Does not stain

Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye,Staining test:EN423:2001.

8. ISO Certified

Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.

9. Chemical and CORROSION Resistance

Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.

10. No heavy metals

Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65

11. Durable and easy to install

Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.

versatile vinyl wall covering

Handrail LHR159 Series

●There're many colors for the Handrails as reference, including Wood colors Which can match with PinGer Wall Guards, Corner Guards & Pinger wall panel to create a perfect space.

●Above products are with bolts & screws.

Comparing with HR159 series,LHR159 series is with tight structure&exquisite finish.cover of HR159 series is in one ,but LHR159 series seperate it into grips,curve&bumper to make every part perfect and look luxurious with stronger resistant.

  • LHR1591
    Vinyl&Aluminum Handrail single color
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  • LHR1592
    Vinyl&Aluminum Handrail with different color curve
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  • LHR1593
    Vinyl&Aluminum Handrail with different color grip
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  • LHR1593W
    Vinyl&Aluminum Handrail with different wood color grip
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  •
  • LHR1594
    Vinyl&Aluminum Handrail with different color bumper
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  • LHR1594W
    Vinyl&Aluminum Handrail with different wood color bumper
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  • LHR1595

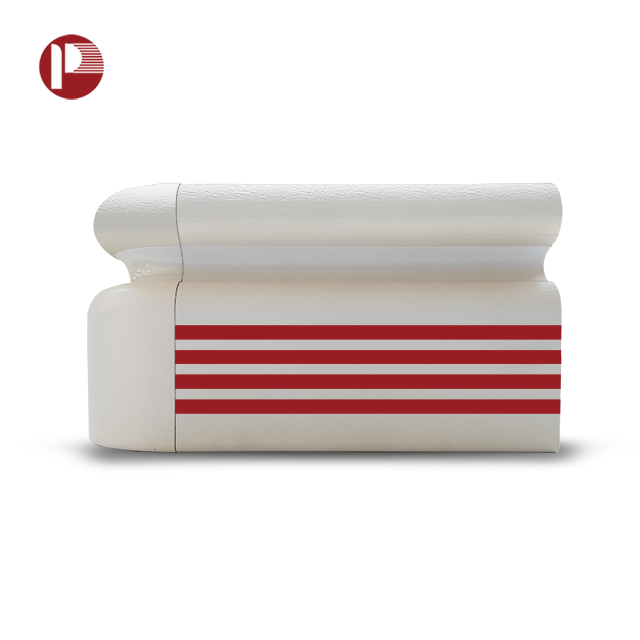

    Vinyl&Aluminum Handrail with 4 color lines on bumper
    159mm Height,5m Length
    38mm distance with wall,38mm grip

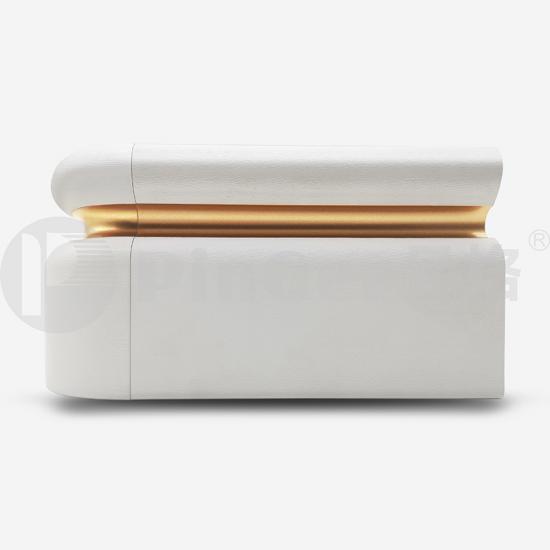

  • LHR1596
    Vinyl&Aluminum Handrail with golden color curve
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  •
  • LHR1597
    Vinyl&Aluminum Handrail with silver color curve
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  • LHR1598
    Vinyl&Aluminum Handrail with different color grip and bumper
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  • LHR1598W
    Vinyl&Aluminum Handrail with different wood color grip and bumper
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  • LHR1599
    Vinyl&Aluminum Handrail with different color curve and bumper 159mm Height
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  •
  • LHR15910
    Vinyl&Aluminum Handrail withdifferent color and bumper
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  • LHR15911
    Vinyl&Aluminum Handrail with different color and bumper
    159mm Height,5m Length
    38mm distance with wall,38mm grip
  •

Structural Drawings

Pinger Handrails installed on the wall which is about 80cm~ 90cm from floor.Handrails can protect the walls well from impact,at the mean while it can support the passerby also.

●Handrail assembled by 2mm vinyl Cover, 2mm Vinyl Cover Curve,2mm Vinyl Cover Bumper,Rubber Strip,2mm Aluminium Retainer,ABS Elbow,ABS Bracekt,ABS Outside Elbow,ABS Inside Elbow.

●Antibacterial vinyl cover+6063T aluminum +rubber strips with screws.

●Our patented all vinyl contoured handrail combined with high abuse gurad rail.

159mm height High impact PVC aluminum handrail

159mm height High impact PVC aluminum handrail

Fired proof wall protection handrail in hospital



[Pinger 品格 ® Cleaning and Maintenance]



Cleaning And Maintenance Requirements

Visitor folw rate

cleaning and maintenance

Stain processing

Privte room

one time in one year

Require time

Public place or corrider

two or three times in one year

Require time

Main channel or main entry door

one time lin one month

Require time

Remark:

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind:

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

A: Recently, we have heard that you have made many achievements in environmental protection. Could you please introduce company and your environmental protection measures?

B: We are a company committed to environmental protection, focusing on the production of green, pollution-free building materials products. Our products green formulations that are harmless to the human body, and we strive to minimize the negative impact on the environment in all stages of production, use, and recycling. We have advanced process technology, adhering to environmental protection principles from formulation to manufacturing application, achieving 0 wastewater and 0 waste gas emissions.



A: What efforts your company made to extend the life cycle of products and promote the sustainable use of resources?

B: We have EPD certification, committed to extending the life of products promoting the sustainable use of resources. Our products can not only be recycled but also be effectively recycled, reused, or converted into other useful materials at the end of their, truly achieving "from cradle to cradle". In this way, it can effectively reduce resource consumption and waste production, and reduce the burden on the natural environment



A: How do your company's handrail products address the needs of both handrail protection and decoration simultaneously?



B: Our handrail products feature functional properties such as being antibacterial, anti-mildew, fire-resistant, impact-resistant, stain-resistant, corrosion-resistant, lightweight, anti-ultraviolet, dimensionally stable, and easy to clean. These properties effectively protect the handrails, extending their service life and solving the handrail protection problem. Moreover, with a wide range of rich colors and wall 3D printing technology, they provide designers with extensive creative room, perfectly tackling the decoration needs. Additionally, our handrails are easy to install—construction generates no dust, contains no heavy metals, and releases no toxic or harmful gases like formaldehyde or toluene. Therefore, they can be installed one day and put into use the next, effectively ensuring people’s health.



A: You mentioned that you have obtained EPD certification, is this certification? What does it mean to you?

B: EPD certification is an assessment of the entire life cycle of a product, proving that it meets certain in environmental performance and complies with the principles of sustainable development. We have obtained this certification, which not only affirms the green, pollution-free, and recyclable of our products but also recognizes and proves our commitment and efforts to sustainable development. We will continue to develop innovative products, contribute to the concept of sustainable design, and together to build a healthy environment. Our long-term vision is to achieve sustainable development and become a leading environmental manager in the industry

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related products

High impact pvc hospital handrail

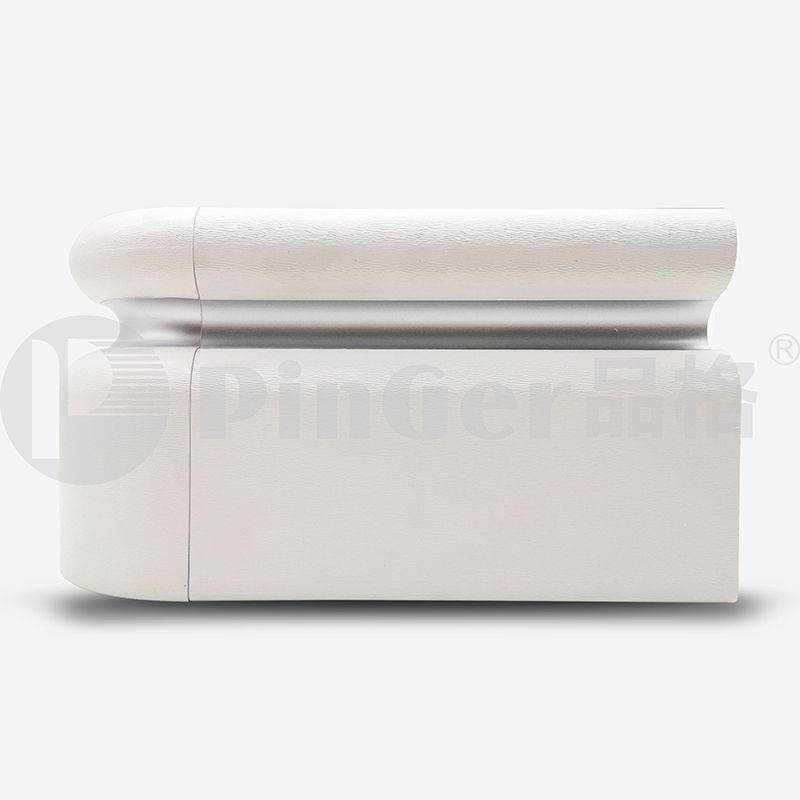

159mm height High impact PVC aluminum handrail

Model No.:LHR1591Materials:vinyl & aluminum in single color with rubber stripStandard Length:5mS...

Acrovyn wall protection handrail

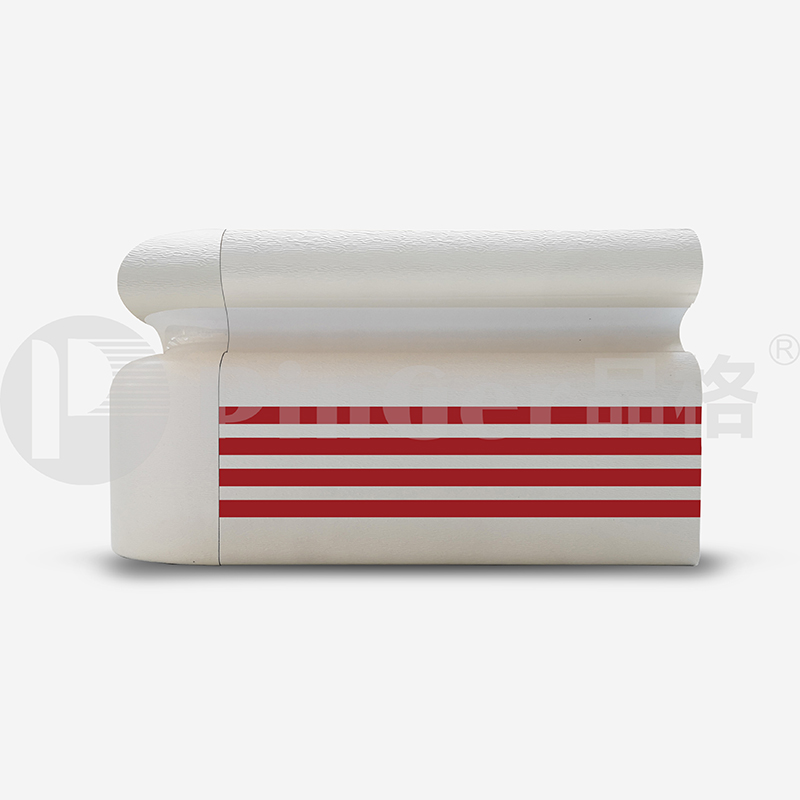

159mm Anti-Ligature Acrovyn Interior Wall Protection handrail

Model No.:LHR1595Materials:vinyl & aluminum with 4 color lines on bumperStandard Length:5mStanda...

safety anti collision handrail Discount
159mm Wall Antibacterial PVC Handrail

Model No.:LHR1593Materials:vinyl & aluminum(single color)Standard Length:5mStandard Width:159mmd...

wall mounted Crash handrails

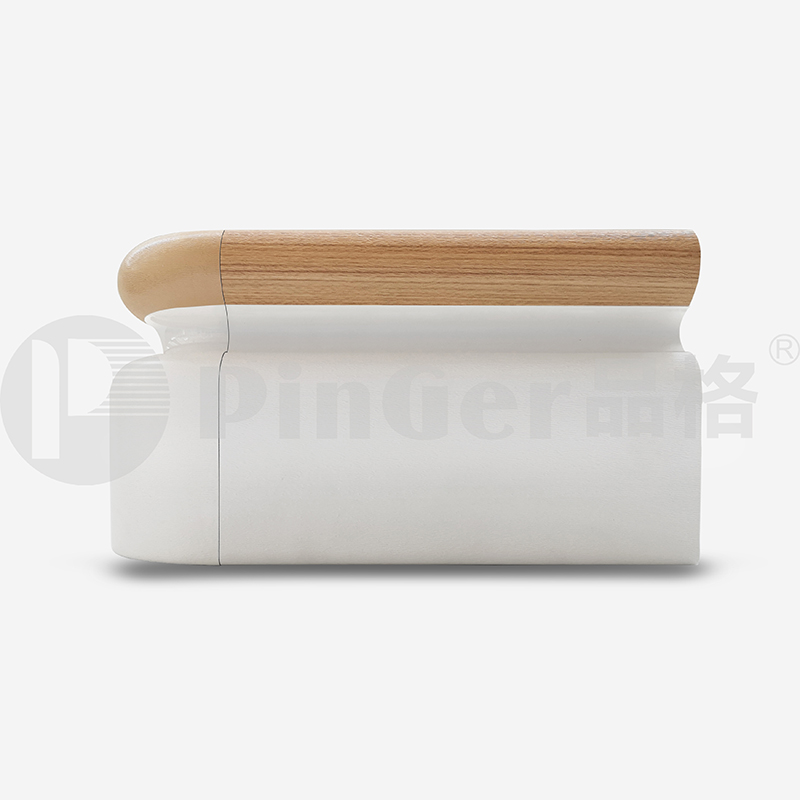

Vinyl Aluminium Bracket Hallway Crash Handrail

Model No.:LHR1593WMaterials:vinyl & aluminum with wood color gripStandard Length:5mStandard Widt...

Anti-Impact Crash handrails

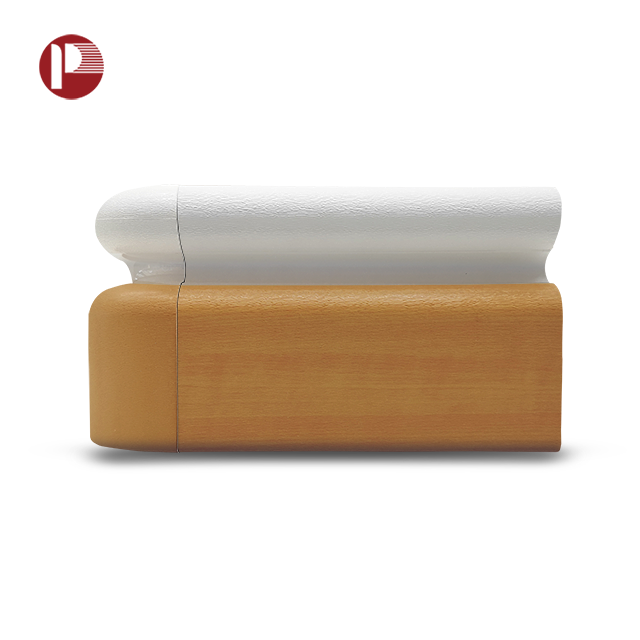

159MM Wood Grain Anti-Impact Crash Handrails

Model No.:LHR1594WMaterials:vinyl & aluminum(wood color)Standard Length:5mStandard Width:159mmdi...

Discount vinyl Anti-collision Handrails
Medical Anti-Collision Aluminum Handrails

Model No.:LHR1596Materials:vinyl & aluminum(golden color)Standard Length:5mStandard Width:159mmd...

vinyl crash handrail products
Aluminum Profile Medical Anti-Collision Handrail

Model No.:LHR1597Materials:vinyl & aluminum(silvery color)Standard Length:5mStandard Width:159mm...

Profile Medical Anti-collision Handrail

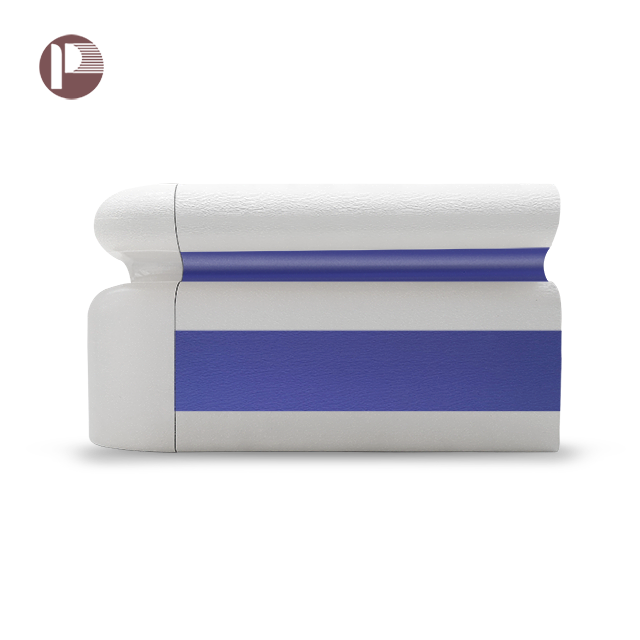

Hospital Corridor Arc Wall High Resistance Handrail
