Aged Assistance folding Grab Rails For Bathrooms Supplier,Manufacturer

Product Name：Aged Assistance folding Grab Rails For Bathrooms

●GB007 used beside the commode to assist user standing or sitting. Lift-up design offers a larger space for users.

TECHNOLOGY DATA
Brand	PinGer
Product No	GB007
Material	Nylon tube thickness：4mm，Aluminum：±1.5mm
Size	Can be made straight，U-shaped，L-shaped，seat，etc.，size standard size，can also be done according to customer size
Accessories	Countersunk head self tapping screw 6*60mm，6 PCT rubber
Scope of application	Hospital，nursing home，restaurant， hotel，school，kindergarten and other public places.
Color	White，yellow，or can be made according to customer requirements

PRODUCT CHARACTERISTICS

1、Antibacterial Environmental Protection

Strong antibacterial and antifungal，suppresses the growth of fungi on the surface of materials Nylon material that does not contain lead and any other metals and harms human health，is environmentally friendly and can be recycled.

2、Non-Slip Materia BARRIER-FREE HANDRAILS

With non-slip granule design for a firm grip，comfortable grip，warmth and safety.

3、Load-Bearing Design BARRIER-FREE HANDRAILS

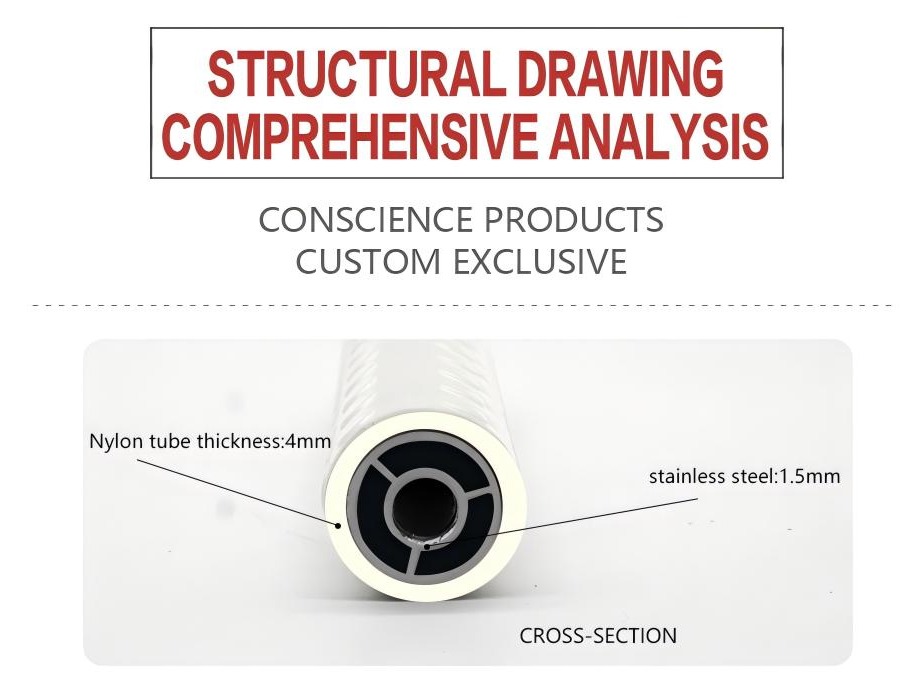

The outside nylon tube diameter is 35*3.5mm，retainer aluminum tube diameter is 28*1.5mm The combination of aluminum alloy tube and stainless steel tube is not easy to rust，and the design is tight and can be used for along time.

4、Anti-Aging Corrosion Resistant BARRIER-FREE HANDRAILS

Anti-aging，long service life，chemical resistance，strong corrosive，no rust，suitable for wet space，antistatic，wear resistant.

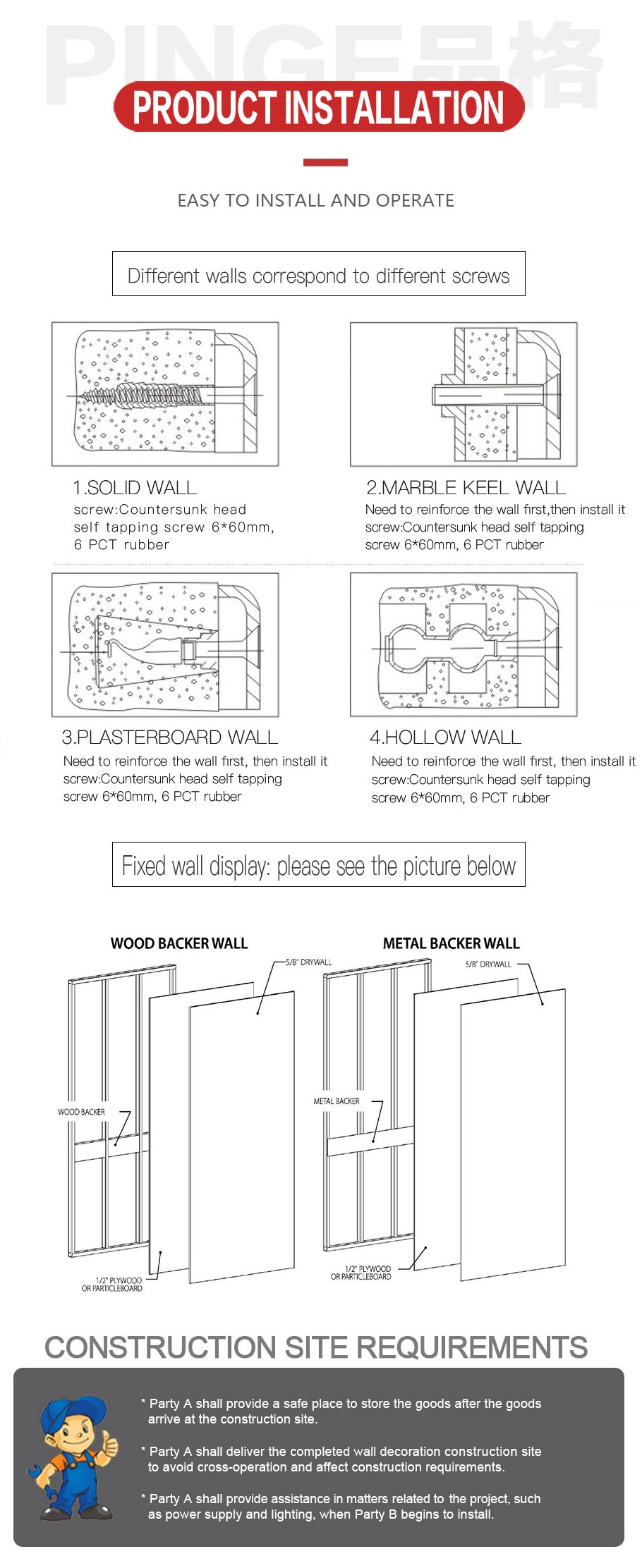

Installation Instruction

●Clean-upand Maintenance Instructions

●Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

●If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

●If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe

●Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning Tool Selection

●clothes: clean clothes or scouring pad

●Detergent: Use a neutral detergent or alcohol. Special reminder: oily (paint) stains trace is more difficult to remove, so the product can be made. spray painting to decorate the wall, such as oil (paint class) after the spray painting to remove and replace as a block wallboard. (Oily pen wants to wipe, usable pure alcohol or alcohol adds water to scrub and wipe).

TECHNICAL DATA
Certificate	Certificate standard	Result
Antibacterial	ASTME2180	>99.9% inhibis growth
Mould Proof	ASTM G21-15	0 Class non growth
Fire and smoke Rating	ASTM E84-17 Class A	Class A
Horizontal Burning	UL94HB	PASS
Crashproo	ASTM D256-10el	PASS
Chemical and Corrosion resistance	ASTM D543-14/ASTM D2240-15/ASTM D638-14	G00D
TVOC	CA CDPH 01350-voc	G00D
Color Diference	SAEJ1545-2005	G00D
Color staining	EN423：2001	G00D
Phthalate Test	SGS	PASS
Fomaldehyde	CA CDPH 01350-voc GB/T 18580-2017	PASS
Heavy metal Test[Lead& Cadmium	CA65	PASS
Appication
Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on.

CARE INSTRUCTIONS

Cleaning And Maintenance Requirements
Visitor folw rate	cleaning and maintenance	Stain processing
Privte room	one time in one year	Require time
Public place or corrider	two or three times in one year	Require time
Main channel or main entry door	one time lin one month	Require time

Renark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

TECHNOLOGY DATA

QUALITY ASSURANCE

1. Fire Performance Characteristics

Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.

2. Fungal and Bacterial Resistance

The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial proof:JISZ2801:2010.

3. Mould Proof

ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.

4. Horizontal burning

As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.

5. Impact Strength

Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.

6. Environmental friendly

No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO 16000-3-6-9 AND SGS:CA CDPH 01350 -VOC

7. Does not stain

Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye，Staining test:EN423:2001.

8. ISO Certified

Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.

9. Chemical and CORROSION Resistance

Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.

10. No heavy metals

Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65

11. Durable and easy to install

Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.

versatile vinyl wall covering

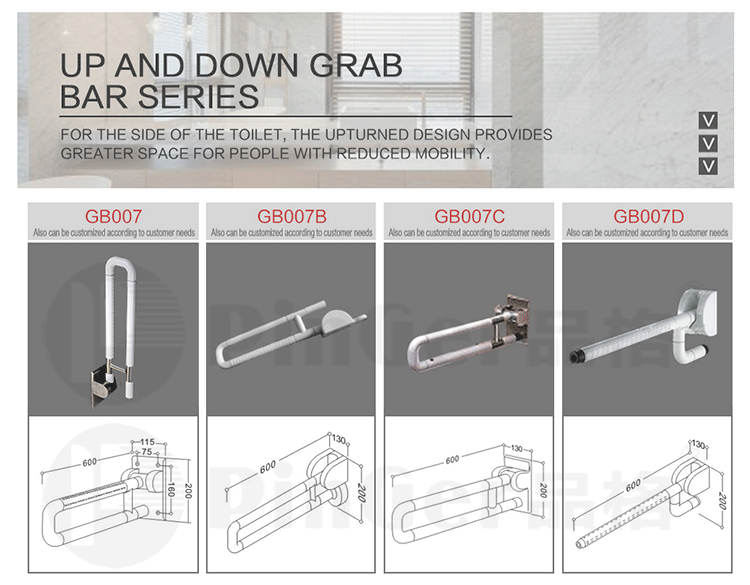

Grab Bar GB007

●Grab bars provide asistance when bathing orusing commode and improving bathroom safety and mobilityforthe elderlyor disabled. oft Nylon exterior gives sense owarmth and a non-slip surface! Nylon grab bar can kil surface bacteria in24 hours.

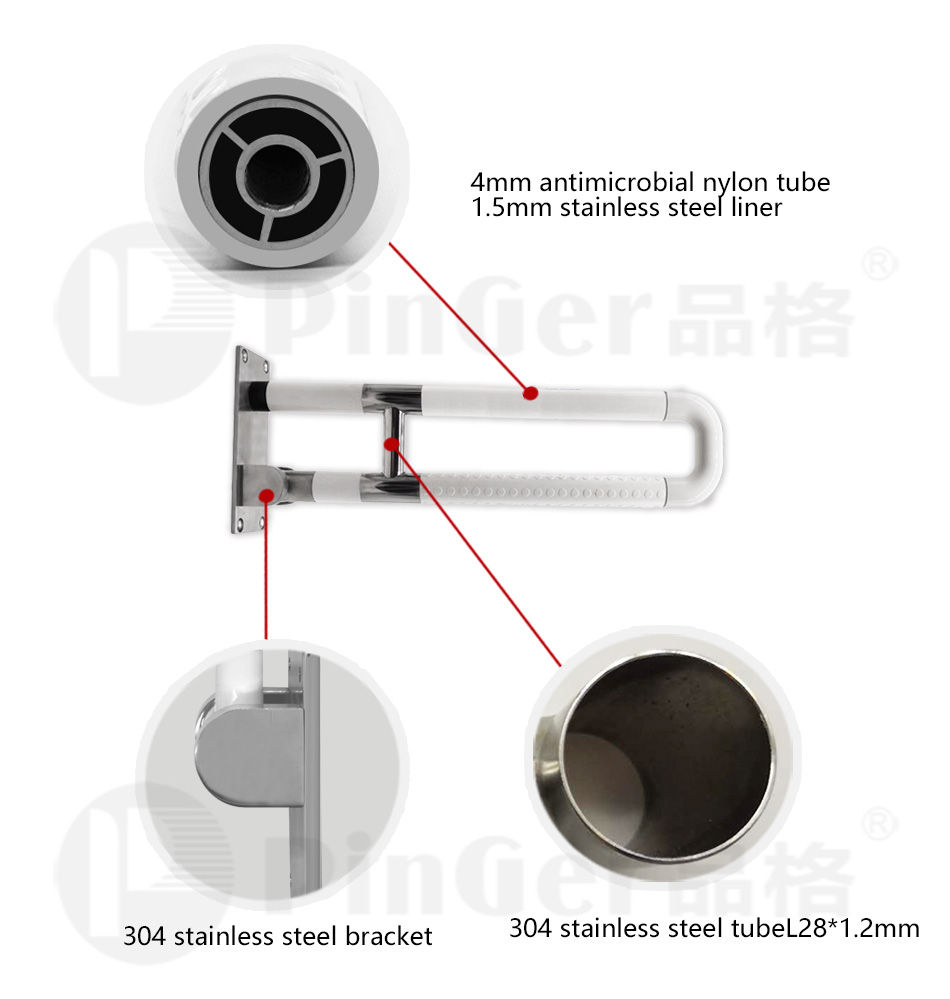

●Double aluminum (or304Stainless Steel) tubeinside offering a closed &corrosion resistance structure.

●Grab bars are often thought ofasonlyforthe eldery,but all people can use somethingto grab onto in case ofloss ofooting.falls in the bathroom are a leading cause ofinjury, Grab bars can help reduce the risk ofaccidents.

GB007

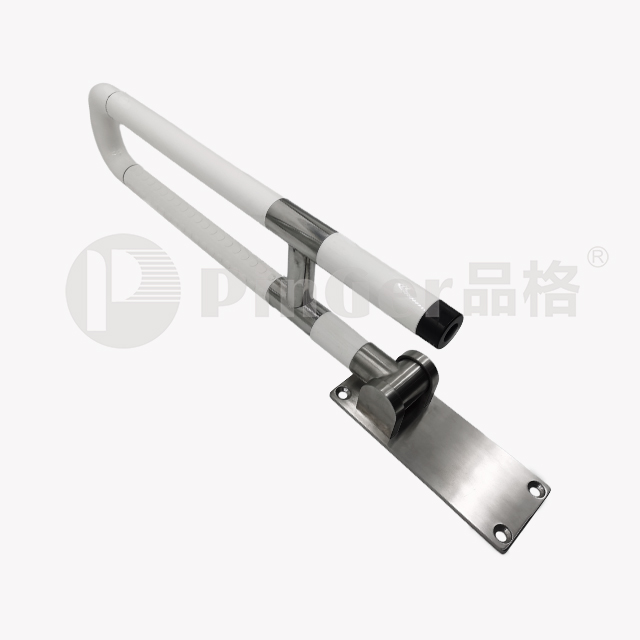

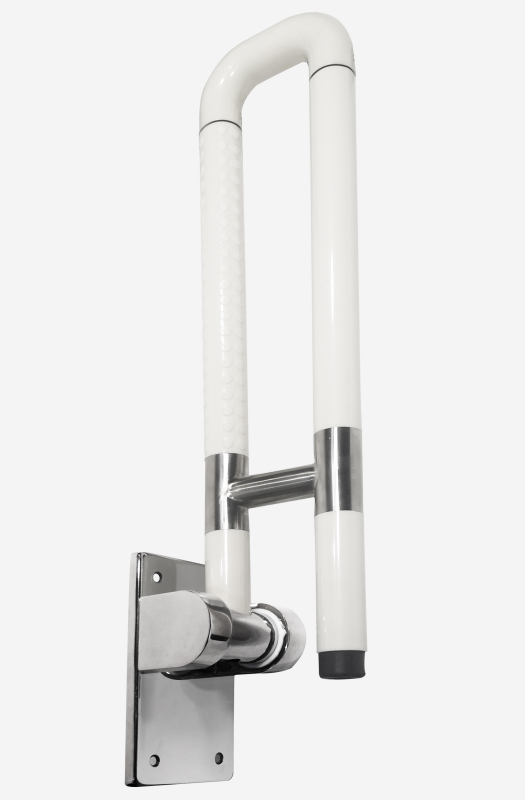

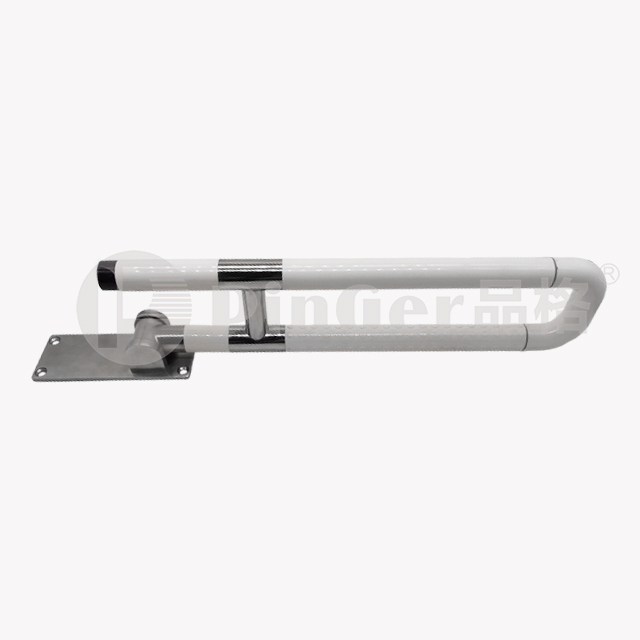

Nylon Lift-up Grab Bar.

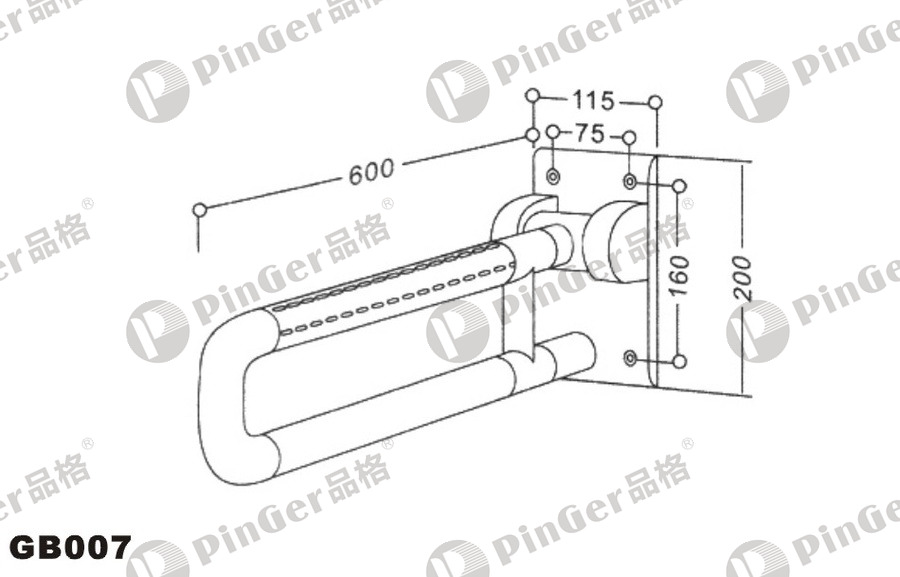

Dia. of Nylon is 35mm.

Length is 600mm and we can make the length as your request 304 stainless steelplate size is 200mmX115mm.

GB007 is used beside the commode to assist userstanding orsitting.

Lift-updesign offers alarger sapce for users.

Nylon Antibacterial Safety Shower Handrails

STURUCTURAL

PRODUCT CHARACTERISTICS

1、Antibacterial Environmental Protection

Strong antibacterial and antifungal，suppresses the growth of fungi on the surface of materials Nylon material that does not contain lead and any other metals and harms human health，is environmentally friendly and can be recycled.

Aluminum Toilet Barrier Free Handrail

2、Non-Slip Materia BARRIER-FREE HANDRAILS

With non-slip granule design for a firm grip，comfortable grip，warmth and safety.

Aluminum Toilet Barrier Free Handrail

3、Load-Bearing Design BARRIER-FREE HANDRAILS

The outside nylon tube diameter is 35*3.5mm，retainer aluminum tube diameter is 28*1.5mm The combination of aluminum alloy tube and stainless steel tube is not easy to rust，and the design is tight and can be used for along time.

Aluminum Toilet Barrier Free Handrail

4、Anti-Aging Corrosion Resistant BARRIER-FREE HANDRAILS

Anti-aging，long service life，chemical resistance，strong corrosive，no rust，suitable for wet space，antistatic，wear resistant.

Aluminum Toilet Barrier Free Handrail

[Pinger 品格 ® Cleaning and Maintenance]

Cleaning And Maintenance Requirements
Visitor folw rate	cleaning and maintenance	Stain processing
Privte room	one time in one year	Require time
Public place or corrider	two or three times in one year	Require time
Main channel or main entry door	one time lin one month	Require time

Remark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

A: Recently, we've heard that your company has achieved a lot in environmental protection. Could you introduce your company and the environmental - protection measures for your anti - collision handrails and Grab Bars?

B: We're a company deeply committed to environmental protection. Our anti - collision handrails and Grab Bars are designed with a strong emphasis on being green and pollution - free. For our anti - collision handrails, they are typically made with a combination of high - quality materials. The outer layer is often crafted from eco - friendly PVC material, which is not only durable but also free from harmful substances. The inner core is usually made of aluminum alloy, which is highly recyclable. As for our Grab Bars, we use non - toxic ABS materials for the main body and stainless - steel components that are corrosion - resistant and recyclable. During the production process, we've adopted advanced technologies to minimize waste. For example, we optimize the cutting process to reduce material scraps. Also, we've made great efforts to cut down on energy consumption by using energy - efficient equipment.

A: What efforts has your company made to extend the life cycle of anti - collision handrails and Grab Bars and promote the sustainable use of resources?

B: Our anti - collision handrails, like the standard - sized ones we produce, are designed to be highly durable. The PVC outer layer can withstand regular impacts and wear - and - tear, which significantly extends the product's lifespan. They also come in a wide variety of colors, allowing them to match different interior designs and thus be used for a long time without losing their aesthetic appeal. When it comes to Grab Bars, they are made of sturdy materials that can endure heavy use. Even when these products reach the end of their useful life, we're actively exploring recycling methods. We aim to ensure that the materials such as PVC, aluminum alloy, and stainless steel can be recycled or repurposed, reducing the amount of waste going to landfills.

A: How do your anti - collision handrails and Grab Bars meet the needs of both protection and decoration?

B: Our anti - collision handrails are multi - functional. They are highly impact - resistant, effectively safeguarding walls from damage caused by collisions, whether it's from furniture, equipment, or people moving around. Additionally, they have excellent stain - resistance and are easy to clean. This ensures that they maintain a good appearance over time. In terms of decoration, we offer a wide range of colors, numbering in the dozens. This enables the handrails to match different interior design styles, whether it's in a modern - style hospital, a cozy nursing home, a stylish restaurant, a luxurious hotel, a vibrant school, or a colorful kindergarten. Our Grab Bars also serve a dual purpose. They provide reliable support for people, especially in areas like bathrooms where safety is crucial. At the same time, with their sleek designs and available color options, they can blend well with the surrounding decor and add a touch of functionality and style to the space.

A: Are there any other certifications or features that highlight the quality and environmental - friendliness of your anti - collision handrails and Grab Bars?B: Currently, although we may not hold the EPD certification, our products are designed in strict accordance with environmental - friendly concepts. We're constantly engaged in research and development to meet even higher environmental standards. For instance, the materials we use guarantee that no harmful substances are released during the product's use. We're also in the process of seeking more comprehensive certifications. This is to better demonstrate our dedication to product quality and environmental protection. Our goal is to continuously improve our anti - collision handrails and Grab Bars to contribute to a more sustainable built environment.
